Clarifying & disinfecting
The double-walled CFM wax clarifier made of stainless steel stainless steel is used for clarifying and disinfecting the beeswax. We recommend a temperature of 70 – 90 °C for the production of candles and about 130 °C for the production of middle walls (at this temperature the rotten brood and nosemospores are killed). To ensure guaranteed disinfection, the process must take at least 45 minutes at 130 °C.Attention: Operation only with a filling of a heat transfer medium!Details:• Inside Ø: 30 cm• Total amount: approx. 69 cm• Height inside: ca. 55 cm• Amount of heat transfer medium needed: 19 litres• Level Floor to upper drain: ca. 4 litres• 3 /4 “ Ball valves• Upper drain tap: for clean wax• Lower drain valve: dirt drain• Thermostatically adjustable immersion tube heater 3 kW / 230 V (51 – 158 ° C)Additional accessories – please order separately: Art. -Nr. 6000304 heat transfer mediumWeight: without heat transfer medium approx. 20 kgChargeable weight: 31 kg

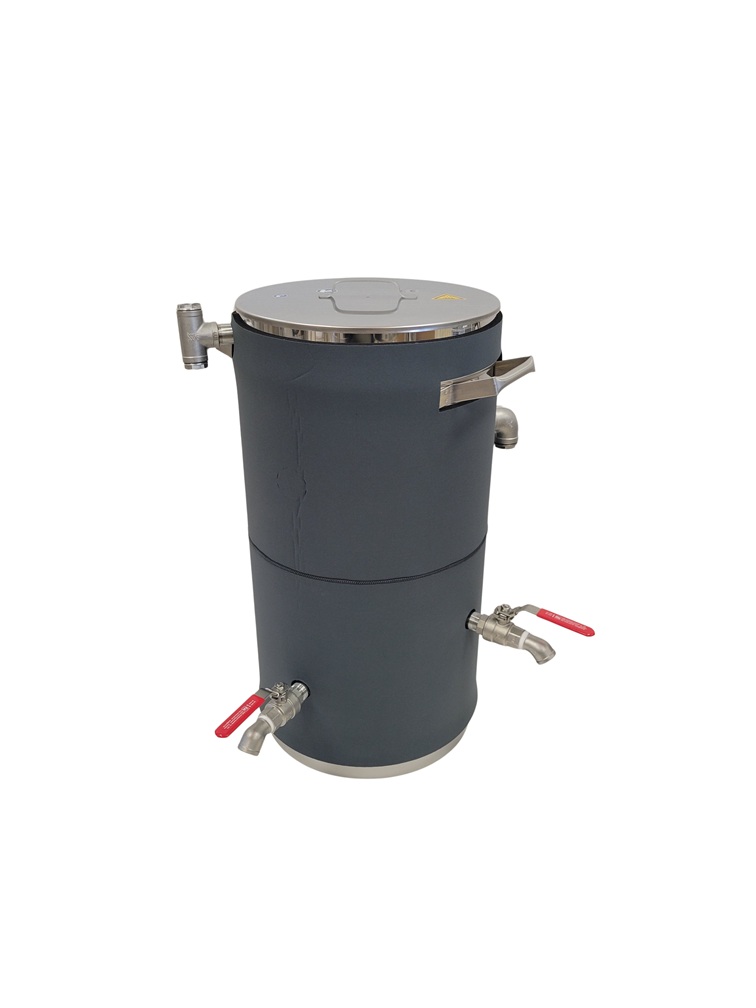

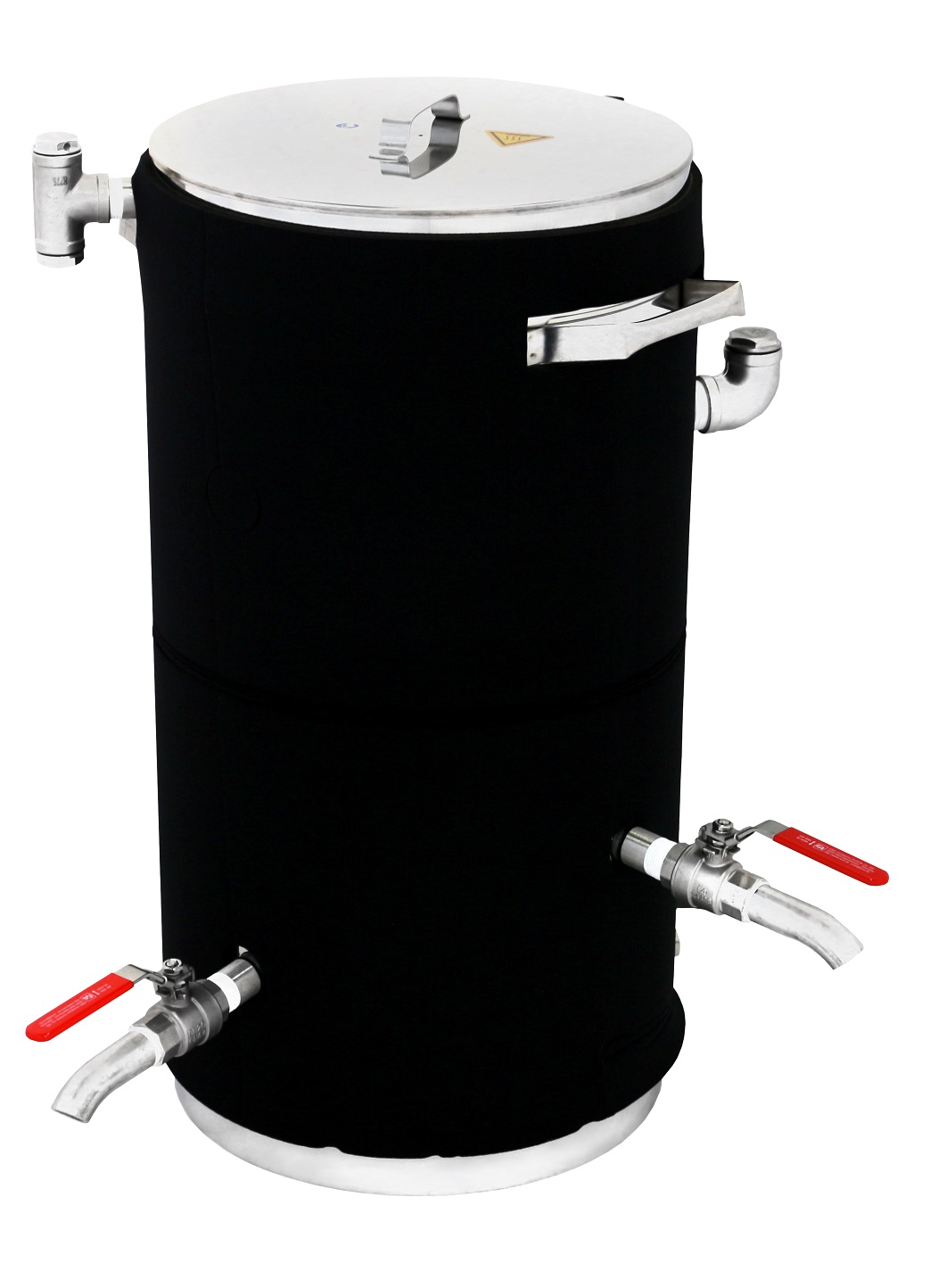

Suitable for wax clarifying tank 35 litre, item no. 5000300• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be taken out or put back in / pressed in again if required• Weight approx. 1 kg

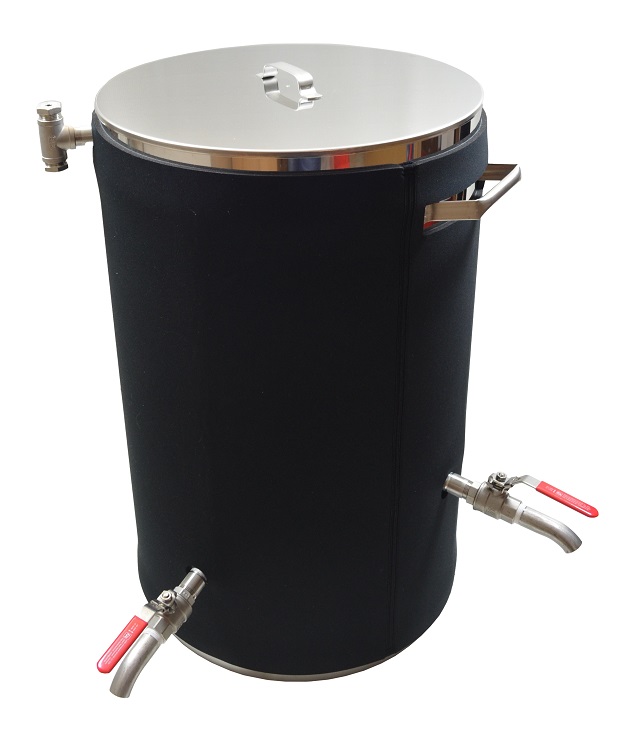

Suitable for wax clarifying tank 75 litre, item no. 5000301• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be taken out or put back in / pressed in again if required• Weight approx. 1.2 kg
CFM-Stand for double walled wax clarifying tank 35 liter (item no. 5000300)• made of stainless steel• height about 35 cm• for tanks with Ø 34 cm

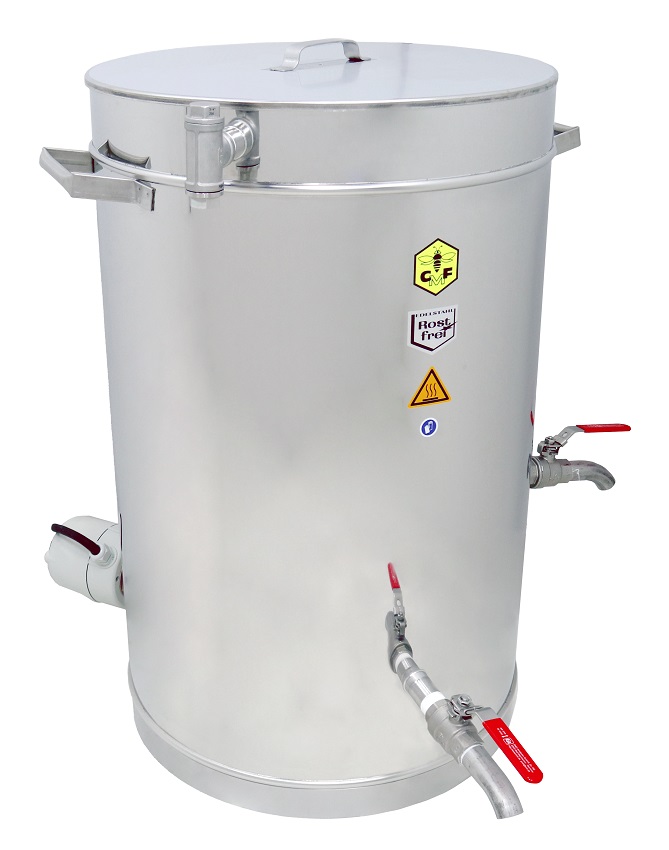

The double-walled CFM wax clarifier made of stainless steel stainless steel is used for clarifying and disinfecting the beeswax. We recommend a temperature of 70 – 90 °C for the production of candles and about 130 °C for the production of middle walls (at this temperature spores are killed). To ensure guaranteed disinfection, the process must take at least 45 minutes at 130 °C.Attention: Operation only with a filling of a heat transfer medium!Details:• Inside Ø: 43 cm• Total amount: approx. 78 cm• Height inside: ca. 60 cm• Amount of heat transfer medium needed: 38 litres• Level Floor to upper drain: ca. 7 litres• 3 /4 “ Ball valves• Upper drain tap: for clean wax• Lower drain valve: dirt drain• Thermostatically adjustable immersion tube heater 3 kW / 230 V (51 – 158 ° C)Additional accessories – please order separately: Art. -Nr. 6 000 304 heat transfer mediumWeight: without heat transfer medium approx. 27 kgChargeable weight: 36 kg

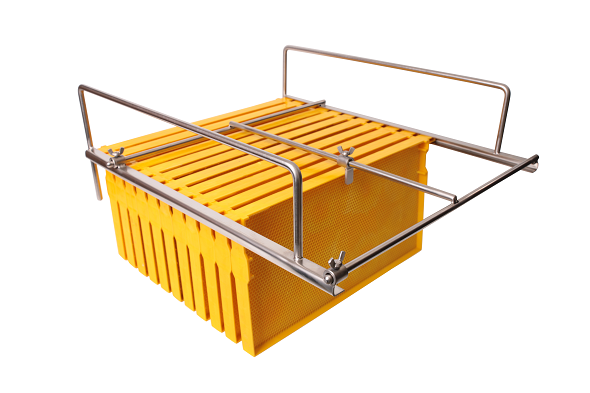

The frame holder for disinfection tank made of stainless steel is adjustable in width so every frame size can fit.Capacity: 15 - 20 frames (depending on the contour of the side part)Adjust the distance to the frame width and put in the frames. Afterwards make sure that the frames cannot move. Now put it into the bath by catching the handles of the holder.Weight: 2 kg

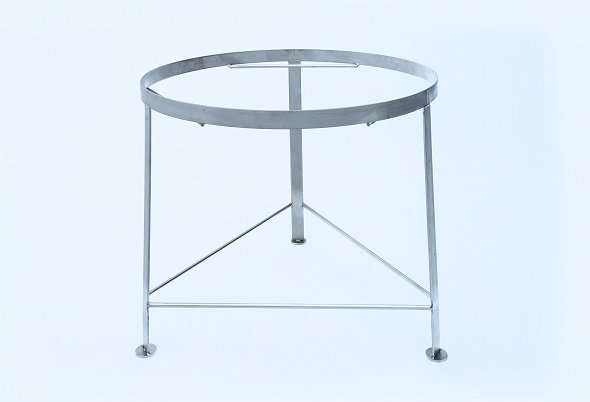

CFM-Stand for double walled wax clarifying tank 75 liter (item no. 5000301)• made of stainless steel• height about 35 cm• for tanks with Ø 47 cm

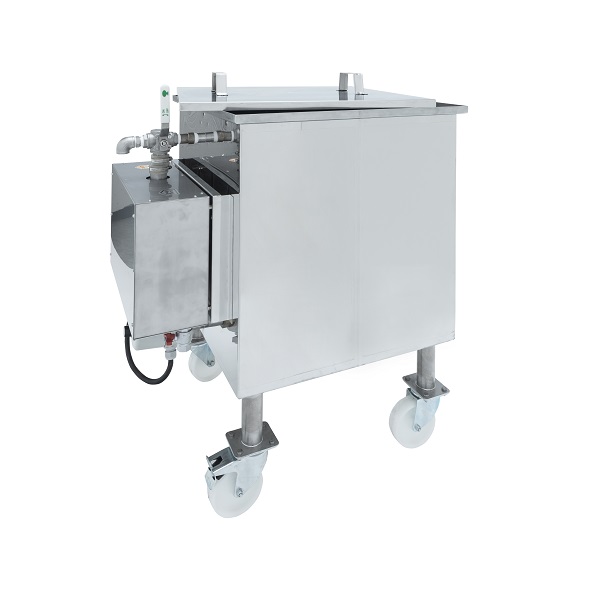

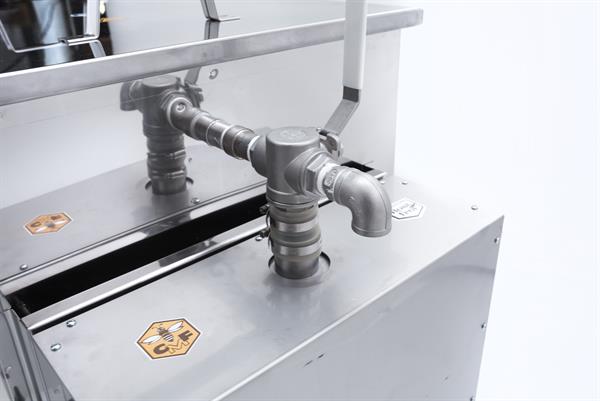

Combination to melt the wax out of frames and for the disinfection of frames or hive parts in 3% sodium hydroxide solution• Material: stainless steel• Inner dimensions: 59 x 59 x 59 cm• Legs with 4 rolls, 2 of them can be locked• Powerfull steam generator 6 kW / 400 V• Tray made of perforated sheet metal for residue• Immersion pipe heating element adjustable via thermostat from 30 to 100°C to heat up the desinfection solution• 2 grids to hold the frames and hive parts when running the desinfection• With ¾” ball valveWeight: 43,5 kg Chargeable weight: 76 kg

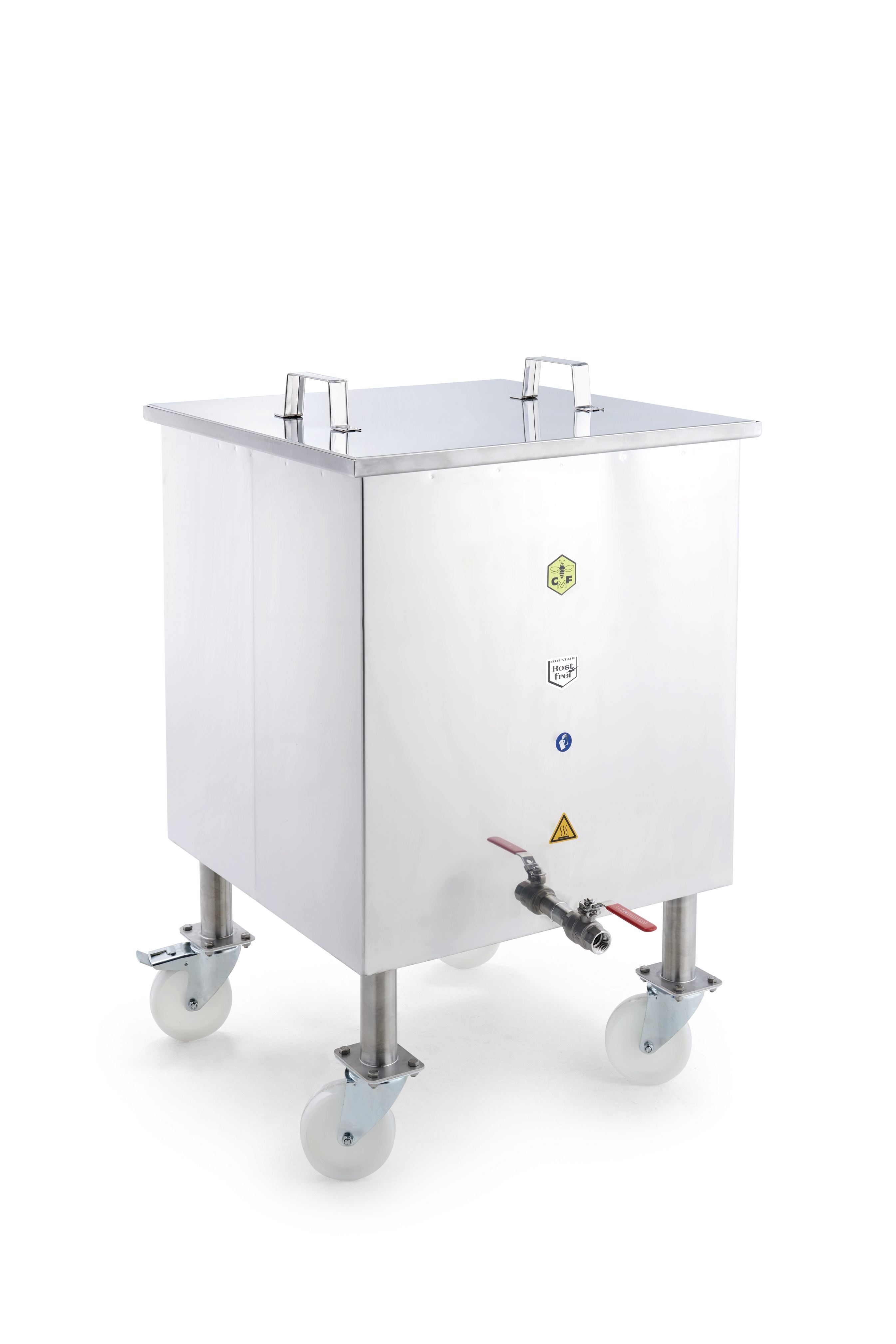

Made of stainless steel. For the disinfection of frames or hive parts in 3% sodium hydroxide solution. Tank and 2 grates, with ¾” ball valve, legs with 4 rolls, 2 of them can be locked.Inner dimensions: 59 x 59 x 59 cmThis article can be used with a highcapacity propane burner (no. 6090302). NOT inclueded.If you want to you it with propane burner, the rolls will have to be removed according to the handbook.
The disinfection tank made of stainless steel is equipped with two grates, a 3/4" ball valve and 4 wheels (two can be locked).For the disinfection of frames or hive parts use a 3% sodium hydroxide solution.• Incl. 20mm insulation of the outside wall• Inner dimensions: 59,5 x 59,5 x 60 cm• Outer dimensions: 65,5 x 65,5 x 104 cm• Immersion pipe heating element adjustable via thermostat (30 - 100 °C)Additional equipment - please order separately:Item no. 5000307 frame holder for desinfection tankWeight: approx. 58 kgChargeable weight: 80 kg

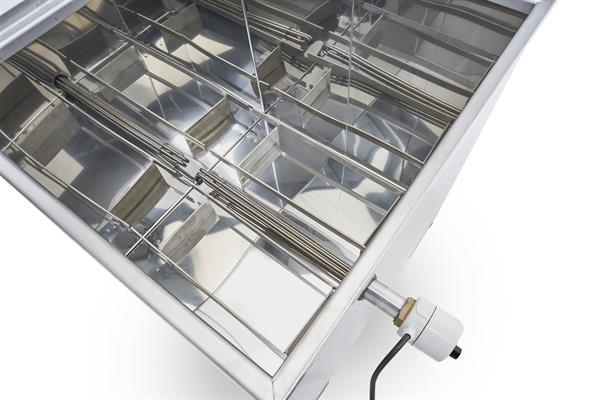

The disinfection tank made of stainless steel is equipped with two grates, a 3/4" ball valve and 4 wheels (two can be locked).For the disinfection of frames or hive parts use a 3% sodium hydroxide solution.• Inner dimensions: 59 x 59 x 59 cm• Immersion pipe heating element adjustable via thermostat (30 - 100 °C)Additional equipment - please purchase separately:Item no. 5000307 bottom heatingWeight: approx. 43,5 kgChargeable weight: 58 kg
Combination to melt the wax out of frames and for the disinfection of frames or hive parts in 3% sodium hydroxide solution• Material: stainless steel• Incl. 20mm insulation of the outside wall • Inner dimensions : 59 x 59 x 60 cm• dimensions : 66 x 66 x 106 cm• Legs with 4 rolls, 2 of them can be locked• Powerfull steam generator 6 kW / 400 V• Tray made of perforated sheet metal for residue• Immersion pipe heating element adjustable via thermostat from 30 to 100°C to heat up the desinfection solution• 2 grids to hold the frames and hive parts when running the desinfection• With ¾” ball valve
