Beehive scales

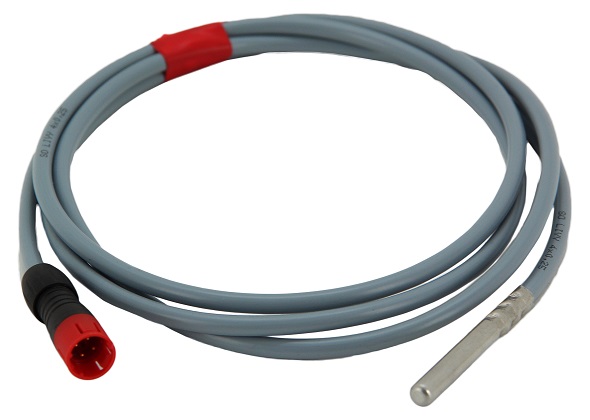

Wired Extension Sensor for all models ApiGraph for recording the stick temperatureTechnical information- Resolution 0.1 °C- Cable length 1.5 m- Cable sensor with stainless steel sensor sleeve- 4-pin connector plug- Connection to stick scale or extension cable EasyLoad-CR3

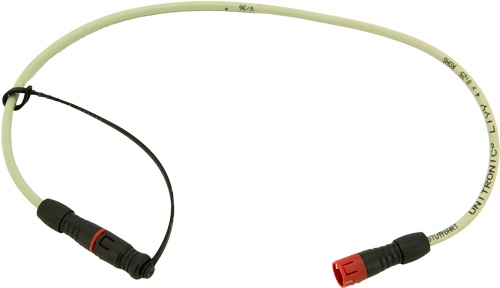

Charging Cable for recharging the hive scale from the outsideTechnical information- Cable length: 50cm- With cap- 4-pole plug connection- Designed for outdoor use all year round- If brood chamber temperature sensor is used, sensor must be unplugged during charging process

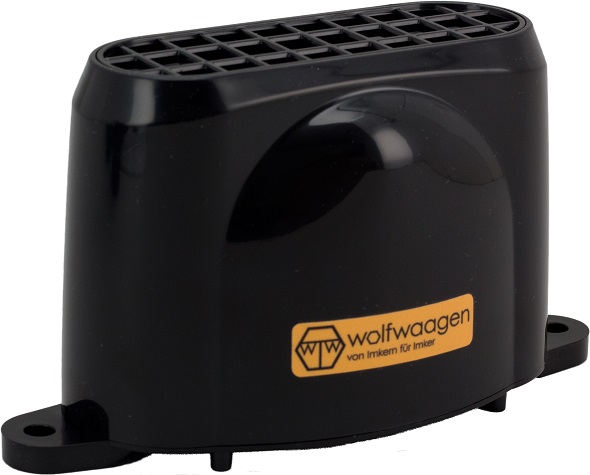

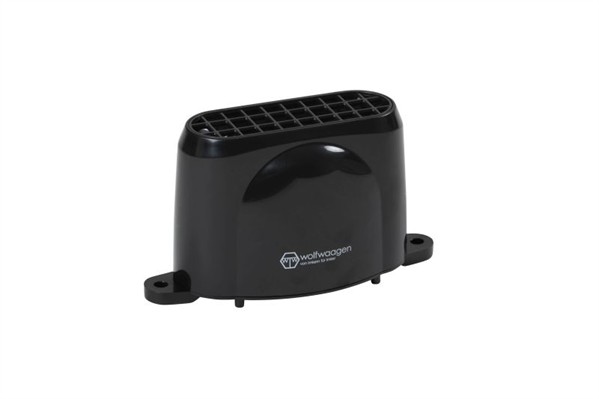

Radio Extension Sensor for all models ApiGraph (except Junior) to detect the amount of precipitationTechnical information- Resolution: 0.5 liters per sqm- Radio range: up to 100 m- 2 pcs. AA batteries, runtime approx. 1 year

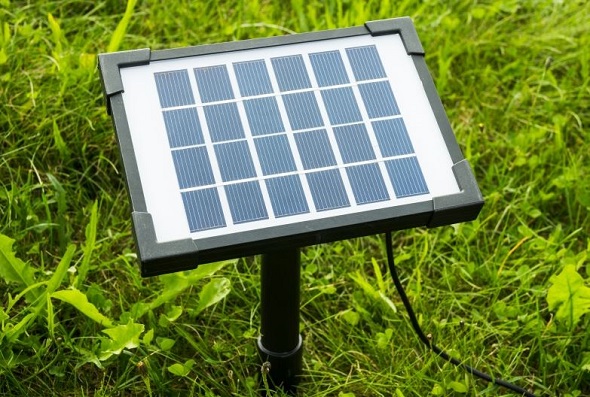

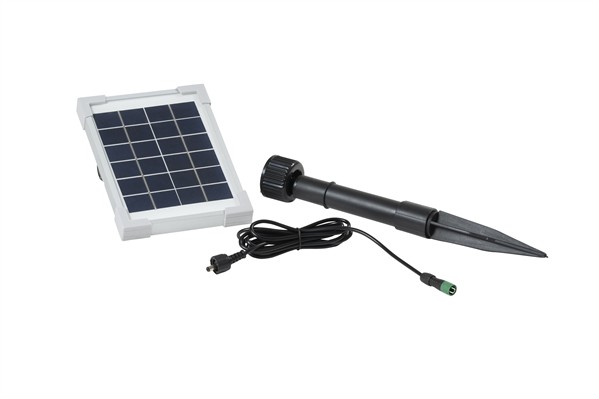

Solar Panel SolarLoad-CR3 for self-sufficient and year-round power supply for all models ApiGraphTechnical information- Cable length: 2 m (extendable on request)- Recommended for year-round outdoor use- Ground spike includedDimensions (Length × Width × Height): 21,60 × 13,50 × 4,00 cm

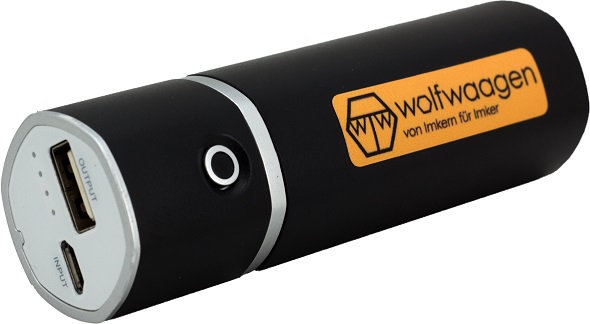

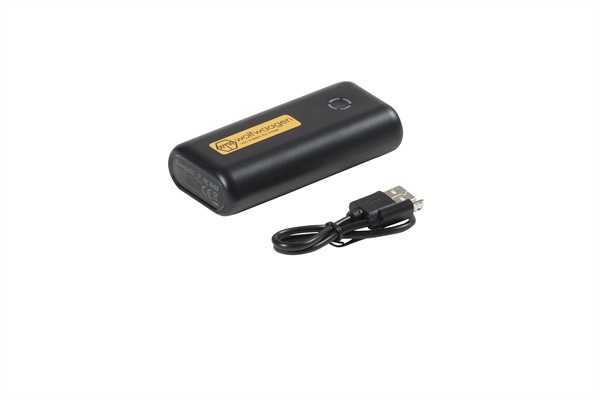

Mobile Battery for recharging all models ApiGraphTechnical information- Charging capacity 10 000 mAh- With USB port for mobile recharging- Recharging recommended at outdoor temperature > 10°C

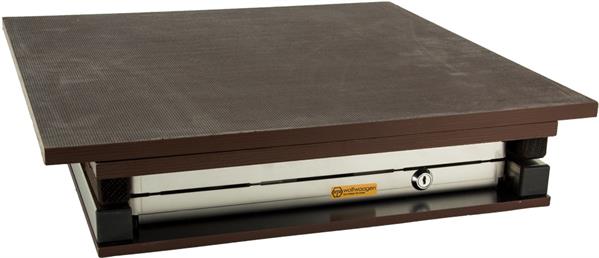

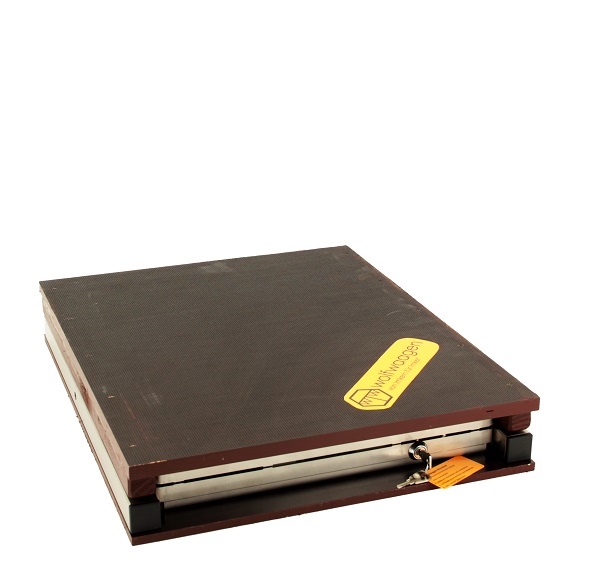

Here you will find product videos: https://www.youtube.com/results?search_query=wolf+waagen   LTE beehive scale ApiGraph Generation 4 with Wolf SIM & server connectivity:Main hive scale with expansion options for loads up to 200 kg:Wolf SIM card basic charge for the first year included. Scope of delivery:• ApiGraph 4 beehive scale base frame• Cover plate configurable (51 × 51 cm or 43 × 51 cm – PLEASE SPECIFY WHEN ORDERING!)• Wolf SIM card (basic charge for the first year included)• USB charging cable• LTE antenna with stand base Technical Information• Battery: Rechargeable lithium-ion battery• Accuracy: 10 g• Load capacity: 200 kg• Measurement interval: 5 minutes• Temperature-compensated load cells: 2• Dual-beam system• Sensor connection interface available• Expansion scale connection interface available• Remote maintenance function available Optional sensors which are not included in the set.• Temperature/ humidity sensor ApiClimate-RF3 (no. 6005377)• Precipitation Sensor ApiRain-RF3 (no. 6005376)• Brood Body temperature sensor ApiBrood-CR3 (no. 6005375)• Wind sensor ApiWind-RF3 (no . 6005378) PLEASE NOTE:We want to point out the following running costs (with yearly payoff). For the first year these costs are included in the price. After the first year the costs will be charged directly by Wolf-Waagen. - Server charge 30.25 € excl. VAT for the first year independent to the number of scales. - Wolf SIM card (optional) 21.01 € excl. VAT for the first year per card incl. data communication

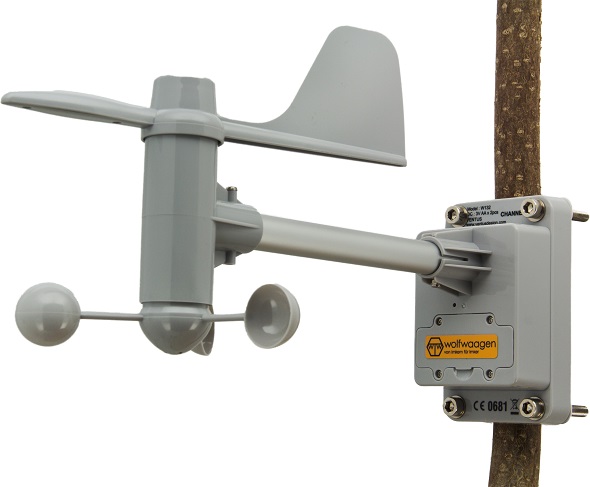

Wireless expansion sensor for all ApiGraph models (except Junior) for measuring wind direction and wind speedTechnical Information• Resolution: 0.5 m/s• Wind direction compass included• Wireless range: up to 100 m• Batteries: 2 × AAA (replace once per year) – not included

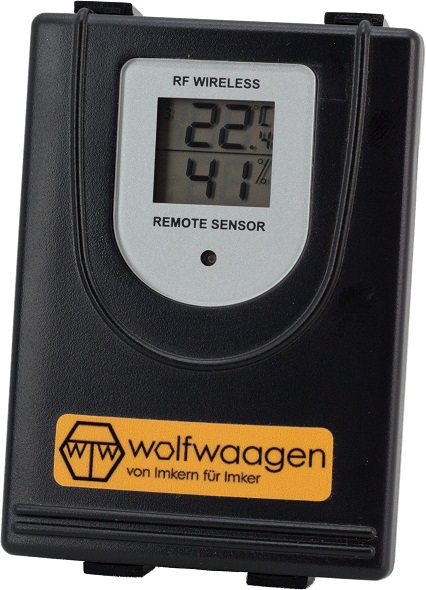

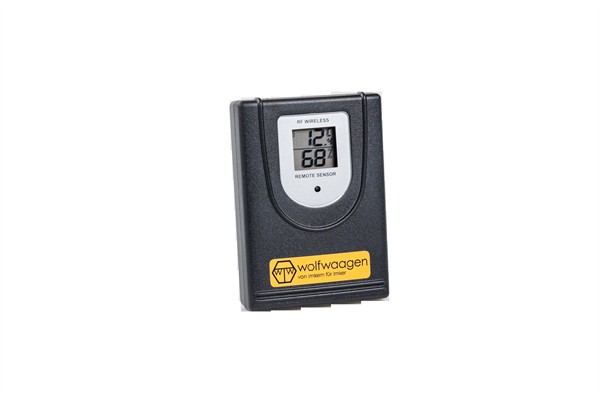

Radio Extension Sensor for all models ApiGraph (except Junior) for detection of outdoor temperature and humidityTechnical information- Resolution: 0.1 °C, 1% r.h.- Measuring range: 20-99% rel. humidity- Radio range: up to 100 m- 2 pcs. AAA batteries, runtime approx. 1 year
