Radial Honey Extractors

The basic model of our radial extractors with motor. The extractor has a honey tap and practical handles at the tank.For cleaning just open the wing nuts at the cross-beam and take off the complete drive including the lids.Suitable for:• 18 shallow frames (side bar up to 16 cm and side bar width 42 mm)• Frame sizes: Dadant super, Zander half and super, German Standard half and super, Langstroth half and super frames Technical details:• Top drive with safety device• Motor 110 W / 230 V• Hinged acrylic glass lid halfs• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 18 shallow frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 111 cm• Distance from the floor to the honey tap: 38 cm• Conversion into tangential extractor possibleIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: approx. 50 kg / approx. 40 kgWrapping: cardboard boxChargeable weight: 50 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203818 Radial cage for 18 shallow framesItem no. 5303818 Grids to insert into the cage Item no. 5003840 4-Frames tangential cageAcrylic glass lid half on request

The basic model of our CFM-Honey radial extractors with "Whispering Witch".Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 18 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 18 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 115 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: cardboard boxSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303818 3 gridsItem no. 5003840 4 frames tangential cage 38 x 46cmAcrylic glass lid half on request

Suitable for:• 16 deep frames / 28 shallow frames (side bar up to 17 cm and side bar width 38 mm)• Frame sizes: Dadant super, Zander, Zander half and super, German Standard, German Standard half and super, Langstroth frames, 16 Manley framesTechnical details:• Top drive with safety device and lid locking system• Motor 270 W / 230 V• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 16 deep frames / 28 shallow frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 115 cm• Distance from the floor to the honey tap: 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 40 kg / 66 kgWrapping: Wooden palletChargeable weight: 66 kg Spare parts and accessories:Item no. 6000070 Ball for bottom bearingItem no. 6300062 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203828 Radial cage for 16 deep / 28 shallow framesItem no. 5303828 Grids to insert into the cage Acrylic glass lid half on request

The smallest of our CFM-Honey radial extractors with "Extractor Witch" (motor drive).This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames• Direct drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 111 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 30 kg / 24 kgWrapping: cardboard boxSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303712 3 gridsItem no. 5003244 4 frames tangential cage 32 x 46cmAcrylic glass lid half on request

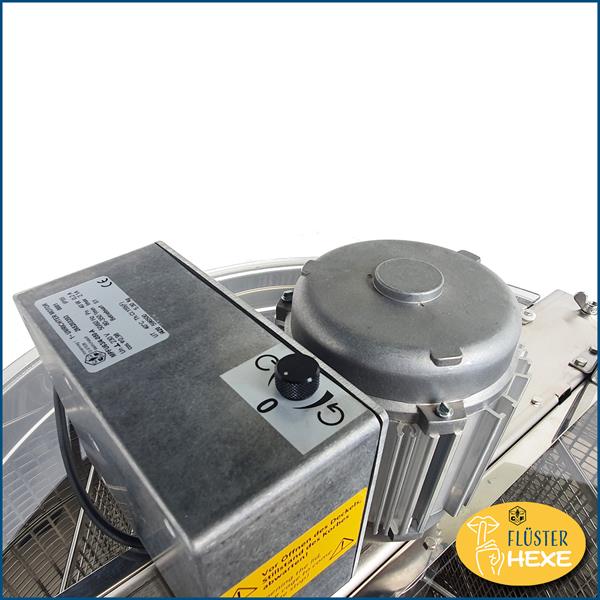

The smallest of our CFM-Honey radial extractors with "Whispering Witch".Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 115 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: cardboard boxChargeable weight: 40 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303712 3 gridsItem no. 5003244 4 frames tangential cage 32 x 46cmAcrylic glass lid half on request

The smallest of our CFM-Honey radial extractors with manual driveAdvantages are the compact design and the fact that you can run this honey extractor without electricity.This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow framesTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 110 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: cardboard boxChargeable weight: 26 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303712 3 gridsItem no. 5003244 4 frames tangential cage 32 x 46cmAcrylic glass lid half on request

This extractor is equipped with our new CFM "Whispering Witch" (direct drive). Why whispering witch? Because this drive is amazingly quiet even at full speed In addition to the wonderful quietness of the drive, the comfortable operation is also a major advantage. You have everything under control with one knob - can it be easier?The extractor has a honey tap and practical handles at the tank.Suitable for:• 12 deep frames• Frame sizes: Zander, German Standard, Langstroth, Dadant superTechnical details:• Direct drive with safety device• Motor 40 W / 230 V• Very quiet drive even at full speed• Infinitely variable speed control 80 - 350 rpm• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 deep frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 120 cm• Distance from the floor to the honey tap: 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 38,5 kg / 69 kgWrapping: Wooden palletSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300059 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 104 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 140 kg / 170 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

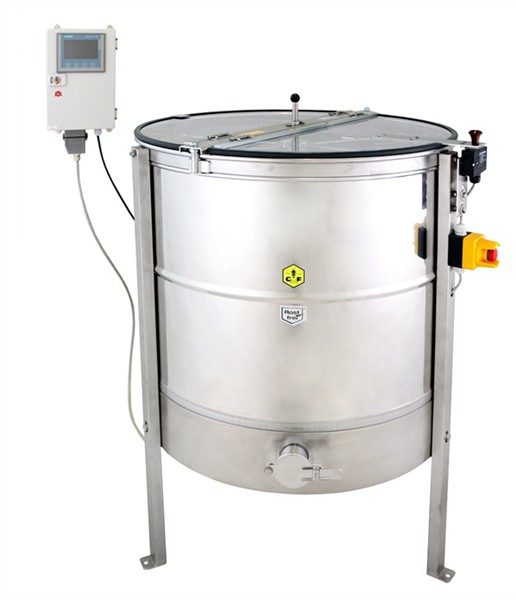

Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 102 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 95 kg / 120 kgPacked on a wooden palletChargeable weight: 120 kg Tripod (5055000) for speed control has to be ordered separatly!

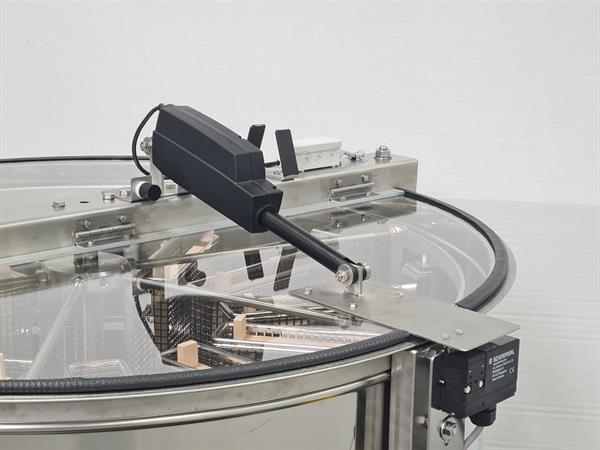

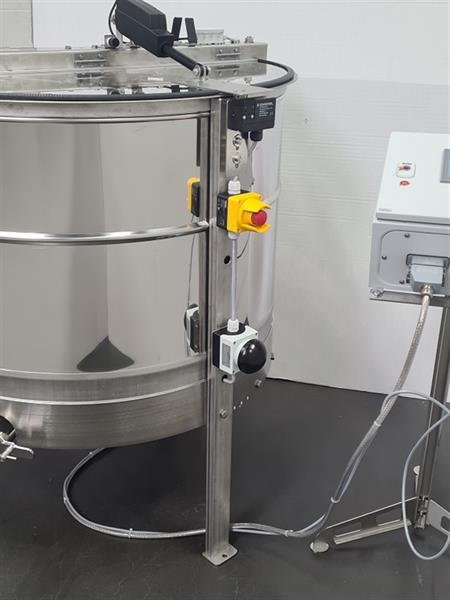

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: 180 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 110 cm• Total height: 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom level• Cage can be exchanged with a 4 or 6 pockets self-turning cageWeight: 85 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

*** Special price II. Choice - works properly ***This extractor is equipped with our new CFM "Whispering Witch" (direct drive). Why whispering witch? Because this drive is amazingly quiet even at full speed In addition to the wonderful quietness of the drive, the comfortable operation is also a major advantage. You have everything under control with one knob - can it be easier?The extractor has a honey tap and practical handles at the tank.Suitable for:• 12 deep frames• Frame sizes: Zander, German Standard, Langstroth, Dadant superTechnical details:• Direct drive with safety device• Motor 40 W / 230 V• Very quiet drive even at full speed• Infinitely variable speed control 80 - 350 rpm• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 deep frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 120 cm• Distance from the floor to the honey tap: 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: Wooden palletSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300059 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 104 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 134 kg / 180 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

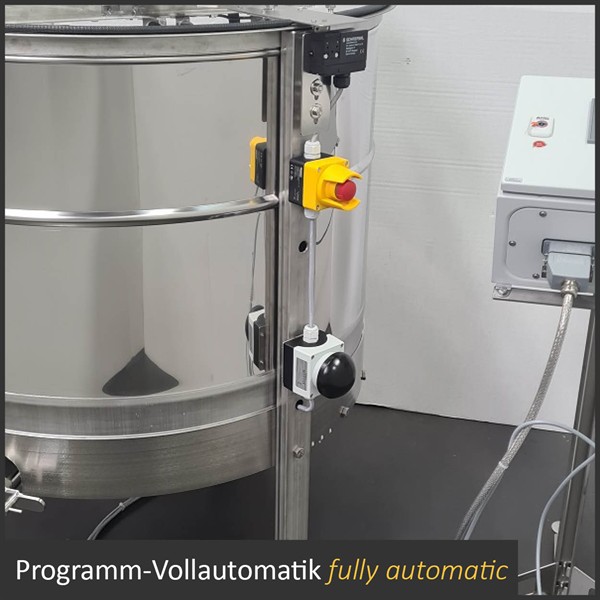

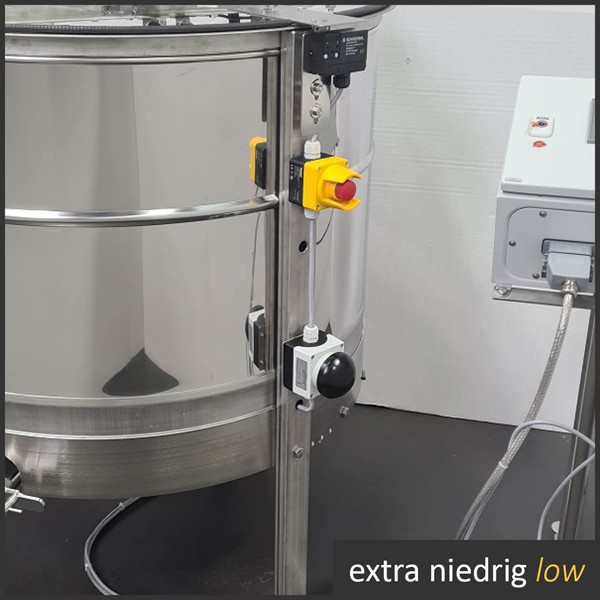

Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 1500W / 230V• With electrical lid opener• Push-to-open via special button• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: 220 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 105 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight approx. 175 kg / with wrapping approx. 220 kgPacked on a wooden palletChargeable weight: 220 kgTripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 20 deep frames (side bar length up to 22 cm and side bar width 42 mm)• Frame sizes: British Standard, BS Manley, BS Hoffmann, Commercial, Langstroth and other common framesTechnical details:• Top drive with safety device and lid locking system• Motor 270 W / 230 V• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 20 deep frames• Material: Stainless Steel• Total height: 113 cm• Distance from the floor to the honey tap: 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 40 kg / 66 kgWrapping: Wooden palletSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300062 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5303828 Grids to insert into the cage Acrylic glass lid half on request

Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: 220 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

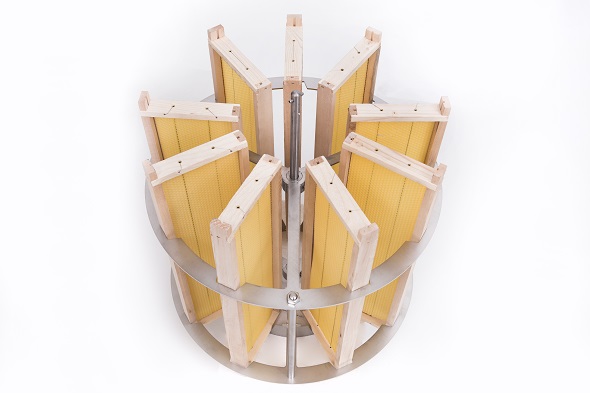

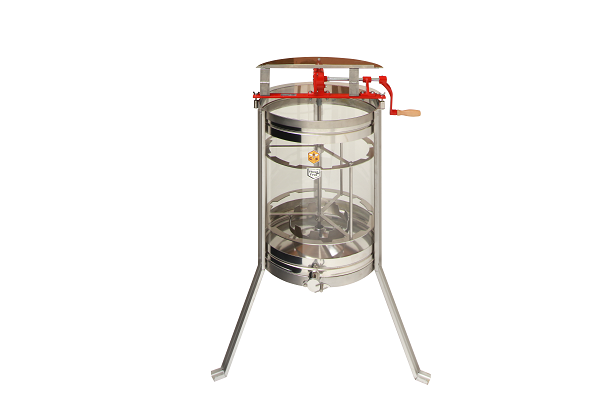

Suitable for:• 9 shallow frames (side bar length up to 16 cm and side bar width 40 mm)• Frame sizes: Dadant shallow, Zander shallow, DN shallow, Langstroth shallowTechnical details:• Manual drive• Hinged acrylic glass lid halves• Inner tank Ø 50 cm• Material: Stainless steel and food grade acrylic glass• Grids available to insert into cage for tangential extracting• Ideal for demonstration of extracting process• Total height 116 cm• Distance from floor to the tap / bottom of tank: 40/38 cm• Honey tap clear span Ø 36 mmWeight without/with wrapping: 20 kg / 25 kgWrapped in a cardboard boxChargeable weight: 34 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5037033 3 grids made of stainless steelAcrylic glass lid half on request

Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 110 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom level• Cage can be exchanged with a 4 or 6 pockets self-turning cageWeight: 115 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 110 cm• Total height: 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 6 or 8 pockets self-turning cageWeight: 145 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

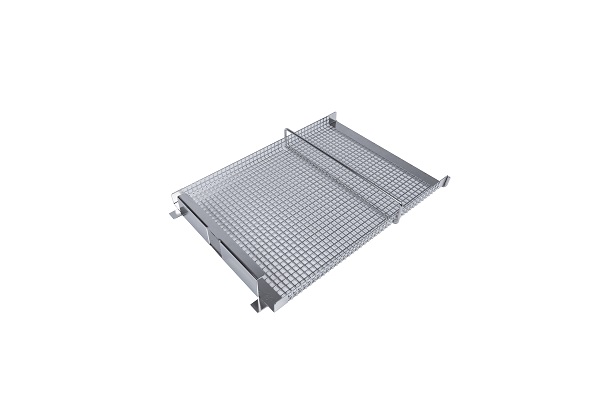

• Gitterfläche 360 x 450 mm• 4 Einhängegitter aus Edelstahl-Rostfrei• zum Einhängen in Radialschleudern mit Kesselinnen-Ø 72 cm• für 4 Ganz- oder 8 HalbrahmenPassend zu Honigschleuder Art.-Nr. 5272028 und 5772028

Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 1500W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: 220 kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!

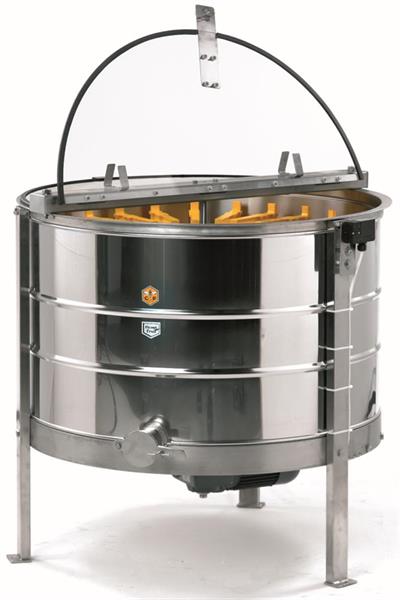

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 750W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: 180 kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 100 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: XX kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

Our Radial extractor especially for SWISS frames with adjusted cage height.The extractors is equipped with our new "Whispering Witch".Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 17.5 cm side bar length and 40 mm side bar width • Frame sizes: low cage version especially made for SWISS frames• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 SWISS frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 115 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: approx. 50 kg / approx. 40 kgWrapping: cardboard boxChargeable weight: 50 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712-CH 12 SWISS frames radial cageItem no. XXX 3 gridsItem no. 5003840 4 frames tangential cage 38 x 46cmAcrylic glass lid half on request

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: 180kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 105 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight approx. 175 kg / with wrapping approx. 220 kgPacked on a wooden palletChargeable weight: 220 kgTripod (5055550) for speed control has to be ordered separatly!

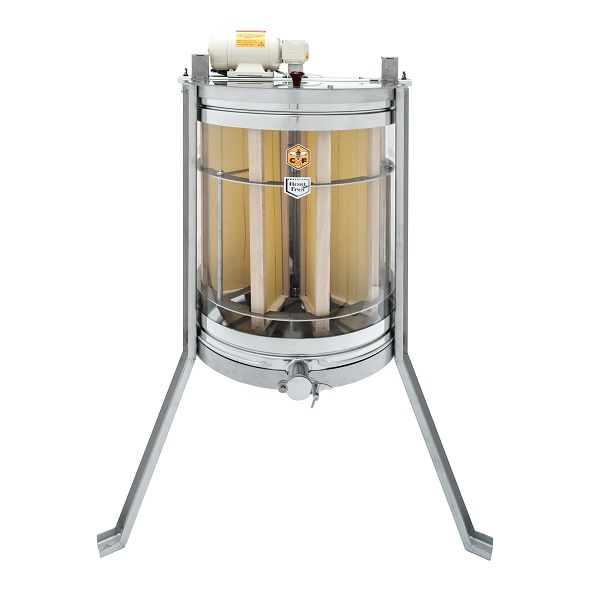

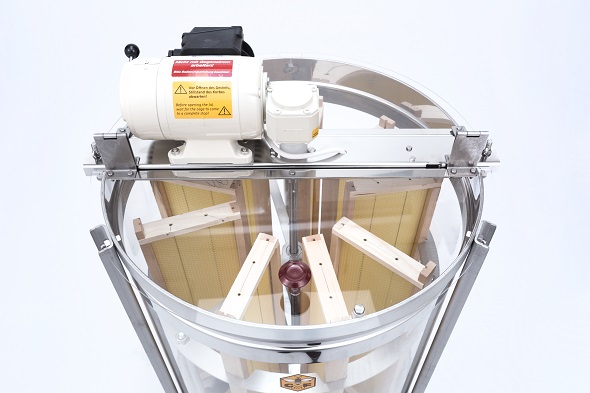

Suitable for:• 9 shallow frames (side bar up to 16 cm and side bar width 40 mm)• frame sizes: Dadant, Zander shallow, DN shallow, Langstroth shallowTechnical details:• top drive with safety device• motor 110 W / 230 V• hinged acrylic glass lid halfs• tank inner-Ø 50 cm• grids available to insert into cage• stainless steel and food grade acrylic glass• total height 116 cmWeight: 23 kgChargeable weight: 38 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingAcrylic glass lid half on request

Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: 220 kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!

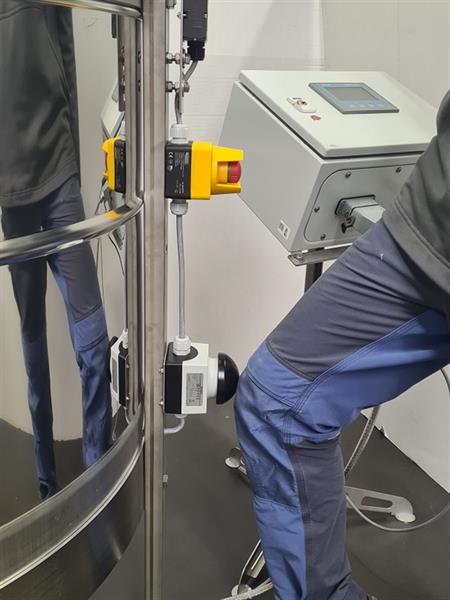

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• With electrical lid opener• Push-to-open via special button• Bottom drive 750W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: 180 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

* Our innovation for 2020 *This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier? Suitable for:• 9 shallow frames up to 16 cm sidebar length and 40 mm width• Frame dimensions: Dadant, Zander shallow, DN shallow, Langstroth shallow Technical data:• Direct drive with safety switch• Motor power 40 W / 230 V• Very quiet drive, even at full speed• Infinitely variable speed control 80 - 350 rpm • Hinged acrylic glass lid halves• Inner tank Ø 50 cm• Material: Stainless steel (cage) / food safe acrylic glass (tank)• Total height 116 cm• Distance from the floor to the bottom edge of the tank 38 cmWeight: 23 kg Packaging: Cardboard boxChargeable weight: 38 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5037033 3 grids made of stainless steelAcrylic glass lid half on request

Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 115 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 6 or 8 pockets self-turning cageWeight: 145 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
