CFM-Radial extractor 20 d./36 sh. frames, Ø85cm, motordrive underneath, radial fully automatic
€5,347.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames
• Frame sizes: Zander, German Standard, Langstroth, Dadant shallow
Technical details:
• Emergency stop button
• Safety device with lid lock
• Bottom drive 370W / 230V

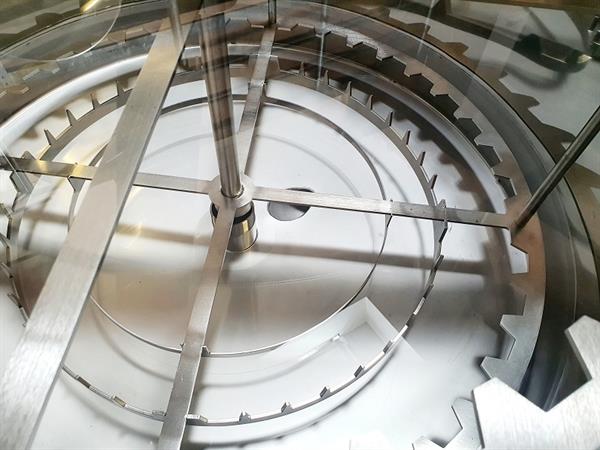

• Radial fully automatic with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 85 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Material: stainless steel
• Loading height: 115 cm
• Distance from the floor to the honey tap: 38 cm

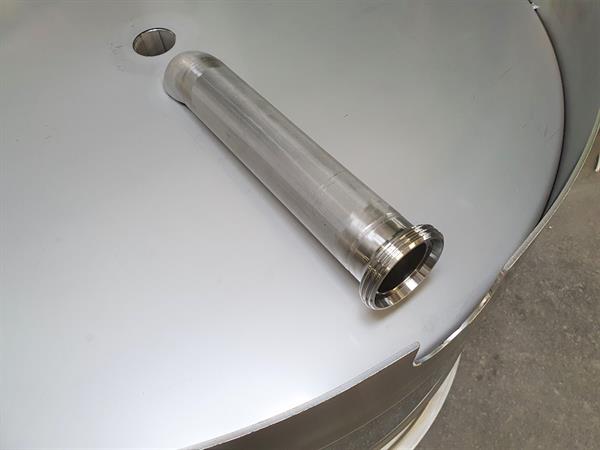

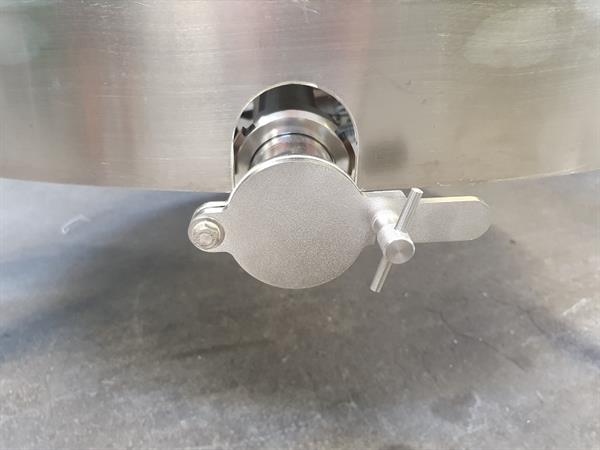

• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
• Cage can be exchanged with a 6 or 8 pockets self-turning cage
Weight: 145 kg
Packed on a wooden pallet
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 20 Ganz-/36 Halbrahmen |
|---|---|
| Diameter: | 85 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 370 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 25 cm (35 mm breit) |
Login
accessories
Ball big Ø 15 mm for insertion into the bottom bearing.For honey extractors with drive or motor on BOTTOM of the honey extractor.
1 set (contains 3 pieces) of rubber feet with metal parts from stainless steel for honey extractors inner-Ø 84 - 125 cm with M12 threaded pin and nut.Protect your floors and ensure your extractor stands more firmly.Height of each rubber foot is 30 cm.
Plastic cover for the bottom bearing of honey extractors with bottom drive.The plastic cover protects the bottom bearing while cleaning the Honey extractor.colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
