Honey creamer
Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 50 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C
Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 40 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C
Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 38 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C
Installation by CFM. For 25 kg, 35 kg and 50 kg tanks and 50 kg CFM-honey creamer and homogenizer
Half hose coupling mad of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 50 mm.For connecting hoses to disc valves.
Hose clamp 35-50 mm made of stainless steel V2A.
Half hose coupling made of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 40 mm.For connecting hoses to disc valves.
Half hose coupling mad of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 38 mm.For connecting hoses to disc valves.
Wire hose clamp 54 - 60 mm for hose DN 50.This wire hose clamp is especially for spiral hose.
Half hose coupling made of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 40 mm.For connecting hoses to disc valves.
Very useful support to keep the hose in position. You stick the hose through the support and hang it on the rim of the tank, the hose sits very tight
Wire hose clamp 43 - 48 mm for hose DN 40.This wire hose clamp is especially for spiral hose.
Half hose coupling made of stainless steel with cone connecting piece DN38 and locking nut DN 50 for hose-Ø 38 mm.For connecting hoses to disc valves.Especially suitable when you want to connect our CFM honey creamer with a hose Ø 38mm to a Swienty bottling machine.
Bottom ring specially designed for the temperature control unit if the tank has a bottom heating, height 83.5 cm. The removable tray can be adjusted from 50 cm to 70 cm distance from the ground.
The bottom heating 800 W / 230 V is installed by our expert staff.Bottom heating thermostatically adjustable for tanks, honey creamers and honey extractors up to inner-Ø 50 cm.
Solid pipe construction made of stainless steel, height 50 cm, with 4 steering rolls, 2 of them are equipped with a locking brake, suitable for No. 5300191 & 5309191 & 5022300.
You fix the silicone cable with aluminium adhesive tape to the tank. With thermostat you can control the temperature.For tanks with an inner Ø smaller than 77 cm.
Total length 170 cmLength of the brush 16 cm
Half hose coupling made of stainless steel with cone socket connecting piece DN 40, locking nut DN 50 and 90° pipe for hose-Ø 40 mm.For connecting hoses to disc valves.

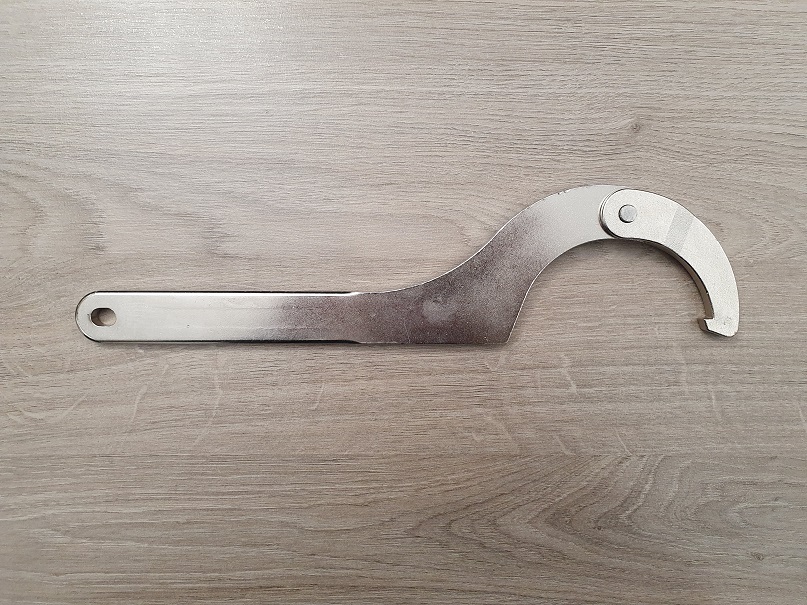

Very usefull for fixing union nuts
For tempering the honey during the creaming process – this produces the finest cream honey!Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat. The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.The device can only be used for cooling.Technical Data:Water connection: 3/4"Cooling power: 457 W at0 °C, 527 W at +5 °CElectrical power: 230 V, 50 Hz, 2,1 A / 350 WCooling machine: DLE4CNCooling refrigerant: R290Filling quantity: 60 gTank content: 12,5 litreMeasurements (L/D/H): 480 x 300 x 400 mmCasing: stainless steelAgitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0,6 A, 64 WWeight: 25 kgShipping weight: 37 kg Optional Accessories - Please order separately:Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamerItem no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamerItem no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer
You fix the silicone cable with aluminium adhesive tape to the tank. With thermostat you can control the temperature.For tanks with inner Ø bigger than 77 cm.
*For honey tanks from year 2021 onwards*Hose adapter with flange for honey tap with 1 1/2" (for hose Ø approx. 38 mm), long holes offer a distance of 62,5 - 88 mm.Including wire hose clamp.NOTE: Please order the matching silicone seal (item no. 6200099)!
This timer is suitable for all honey stirrers and mixers with 400 V motor.Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)One of our experienced employees does the installation.
• Solid tube construction made of stainless steel• Height 60 cm• With 4 wheels two of them with locking brake• Fits item number 5300186, 5309186 + 5022100More sizes available on request.Attention: Can not be usesd for a double walled tank! Please order item no. 5097055 for that purpose.
*For honey tanks from year 2021 onwards*Hose adapter with flange for honey tap with 1 1/2" (for hose Ø approx. 40 mm), long holes offer a distance of 62,5 - 88 mm.Including wire hose clamp.NOTE: Please order the matching silicone seal (item no. 6200099)!
CFM-Stand for 100 kg tanks (double walled)• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels two of them with locking brake• Fits tank no. 5800186 and 5822100
For attachment to a 100 kg tank or creamer.Can be used for cooling or heating.Accessories with Gardena 1/2" clutch plugs, metallic insulation mat and transparent foil.Incl. Accessories for connection to our cooling unit, item no. 6096200 or 6096110 (US).(Picture shows 100 kg tank)
• Suitable for CFM 100 kg double-walled tanks, item 5800186, or 100 kg double-walled creamer and homogenizer, item 5822100• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be removed or put back in / pressed in again if required• Weight approx. 1,5 kg
Suitable for 300 kg double walled tank item no. 5800191 and 300 kg double walled creamer and homogenizer item no. 5822300• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be taken out or put back in / pressed in again if required• Weight approx. 1.8 kg
Half hose coupling made of stainless steel with cone socket connecting piece DN 50, locking nut DN 50 and 90° pipe for hose-Ø 50 mm.For connecting hoses to disc valves.
• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels, two of them with locking brake• Fits item number 5800191 + 5822300More sizes available on request.
Hose adapter with flange for honey tap with 36 mm clear with (for hose Ø approx. 40 mm), long holes offer a distance of 53 - 75 mm.Including wire hose clamp.NOTE: Please order the matching silicone seal (item no. 6000099)!
Installation by CFM. For 300 kg tanks, 300 kg CFM-honey creamer, tanks and honey extractors from inner Ø 55cm up to Ø 63cm
Very usefull for fixing union nuts
Accessories for Water cooling system (item no. 6096200) to connect to a double walled 100 kg tank (production year 2023 or later) with return circulation distributor - picture similar
Accessories for Water cooling system (item no. 6096200) to connect to a double walled 300 kg tank (production year 2023 or later) with return circulation distributor - picture similar

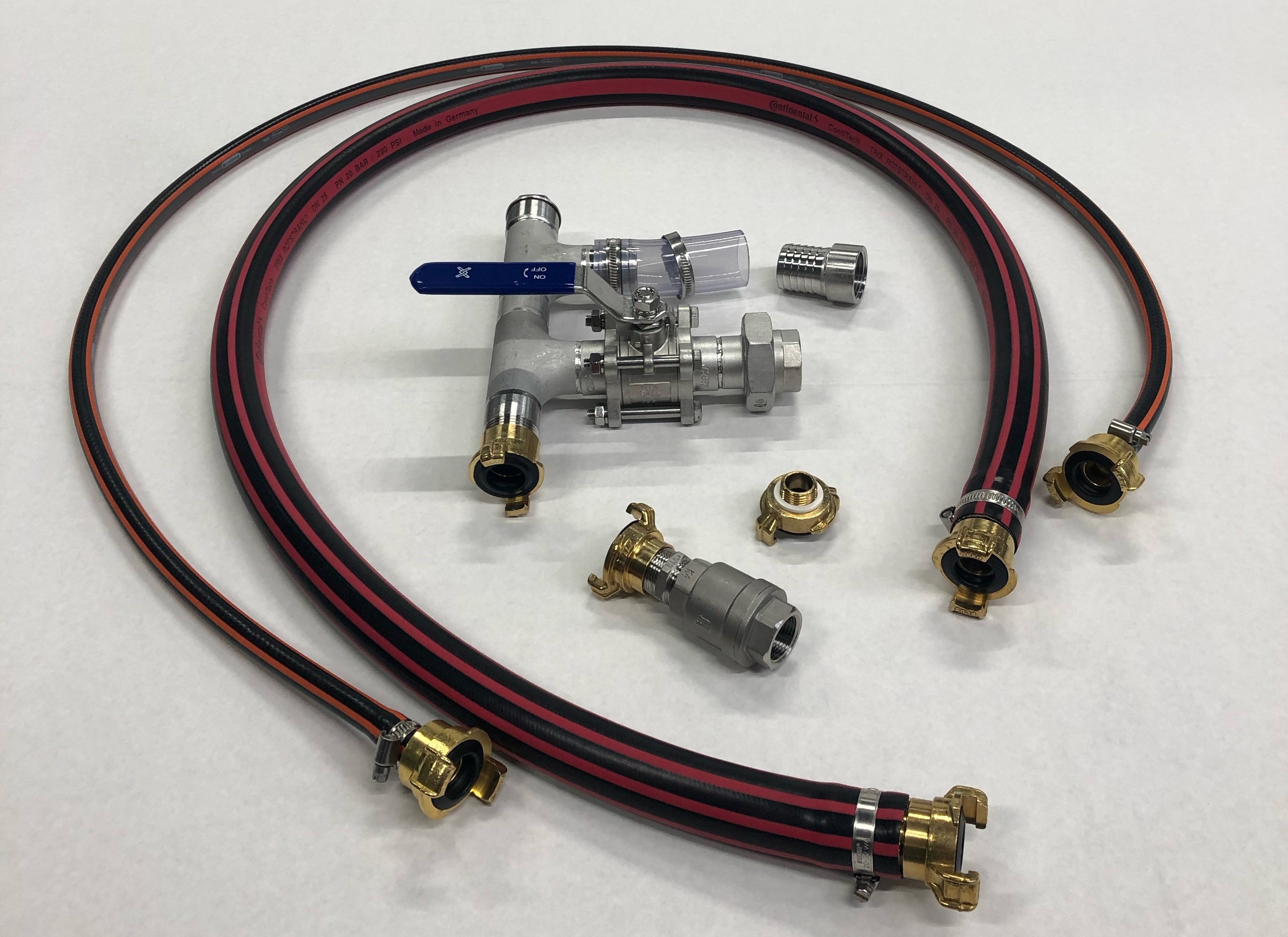

Accessories for Water cooling system (item no. 6096200) to connect to a double walled 600 kg tank (production year 2023 or later) with return circulation distributor - picture similar

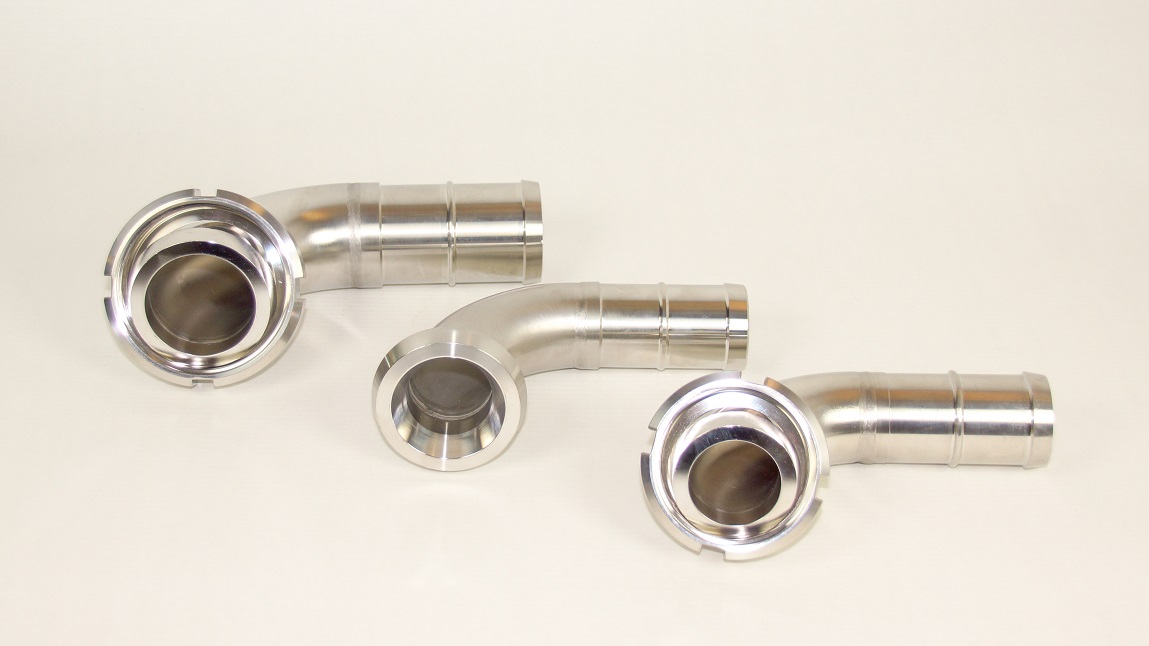

Half hose coupling made of stainless steel with cone socket DN 50, union nut DN 50 and 90° pipe with reduction cone socket and tube nozzle for hose Ø 40 mm.For connecting hoses to disc valves.
Stainless steel hose coupling with 1 1/2" external thread and DN 40 hose nozzle.On request also available with internal thread or other threaded connections.
• Stainless steel, height 100 cm• Suitable for No. 5822100 with filling machine No. 6099202• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without filling machine!
The bottom heating 2000 W / 230 V is installed by our expert staff.Bottom heating thermostatically adjustable for tanks, honey creamers and honey extractors up to inner-Ø 102 cm.

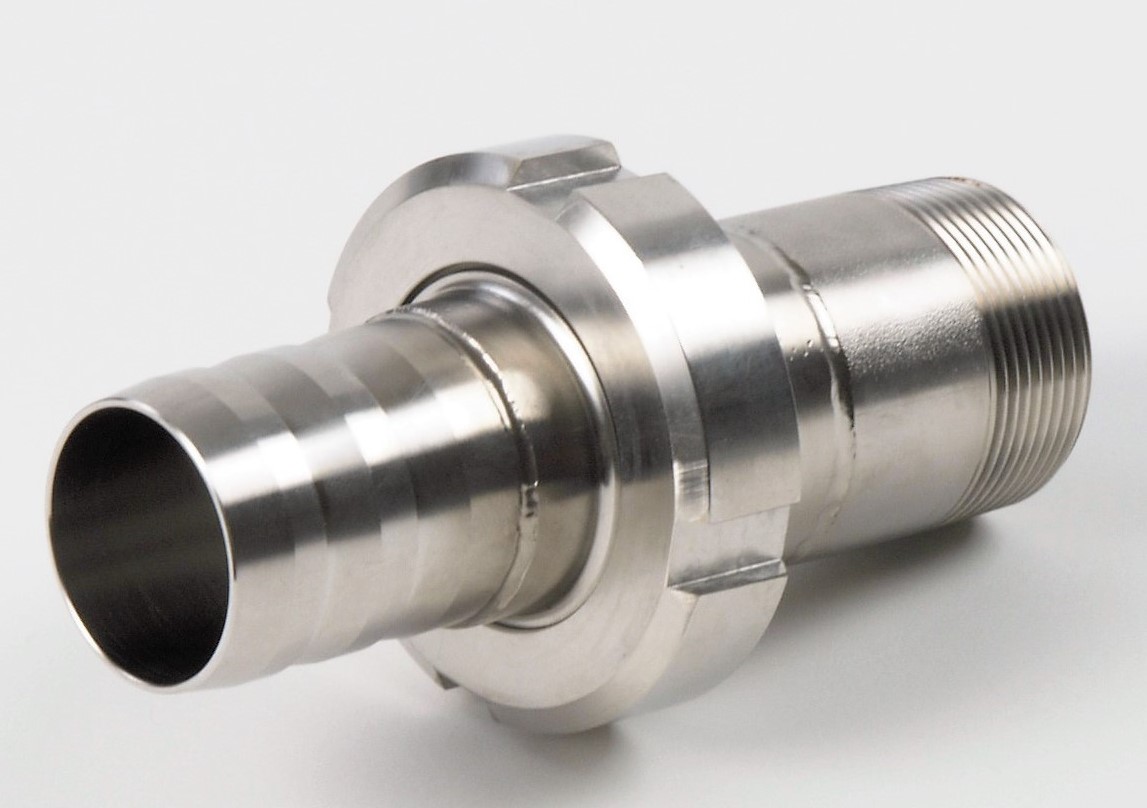

Stainless steel hose coupling with 2" external thread and DN 50 hose nozzle.On request also available with internal thread or other threaded connections.

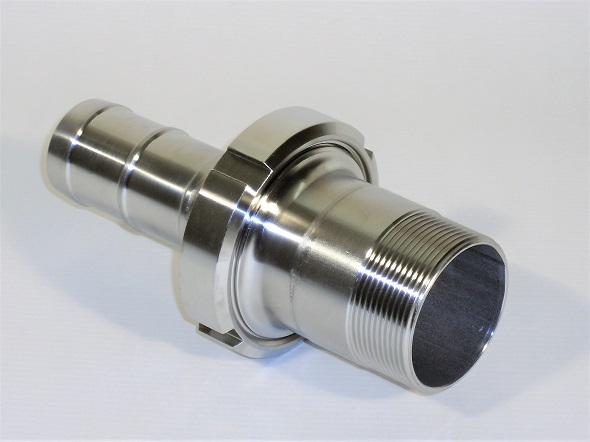

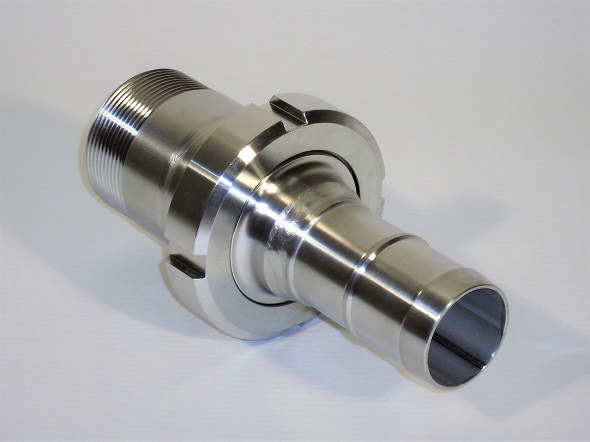

Stainless steel hose coupling with 2" external thread, DN 50 dairy thread and DN 40 hose nozzle.On request also available with internal thread or other threaded connections.

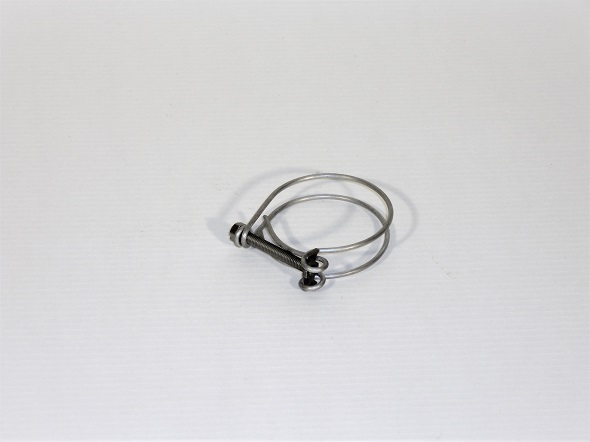

Wire hose clamp Ø 45-50 mm, stainless steel V4A.
• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels two of them with locking brake• Fits item number 5800194 + 5821600More sizes available on request.
For attachment to a 50 kg tank or creamer.Can be used for cooling or heating.Accessories with Gardena 1/2" clutch plugs, metallic insulation mat and transparent foil.Incl. Accessories for connection to our cooling unit, item no. 6096200 or 6096110 (US).(Picture shows 100 kg tank)
The bottom heating 1500 W / 230 V is installed by our expert staff.Bottom heating thermostatically adjustable for tanks, honey creamers and honey extractors with inner-Ø 69 - 77 cm.
• Stainless steel, height 100 cm• Suitable for No. 5822100 with bottling machine No. 6000201• Due to the stand design the creamer is above the bottling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without bottling machine!
