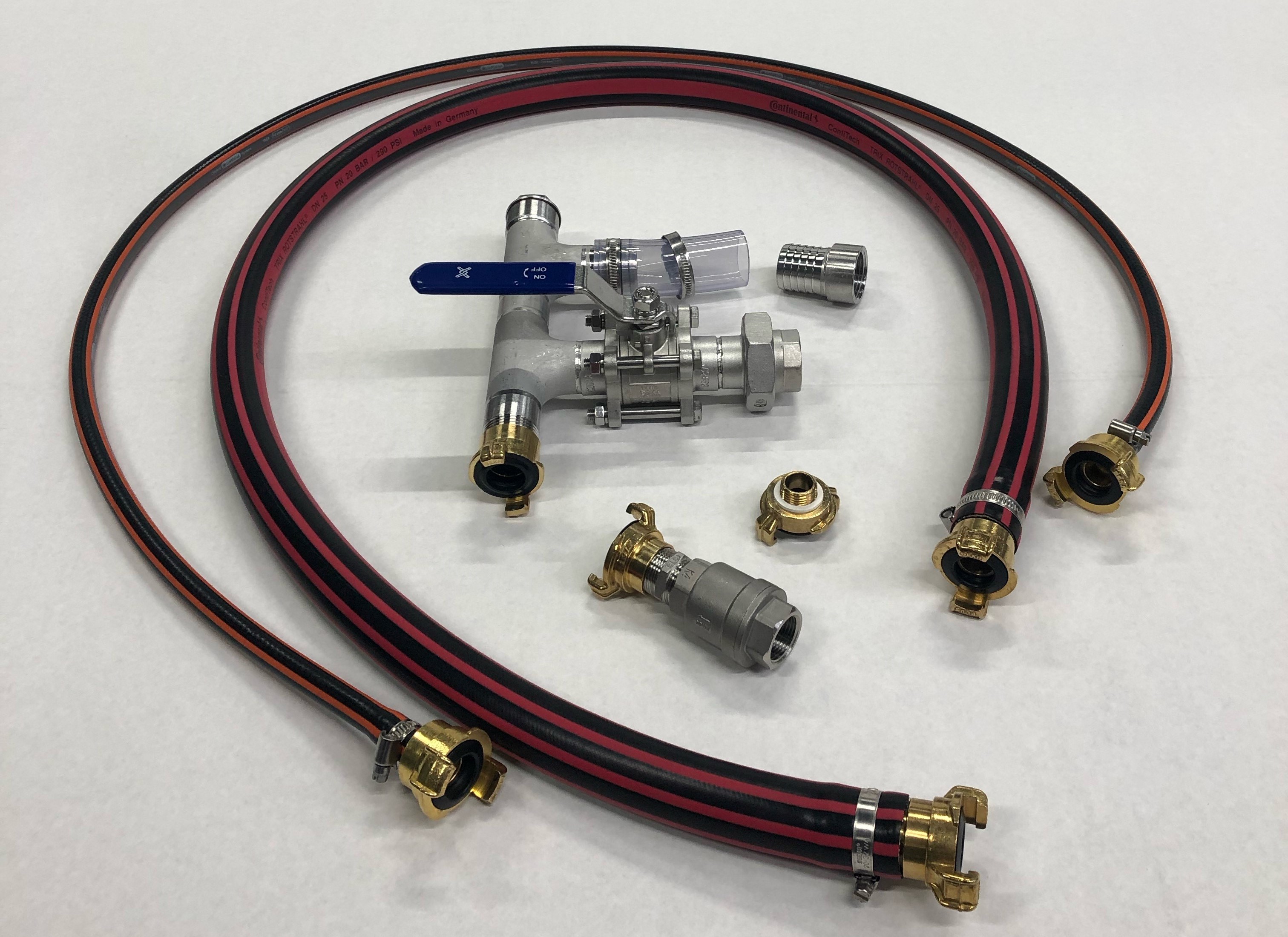

Accessories for Water cooling system with circulation pump for 600 kg double walled tank (production year 2023 or later) including the following:

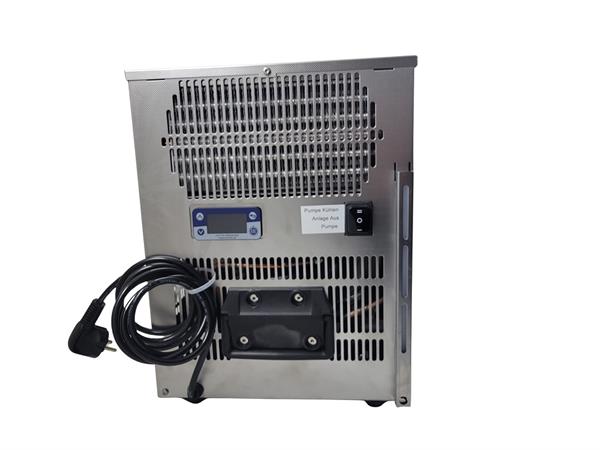

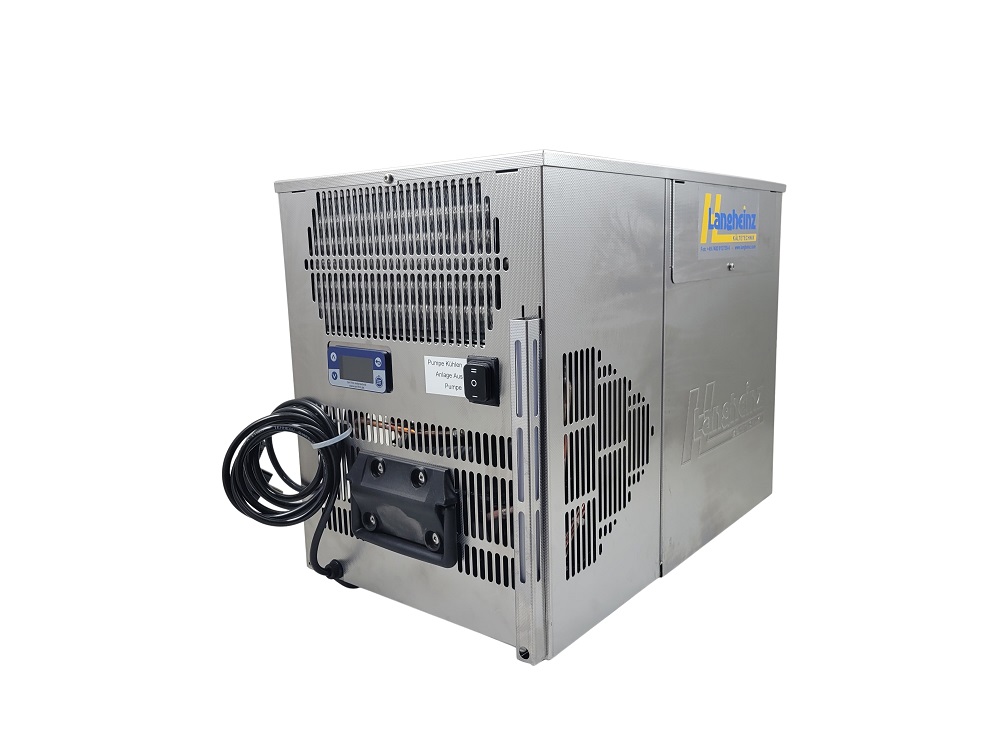

For tempering the honey during the creaming process – this produces the finest cream honey!Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat. The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.The device can only be used for cooling.Technical Data:Water connection: 3/4"Cooling power: 457 W at0 °C, 527 W at +5 °CElectrical power: 230 V, 50 Hz, 2,1 A / 350 WCooling machine: DLE4CNCooling refrigerant: R290Filling quantity: 60 gTank content: 12,5 litreMeasurements (L/D/H): 480 x 300 x 400 mmCasing: stainless steelAgitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0,6 A, 64 WWeight: 25 kgShipping weight: 37 kg Optional Accessories - Please order separately:Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamerItem no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamerItem no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer

This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25-30°C.In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (Rake has to be covered with honey)!Technical details:• flat gear motor 1100 W / 400 V• approx. 18 rpm• paddle screw with rake at the bottom• minimum filling quantity: 130 kg• inner tank Ø 72 cm, welded bottom without gap• outer tank Ø 77 cm• rigid handles• tank bottom with slope to the outlet• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve• material: stainless steel• heater 6kW / 400 V• capacity for double wall: approx. 120 liter• outer tank height: 137 cm• total height: 162 cmPlease note:We recommend filling the double wall with water (eg filtered rainwater).Weight: without wrapping: approx. 175 kg / with wrapping 185 kgPacked on a palletChargeable weight: 185 kg Optional accessories - please order separately:Item no. 5092100 timerItem no. 5097031 stand
