Honey Extractors – Quality for Efficient Honey Harvesting

The basic model of our radial extractors with motor. The extractor has a honey tap and practical handles at the tank.For cleaning just open the wing nuts at the cross-beam and take off the complete drive including the lids.Suitable for:• 18 shallow frames (side bar up to 16 cm and side bar width 42 mm)• Frame sizes: Dadant super, Zander half and super, German Standard half and super, Langstroth half and super frames Technical details:• Top drive with safety device• Motor 110 W / 230 V• Hinged acrylic glass lid halfs• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 18 shallow frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 111 cm• Distance from the floor to the honey tap: 38 cm• Conversion into tangential extractor possibleIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: approx. 50 kg / approx. 40 kgWrapping: cardboard boxChargeable weight: 50 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203818 Radial cage for 18 shallow framesItem no. 5303818 Grids to insert into the cage Item no. 5003840 4-Frames tangential cageAcrylic glass lid half on request

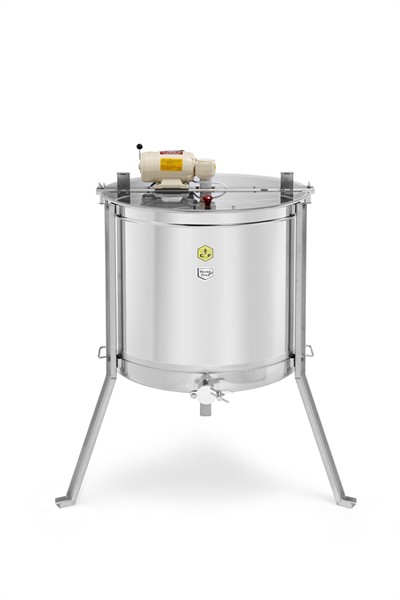

The allrounder of the CFM-Honey extractors with our "Extractor Witch".This tangential extractor with motor is even suitable for large frames like Dadant and German Standard 1 1/2. The cage is without middle axis so the frames can be turned inside the cage.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizesFor cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2 and Swiss framesTechnical details:• Top drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 38 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 34 kg / 40 kgWrapping: cardboard boxChargeable weight: 46 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003840 4 frames tangential cageItem no. 5203818 18 shallow frames radial cageAcrylic glass lid half on request

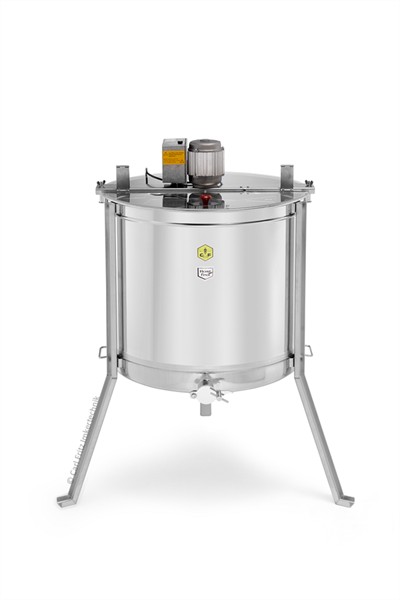

• Grid area 400 x 450 mm• 3 grids made of stainless steel• To insert into radial honey extractors with inner tank Ø 63 cm• For 3 deep frames / 6 shallow framesFits honey extractors item no. 5163018 and 5263018

The beginner model of our CFM-Euro-Self-turning extractors with "Whispering Witch". With this honey extractor the annoying manual turning of the frames is omitted. The frame basket is made of wire mesh bars and a turning device. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models.Why "Whispering Witch"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?Of course this extractor is also equipped with a security device.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, Langstroth• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 24 cm x 41 cm• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 130 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 66 kg / 43 kgWrapping: cardboard boxChargeable weight: 66 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request

The basic model of our CFM-Honey radial extractors with "Whispering Witch".Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 18 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 18 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 115 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: cardboard boxSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303818 3 gridsItem no. 5003840 4 frames tangential cage 38 x 46cmAcrylic glass lid half on request

Our basic model of the CFM-Honey extractors with our "Extractor Witch".Advantages are the compact design and the cage without middle axis.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizesFor cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, DadantTechnical details:• Top drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 32 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Stainless steel• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 29 kg / 35 kgWrapping: cardboard boxChargeable weight: 40 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003244 4 frames tangential cageItem no. 5003709 9 shallow frames radial cageAcrylic glass lid half on request

Our basic model of the CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, DadantTechnical details:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 32 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 29 kg / 35 kgWrapping: cardboard boxChargeable weight: 40 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003244 4 frames tangential cageItem no. 5003709 9 shallow frames radial cageAcrylic glass lid half on request

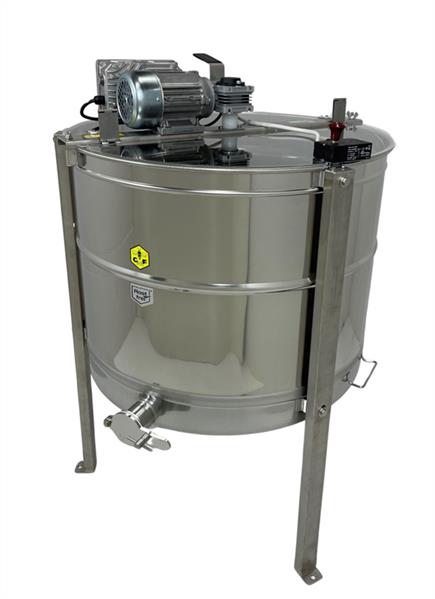

Suitable for:• 16 deep frames / 28 shallow frames (side bar up to 17 cm and side bar width 38 mm)• Frame sizes: Dadant super, Zander, Zander half and super, German Standard, German Standard half and super, Langstroth frames, 16 Manley framesTechnical details:• Top drive with safety device and lid locking system• Motor 270 W / 230 V• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 16 deep frames / 28 shallow frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 115 cm• Distance from the floor to the honey tap: 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 40 kg / 66 kgWrapping: Wooden palletChargeable weight: 66 kg Spare parts and accessories:Item no. 6000070 Ball for bottom bearingItem no. 6300062 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203828 Radial cage for 16 deep / 28 shallow framesItem no. 5303828 Grids to insert into the cage Acrylic glass lid half on request

The allrounder of the CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This tangential extractor with motor is even suitable for large frames like Dadant or German Standard 1 1/2. The cage is without middle axis so you can turn the frames inside the cage. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep deep frames up to 37cm side bar length or 8 shallow frames up to 18 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2, Swiss framesTechnical details:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 38 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 34 kg / 40 kgWrapping: cardboard boxChargeable weight: 46 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003840 4 frames tangential cageItem no. 5203818 18 shallow frames radial cageAcrylic glass lid half on request

Our basic model of the CFM-Honey extractors with manual driveAdvantages are the compact design, the cage without middle axis and the fact that you can run this honey extractor without electricity.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep frames up to 31 cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, DadantTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 32 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 26 kg / 32 kgWrapping: cardboard boxChargeable weight: 38 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003244 4 frames tangential cageItem no. 5003709 9 shallow frames radial cageAcrylic glass lid half on request

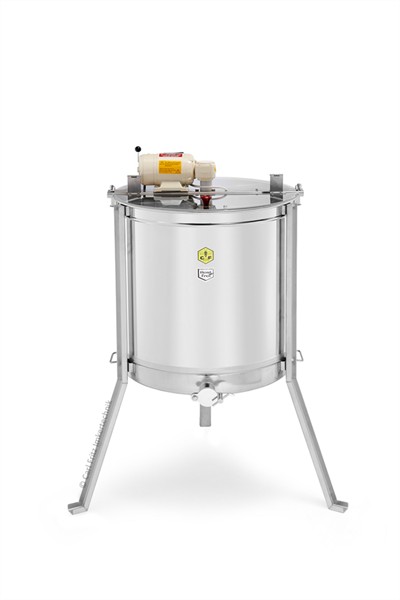

The smallest of our CFM-Honey radial extractors with "Extractor Witch" (motor drive).This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames• Direct drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 111 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 30 kg / 24 kgWrapping: cardboard boxSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303712 3 gridsItem no. 5003244 4 frames tangential cage 32 x 46cmAcrylic glass lid half on request

Suitable for:• 4 deep frames side bar length up to 29 cm / 8 shallow frames side bar length up to 14.5• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: net 97 kg, packed on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

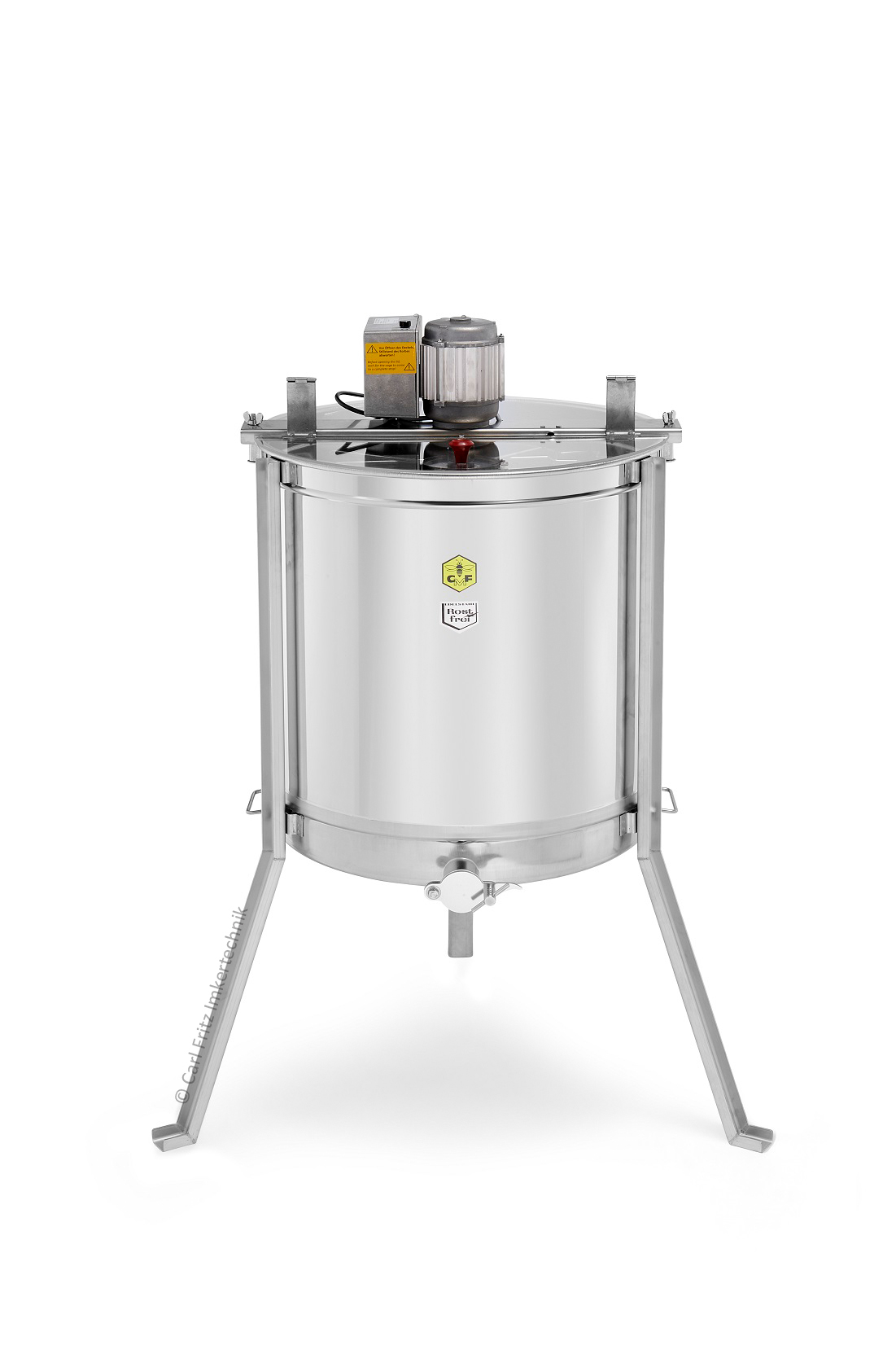

• Grid area 330 x 450 mm• 3 grids made of stainless steel• To insert into radial honey extractors with inner tank Ø 55 cm• For 3 deep frames / 6 shallow framesFits honey extractors item no. 5055012 - 5255012

The smallest of our CFM-Honey radial extractors with "Whispering Witch".Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 115 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: cardboard boxChargeable weight: 40 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303712 3 gridsItem no. 5003244 4 frames tangential cage 32 x 46cmAcrylic glass lid half on request

If you start beekeeping as a hobby, you should invest in a solid base of your tools.With our classic honey extracting set LARGE we offer you a basis for the development of your beekeeping. Beginning with our CFM-Uncapping tray for one person including a quality uncapping fork, our proven CFM-Double strainer and the CFM-Honey tank 25 kg, up to our compact CFM-Tangential honey extractor for 4 frames with 110 W motor drive.With this set you can already master the first honey harvest!This set is suitable for the following frame sizes:Zander, German Standard, Langstroth, Freudenstein, Gerstung, KuntzschThe set consists of:• Honey extractor for 4 deep frames / 8 shallow frames for side bar length 31/15 cm with 110 W motor drive (item no. 5009471)• Honey tank 25 kg with simple lid (item no. 5009181)• Double strainer (item no. 5300156)• Uncapping tray (item no. 5000132)• Uncapping fork (item no. 6000112)Weight: 50 kgChargeable weight:54 kg

The allrounder of the CFM-Honey extractors with manual driveThis tangential extractor is even suitable for the large frame sizes like Dadant and German Standard 1 1/2. The cage is without middle axis so you can turn the frames inside the cage.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep frames up to 37 cm side bar length or 8 shallow frames up to 18 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2 or Swiss framesTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 38 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 31 kg / 37 kgWrapping: cardboard boxChargeable weight: 42 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003840 4 frames tangential cageItem no. 5203815 15 shallow frames radial cageAcrylic glass lid half on request

The beginner model of our CFM-Euro-Self-turning extractors. With this honey extractor the annoying manual turning of the frames is omitted. The frame basket is made of wire mesh bars and a turning device. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models. The left and right turn can easily be adjusted with a lever. Of course this extractor is also equipped with a security device.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Top drive with security switch• Motor power 110 W / 230 V• Left and right turn• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 24 cm x 41 cm• Material: Edelstahl-Rostfrei• Total height: 124 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 44 kg / 66 kgWrapping: cardboard boxChargeable weight: 66 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request

The smallest CFM-Honey extractors with manual driveAdvantages are the very small dimension, the cage without middle axis and the fact that you can run this honey extractor without electricity.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep or shallow frames up to 23.5 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 43 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 24.5 x 46 cm• Without middle axis (combs can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 21 kg / 26 kgWrapping: cardboard boxChargeable weight: 32 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5002443 4 frames tangential cageAcrylic glass lid half on request

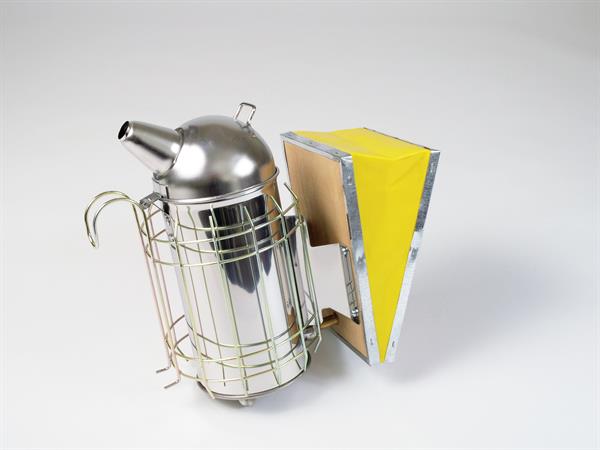

Set contains:• smoker (no. 6001347)• smoker tobacco (no. 6001358)• lighter cubes (no. 6001350)• beekeeper jacket (please advice your size!)• leather gloves (please adivce your size!)• bee brush (no. 6001214)• hive tool (no. 6001202)You can enter the sizes on the cart page in the comments field!

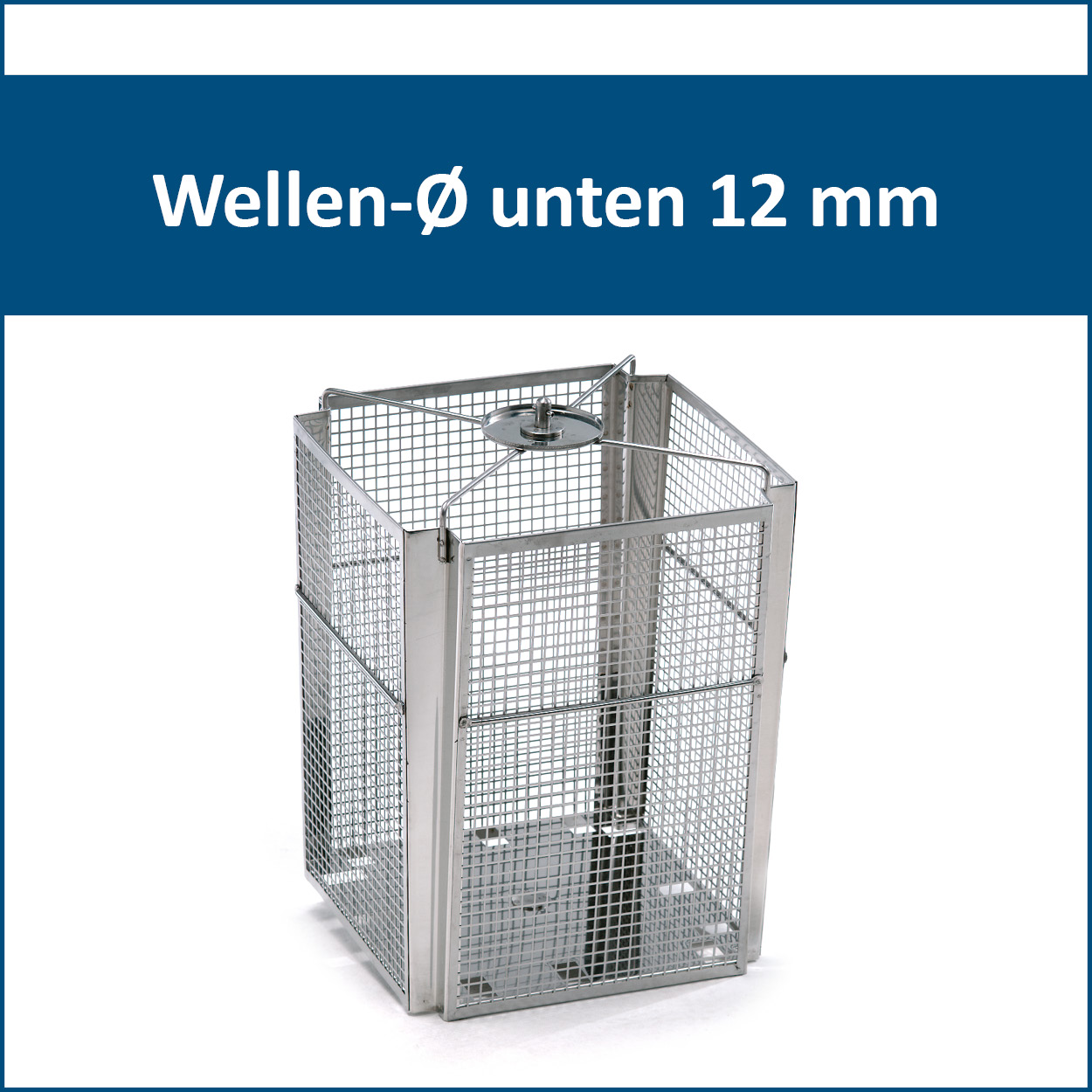

Cage without going through shaft so that the combs can be turned inside the cage.For extractors with Ø 50 cm.Suitable for the following CFM- honey extractors: no. 5004300, 5004371, 5004500, 5004571Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the aperture of the drift shaft (top and bottom) and the length of the shaft.

Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 102 kg / 125 kgPacked on a wooden palletChargeable weight: 125 kg Tripod (5055500) for speed control has to be ordered separatly!

The smallest of our CFM-Honey radial extractors with manual driveAdvantages are the compact design and the fact that you can run this honey extractor without electricity.This extractor is equipped with a honey tap and has two practical handles at the tank.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width • Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow framesTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 shallow frames• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 110 cm• Distance from floor to the tap 38 cm• Can be modified to extract tangentialIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: XX kg / XX kgWrapping: cardboard boxChargeable weight: 26 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5203712 12 frames radial cageItem no. 5303712 3 gridsItem no. 5003244 4 frames tangential cage 32 x 46cmAcrylic glass lid half on request

The smallest CFM-Honey extractors with our "Extractor Witch".Advantages are the very small dimension and the cage without middle axis.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep or shallow frames up to 23.5 cm sidebar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Direct drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 43 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 24.5 x 46 cm• Without middle axis (combs can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 24 kg / 29 kgWrapping: cardboard boxChargeable weight: 35 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5002443 4 frames tangential cageAcrylic glass lid half on request

Only available for CFM-honey extractors of art. no. 5004300, 5010400 and 5037000 with distance between holes centre to centre 525 mm and 630 mm as well as our current extractors Nr. 5002500, 5009400, 5014400 und 5055012Technical data:• Top drive motor 110 W / 230 V CFM-"Extractor witch"• Stainless steel traverse with hinged acrylic glass lid halves• Safety deviceWhen you order please advise:• Inner tank Ø• Shaft Ø at the top and bottom• Distance between the 2 holes for the screws which hold the traverse measured from the middle of the holes.• If you replace a manual drive please advise length of the driver below the traversePlease note: If you have different measurements and we need to customize a surcharge applies!

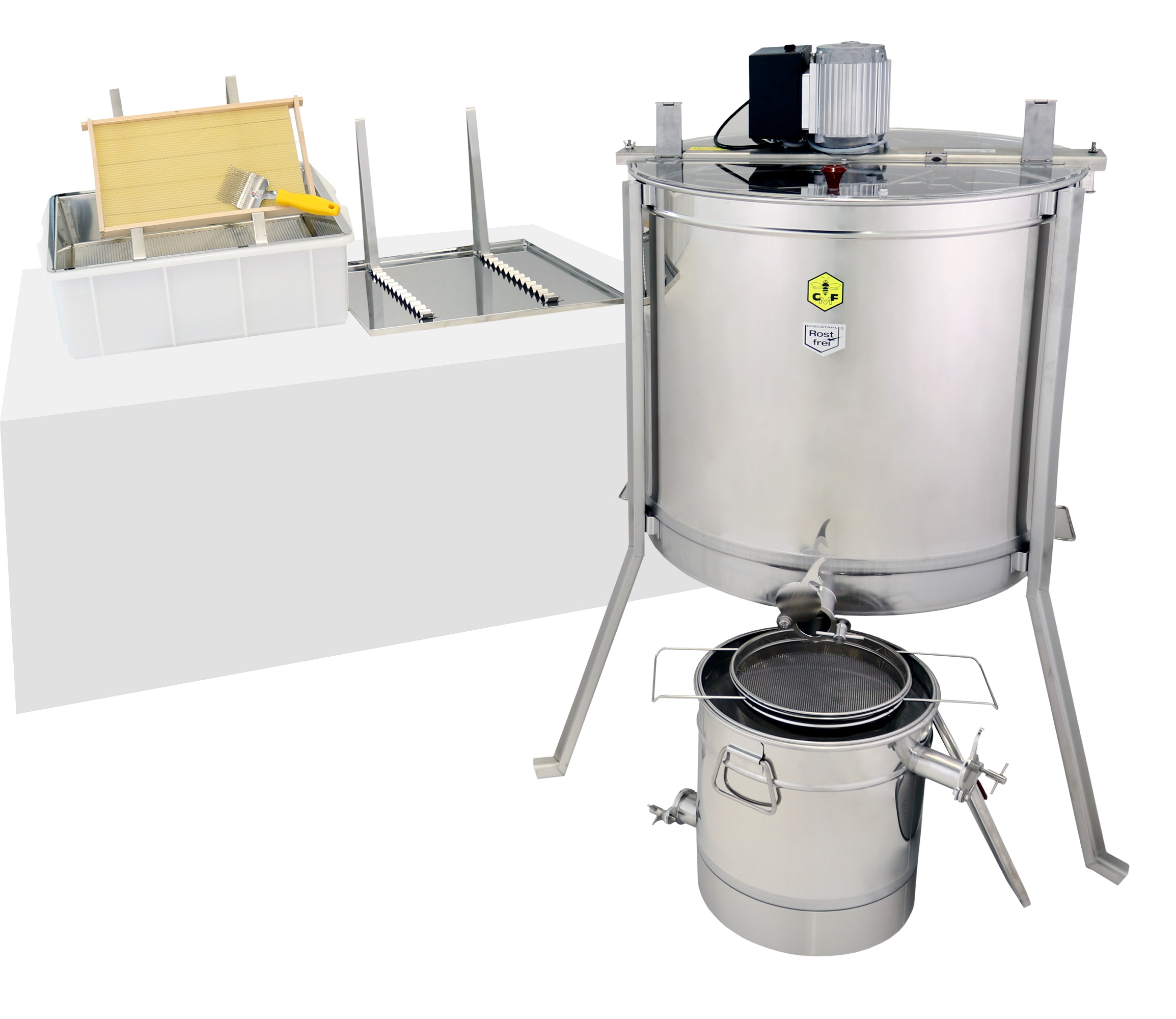

An efficient and solid entry into beekeeping is possible with our extracting kit PRO.The central piece in this set is our CFM-Tangential honey extractor with 4-frames cage and "Whispering Witch" motor drive.This also allows larger frame sizes such as Zander-Dadant or German Standard 1 1/2 to be extracted.The set consists of our CFM-Honey tank 32 kg incl. conical fine strainer, the CFM-Coarse strainer with matching holder as well as the practical uncapping tray and fork.This set is suitable for the following frame sizes:Zander, Zander-Dadant (Zadant), DN (German Standard), German Standard 1 1/2, Dadant, Langstroth, Freudenstein, Gerstung, KuntzschThe set consists of:- Honey extractor for 4 deep frames/8 shallow frames with sidebar length 37/18 cm with direct motor drive "Whispering Witch" (item no. 5014481)- Honey tank 32 kg with loose lid (item no. 5009183)- Conical fine strainer (item no. 5000163)- Coarse strainer (item no. 5009156)- Holder for coarse strainer (item no. 5000153)- Uncapping tray (item no. 5000132)- Uncapping fork (item no. 6000113)Weight: 42,6 kgChargeable weight: 62 kg

Suitable for:• 6 deep frames side bar length up to 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 28 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: net 105 kg, packed on a wooden palletChargeable weight: 140 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm)• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, KuntzschTechnical details:• Manual drive• Hinged acrylic glass lid halfs• Tank inner-Ø 50 cm• Grid area of the comb cage 29 x 46 cm• Without middle axis (frames can be turned inside the cage)• Food safe acrylic glass / stainless steel• Total height 116 cmWeight: 20 kgChargeable weight: 34 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request

CFM "Whispering Witch" - the original from Mellrichstadt!Only available for CFM-honey extractors of art. no. 5004300, 5010400 and 5037000 with distance between holes centre to centre 525 mm and 630 mm as well as our current extractors Nr. 5002500, 5009400, 5014400 und 5055012Technical data:• Direct drive motor 40 W / 230 V CFM-"Whispering witch"• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Stainless steel traverse with hinged acrylic glass lid halves• Safety deviceWhen you order please advise:• Inner tank Ø• Shaft Ø at the top and bottom• Distance between the 2 holes for the screws which hold the traverse measured from the middle of the holes.• If you replace a manual drive please advise length of the driver below the traversePlease note: If you have different measurements and we need to customize a surcharge applies!

suitable for inner tank Ø 60 cm, stainless steel

Aus Edelstahl-Rostfrei, für Kessel Ø 50 cm.Wellenlänge 535 mm, Wellen-Ø 14 mmIn diesen Radialkorb passen Halbrahmen mit • Seitenteillänge bis max. 16 cm • Seitenteilbreite bis max. 40 mm

Suitable for:• 4 frames up to side bar length 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material: stainless steel• Loading height: 110 cm• Total height 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 93 kg / 120 kgPacked on a wooden palletChargeable weight: 120 kg Tripod (5055000) for speed control has to be ordered separatly!

The smallest CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep or shallow frames up to 23.5 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 43 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 24.5 x 46 cm• Without middle axis (combs can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 24 kg / 29 kgWrapping: cardboard boxChargeable weight: 35 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5002443 4 frames tangential cageAcrylic glass lid half on request

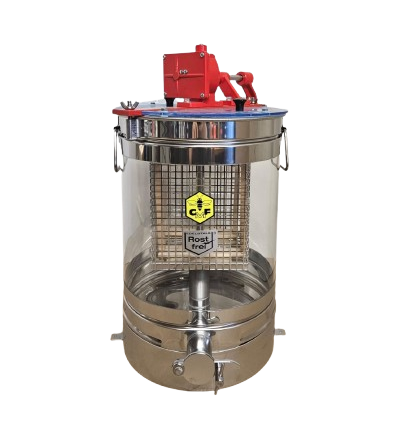

Suitable for:• 4 frames Mini PlusTechnical details:• Manual drive with hinged lid halfs• Tank inner-Ø 30 cm• Grid area of the comb cage 18 x 22 cm• With middle axis• Material: Edelstahl-Rostfrei and foodsafe plexi glass• Distance from bottom rim to top rim: 41 cm• Honey tap: inner diameter 36 mm• Tabel model, ideal for presentationsFor cleaning you can easlily loosen the screws at the side of the cross-beam and take off the complete drive.Weight without/with packaging: 12kg/16 kgPackaging: cardboardChargable weight: 16 kgAvailable spare parts and accessories:Item no. 6000070 ball for bottom bearing, item no. 6000074 Food lubricant grease for bottom bearing, item no. 23045001 Sealant for bottom bearing

This extractor is equipped with our new CFM "Whispering Witch" (direct drive). Why whispering witch? Because this drive is amazingly quiet even at full speed In addition to the wonderful quietness of the drive, the comfortable operation is also a major advantage. You have everything under control with one knob - can it be easier?The extractor has a honey tap and practical handles at the tank.Suitable for:• 12 deep frames• Frame sizes: Zander, German Standard, Langstroth, Dadant superTechnical details:• Direct drive with safety device• Motor 40 W / 230 V• Very quiet drive even at full speed• Infinitely variable speed control 80 - 350 rpm• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Handles at the lower end of the tank• Radial cage for 12 deep frames• Material: Stainless Steel• Loading height: 100 cm• Total height: 120 cm• Distance from the floor to the honey tap: 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 38,5 kg / 69 kgWrapping: Wooden palletSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300059 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request

Suitable for:• 4 deep frames side bar length up to 24 cm• frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 25 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 72 kg / 95 kgPacked on a wooden palletChargeable weight: 95 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 8 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 180 kg / 215 kgPacked on a wooden palletChargeable weight: 215 kg Tripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 4 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 115 cm• Total height 120 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 111 kg / 150 kgPacked on a wooden palletChargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!

This CFM-Euro-Self-turning extractor is suitable for 4 frames Zander, German Standard or Langstroth. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models.The low-noise top drive gear motor offers you the possibility to switch from right to left (or vice versa) via a tilt switch. As soon as you change the direction with the switch, the drive automatically stops and then starts again in the other direction. The rotary knob can be steplessly adjusted. The honey extractor is also equipped with a safety device so that the lid cannot be opened during the extraction process. This mechanism is only released when the basket comes to a complete stop.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Security device with lid lock• Flat gear motor 270 W / 230 V• Left / right turn• Speed continously adjustable• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 24 cm x 41 cm• Material: Edelstahl-Rostfrei• Total height: 126 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 45 kg / 65 kgWrapping: cardboard boxChargeable weight: 65 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request

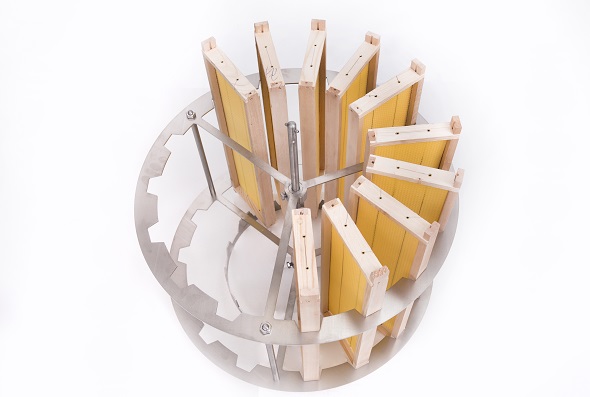

Made of stainless steel, for inner tank Ø 63 cm.Shaft length 535 mm, Shaft Ø 14 mm (included)In this radial cage fit shallow frames up to • sidebar length 16.5 cm • sidebar width 42 mm

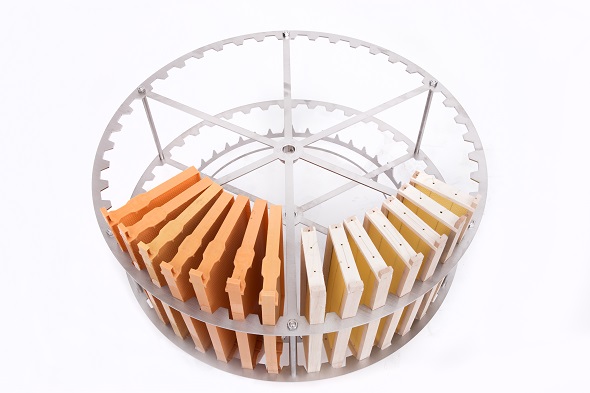

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 104 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 140 kg / 170 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

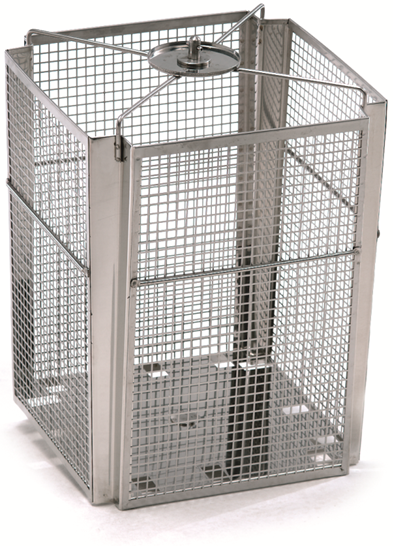

Cage without going through shaft so that the frames can be turned inside the cage.For extractors with Ø 43 cm.Stainless steel, grid area of the cage 24.5 x 46 cm.Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.

The low-noise top drive gear motor offers you the option of switching from clockwise to anticlockwise rotation (or vice versa) by means of a toggle switch. As soon as you change the running direction by means of a switch, the drive brakes automatically and then starts up again in the other direction. The speed can be infinitely adjusted by means of a rotary knob. The honey extractor is also equipped with a safety device so that the lid cannot be opened during the extracting process. This mechanism is only released when the cage has come to a complete standstill.Suitable for:• 4 deep frames side bar length up to 27 cm• Frame sizes: Zander, German Standard, Langstroth, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Safety device with lid lock• Top drive gear motor 270 W / 230 V• Left / right turn• Speed infinitely adjusted• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Frame pocket size 28 cm x 45 cm• Material:stainless steel• Loading height: 112 cm• Total height: 128 cm• Distance from the floor to the honey tap: 38 cmWeight: without/with wrapping: XX kg / XX kgPacked on a wooden pallet

Suitable for:• 6 deep frames side bar length up to 29 cm / 12 shallow frames side bar length up to 14.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant super, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 121 kg / 150 kgPacked on a wooden palletChargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 4 frames up to side bar length 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Austrian Wide FrameTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Pocket size 28 cm x 45 cm• Slots for frame lugs• Material: stainless steel• Loading height: 110 cm• Total height 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 93 kg / 120 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

suitable for inner tank Ø 102 cm, stainless steel

Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 102 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 95 kg / 120 kgPacked on a wooden palletChargeable weight: 120 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: 180 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

Cage without going through shaft so that the frames can be turned inside the cage.For extractors with Ø 63 cm.Stainless steel, grid area of the cage 38 x 46 cm.Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.

Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 110 cm• Total height: 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom level• Cage can be exchanged with a 4 or 6 pockets self-turning cageWeight: 85 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
