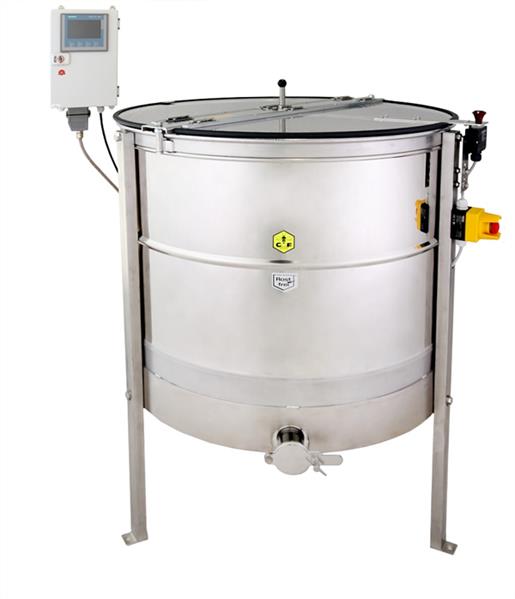

CFM-Self-turning extractor 6 pockets, Ø 85cm, 370W motor drive underneath, fully automatic
€6,112.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage
Product information

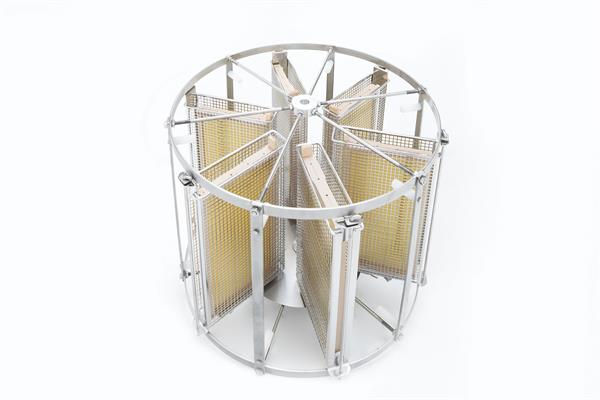

• 6 deep frames side bar length up to 29 cm / 12 shallow frames side bar length up to 14.5 cm
• Frame sizes: Zander, German Standard, Langstroth, Dadant super, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 370W / 230 V
• Fully automatic speed control with wall holder

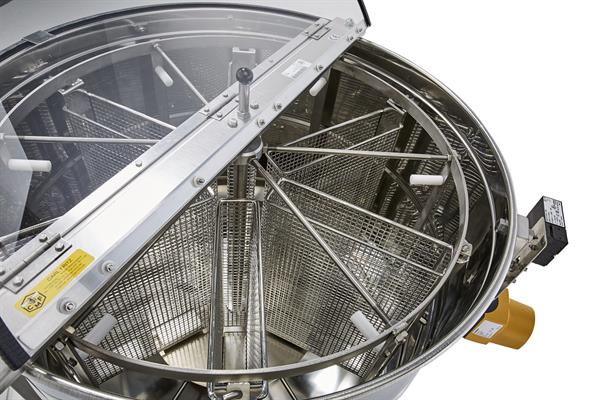

• Hinged acrylic glass lid halfs
• Inner tank Ø 85 cm welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 30 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 110 cm
• Total height 119 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight without/with wrapping: 121 kg / 150 kg
Packed on a wooden pallet
Chargeable weight: 150 kg
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 6 Ganz-/12 Halbrahmen |
|---|---|
| Diameter: | 85 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Freudenstein 338 x 200 mm, Gerstung 260 x 410 mm, Kuntzsch 330 x 250 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 370 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 29/14,5 cm |
