Product number:
5009481
Description
Product information

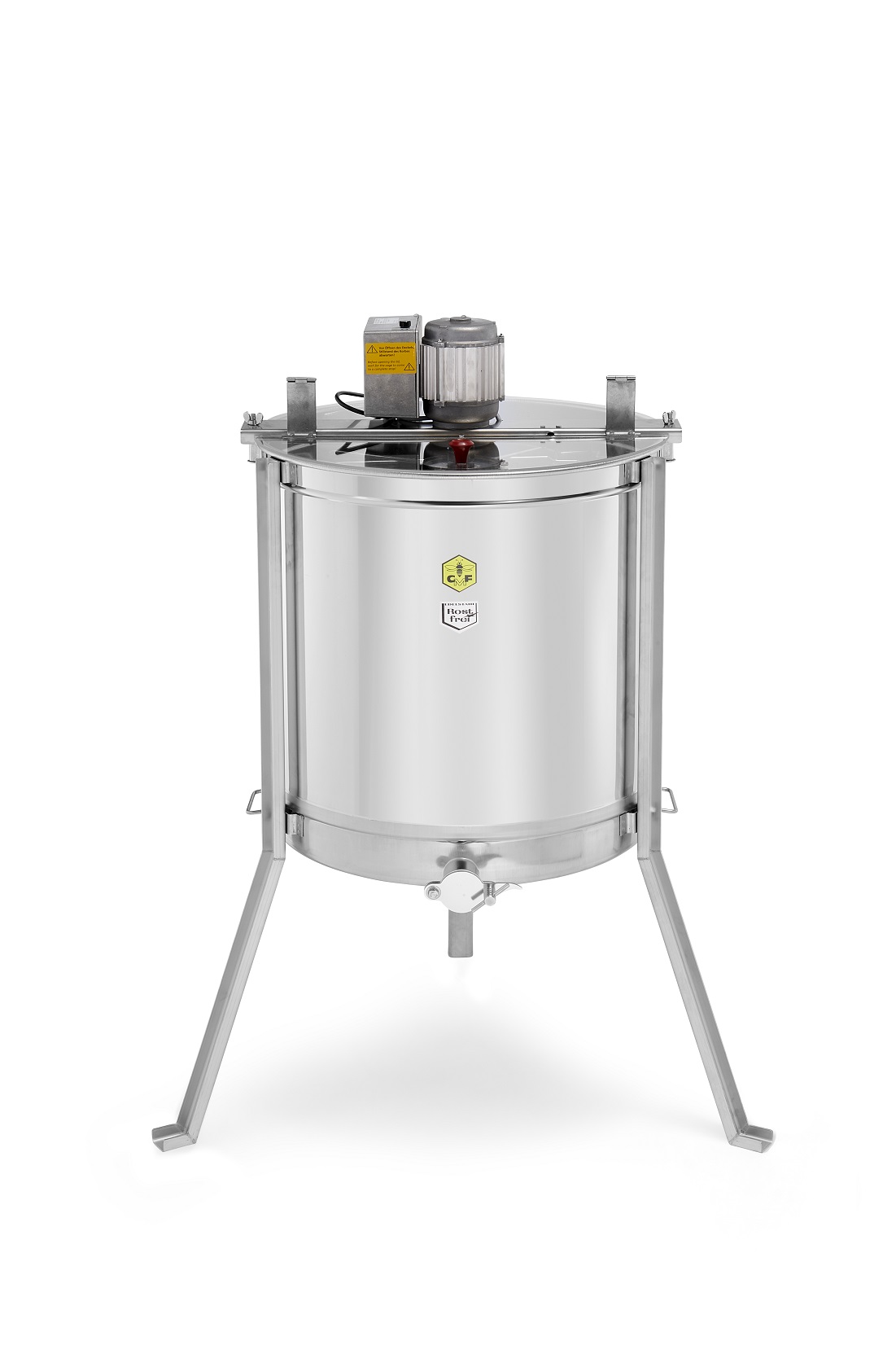

Our basic model of the CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant
Technical details:
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Grid area of the cage 32 x 46 cm
• Without middle axis (frames can be turned inside the cage)
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Distance from floor to the tap 38 cm
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 29 kg / 35 kg
Wrapping: cardboard box
Chargeable weight: 40 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5003244 4 frames tangential cage
Item no. 5003709 9 shallow frames radial cage
Acrylic glass lid half on request
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant
Technical details:
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Grid area of the cage 32 x 46 cm
• Without middle axis (frames can be turned inside the cage)
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Distance from floor to the tap 38 cm
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 29 kg / 35 kg
Wrapping: cardboard box
Chargeable weight: 40 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5003244 4 frames tangential cage
Item no. 5003709 9 shallow frames radial cage
Acrylic glass lid half on request
