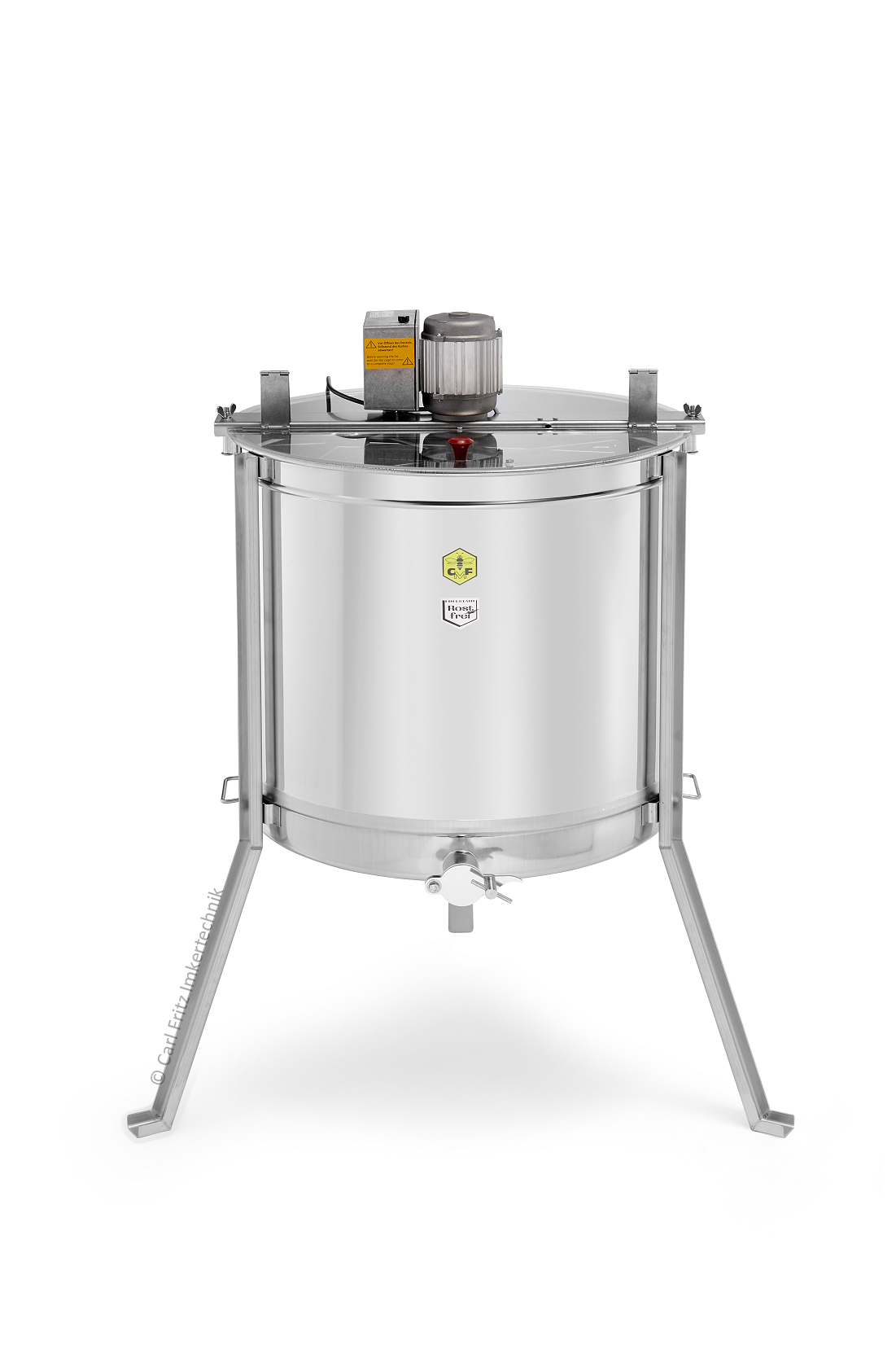

CFM-Radial extractor Ø 72cm, 12 deep with "Whispering Witch"
€2,195.00
Available, Lieferzeit 1 - 3 Arbeitstage
Product information
In addition to the wonderful quietness of the drive, the comfortable operation is also a major advantage. You have everything under control with one knob - can it be easier?
The extractor has a honey tap and practical handles at the tank.
Suitable for:
• 12 deep frames
• Frame sizes: Zander, German Standard, Langstroth, Dadant super
Technical details:
• Direct drive with safety device
• Motor 40 W / 230 V
• Very quiet drive even at full speed
• Infinitely variable speed control 80 - 350 rpm
• Hinged acrylic glass lid halfs
• Inner tank Ø 72 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 2" honey tap, welded at bottom level
• Handles at the lower end of the tank

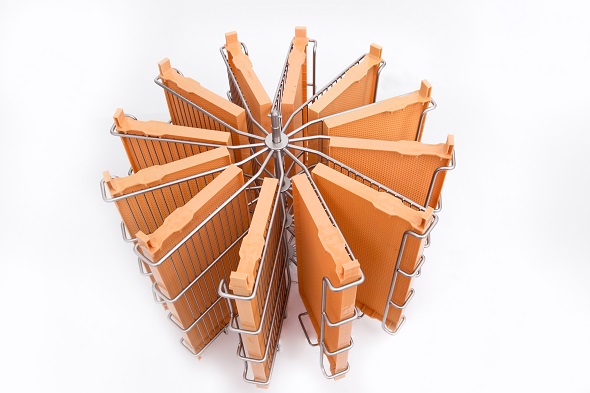

• Radial cage for 12 deep frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 120 cm
• Distance from the floor to the honey tap: 38 cm
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 44kg / 69 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300059 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Acrylic glass lid half on request
| Capacity of frames: | 12 Halbrahmen |
|---|---|
| Diameter: | 72 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 40 W / 230 V |
| Outlet: | Quetschhahn 2" |
Carl Fritz Imkertechnik GmbH & Co. KG
Immenweg 1
97638 Mellrichstadt Tel. +49 9776 8115-0
info@carl-fritz.de
Login
accessories
Ball small Ø 10 mm for insertion into the bottom bearing.For honey extractors with drive or motor on TOP of the honey extractor.
Consists of: - 2 mm thick seal for the honey tap clear width 55mm (2" - no. 5000086) - self-adhesive- 2 mm thick thrust washer between the lower part and the top partMade of food-grade materialWeight: 0.1kg
The installation of the bottom heating system (silicone heating mat) 1500 W / 230 V is installed by our expert staff.After installation, the heating mat is additionally insulated on the underside with 9 mm isoGLAS® needle felt to prevent heat loss. Bottom heating thermostatically adjustable for top drive honey extractors with inner-Ø of 72 cm.
Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top.This sealant is to cover the bottom bearing while cleaning the tank.Colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
Consists of: - 6 mm thick honey tap top part made of stainless steel- 2 mm thick seal for the honey tap - already glued on- Stainless steel disc spring - already mounted- Plastic sliding bearings - already mounted- 2 mm thick thrust washer between the lower part and the top part- Stainless steel screw and nut M8Made of food-grade materialWeight: 0.1kg
