CFM-Radial extractor 20 d./36 sh. frames, Ø 85cm, motordrive underneath, radial fully automatic, low tank
€5,325.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames
• frame sizes: Zander, German Standard, Langstroth, Dadant shallow
Technical details:
• Emergency stop button
• Safety device with lid lock
• Bottom drive 370W / 230V

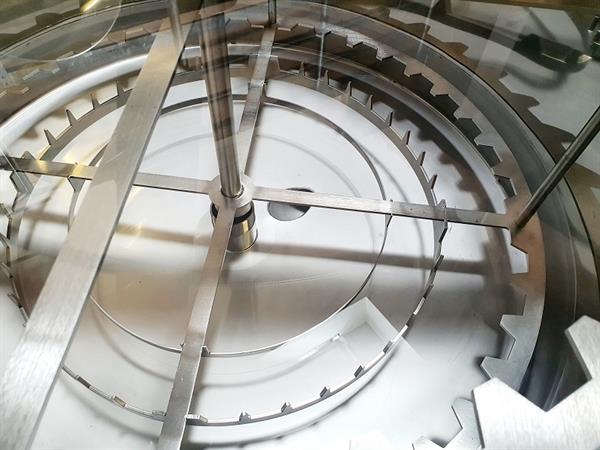

• Radial fully automatic with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 85 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Material: stainless steel
• Radial cage cannot be exchanged with a self-turning cage
• Low tank for easy loading and unloading, tank height approx. 102 cm
• Distance from the floor to the honey tap: 38 cm

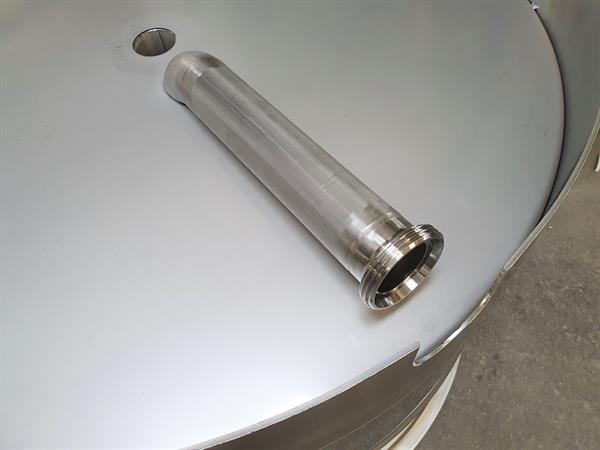

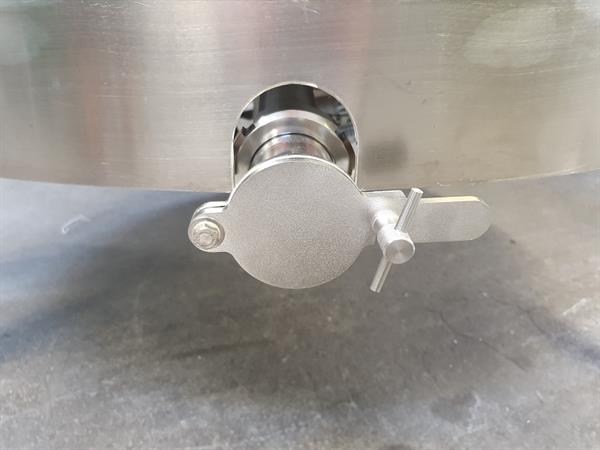

• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight without/with wrapping: 110 kg / 145kg
Chargeable weight: 145 kg
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 20 Ganz-/36 Halbrahmen |
|---|---|
| Diameter: | 85 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 370 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 25 cm (35 mm breit) |
