€5,164.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage

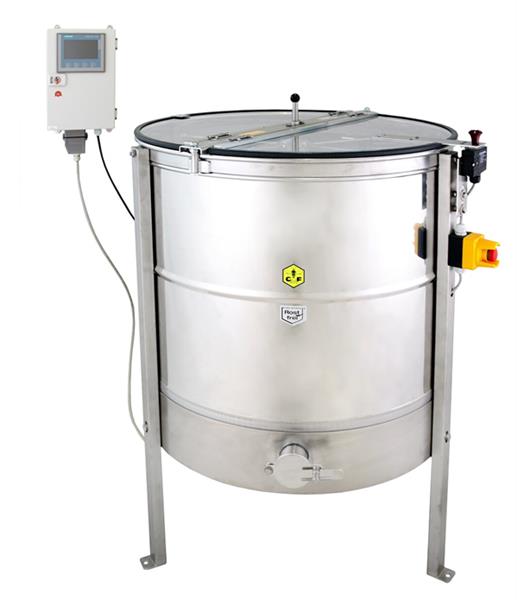

Product information
• 4 deep frames side bar length up to 29 cm / 8 shallow frames side bar length up to 14.5
• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 370W / 230 V
• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 77 cm welded bottom withouth gap
• Tank bottom with slope to the outlet

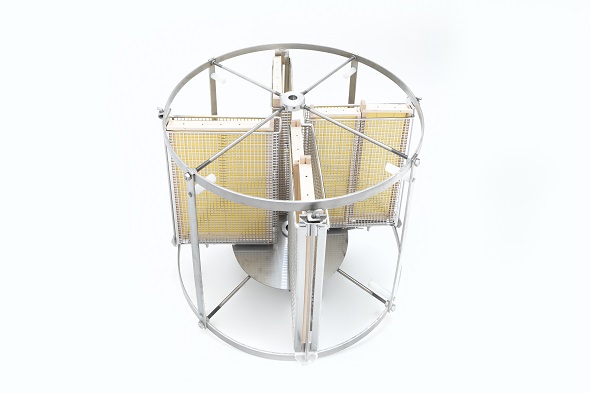

• Pocket size 30 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 110 cm
• Total height 119 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: 2" honey tap, welded at bottom level
Weight: net 97 kg, packed on a wooden pallet
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 4 Ganz-/8 Halbrahmen |
|---|---|
| Diameter: | 77 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Freudenstein 338 x 200 mm, Gerstung 260 x 410 mm, Kuntzsch 330 x 250 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 370 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 29/14,5 cm |
Login
accessories
Ball big Ø 15 mm for insertion into the bottom bearing.For honey extractors with drive or motor on BOTTOM of the honey extractor.
Plastic cover for the bottom bearing of honey extractors with bottom drive.The plastic cover protects the bottom bearing while cleaning the Honey extractor.colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
