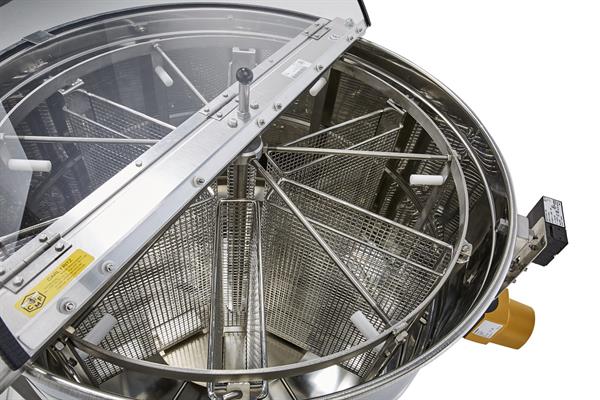

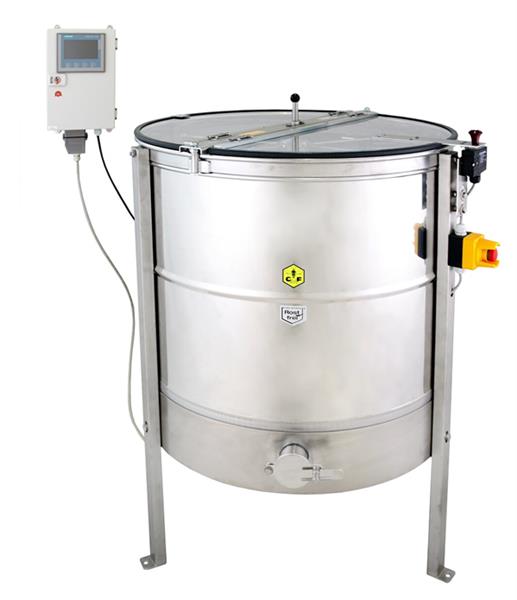

CFM-Self-turning extractor 6 pockets, Ø 77 cm, 370W motor drive underneath, fully automatic
€5,500.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 6 deep frames side bar length up to 27 cm
• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 370W / 230 V
• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 77 cm welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 28 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 110 cm
• Total height 119 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: 2" honey tap, welded at bottom level
Weight: net 105 kg, packed on a wooden pallet
Chargeable weight: 140 kg
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 6 Ganzrahmen |
|---|---|
| Diameter: | 77 cm |
| Frame size: | Deutsch Normal 394 x 223 mm, Freudenstein 338 x 200 mm, Gerstung 260 x 410 mm, Kuntzsch 330 x 250 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 370 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 27 cm |
Login
accessories
Ball big Ø 15 mm for insertion into the bottom bearing.For honey extractors with drive or motor on BOTTOM of the honey extractor.

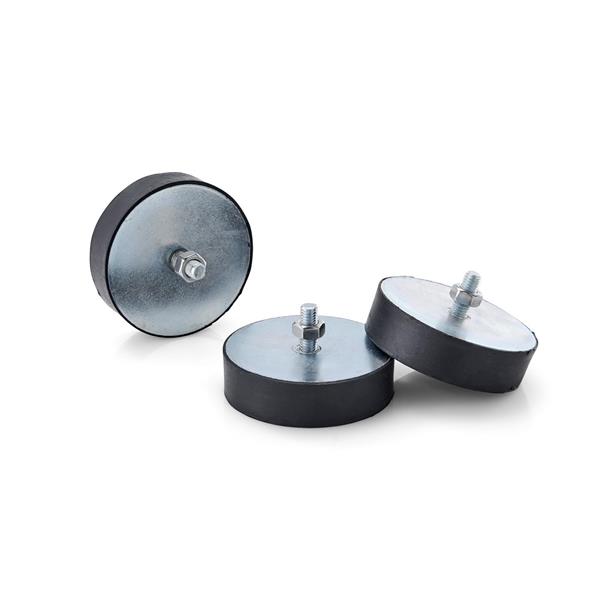

1 Set (contains 3 pieces) of rubber feet with metal parts from stainless steel for honey extractors up to inner-Ø 69 - 77 cm with M10 threaded pin and nut.Protect your floors and ensure your extractor stands more firmly.Height of each rubber foot is 20 cm.
Plastic cover for the bottom bearing of honey extractors with bottom drive.The plastic cover protects the bottom bearing while cleaning the Honey extractor.colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
similar items

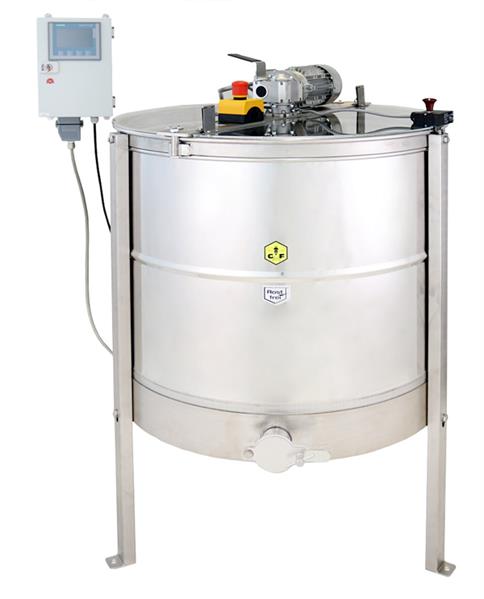

Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 25 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 88kg / 110 kgPacked on a wooden palletChargeable weight: 110 kg Tripod (5055000) for speed control has to be ordered separatly!
