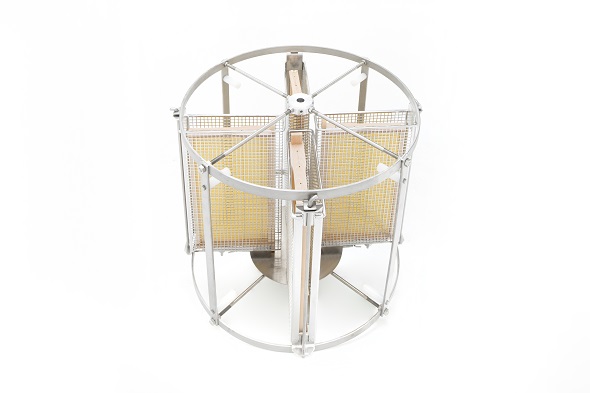

CFM-Self-Turning extractor 4 frames, Ø 72 cm, 370W motordrive underneath, fully automatic
€4,849.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 4 frames up to side bar length 24 cm
• Frame sizes: Zander, German Standard, Langstroth, Freudenstein
Technical details:
• Emergency stop button
• Safety device with lid lock
• Bottom drive 370W / 230V
• Fully automatic with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 72 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Pocket size 25 cm x 45 cm
• Slots for frame lugs
• Material: stainless steel
• Loading height: 110 cm
• Total height 119 cm
• Distance from the floor to the honey tap: 38 cm
• Outlet: 2" honey tap, welded at bottom level
Weight without/with wrapping: 93 kg / 120 kg
Packed on a wooden pallet
Chargeable weight: 120 kg
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 4 Ganzrahmen |
|---|---|
| Diameter: | 72 cm |
| Frame size: | Deutsch Normal 394 x 223 mm, Freudenstein 338 x 200 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 370 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 24 cm |
Login
accessories
Ball big Ø 15 mm for insertion into the bottom bearing.For honey extractors with drive or motor on BOTTOM of the honey extractor.
Plastic cover for the bottom bearing of honey extractors with bottom drive.The plastic cover protects the bottom bearing while cleaning the Honey extractor.colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
