CFM-Euro-Self-turning extractor 4 frames, Ø63cm with "Extractor Witch"
€1,919.00
Available, Lieferzeit 1 - 3 Arbeitstage
Product information

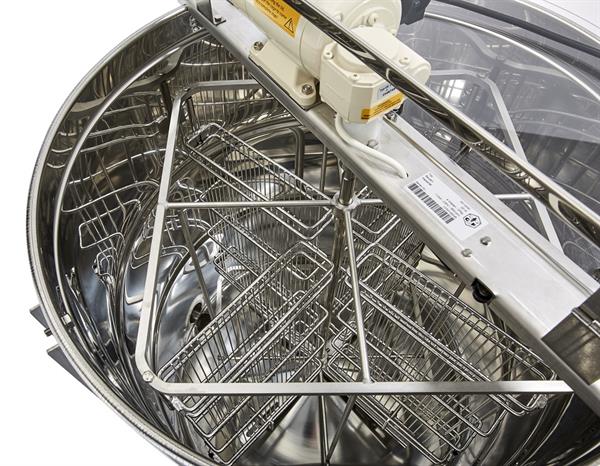

With this honey extractor the annoying manual turning of the frames is omitted. The frame basket is made of wire mesh bars and a turning device. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models. The left and right turn can easily be adjusted with a lever. Of course this extractor is also equipped with a security device.
Suitable for:
• 4 deep frames up to 23 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth
Technical details:
• Top drive with security switch
• Motor power 110 W / 230 V
• Left and right turn
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Frame pockets made of wire mesh bars 24 cm x 41 cm
• Material: Edelstahl-Rostfrei
• Total height: 124 cm
• Distance from floor to the tap 38 cm
Included in the delivery:
1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 44 kg / 66 kg
Chargeable weight: 66 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Acrylic glass lid half on request
| Capacity of frames: | 4 Ganzrahmen |
|---|---|
| Diameter: | 63 cm |
| Frame size: | Deutsch Normal 394 x 223 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 110 W / 230 V |
| Outlet: | Quetschhahn 1½" |
| Side bar length max.: | 23 cm |
Carl Fritz Imkertechnik GmbH & Co. KG
Immenweg 1
97638 Mellrichstadt Tel. +49 9776 8115-0
info@carl-fritz.de
Login
accessories
1 set (contains 3 pieces) of rubber feet with metal parts from stainless steel for honey extractors up to inner-Ø 63 cm with M8 threaded pin and nut. Protect your floors and ensure your extractor stands more firmly. Height of each rubber foot is 28 cm.
Ball small Ø 10 mm for insertion into the bottom bearing.For honey extractors with drive or motor on TOP of the honey extractor.
Consists of: - 2 mm thick seal for the honey tap clear width 44mm (1 1/2" - no. 5000079) - self-adhesive- 2 mm thick thrust washer between the lower part and the top partMade of food-grade materialWeight: 0.1kg
Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top.This sealant is to cover the bottom bearing while cleaning the tank.Colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
The installation of the bottom heating system (silicone heating mat) 1000 W / 230 V is installed by our expert staff. After installation, the heating mat is additionally insulated on the underside with 9 mm isoGLAS® needle felt to prevent heat loss.Bottom heating thermostatically adjustable for top drive honey extractors with inner-Ø of 63 cm.
Consists of: - 4 mm thick honey tap top part made of stainless steel- 2 mm thick seal for the honey tap - already glued on- Stainless steel disc spring - already mounted- Plastic sliding bearings - already mounted- 2 mm thick thrust washer between the lower part and the top part- Stainless steel screw and nut M6Made of food-grade materialWeight: 0.1kg
