€1,575.00
Available, Lieferzeit 1 - 3 Arbeitstage
Product information
This tangential extractor with motor is even suitable for large frames like Dadant and German Standard 1 1/2. The cage is without middle axis so the frames can be turned inside the cage.
This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2 and Swiss frames
Technical details:
• Top drive with security switch
• Motor power 110 W / 230 V
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Grid area of the cage 38 x 46 cm

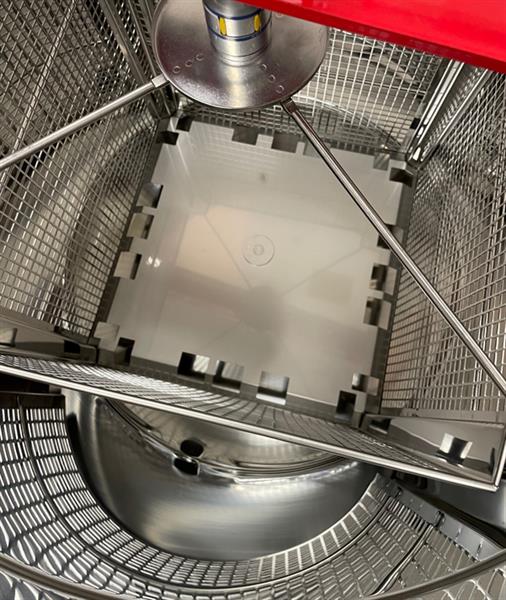

• Without middle axis (frames can be turned inside the cage)
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract radial with a radial cage
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 34 kg / 40 kg
Wrapping: cardboard box
Chargeable weight: 46 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5003840 4 frames tangential cage
Item no. 5203818 18 shallow frames radial cage
Acrylic glass lid half on request
| Capacity of frames: | 4 Ganz-/8 Halbrahmen |
|---|---|
| Diameter: | 63 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Deutsch Normal 1½ 394 x 338 mm, Freudenstein 338 x 200 mm, Gerstung 260 x 410 mm, Kuntzsch 330 x 250 mm, Langstroth 482 x 232 mm, Schweizer 284 x 360 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 110 W / 230 V |
| Outlet: | Quetschhahn 1½" |
| Side bar length max.: | 37/18 cm |
