CFM-Self-turning extractor 4 frames, Ø 72cm, 180W, fully automatic
€4,160.00
Available, Lieferzeit 1 - 3 Arbeitstage
Product information
• 4 deep frames side bar length up to 24 cm
• frame sizes: Zander, German Standard, Langstroth, Freudenstein
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Top drive motor 180 W / 230 V
• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 72 cm, welded bottom without gap
• Tank bottom with slope to the outlet

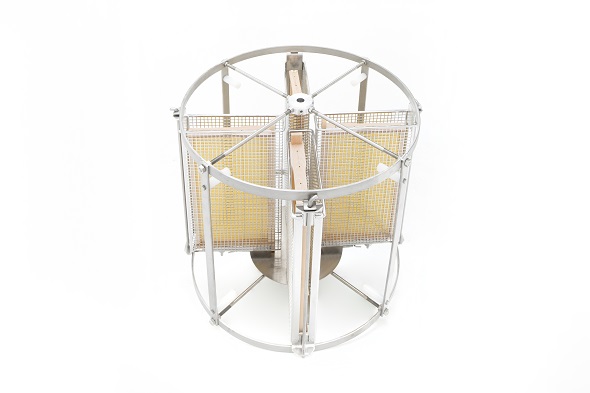

• Frame pocket size 25 cm x 45 cm
• Slots for frame lugs
• Material: Stainless steel
• Loading height: 110 cm
• Total height: 127 cm
• Distance from the floor to the honey tap: 38 cm
• Outlet: 2" honey tap, welded at bottom level
Weight without/with wrapping: 72 kg / 95 kg
Chargeable weight: 95 kg
Tripod (5055000) for speed control has to be ordered separatly!
| Capacity of frames: | 4 Ganzrahmen |
|---|---|
| Diameter: | 72 cm |
| Frame size: | Deutsch Normal 394 x 223 mm, Freudenstein 338 x 200 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 180 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 24 cm |
Carl Fritz Imkertechnik GmbH & Co. KG
Immenweg 1
97638 Mellrichstadt Tel. +49 9776 8115-0
info@carl-fritz.de
Login
accessories
Consists of: - 2 mm thick seal for the honey tap clear width 55mm (2" - no. 5000086) - self-adhesive- 2 mm thick thrust washer between the lower part and the top partMade of food-grade materialWeight: 0.1kg
The installation of the bottom heating system (silicone heating mat) 1500 W / 230 V is installed by our expert staff.After installation, the heating mat is additionally insulated on the underside with 9 mm isoGLAS® needle felt to prevent heat loss. Bottom heating thermostatically adjustable for top drive honey extractors with inner-Ø of 72 cm.
Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top.This sealant is to cover the bottom bearing while cleaning the tank.Colour: yellow
Food grade grease for the bottom bearing.Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage.For regular maintenance of your honey extractor.Contents: tin with 20 g
Content: 0.02 Kilogramm (€325.00 / 1 Kilogramm)
Consists of: - 6 mm thick honey tap top part made of stainless steel- 2 mm thick seal for the honey tap - already glued on- Stainless steel disc spring - already mounted- Plastic sliding bearings - already mounted- 2 mm thick thrust washer between the lower part and the top part- Stainless steel screw and nut M8Made of food-grade materialWeight: 0.1kg
