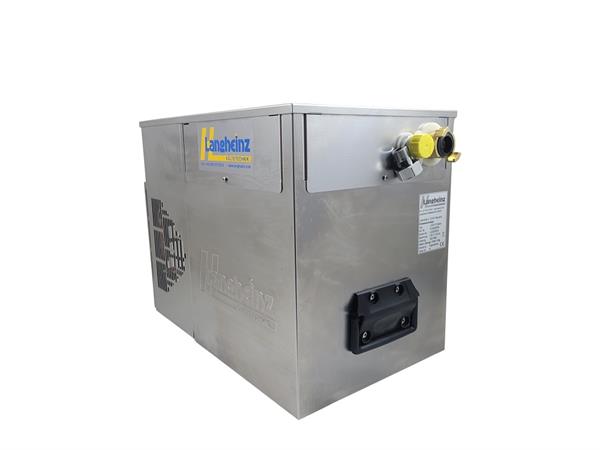

Water cooling system incl. circulation pump and digital temperature control

For tempering the honey during the creaming process – this produces the finest cream honey!
Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat.
The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.
The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.
The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.
The device can only be used for cooling.

Technical Data:
Water connection: 3/4"
Cooling power: 457 W at0 °C, 527 W at +5 °C
Electrical power: 230 V, 50 Hz, 2,1 A / 350 W
Cooling machine: DLE4CN
Cooling refrigerant: R290
Filling quantity: 60 g
Tank content: 12,5 litre
Measurements (L/D/H): 480 x 300 x 400 mm
Casing: stainless steel
Agitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0,6 A, 64 W

Weight: 25 kg
Shipping weight: 37 kg

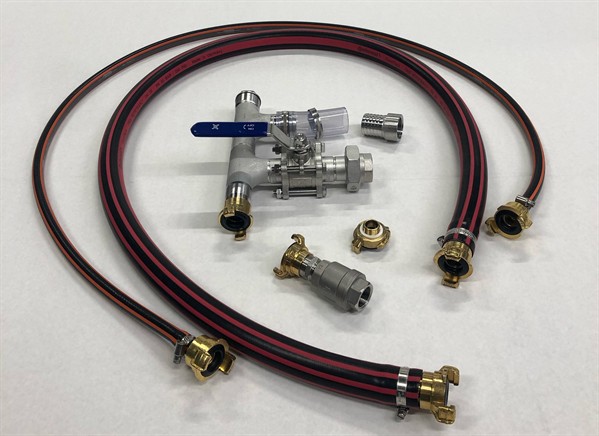

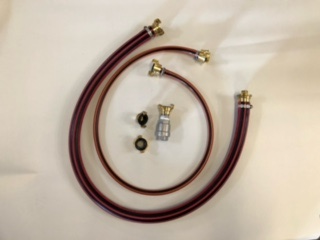

Optional Accessories - Please order separately:
Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamer
Item no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamer
Item no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer
