€3,255.00
Available, Lieferzeit 1 - 3 Arbeitstage
Description
Product information

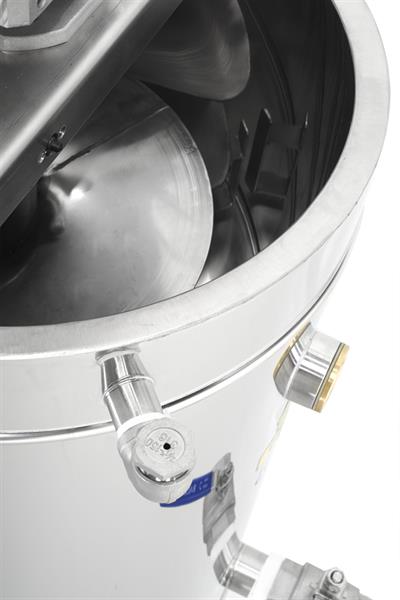

In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• Flat gear motor 250 W / 230 V
• Approx. 24 rpm
• Paddle screw with rake at the bottom
• Inner tank Ø 43, welded bottom without gap
• Outer tank Ø 48 cm
• Rigid handles
• Tank bottom with slope to the outlet

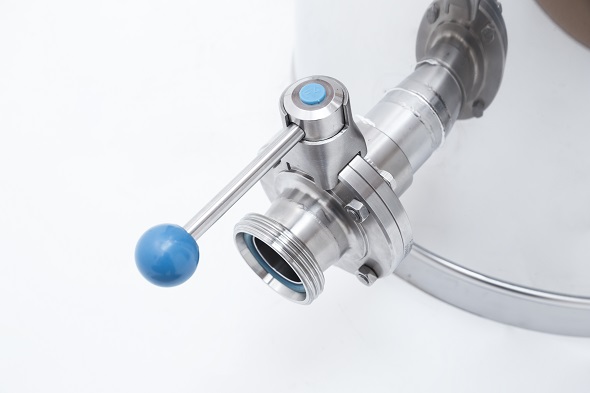

• Outlet: DN40 dairy thread welded at bottom level with screwed on DN40 disc valve
• Material: stainless steel
• Heater 3000 W / 230 V
• Capacity for double wall: approx. 38 liter
• Outer tank height: 72 cm
• Total height: 100 cm
• Incl. plug-in timer
Please note: We recommend filling the double wall with water (filtered rain water).
Weight without wrapping: 60 kg
Incl. wrapping: 65 kg
Reviews 0
Login
accessories
• Stainless steel, height 100 cm• Suitable for No. 5822100 with filling machine No. 6099202• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without filling machine!
Accessories for Water cooling system (item no. 6096200) to connect to a double walled 100 kg tank (production year 2023 or later) with return circulation distributor - picture similar
• Suitable for CFM 100 kg double-walled filling container, item 5800186, or 100 kg double-walled creamer and homogenizer, item 5822100• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be removed or put back in / pressed in again if required• Weight approx. 1,5 kg
Made of Stainless Steel. The chute is easily hooked under the crossbar.
To screw onto a DN40 dairy thread, completely made of stainless steel.
CFM-Stand for 100 kg tanks (double walled)• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels two of them with locking brake• Fits tank no. 5800186 and 5822100
similar items
In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• Flat gear motor 250 W / 230 V• Approx. 24 rpm• Paddle screw with rake at the bottom• Inner tank Ø 43 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN40 dairy thread at bottom level with screwed on DN 40 disc valve• Material: Stainless steel• Outer tank height: 62 cm• Total height: aprox. 90 cm• Plug in timer switch includedWeight without/with wrapping: 32 kg / 36 kgWrapped in a cardboard box on a palletAccessories - please order separately:Item no. 5009800 bottom heating
