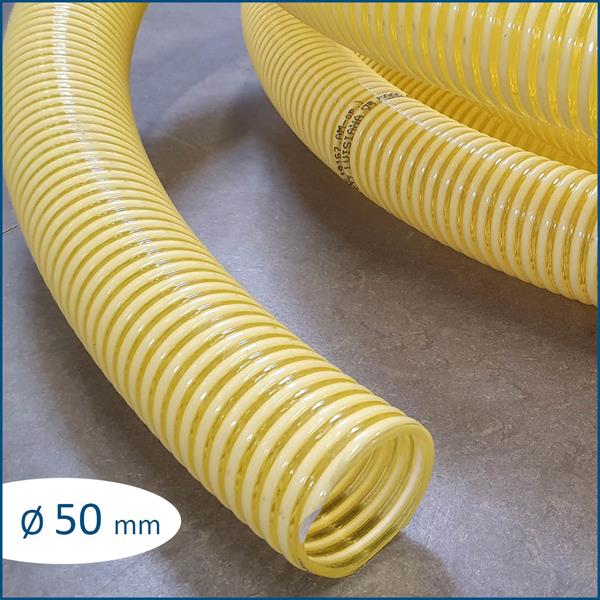

Spiral hose Ø 50 mm (price per m)

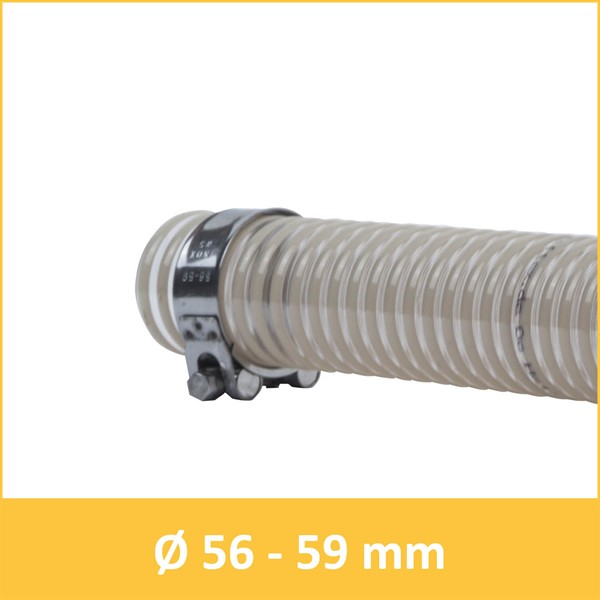

Joint bolt clamp Ø 56-59 mm made of stainless steel V4A.

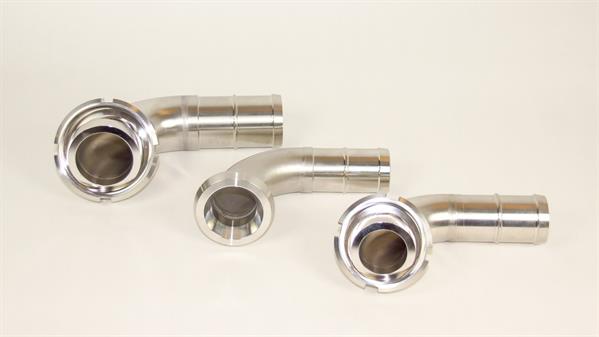

Half hose coupling made of stainless steel with cone socket connecting piece DN 50, locking nut DN 50 and 90° pipe for hose-Ø 50 mm.For connecting hoses to disc valves.

Bidirectional gear pump with variable speed and integrated level switch. This pump has been specially desigend for pumping honey.It runs at sufficiently low speed with 180RPM. It can easily be cleaned and it is maintenance free.The trolley/base and fittings are made entirely of stainless steel. The pump head itself is made of a food approved massive plastic housing with plastic gears.Capacity about 1000kg/hr at 50hz.Working principle of the level switch: The level switch can be used for two purposes, emptying and filling. When set on emptying, the detector will sense honey in e.g. a honey sump and activate the pump as soon as it senses the honey. The pump will then start pumping and stop when the detector is at it's low level (about 5cm difference). When set on filling, you place e.g. an empty drum you want to fill with honey. The next step is to mount the float switch at the top of the drum and then start the pump manually. Once the sensor senses the honey at the top of the tank, it will stop the pump automatically. The most common use is to empty a honey sump with honey, since this part has a limited capacity. At the other end you usually place a large tank and place a level alarm inside this one, so that once this tank is filled, it will give an alarm and you know that you have to stop the pump.Technical data:• Maschinentyp: Gear pump• Capacity: approx. 700 l/hr (1000kg/hr)• Power supply: 1500W / 230V• Dimensions: 64 x 20 x 42cm• Weight: 36kg• Fittings: 2" hose fittings Typ BS incl. hose clamp to connect a DN50 tube

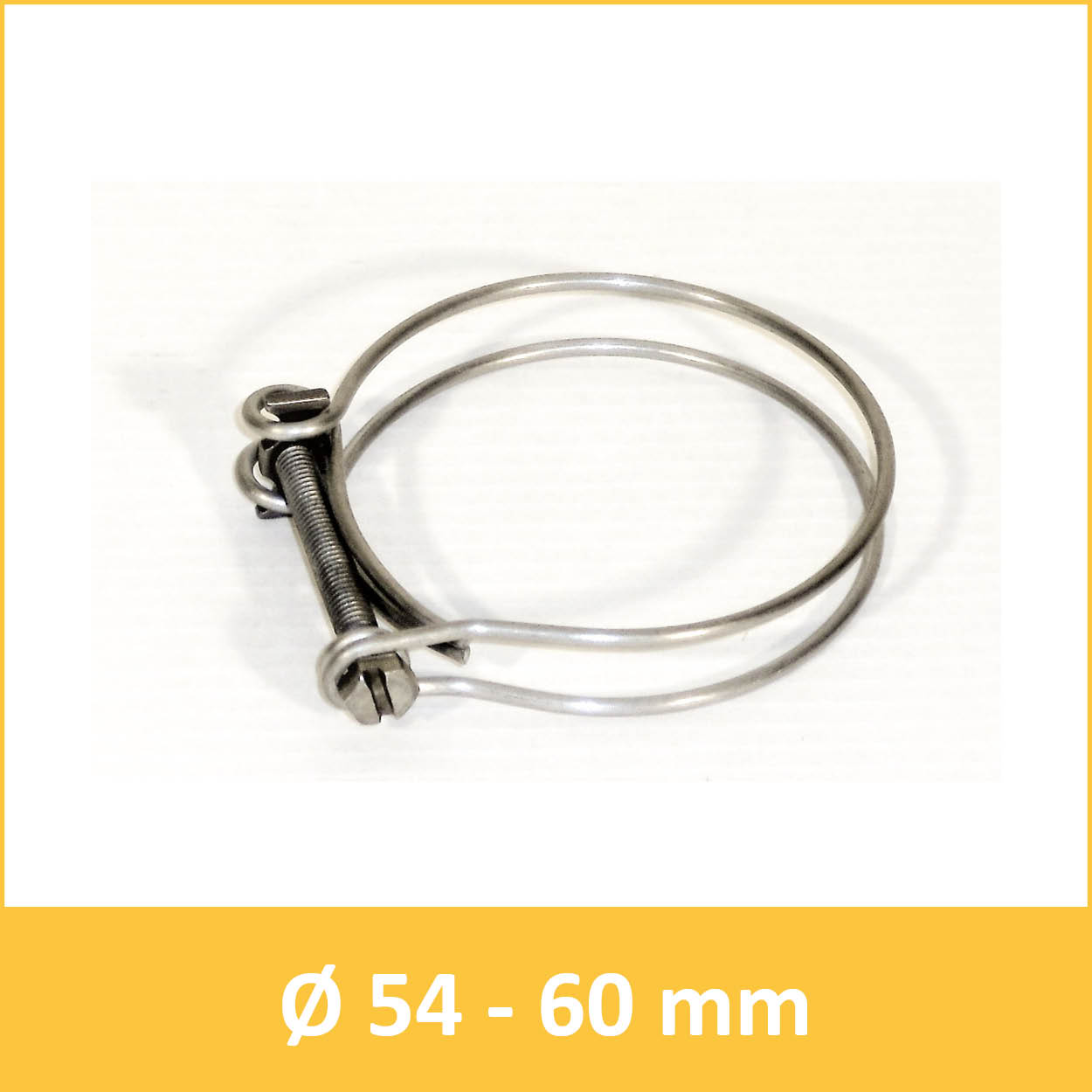

Wire hose clamp 54 - 60 mm for hose DN 50.This wire hose clamp is especially for spiral hose.

Very useful support to keep the hose in position. You stick the hose through the support and hang it on the rim of the tank, the hose sits very tight

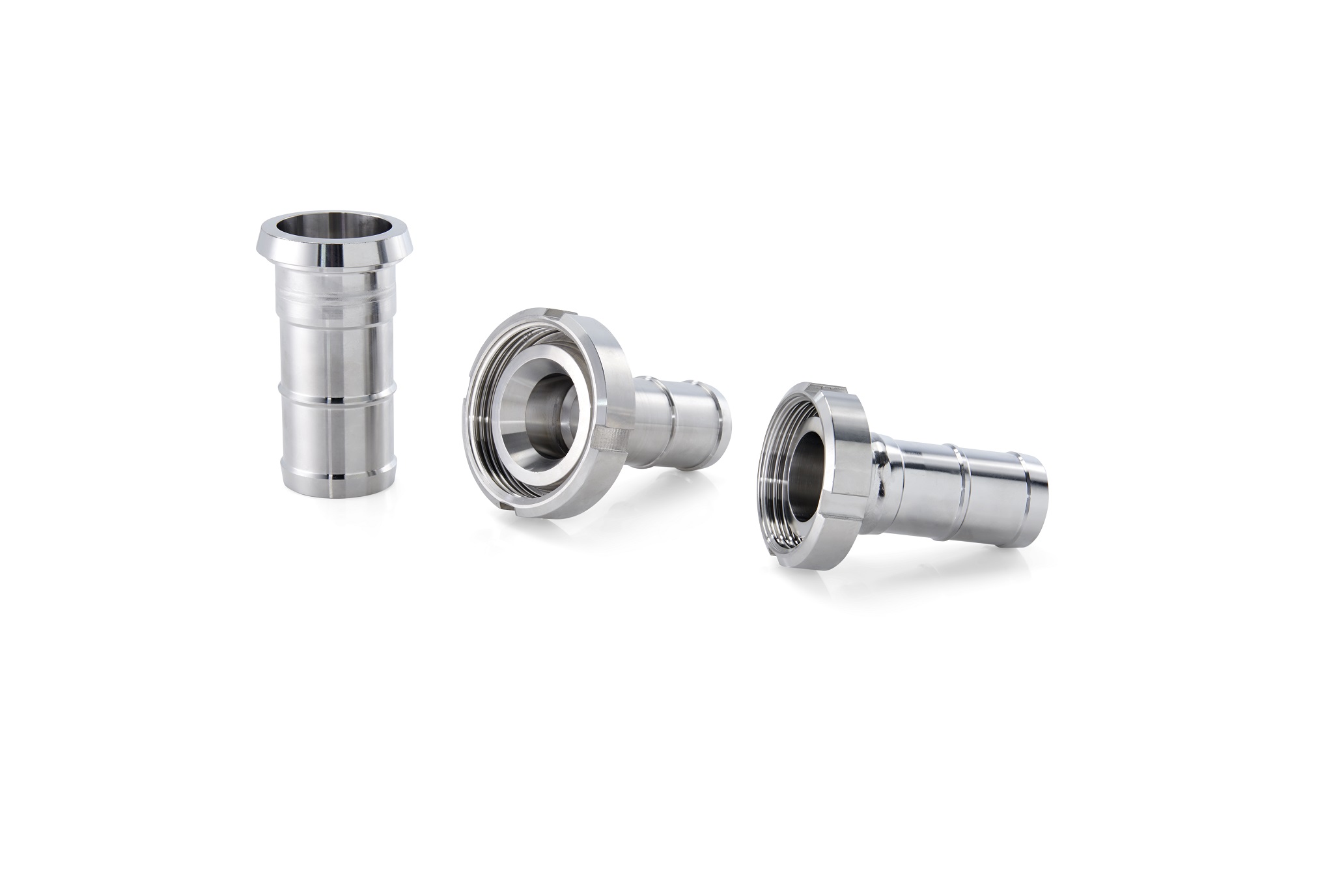

Half hose coupling mad of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 50 mm.For connecting hoses to disc valves.

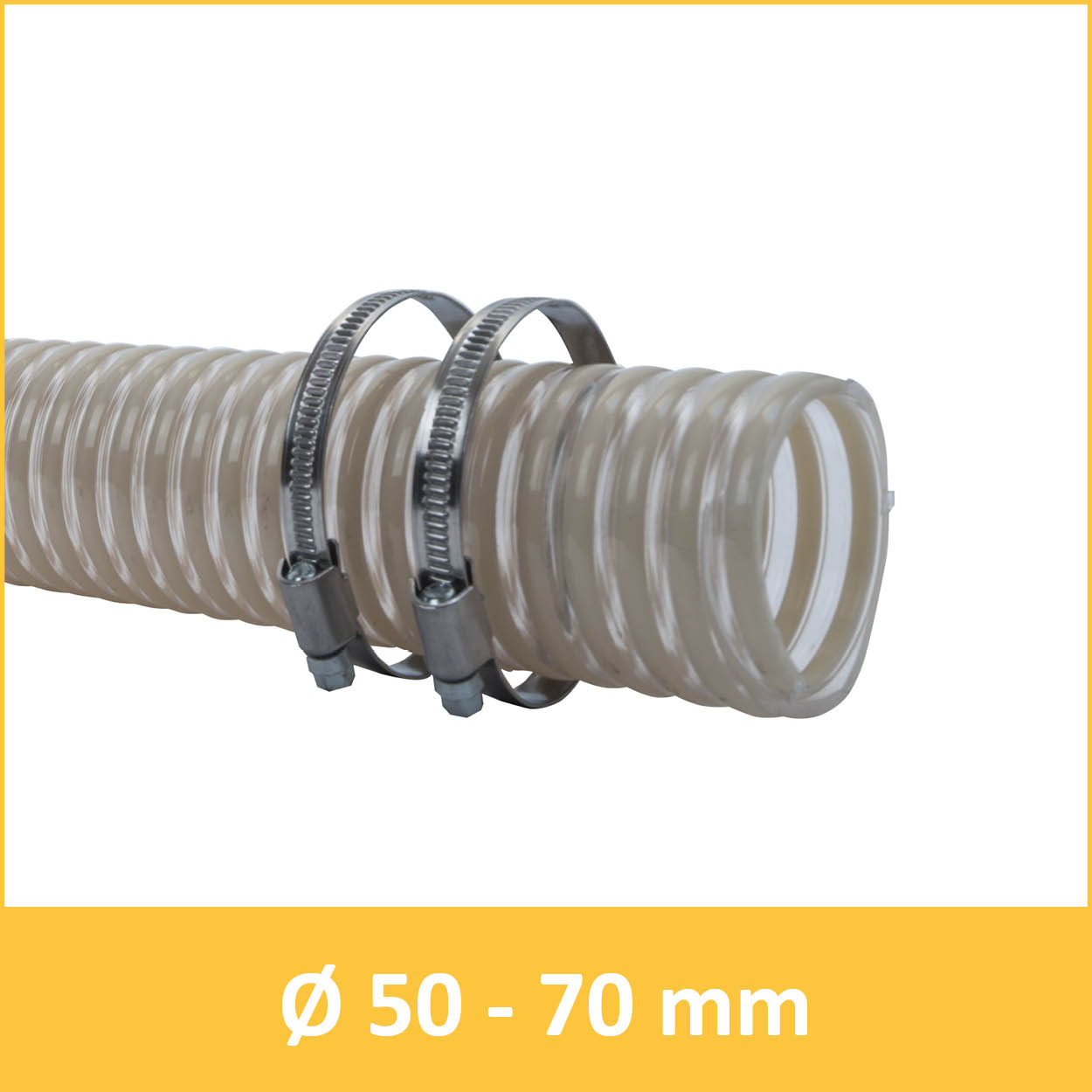

Hose clamp 50-70 mm made of stainless steel V2A.Weight: 0,24kgChargeable weight: 0,24kg
