CFM-Radial extractor 42 deep frames, Ø 100 cm, motordrive underneath, radial fully automatic, low tank, with lid opener
Regular price:
€7,913.00
Available in 28 days, Lieferzeit 1 - 3 Arbeitstage
Product number:
5410042-PTO
Description
Product information
Suitable for:
• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm
• Frame sizes: Zander, German Standard, Langstroth, Dadant shallow
Technical details:

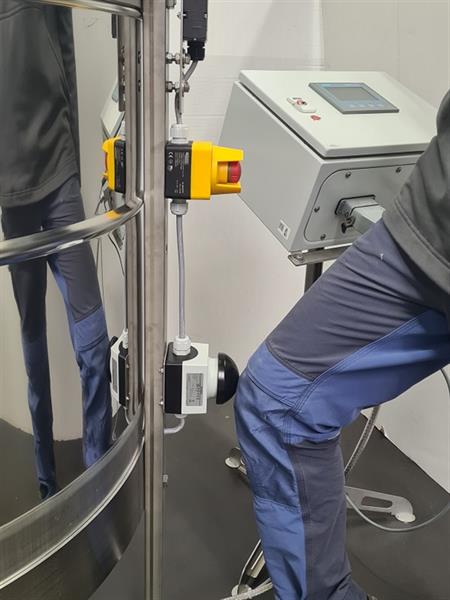

• Emergency stop button
• Safety device with 750W / 230V
• With electrical lid opener
• Push-to-open via special button
• Radial fully automatic with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 100 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Material: stainless steel
• Radial cage cannot be exchanged with a self-turning cage
• Low tank for easy loading and unloading, tank height approx. 104 cm
• Distance from the floor to the honey tap: 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight without/with wrapping: 134 kg / 180 kg
Packed on a wooden pallet
Tripod (5055550) for speed control has to be ordered separatly!
• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm
• Frame sizes: Zander, German Standard, Langstroth, Dadant shallow
Technical details:
• Emergency stop button
• Safety device with 750W / 230V
• With electrical lid opener
• Push-to-open via special button
• Radial fully automatic with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 100 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Material: stainless steel
• Radial cage cannot be exchanged with a self-turning cage
• Low tank for easy loading and unloading, tank height approx. 104 cm
• Distance from the floor to the honey tap: 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight without/with wrapping: 134 kg / 180 kg
Packed on a wooden pallet
Tripod (5055550) for speed control has to be ordered separatly!
Properties
| Capacity of frames: | 42 Ganzrahmen |
|---|---|
| Diameter: | 100 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 750 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 26 cm (40 mm breit) |
