CFM-Radial extractor, Ø100 cm, motordrive 750W underneath, 42 deep frames, fully automatic with lid opener
€8,520.00
Available in 28 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm
• Frame sizes: Zander, German Standard, Langstroth, Dadant shallow
Technical details:
• Emergency stop button
• Safety device with lid lock

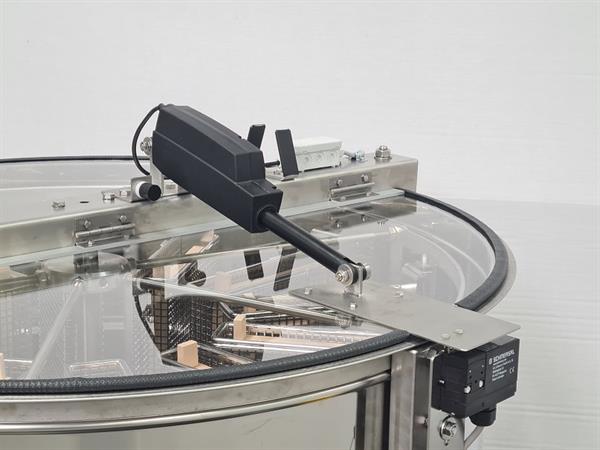

• With electrical lid opener
• Push-to-open via special button
• Bottom drive 750W / 230V
• Fully automatic with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 100 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Material: stainless steel
• Loading height: 116 cm
• Distance from the floor to the honey tap: 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
• Cage can be exchanged with a 8 or 12 pockets self-turning cage
Weight: 180 kg
Packed on a wooden pallet
Tripod (5055550) for speed control has to be ordered separatly!
| Capacity of frames: | 42 Ganzrahmen |
|---|---|
| Diameter: | 100 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 750 W / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 26 cm (40 mm breit) |
Carl Fritz Imkertechnik GmbH & Co. KG
Immenweg 1
97638 Mellrichstadt Tel. +49 9776 8115-0
info@carl-fritz.de
Login
accessories
Consists of: - 2 mm thick seal for the honey tap clear width 55mm (2" - no. 5000086) - self-adhesive- 2 mm thick thrust washer between the lower part and the top partMade of food-grade materialWeight: 0.1kg
Consists of: - 6 mm thick honey tap top part made of stainless steel- 2 mm thick seal for the honey tap - already glued on- Stainless steel disc spring - already mounted- Plastic sliding bearings - already mounted- 2 mm thick thrust washer between the lower part and the top part- Stainless steel screw and nut M8Made of food-grade materialWeight: 0.1kg
