Separator & centrifuge
Separating wax from honey cannot be faster and easier!
Especially if you harvest very large quantities, we recommend the use of a separator.
In addition, it is also possible to use a centrifuge, so that you can also separate the uncapping wax from the honey.
Our CFM-separator and centrifuge is engineered and manufactured exclusively in Mellrichstadt.
Convince yourself of the powerful devices.

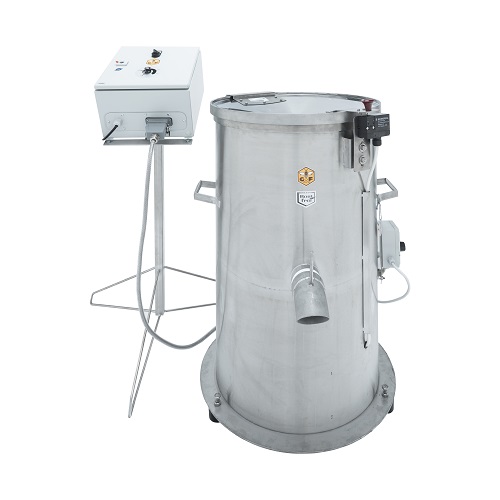

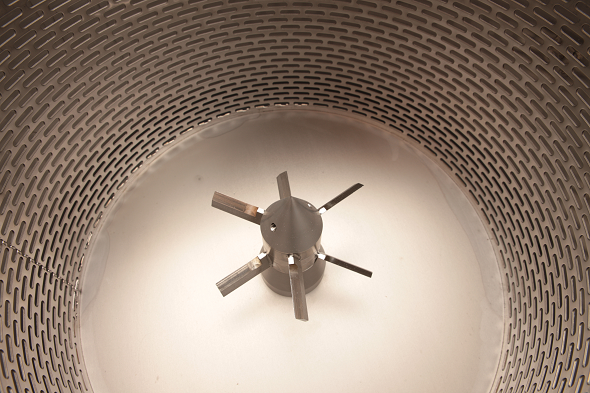

With the CFM-Centrifuge you use the physical forces to quickly and effectively separate honey from uncapping wax.Direct drive through specially manufactured three-phase motor with single-phase frequency converter and potentiometer for stepless speed control. Accurate guidance of the cage via conical shaft seat. Even distribution of wax through solid knife block.These features characterize our CFM centrifuge:• Stepless electronic speed control from 0 - 1000 rpm• Tank and basket made of stainless steel• Filling weight of the basket with wax approx. 15 kg• Basket Ø 43 cm• Basket height 32 cm• Motor 750 W at 1000 rpm• Power supply 230 V• Compact size: space requirement only 60 x 60 cm• Bottom heating 800 W / 230 VAlso included:• Stainless steel sieve insert with coarse mesh size for extraction of uncapping wax and a stainless steel sieve insert with fine mesh size for ultrafine sieving of honey• Stand for the speed controlPlease note:The centrifuge has to be fixed to the floor with the supplied express fasteners!Only fill in the honey and the wax / honey mixture while the lid is closed during centrifugation!Weight: 78 kg Chargeable weight: 128 kg

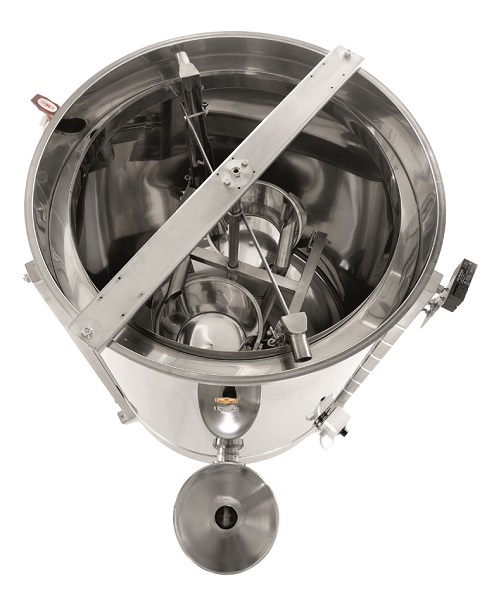

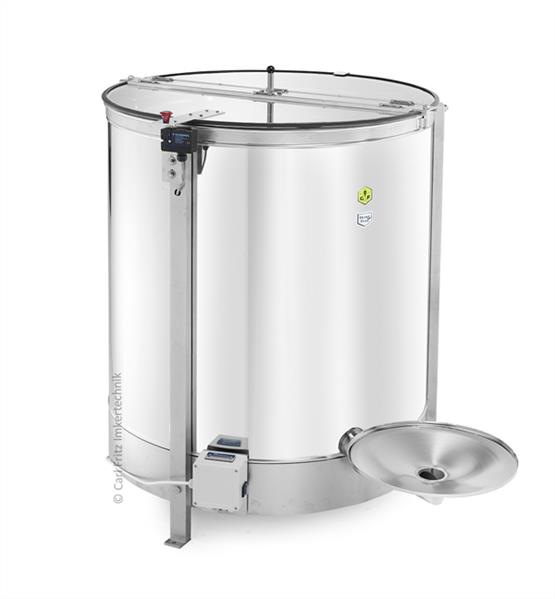

Our powerful CFM-Honey wax separator can separate up to 300 kg honey wax mixture. The separation is done by centrifugal force - without any strainers!Watch our product video by following this link https://youtu.be/BrZhmieDmeA• made of stainless steel• separates wax from honey with centrifugal force• continuous operating with high capacity of approx. 300 kg / h• no more time-consuming cleaning of strainers• honey sump or honey pump no longer required• low power consumption 370 W / 230 V• manual speed controller (0 - 300 rpm) incl. long motor cable (3 m)• installed bottom heating adjustable via thermostat: 0 - 85 °C (2000 W / 230 V)• interior tank Ø 93 cm, total height: 130 cm, total weight: approx. 125 kg• inlet height of 36 cm allows direct feeding from extractor into separator• honey valve at the top for filling separated honey straight into storage tanks• height below the honey valve approx. 97 cm
*** Sonderpreis II. Wahl mit kleinen Schönheitsfehlern - funktioniert einwandfrei ***Unser leistungsstarker CFM-Honig-Wachs-Separator empfiehlt sich bei einer täglichen Ernte ab ca. 500 - 600 kg oder mehr Honig.Diese Merkmale zeichnen unseren CFM-Honig-Wachs-Separator aus:• Edelstahl-Rostfrei• Trennung des Honigs vom Wachs durch Zentrifugalkraft ohne Filter• kontinuierlicher Betrieb mit hoher Kapazität von ca. 300 kg/Std.• kein lästiges Reinigen von Sieben mehr erforderlich• Honigsumpf und Honigpumpe sind nicht mehr nötig• geringe Leistungsaufnahme 370 W/230 V• manuelle Drehzahlregelung (0 - 300 U / Min.) inkl. Wandhalterung und langem Motorkabel (3 m)• thermostatisch regelbare Bodenheizung von 30 - 85 °C (2000 W / 230 V)• Ø Innenbehälter: 93 cm• Ø Außen (ohne Teller u. Steg) ca. 96 cm• Gesamthöhe: 130 cm• Gesamtgewicht: ca. 125 kgFrachtpflichtiges Gewicht: 160 kg • optimale Einlaufhöhe von ca. 36 cm, so dass der Honig direkt von der Schleuder in den Separator fließen kann• durch obenliegenden Auslauf kann der separierte Honig direkt in die Lagerbehältnisse gefüllt werden• Höhe unter dem Ablass-Scheibenventil ca. 97 cm
