CFM-Honey creamer 300 kg

€3,142.00*

Available in 21 days, Lieferzeit 1 - 3 Arbeitstage

Product number: 5022300

Product information

In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)!

Technical details:
• Flat gear motor 550 W / 400 V
• Approx. 25 rpm

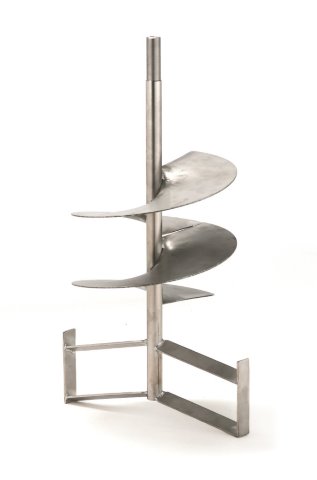

• Paddle screw with rake at the bottom
• Minimum filling quantity: 100 kg
• Inner tank Ø 55 cm welded bottom without gap
• Rigid handles
• Tank bottom with slope to the outlet

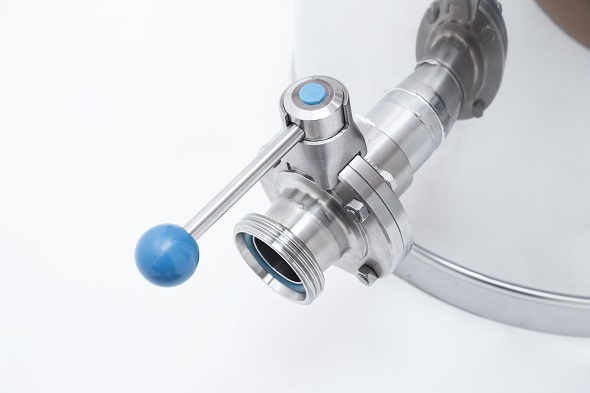

• Outlet: welded on DN50 dairy thread at bottom level with screwed on DN 50 disc valve
• Material: Stainless steel
• Outer tank height: 104 cm
• Total height: aprox. 147 cm

Weight without/with wrapping: 66 kg / 82 kg
Packed on a pallet
Chargeable weight: 82 kg

Accessories - please order separately:
Item no. 5091200 bottom heating
Item no. 5092100 timer switch
Item no. 5097010 stand for 300 kg creamer

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

49500054

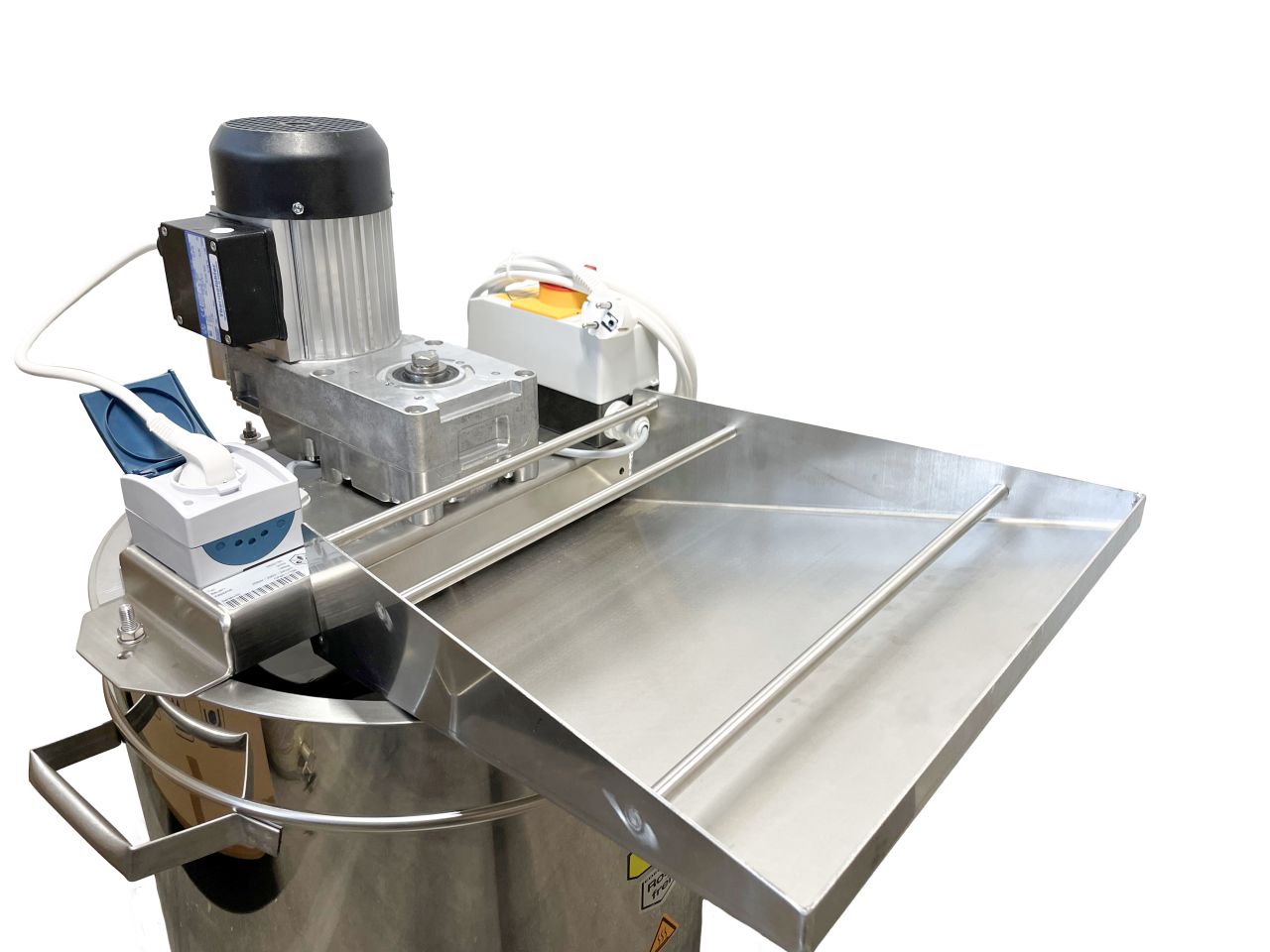

Filling chute für Melitherm AR onto 100kg creamer

Made of Stainless Steel. The chute is easily hooked under the crossbar.

€175.00*

5091200

Bottom heating 1000 W / 230 V (up to Ø 63 cm)

Installation by CFM. For 300 kg tanks, 300 kg CFM-honey creamer and homogenizer and honey extractors up to Ø 63cm

€729.00*

5092100

Time swith (installation by CFM)

This timer is suitable for all honey stirrers and mixers with 400 V motor.Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)One of our experienced employees does the installation.

€395.00*

5097010

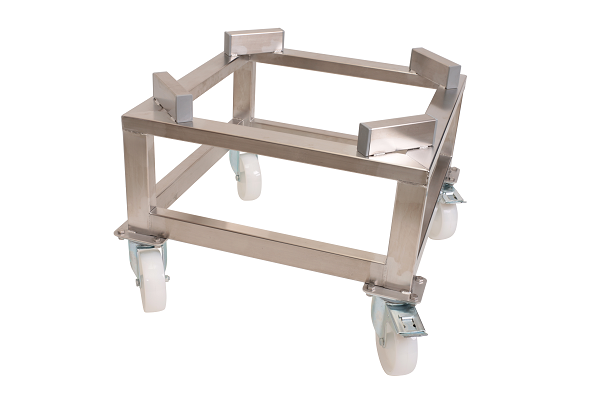

CFM-Stand for tank or creamer for 300 kg, height 50 cm, with 4 wheels

Solid pipe construction made of stainless steel, height 50 cm, with 4 steering rolls, 2 of them are equipped with a locking brake, suitable for No. 5300191 & 5309191 & 5022300.

€607.00*

Filling chute für Melitherm AR onto 300kg creamer

49500079

Filling chute für Melitherm AR onto 300kg creamer

Made of Stainless Steel. The chute is easily hooked under the crossbar.(The Melitherm is not included in the delivery)

€195.00*

Filling chute für Melitherm Profi onto 300kg creamer

49500084

Filling chute für Melitherm Profi onto 300kg creamer

Made of Stainless Steel. The chute is easily hooked under the crossbar.(The Melitherm Profi is not included in the delivery.)

€295.00*

similar items

CFM-Honey creamer 300 kg (double walled)

5822300

CFM-Honey creamer 300 kg (double walled)

This double-walled honey creamer is especially suitable for mixing different blossom honey varieties. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 °C - 30 °C. In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• flat gear motor 550 W / 400 V• approx. 24 rpm• paddle screw with rake at the bottom• minimum filling quantity: 100 kg• inner tank Ø 55 cm, welded bottom without gap• outer tank Ø 60 cm• rigid handles• tank bottom with slope to the outlet• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve• material: stainless steel• heater 6 kW / 400 V• capacity for double wall: approx. 72 liter• outer tank height: 114 cm• total height: 157 cmPlease note:We recommend filling the double wall with water (eg filtered rainwater).Weight: without/with wrapping: 88 kg / 110 kgPacked on a wooden palletChargeable weight: 110 kg Accessories to be ordered separately:Item no. 5092100 Timer switchItem no. 5097050 Stand

€4,333.00*
