€4,333.00
Available in 21 days, Lieferzeit 1 - 3 Arbeitstage
Description
Product information

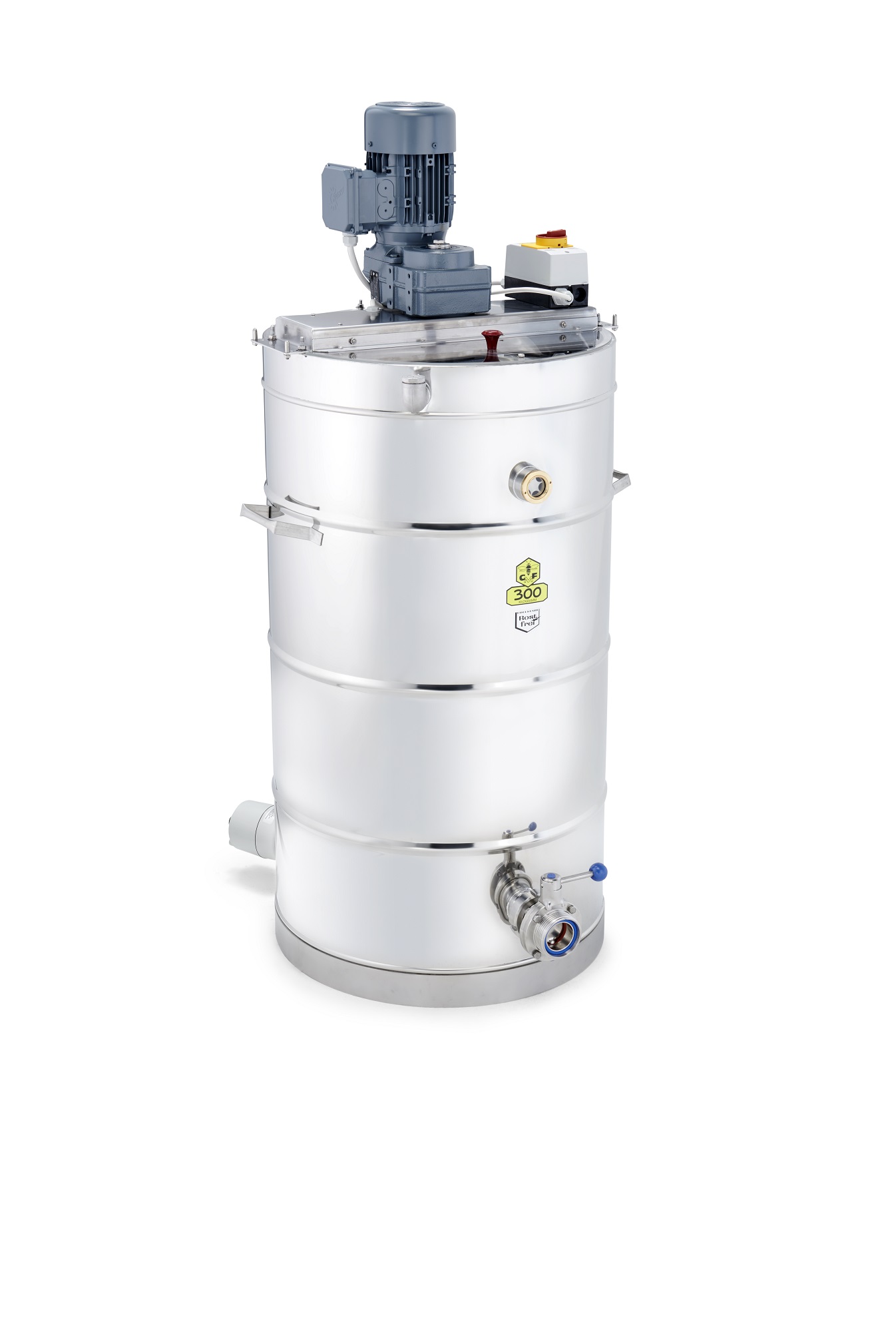

In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• flat gear motor 550 W / 400 V
• approx. 24 rpm

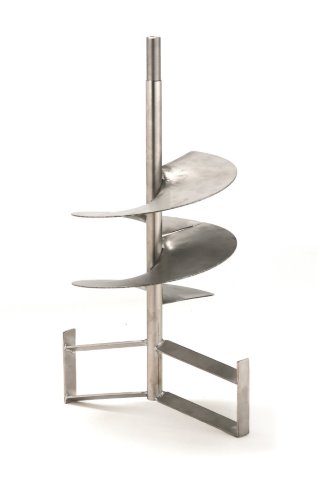

• paddle screw with rake at the bottom
• minimum filling quantity: 100 kg

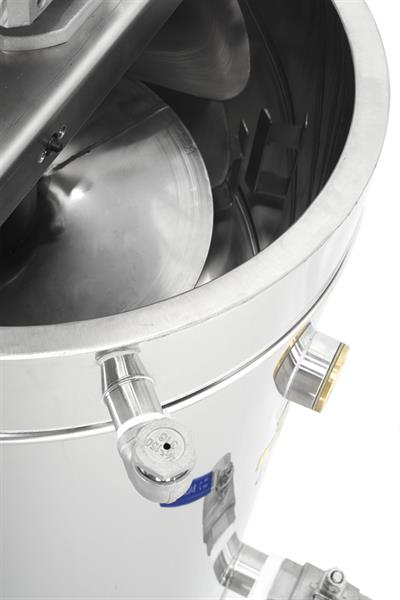

• inner tank Ø 55 cm, welded bottom without gap
• outer tank Ø 60 cm
• rigid handles
• tank bottom with slope to the outlet

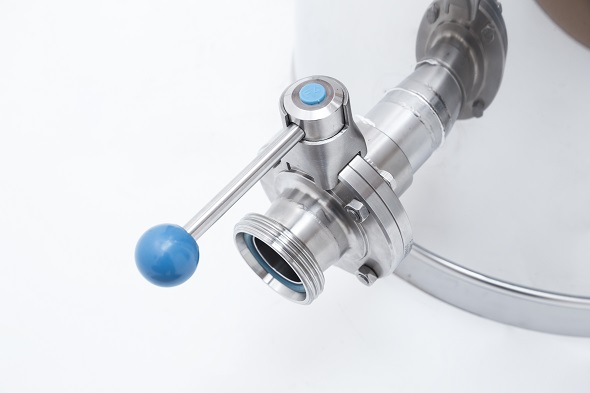

• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve
• material: stainless steel
• heater 6 kW / 400 V
• capacity for double wall: approx. 72 liter
• outer tank height: 114 cm
• total height: 157 cm
Please note:
We recommend filling the double wall with water (eg filtered rainwater).
Weight: without/with wrapping: 88 kg / 110 kg
Packed on a wooden pallet
Chargeable weight: 110 kg
Accessories to be ordered separately:
Item no. 5092100 Timer switch
Item no. 5097050 Stand
Reviews 0
Login
accessories

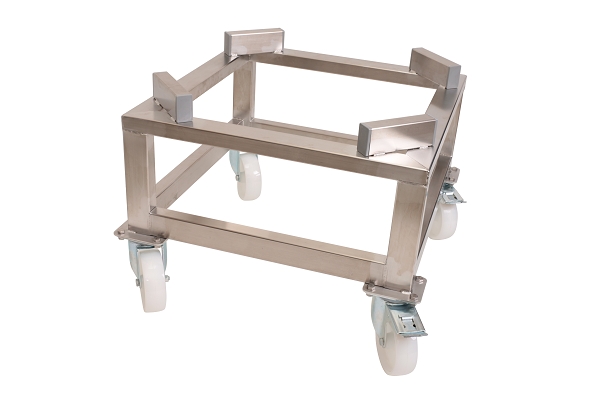

• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels, two of them with locking brake• Fits item number 5800191 + 5822300More sizes available on request.
Accessories for Water cooling system (item no. 6096100) to connect to a double walled 300 kg tank (production year 2023 or later) with return circulation distributor - picture similar

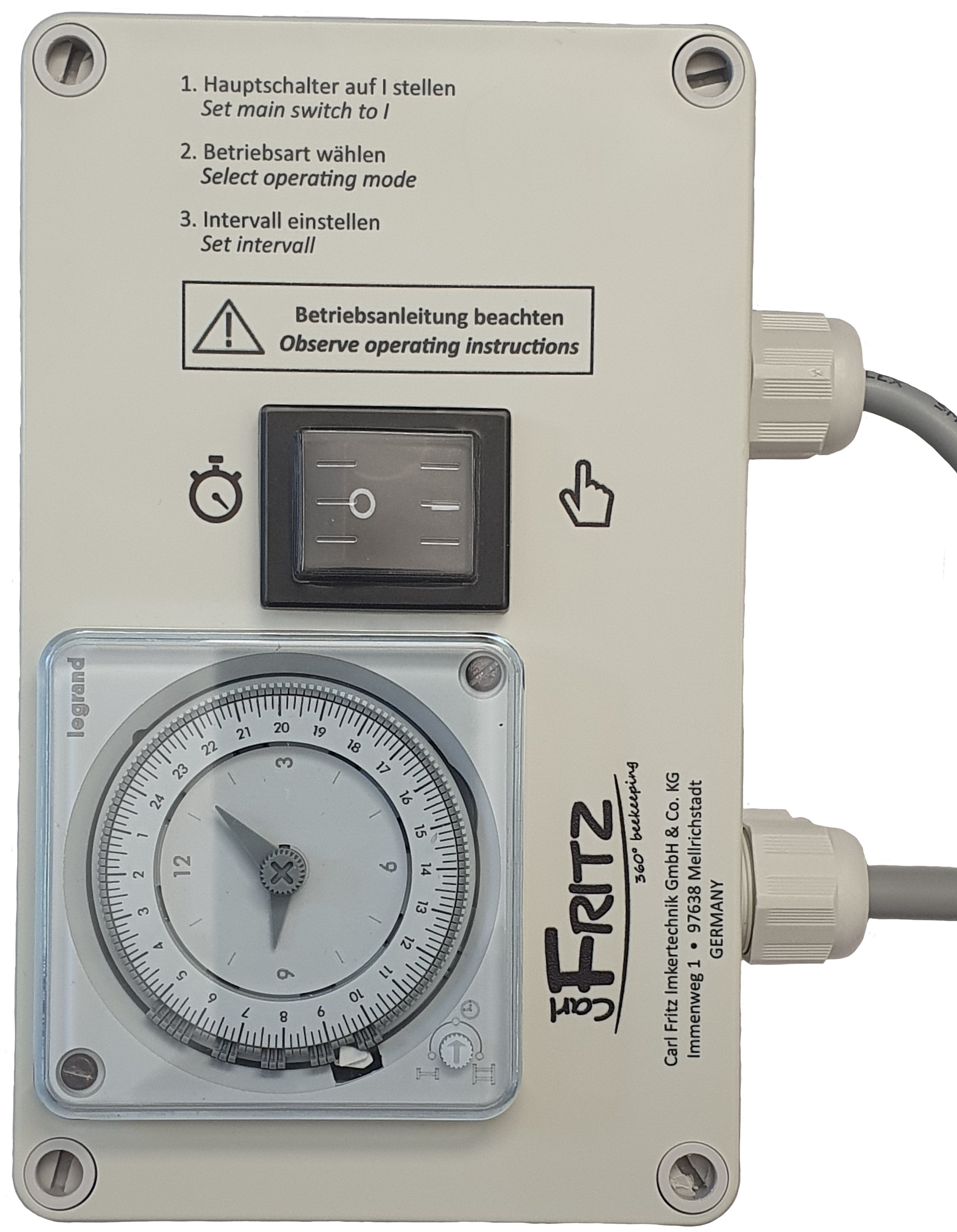

This timer is suitable for all honey stirrers and mixers with 400 V motor.Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)One of our experienced employees does the installation.

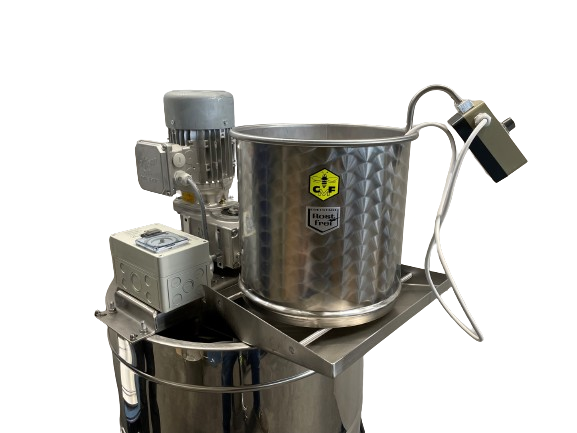

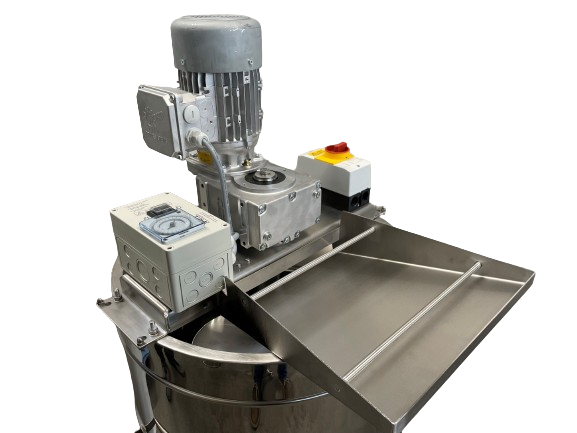

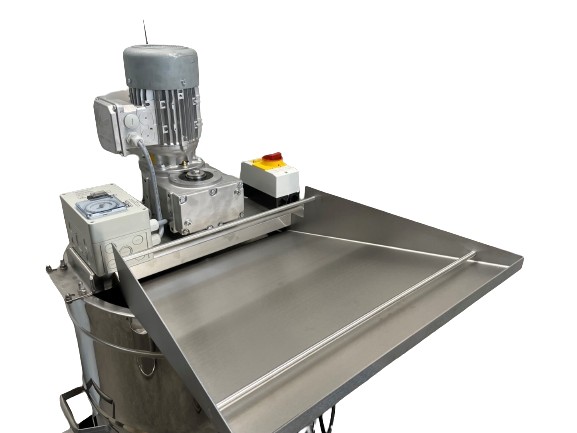

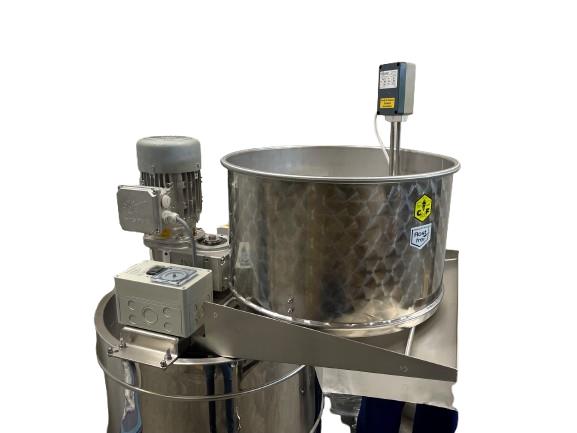

Made of Stainless Steel. The chute is easily hooked under the crossbar.(The Melitherm Profi is not included in the delivery.)

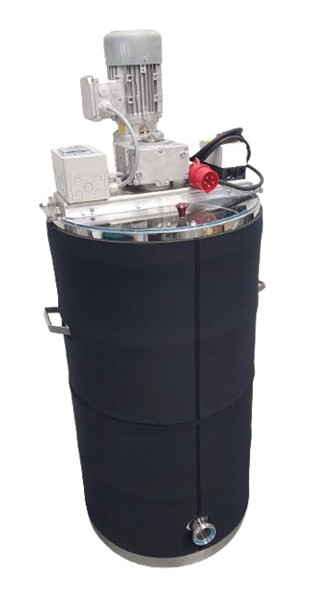

Suitable for 300 kg double walled tank item no. 5800191 and 300 kg double walled creamer and homogenizer item no. 5822300• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be taken out or put back in / pressed in again if required• Weight approx. 1.8 kg
Made of Stainless Steel. The chute is easily hooked under the crossbar.(The Melitherm is not included in the delivery)
similar items

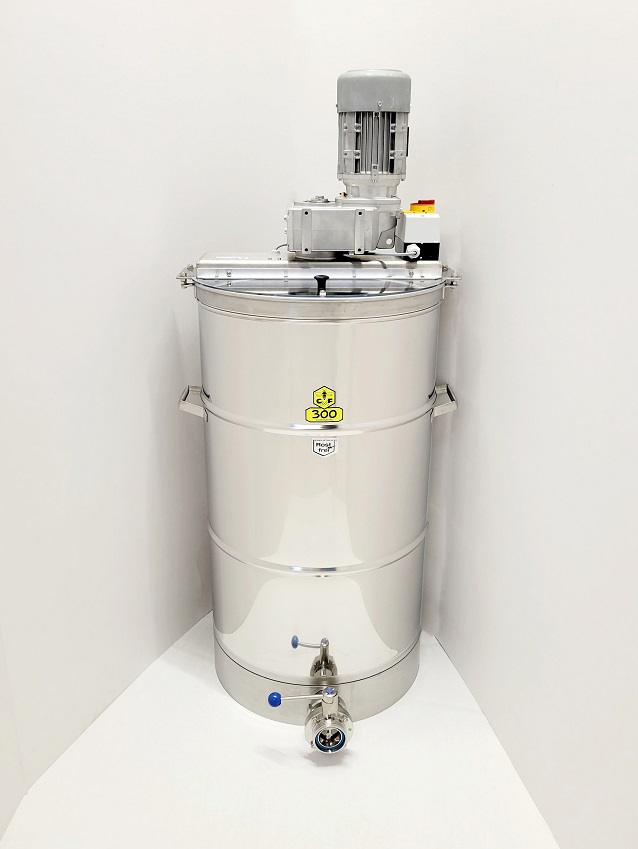

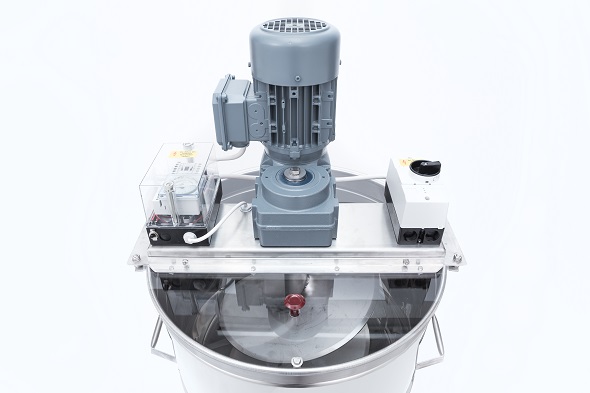

In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)!Technical details:• Flat gear motor 550 W / 400 V• Approx. 25 rpm• Paddle screw with rake at the bottom• Minimum filling quantity: 100 kg• Inner tank Ø 55 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN50 dairy thread at bottom level with screwed on DN 50 disc valve• Material: Stainless steel• Outer tank height: 104 cm• Total height: aprox. 147 cmWeight without/with wrapping: 66 kg / 82 kgPacked on a palletChargeable weight: 82 kg Accessories - please order separately:Item no. 5091200 bottom heatingItem no. 5092100 timer switchItem no. 5097010 stand for 300 kg creamer
