Comb cages & tripods
The following is a compilation of honeycomb baskets.
standard drive-shaft length: 535mm
standard drive-shaft Ø: 14mm (top and bottom)
Deviations from these dimensions, whether in width or in height, require an extra charge for custom manufacturing of 20%, as did comparable sizes for older spinning with lower drive. The baskets are available with and without drive shaft. When ordering specify exact dimensions, and the inner diameter of the tank, or better send in the old basket.
• Grid area 400 x 450 mm• 3 grids made of stainless steel• To insert into radial honey extractors with inner tank Ø 63 cm• For 3 deep frames / 6 shallow framesFits honey extractors item no. 5163018 and 5263018
Fits hand control or program automatic 0.37 kW. Stainless steel.
• Grid area 330 x 450 mm• 3 grids made of stainless steel• To insert into radial honey extractors with inner tank Ø 55 cm• For 3 deep frames / 6 shallow framesFits honey extractors item no. 5055012 - 5255012

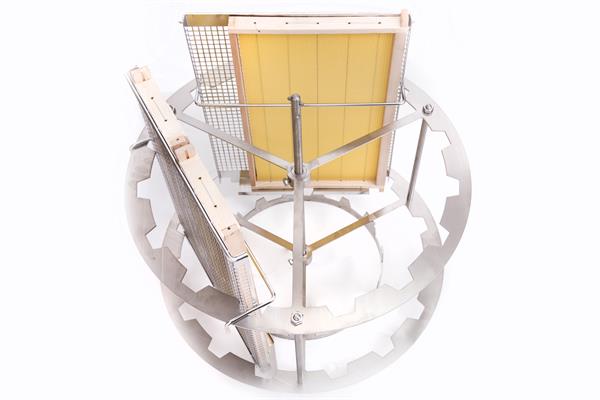

Cage without going through shaft so that the combs can be turned inside the cage.For extractors with Ø 50 cm.Suitable for the following CFM- honey extractors: no. 5004300, 5004371, 5004500, 5004571Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the aperture of the drift shaft (top and bottom) and the length of the shaft.
suitable for inner tank Ø 50 cm, stainless steeldrive-shaft length: 535mm drive-shaft Ø: 14mm (top and bottom)

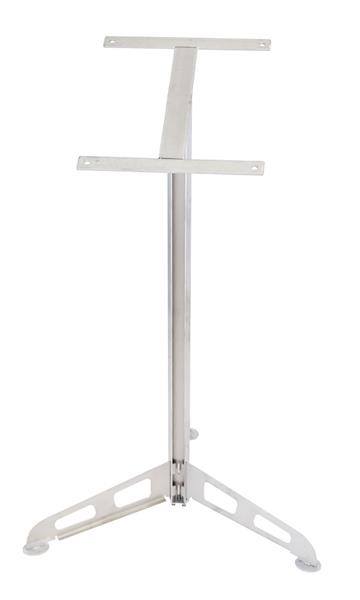

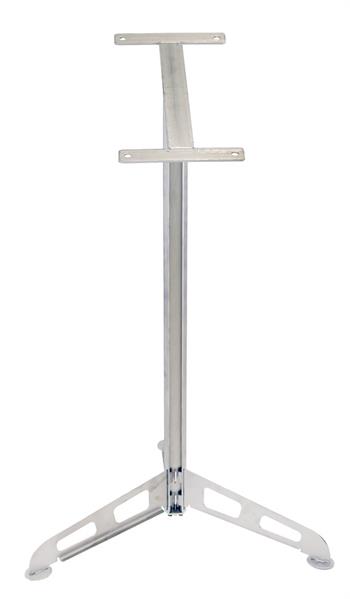

Tripod for manual control or program automatic with 750 W or 1500 W or Separator control unit.Material: Stainless steelHeight: 87.5 cm
suitable for inner tank Ø 60 cm, stainless steel
Made of stainless steel, for inner tank Ø 63 cm.Shaft length 535 mm, Shaft Ø 14 mm (included)In this radial cage fit shallow frames up to • sidebar length 16.5 cm • sidebar width 42 mm
• 3 grids made of stainless steel• to insert into radial honey extractors with tank inner-Ø 50 cm• grid area 35 x 45 cm• for 3 deep frames / 6 shallow framesFits honey extractor item no. 5038015.
Cage without going through shaft so that the frames can be turned inside the cage.For extractors with Ø 43 cm.Stainless steel, grid area of the cage 24.5 x 46 cm.Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.
• Grid area 360 x 450 mm• 4 grids made of stainless steel• To insert into radial honey extractors with inner tank Ø 72 cm• For 4 deep frames / 8 shallow framesFits honey extractors item no. 5272028 and 5772028
Cage without going through shaft so that the frames can be turned inside the cage.For extractors with Ø 55 cm.Stainless steel, grid area of the cage 32 x 46 cm.Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.
"20 deep frames up to 48 x 25 cm and frame width up to 35 mm or 36 shallow frames up to 17 cm sidebar length

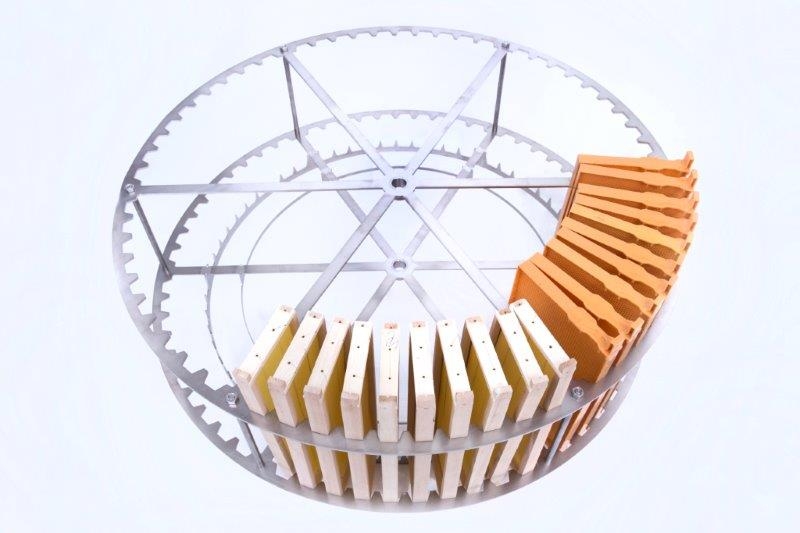

suitable for inner tank Ø 125 cm, stainless steel
Made from stainless steel, for honey extractor tanks with inner-Ø 69 cm.Suitable for 16 shallow frames• sidebar up to 22 cm length• frame width up to 40 mmPlease state when ordering:Needed length of axis and axis-Ø top and bottom!
suitable for inner tank Ø 102 cm, stainless steel
suitable for inner tank Ø 77 cm, stainless steel
Cage without going through shaft so that the frames can be turned inside the cage.For extractors with Ø 63 cm.Stainless steel, grid area of the cage 38 x 46 cm.Our standard size on top and bottom of the drive shaft: Ø 14 mm.For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.
• 4 grids made of stainless steel• to insert into radial honey extractors with tank inner-Ø 69 cm• grid area 31 x 45 cm• for 4 deep frames / 8 shallow framesFits honey extractors item no. 5038016/5038020.
Cage without going through shaft so that the frames can be turned inside the cage.For extractors with inner Ø 60 cm. Made of Stainless Steel.Grid dimension (WxH) 36 x 46 cm.Suitable for the following CFM-Honey extractors: item no. 5010400, 5010471Our standard shaft diameter is Ø 14 mm.If you order, please indicate the diameter of the shaft (top and bottom) and the length of the shaft.
Made from stainless steel, for honey extractor tanks with inner-Ø 69 cm.Suitable for 12 deep/20 shallow frames• sidebar up to 17 cm length• frame width up to 40 mmPlease state when ordering:Needed length of axis and axis-Ø top and bottom!
suitable for inner tank Ø 93 cm, stainless steel

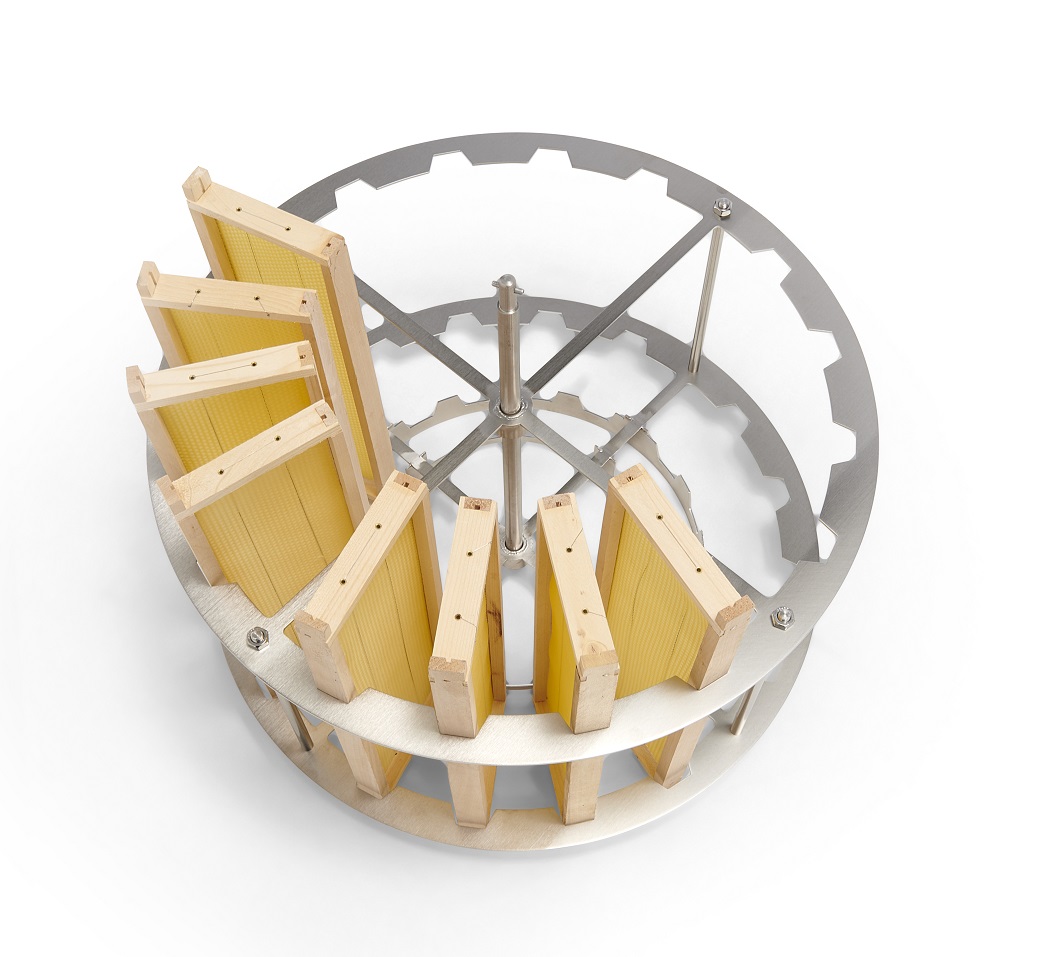

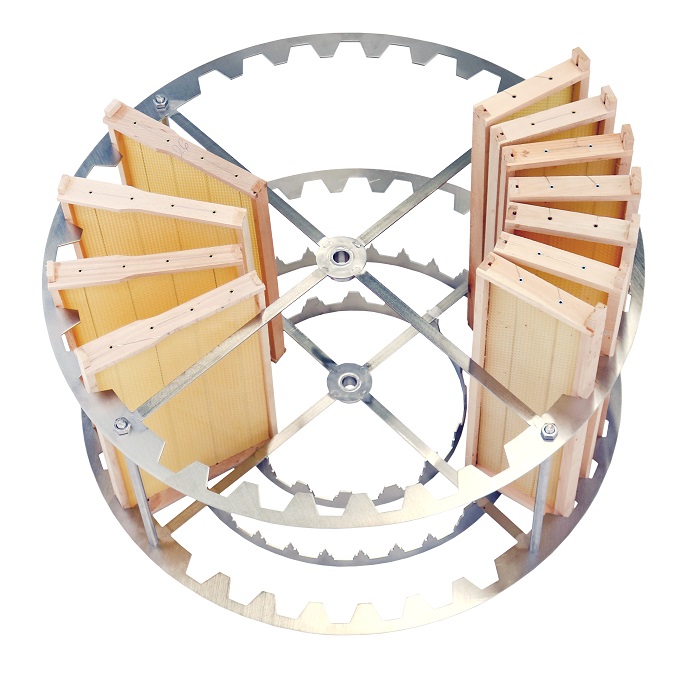

Made of stainless steel, for inner tank Ø 72 cm.Shaft length 525 mm, Shaft Ø 18 mm, turned off at top and bottom end to 14 mmIn this radial cage fit 16 deep or 28 shallow frames up to • sidebar length 17 cm • sidebar width 38 mm
Made of stainless steel, for inner tank Ø 55 cm.Shaft length 535 mm, Shaft Ø 14 mmIn this radial cage fit shallow frames up to • sidebar length 16 cm • sidebar width 42 mm
• 3 grids made of stainless steel• to insert into radial honey extractors with tank inner-Ø 50 cm• grid area 30 x 45 cm• for 3 deep frames / 6 shallow framesFits honey extractors item no. 5037000 - 5037071.
