Drive concepts
You would like to retrofit your honey extractor with another drive?
For our CFM-honey extractors we have listed here the drives which you can assemble yourself. So you can change your honey extractor according to your needs.
Would you like a complete rebuild of your CFM honey extractor?
Then please contact us, we will be pleased to submit you an appropriate offer.

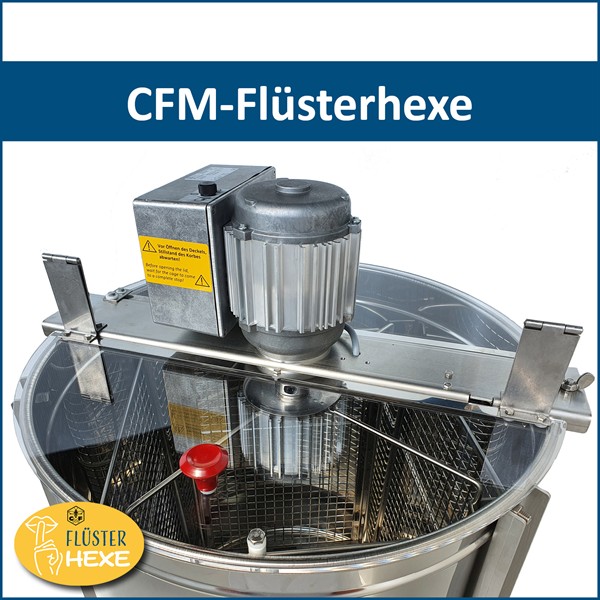

CFM "Whispering Witch" - the original from Mellrichstadt!Only available for CFM-honey extractors of art. no. 5004300, 5010400 and 5037000 with distance between holes centre to centre 525 mm and 630 mm as well as our current extractors Nr. 5002500, 5009400, 5014400 und 5055012Technical data:• Direct drive motor 40 W / 230 V CFM-"Whispering witch"• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Stainless steel traverse with hinged acrylic glass lid halves• Safety deviceWhen you order please advise:• Inner tank Ø• Shaft Ø at the top and bottom• Distance between the 2 holes for the screws which hold the traverse measured from the middle of the holes.• If you replace a manual drive please advise length of the driver below the traversePlease note: If you have different measurements and we need to customize a surcharge applies!

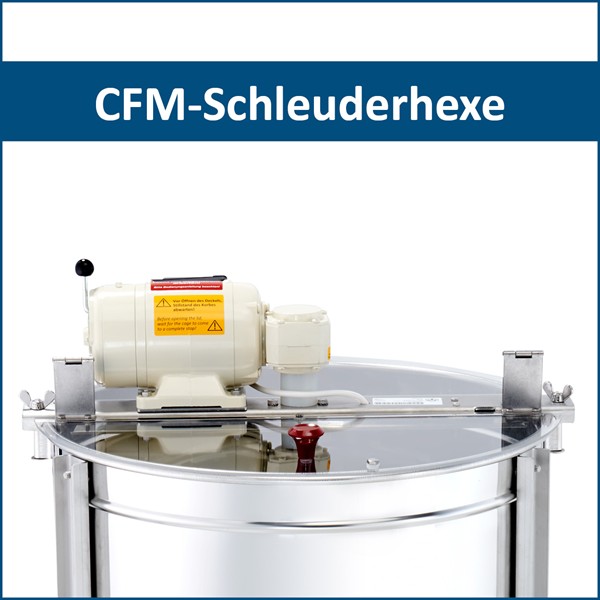

Only available for CFM-honey extractors of art. no. 5004300, 5010400 and 5037000 with distance between holes centre to centre 525 mm and 630 mm as well as our current extractors Nr. 5002500, 5009400, 5014400 und 5055012Technical data:• Top drive motor 110 W / 230 V CFM-"Extractor witch"• Stainless steel traverse with hinged acrylic glass lid halves• Safety deviceWhen you order please advise:• Inner tank Ø• Shaft Ø at the top and bottom• Distance between the 2 holes for the screws which hold the traverse measured from the middle of the holes.• If you replace a manual drive please advise length of the driver below the traversePlease note: If you have different measurements and we need to customize a surcharge applies!

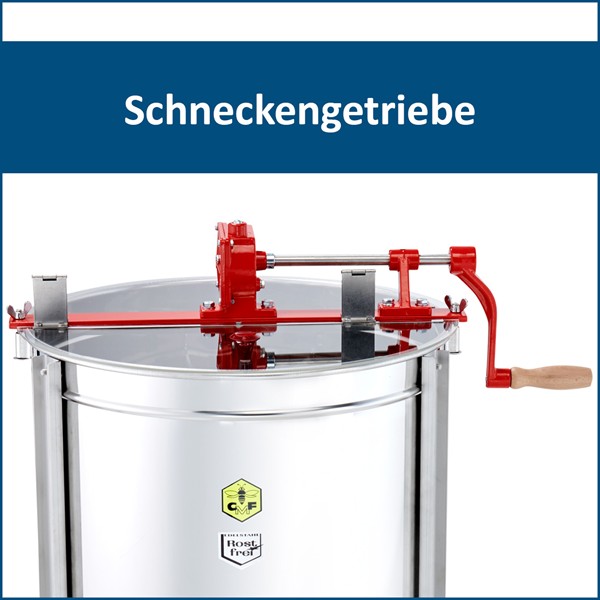

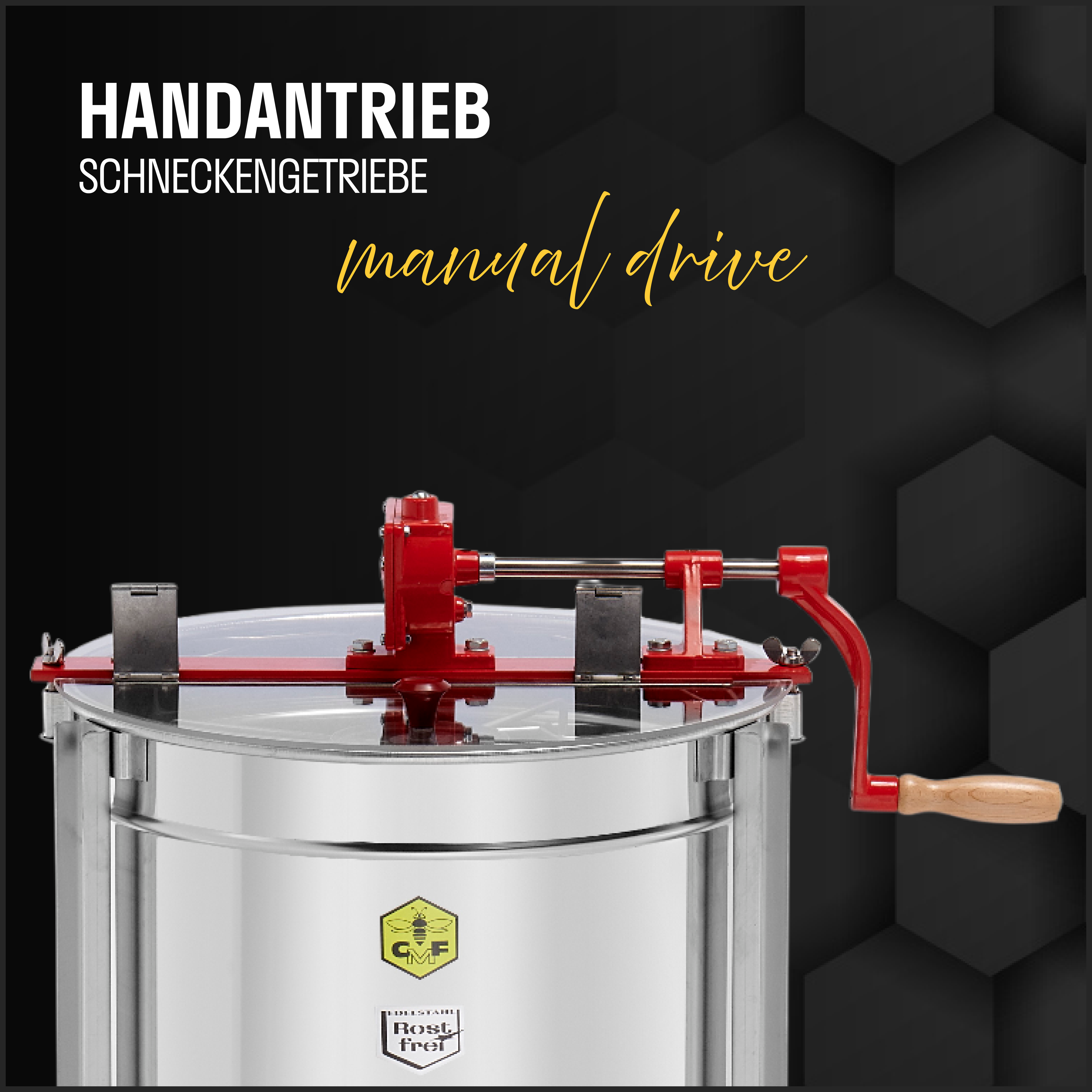

Manual drive with freewheel and brake incl. hinged lid halves. Only available for tank Ø 50 cm and 60 cm and distance between the two holes of the traverse of 525 mm and 630 mm.When you order please advise:• Inner tank Ø• Shaft Ø at the top and bottom• Distance between the 2 holes for the screws which hold the traverse measured from the middle of the holes.Please note: If you have different measurements and we need to customize a surcharge applies!

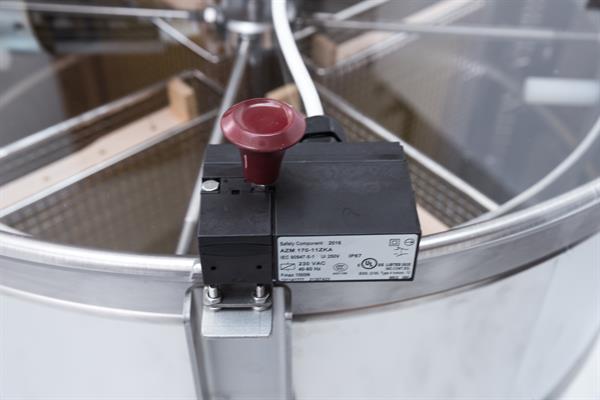

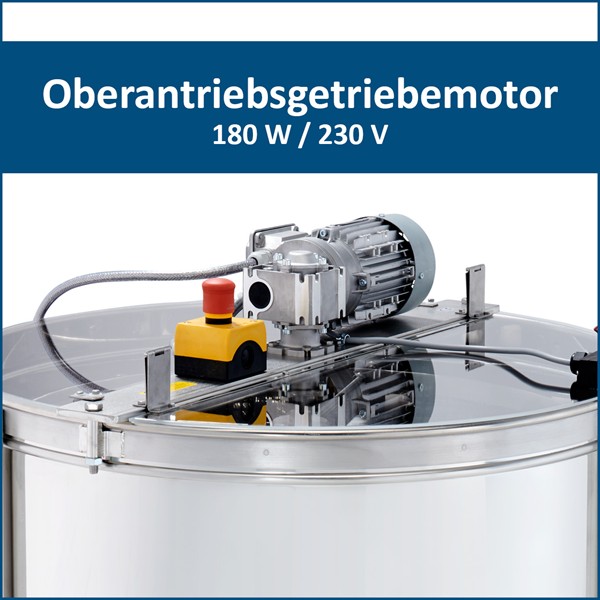

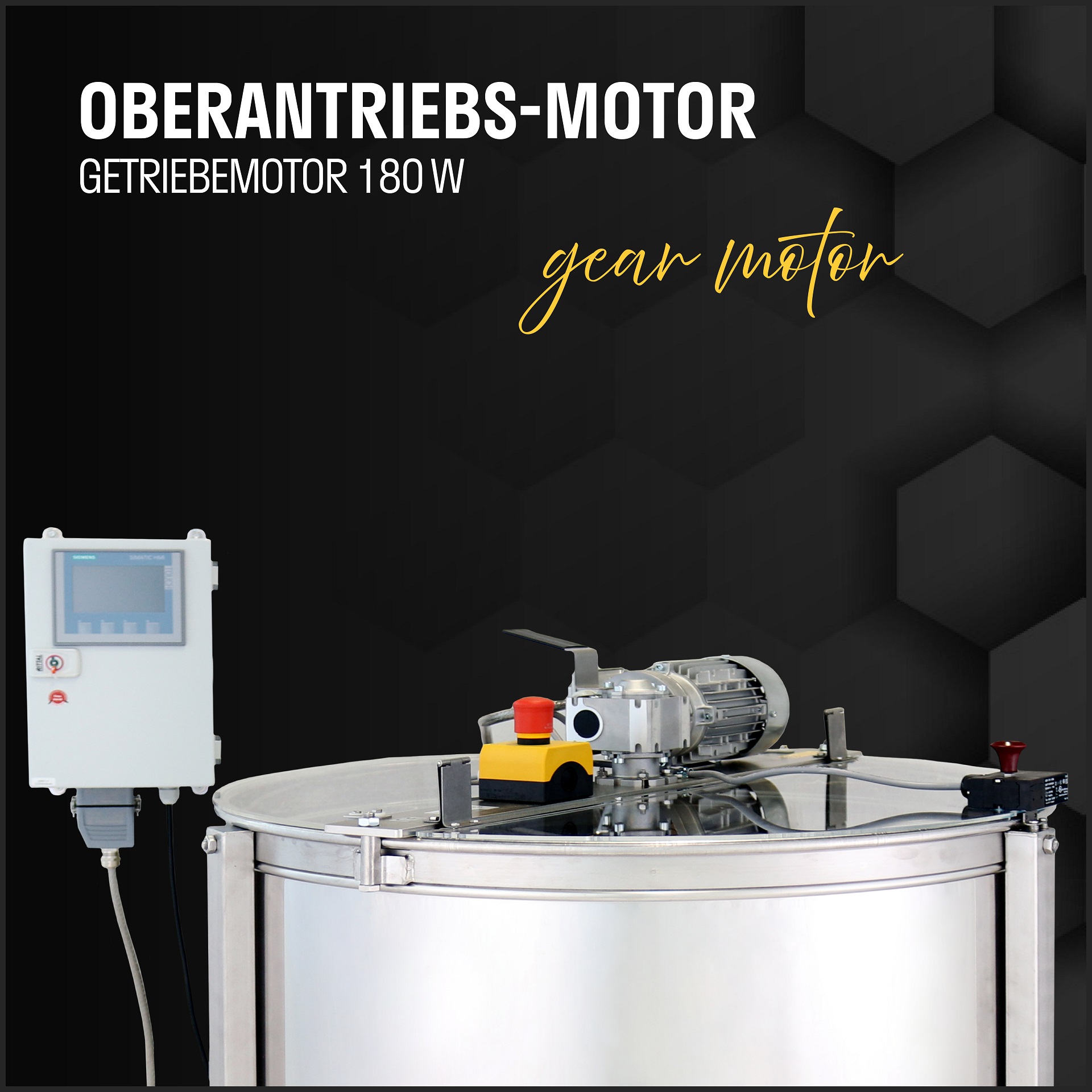

Suitable for:- Honey extractors with an inner-Ø 69 - 77 cmTechnical data:- 180 W / 230 V top drive gear motor with 3 m control cable- Stainless steel traverse with hinged lids- Lid closing device- Fully automatic program controlPlease specify the following dimensions of your slingshot when ordering:a) from the centrifugal boiler: boiler inner Ø, distance from the centre of the retaining bolt to the centre of the retaining boltb) from the honeycomb basket: connection dimensions, i. e. Ø of the shaft or the square in mmThe lid locking device is fitted to monitor the position of the lid and to lock it. The bracket belonging to the safety switch is supplied together with an angle separately. The flap and the bracket must be attached to the centrifugal foot in such a way that when the lid is closed it engages in the opening provided on the safety switch. The motor is connected to the controller via a solid shielded cable. The connections of the controller are made with heavy industrial connectors with IP67 protection. Power is supplied via a 3 m long cable with Schuko plug.

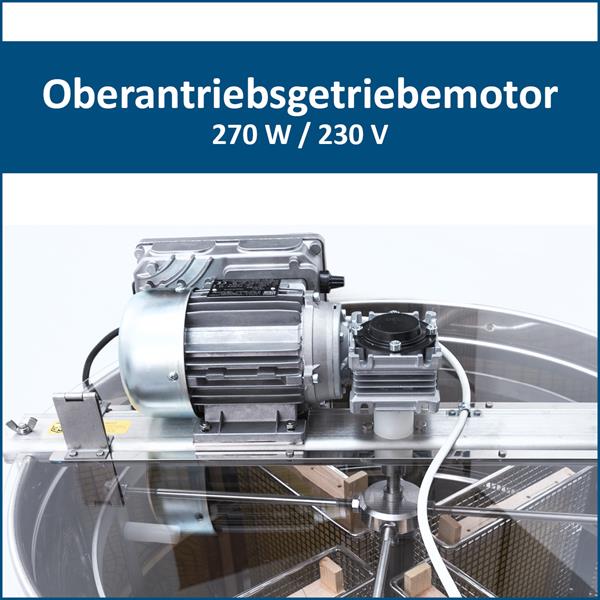

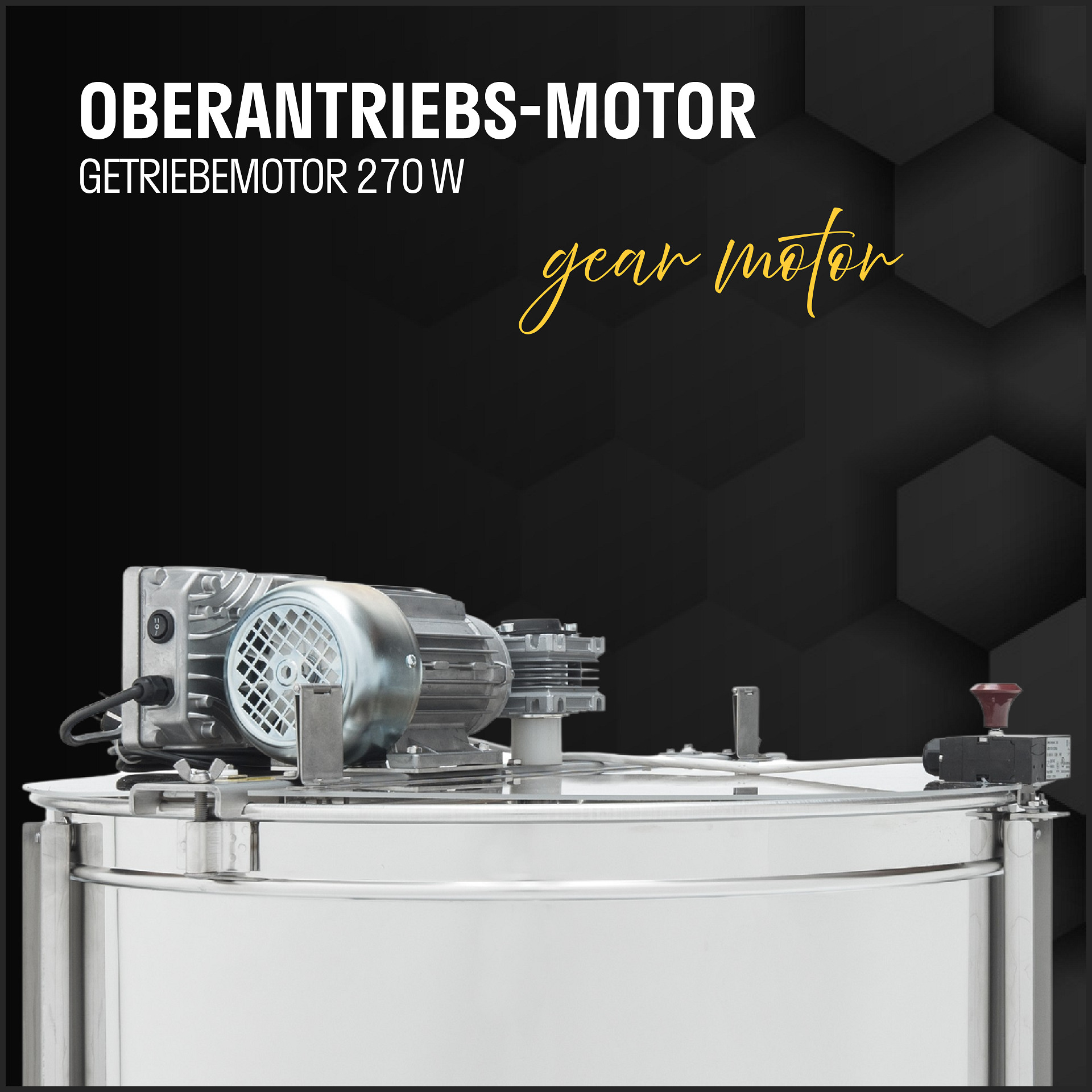

Suitable for:• Honey extractors with an inner-Ø 63 - 72 cmTechnical data:• Upper drive gear motor 270 W / 230 V• Stainless steel traverse with hinged lids• Safety device• manual speed control by rotary knobWhen you order please advise:• Inner tank Ø• Shaft Ø at the top and bottom• Distance between the 2 holes for the screws which hold the traverse measured from the middle of the holes.• If you replace a manual drive please advise length of the driver below the traversePlease note: If you have different measurements and we need to customize a surcharge applies!The lid locking device is mounted to monitor the position of the lid and to lock it. The bracket belonging to the safety switch is supplied together with an angle separately. The flap and the bracket must be attached to the centrifugal foot in such a way that when the lid is closed it engages in the opening provided on the safety switch. The motor is equipped with a 3 m long cable with Schuko plug.
