Product number:
5800071
Description
Product information
Suitable for:
- Honey extractors with an inner-Ø 69 - 77 cm
Technical data:

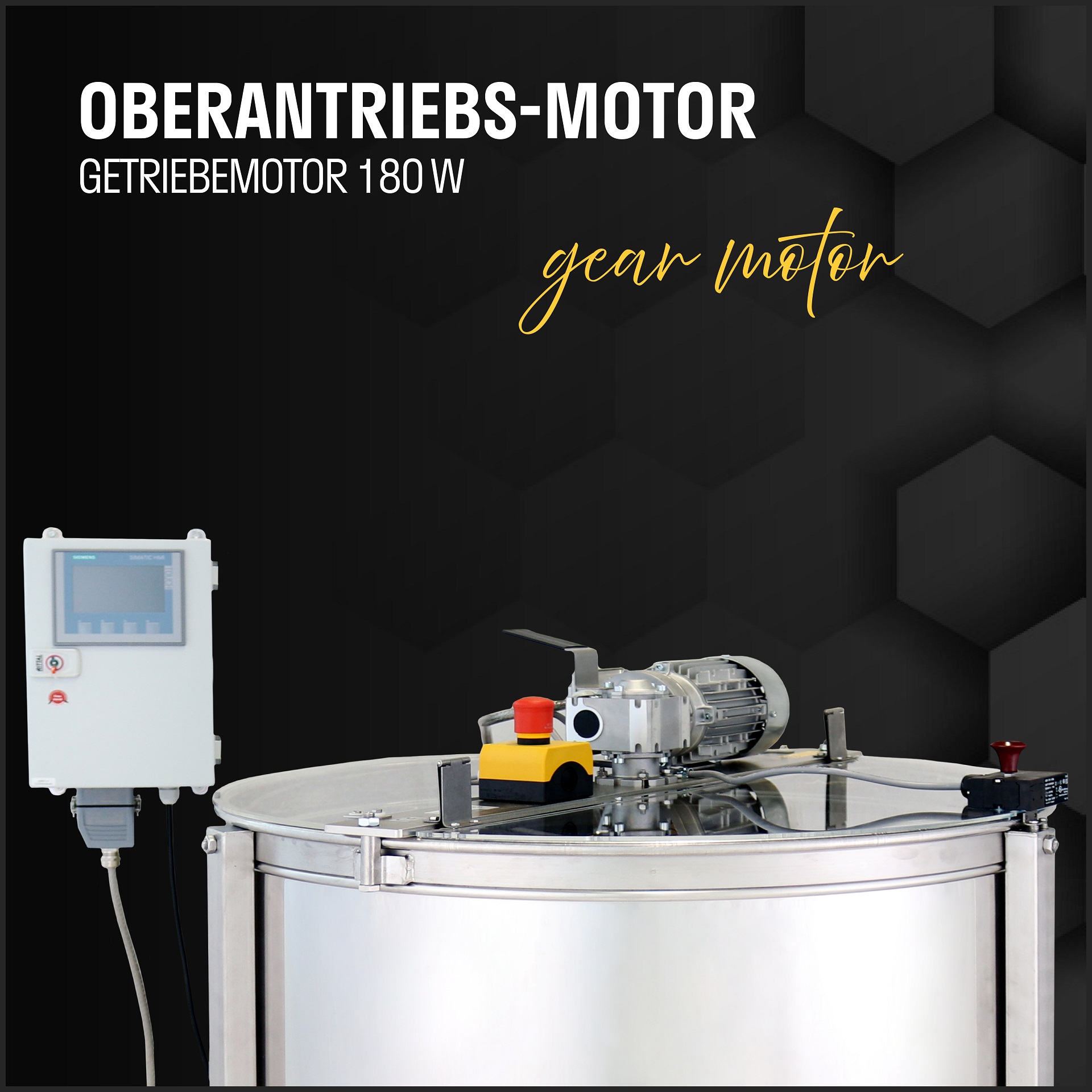

- 180 W / 230 V top drive gear motor with 3 m control cable
- Stainless steel traverse with hinged lids
- Lid closing device
- Fully automatic program control
Please specify the following dimensions of your slingshot when ordering:
a) from the centrifugal boiler: boiler inner Ø, distance from the centre of the retaining bolt to the centre of the retaining bolt
b) from the honeycomb basket: connection dimensions, i. e. Ø of the shaft or the square in mm
The lid locking device is fitted to monitor the position of the lid and to lock it. The bracket belonging to the safety switch is supplied together with an angle separately. The flap and the bracket must be attached to the centrifugal foot in such a way that when the lid is closed it engages in the opening provided on the safety switch. The motor is connected to the controller via a solid shielded cable. The connections of the controller are made with heavy industrial connectors with IP67 protection. Power is supplied via a 3 m long cable with Schuko plug.
- Honey extractors with an inner-Ø 69 - 77 cm
Technical data:
- 180 W / 230 V top drive gear motor with 3 m control cable
- Stainless steel traverse with hinged lids
- Lid closing device
- Fully automatic program control
Please specify the following dimensions of your slingshot when ordering:
a) from the centrifugal boiler: boiler inner Ø, distance from the centre of the retaining bolt to the centre of the retaining bolt
b) from the honeycomb basket: connection dimensions, i. e. Ø of the shaft or the square in mm
The lid locking device is fitted to monitor the position of the lid and to lock it. The bracket belonging to the safety switch is supplied together with an angle separately. The flap and the bracket must be attached to the centrifugal foot in such a way that when the lid is closed it engages in the opening provided on the safety switch. The motor is connected to the controller via a solid shielded cable. The connections of the controller are made with heavy industrial connectors with IP67 protection. Power is supplied via a 3 m long cable with Schuko plug.
