Honey pumps
Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 40 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C

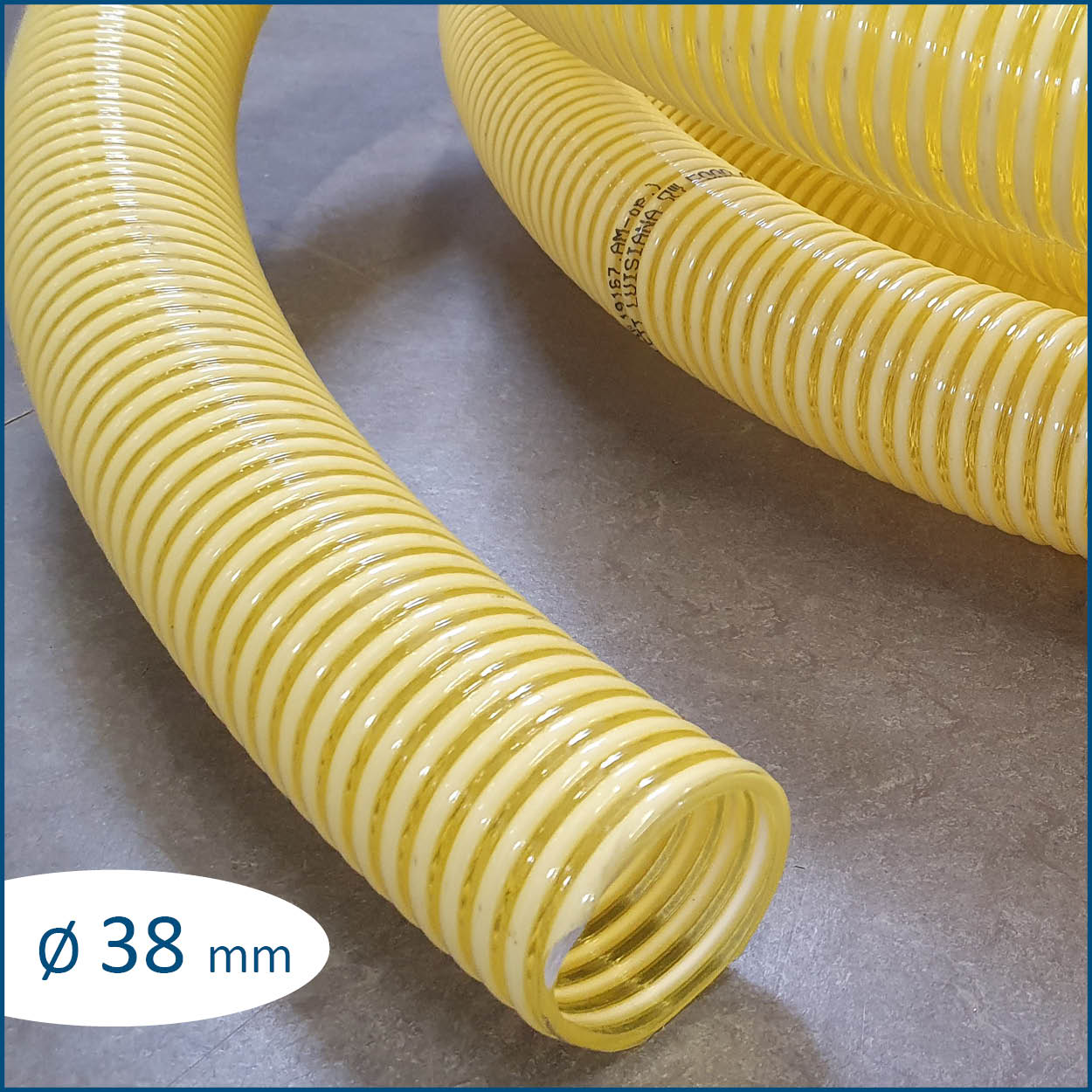

Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 38 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C
Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 50 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C

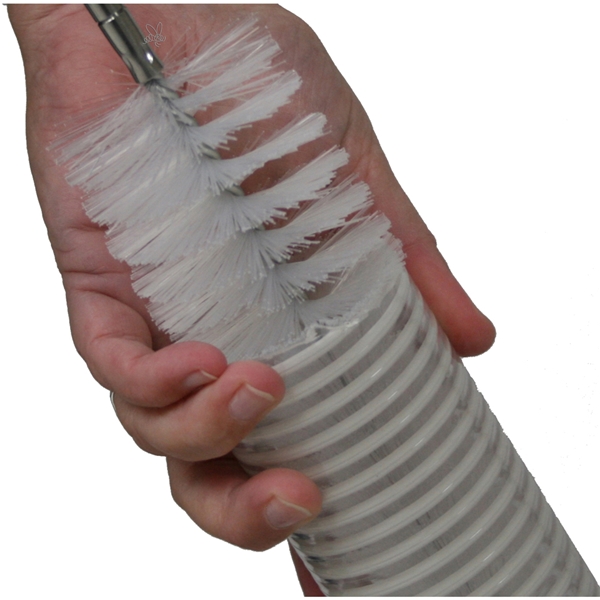

Total length 170 cmLength of the brush 16 cm

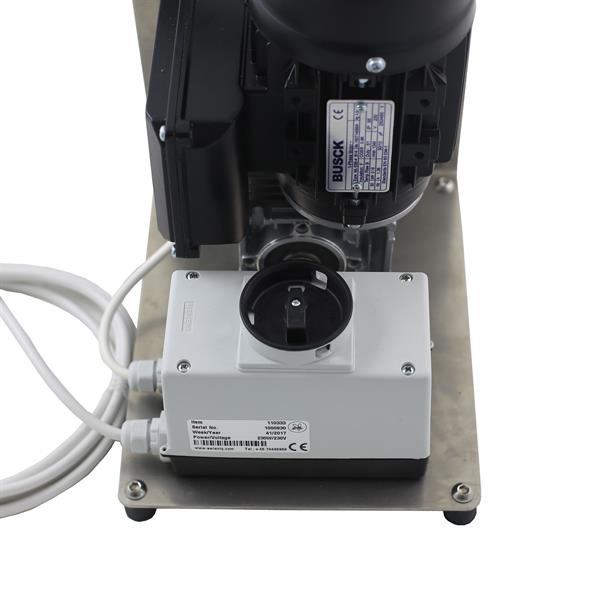

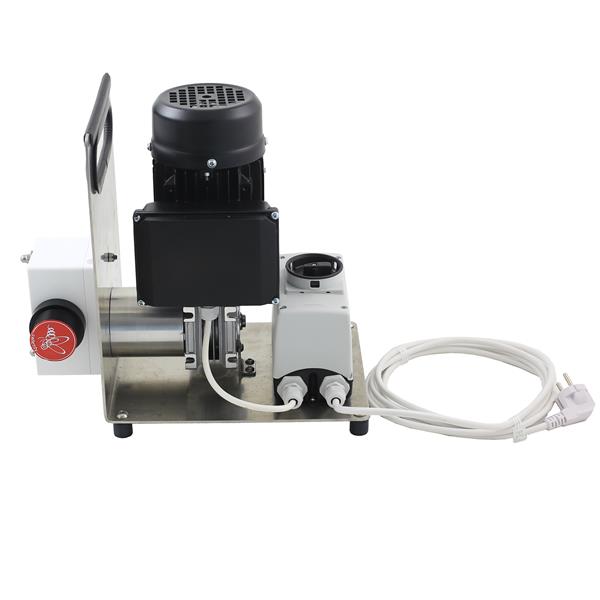

Robust gearpump with a capacity of approximately 350 kg honey per hour (760LB) (depending on viscosity of the honey). Based on the well known easy to clean pumphead. Just unbolt two screws and rinse the pump head or put it into your dishwasher. Very small space consumption (base area of 35x22cm )As a standard the pump is delivered pre-equipped with a PP clam-coupling male part. You have to buy the hose separate and a female clam-coupling/hosefitting in 1.5" to make the pump complete.The pumphead and gears are produced in food grade massive plast. The base is produced in stainless steel.Type of machine: Electrical gear pumpPump capacity: Appx. 350kg/hPower: 230V/HzPowerconsumption: 200WWeight: Appx. 11 kgDimensions: 35 x 22 x 32 cmConnections: 1.5" quick hose coupling (not included!)Tarif code: 84223000Quick hose coupling 6000097 and 6000096 order additionally!

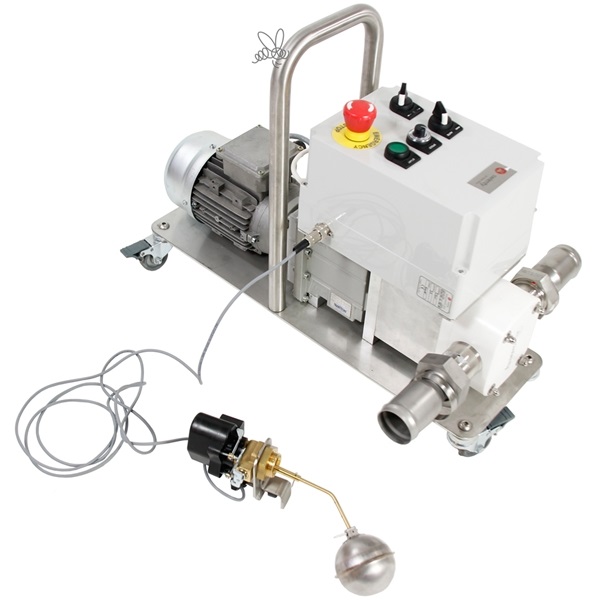

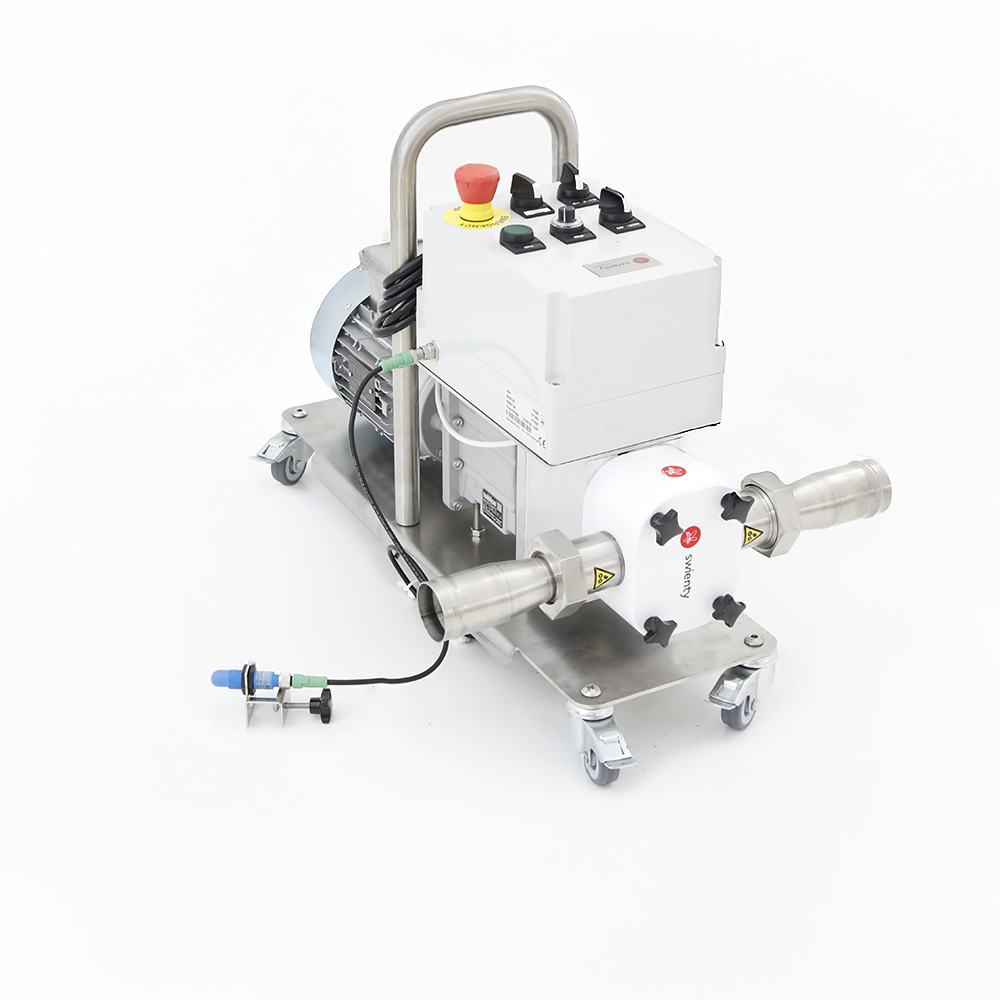

Bidirectional gear pump with variable speed and integrated level switch. This pump has been specially desigend for pumping honey.It runs at sufficiently low speed with 180RPM. It can easily be cleaned and it is maintenance free.The trolley/base and fittings are made entirely of stainless steel. The pump head itself is made of a food approved massive plastic housing with plastic gears.Capacity about 1000kg/hr at 50hz.Working principle of the level switch: The level switch can be used for two purposes, emptying and filling. When set on emptying, the detector will sense honey in e.g. a honey sump and activate the pump as soon as it senses the honey. The pump will then start pumping and stop when the detector is at it's low level (about 5cm difference). When set on filling, you place e.g. an empty drum you want to fill with honey. The next step is to mount the float switch at the top of the drum and then start the pump manually. Once the sensor senses the honey at the top of the tank, it will stop the pump automatically. The most common use is to empty a honey sump with honey, since this part has a limited capacity. At the other end you usually place a large tank and place a level alarm inside this one, so that once this tank is filled, it will give an alarm and you know that you have to stop the pump.Technical data:• Maschinentyp: Gear pump• Capacity: approx. 700 l/hr (1000kg/hr)• Power supply: 1500W / 230V• Dimensions: 64 x 20 x 42cm• Weight: 36kg• Fittings: 2" hose fittings Typ BS incl. hose clamp to connect a DN50 tube

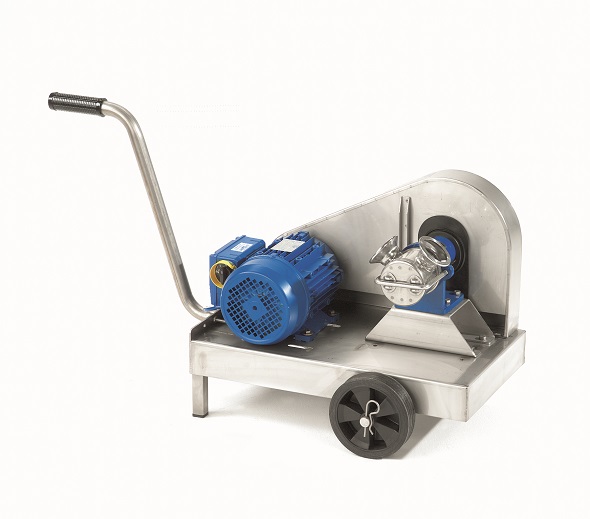

• Motor 400 Volt• Capacity approx. 800 litre per hour• Mounted on a movable rack• Can run clockwise/counter clockwise• Hose connection DN50(Adapter for DN40 available, has to be ordered separately, part no. 6400202)Weight: 75 kgChargeable weight: 120 kg
• Motor 230 Volt• Capacity approx. 800 litre per hour• Mounted on a movable rack• Can run clockwise/counter clockwise• Hose connection DN50(Adapter for DN40 available, has to be ordered separately, part no. 6400202)

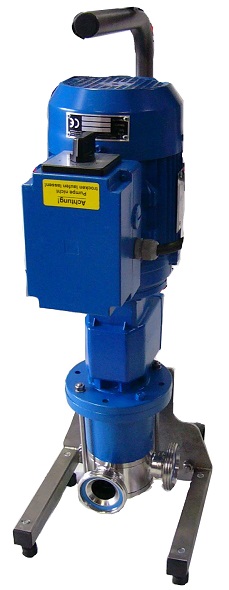

This machine is for pumping honey and uncapping wax. It has a maintenance-free and powerful 1.5 kW gear motor with two way rotation. With the gear motor’s speed regulation you can pump the honey very smoothly.Weight: 40 kg Chargeable weight: 55 kg
