Uncapping machines

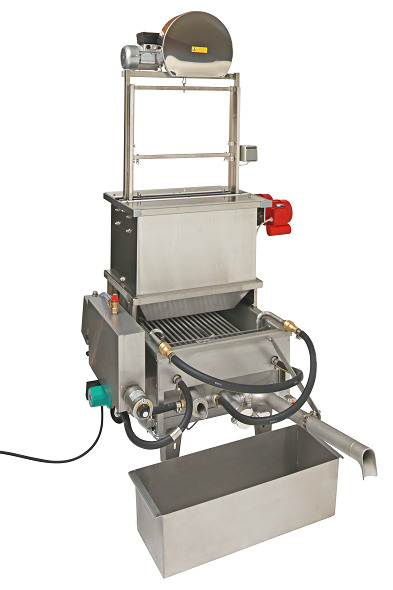

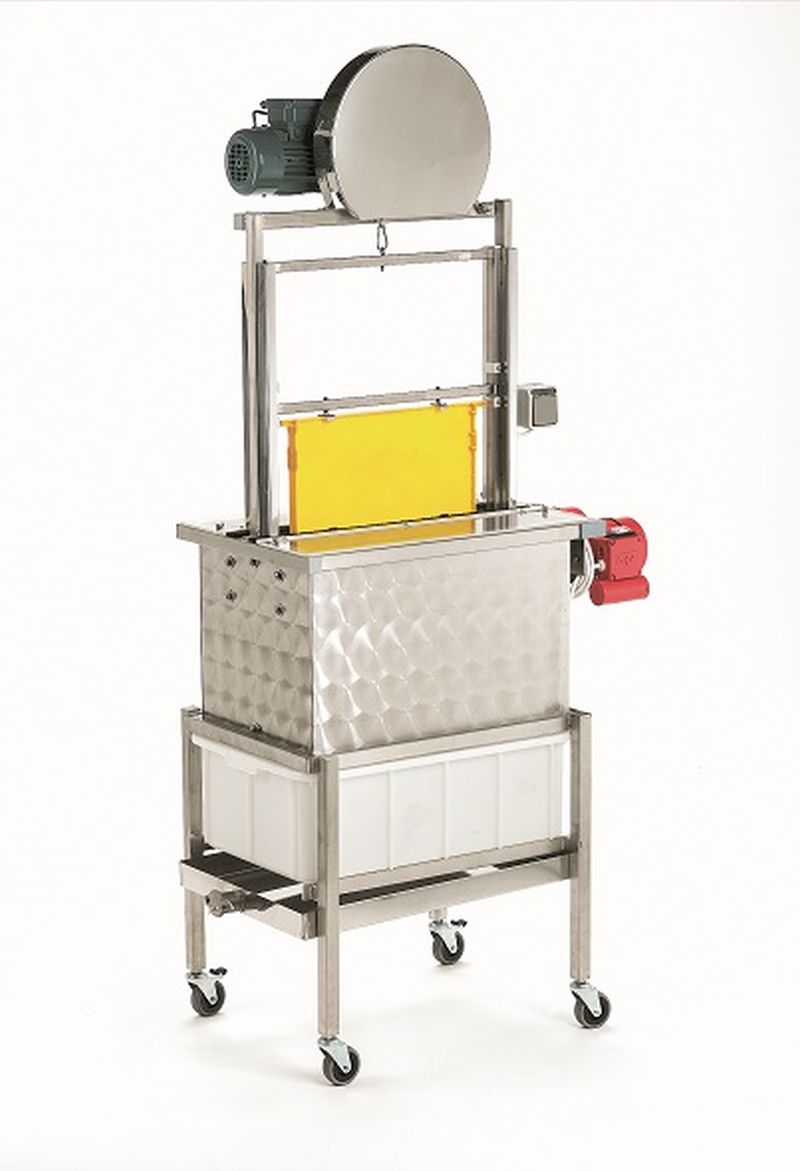

Note: Please let us know your used frame size when ordering, so that we can pre-set the machine perfectly for you!Capacity up to approx. 200 honeycombs in one hour. Drive motors 2 x 180 W / 230 V and a geared motor 120 W / 230 V.The machine is used for a quick uncapping of honeycombs on both sides simultaneously. It is to be used for all common frame dimensions.160 knives per side.The depth of discovery is freely adjustable from 22 - 45 mm. The machine is factory set to 24 mm honeycomb thickness.The flying suspended beater knives are designed so that they knock off wax parts, harder materials such as wooden frames and spacers, no matter what kind will not be damaged. An accident risk is thereby completely switched off by the splash cover. All parts of the device are protected against corrosion and made of stainless steel.Dimensions: (HxWxD) about 191 x 73 x 51 cmWeight: approx. 70 kgDo you need spare parts for this machine?Talk to us, we can offer you a variety of spare parts for our CFM devices / machines!

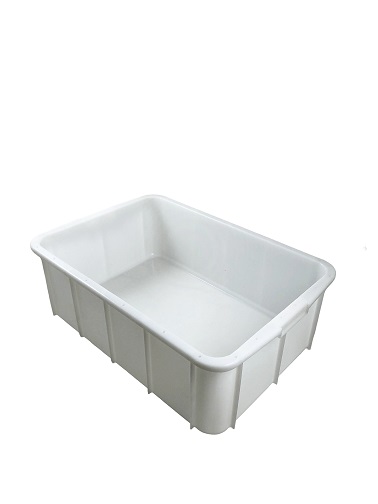

Small plastic tray for ANP uncapping machine (Item no. 5123000) and uncapping machine (Item no. 5130000)Colour: whiteMaterial: PVCHeight: 22 cm

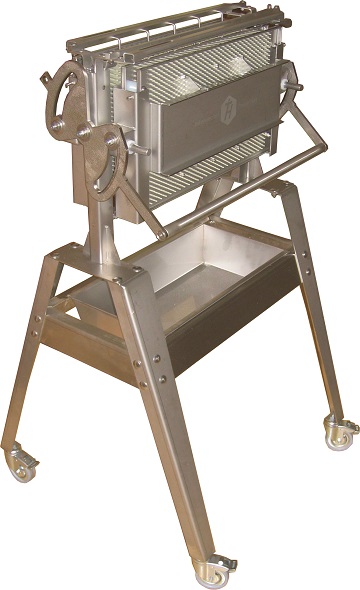

Usefull for heather and Melecitose honey or other viscous honey. Both sides of the comb are penetrated at the same time. Very efficient and quick loosening process. 2 x 1500 flexible plastic pins on each side enter the cells down to the bottom to loosen the honey. During the removing of the pins the caps will be erected. Also for big comb sizes.Here you will find the product video: https://www.youtube.com/watch?v=_273vji0fKwHigh-precision honey loosener from Oswald Hain.The honey loosener has two plates in front of the plastic needles, which scrape off any wax residue every time the needles are pulled apart and the honeycombs are no longer pulled in. The precise forward mechanism ensures that the honeycombs are moved with precision.Place the frames between the needle plates and operate the machine using the handle on the side. The plates are pressed together and the needles penetrate the honey cells. When the plates are pulled apart, the frame moves a small distance sideways through which all the honey cells are processed. Each needle is supported by a spring to prevent it from breaking when it hits pollen or the wooden frame.All parts are made of stainless steel – no aluminium cast! The machine is delivered including tripod and lockable wheels.The machine can also be used as uncapping machine! Holes are stabbed on both sides of the honeycombs and they are ready for extraction.Length: 64 cmWidth: 64 cmHeight: 115 cmWeight: 30 kgChargable weight: 40kgIncl. Wooden box!

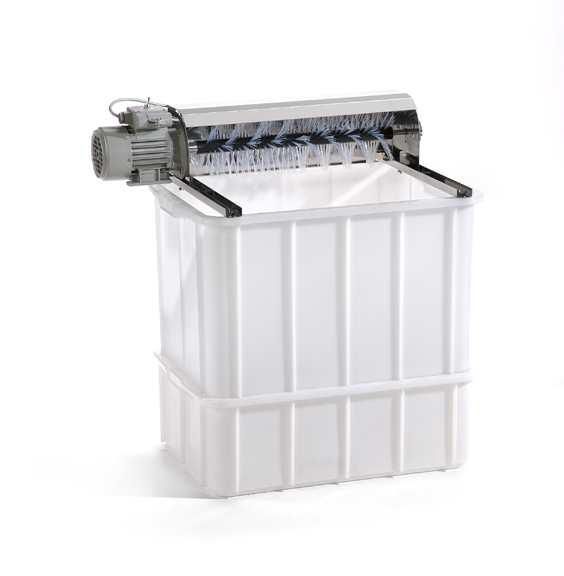

With 2 supporting rails. Frames are simply pulled manually upwards over the fast rotating brushes. The wax covers of the cells are cut off without damaging the cells. Very effort-saving working with the electrical drive with 180 W / 230 V.• Energy-saving uncapping by electric drive 180 W / 230 V• Less time expenses. No damage to the wooden frames• Delivery incl. two plastic containers and stainless steel perforated sheet insert• Only suitable for newly drawn honeycombs (younger than 3 years)Dimensions: (LxWxH) 80 x 50 x 83 cmWeight: approx. 20 kgChargeable weight: 36 kg

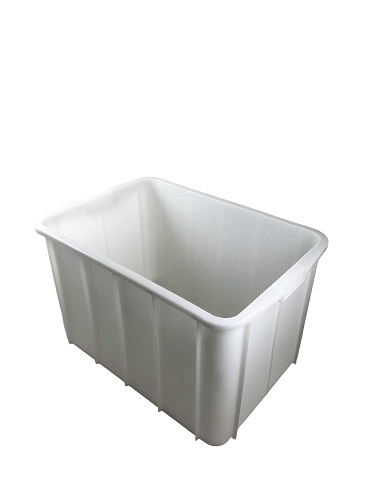

Big plastic tup for the ANP-uncapping mashine (order number 5123000)color: white, material food safe plasticWeight: 0,18kg Chargeable weight: 0,18kg
110 cm length, in stainless steel, for uncapping machine no. 6000126/6009125

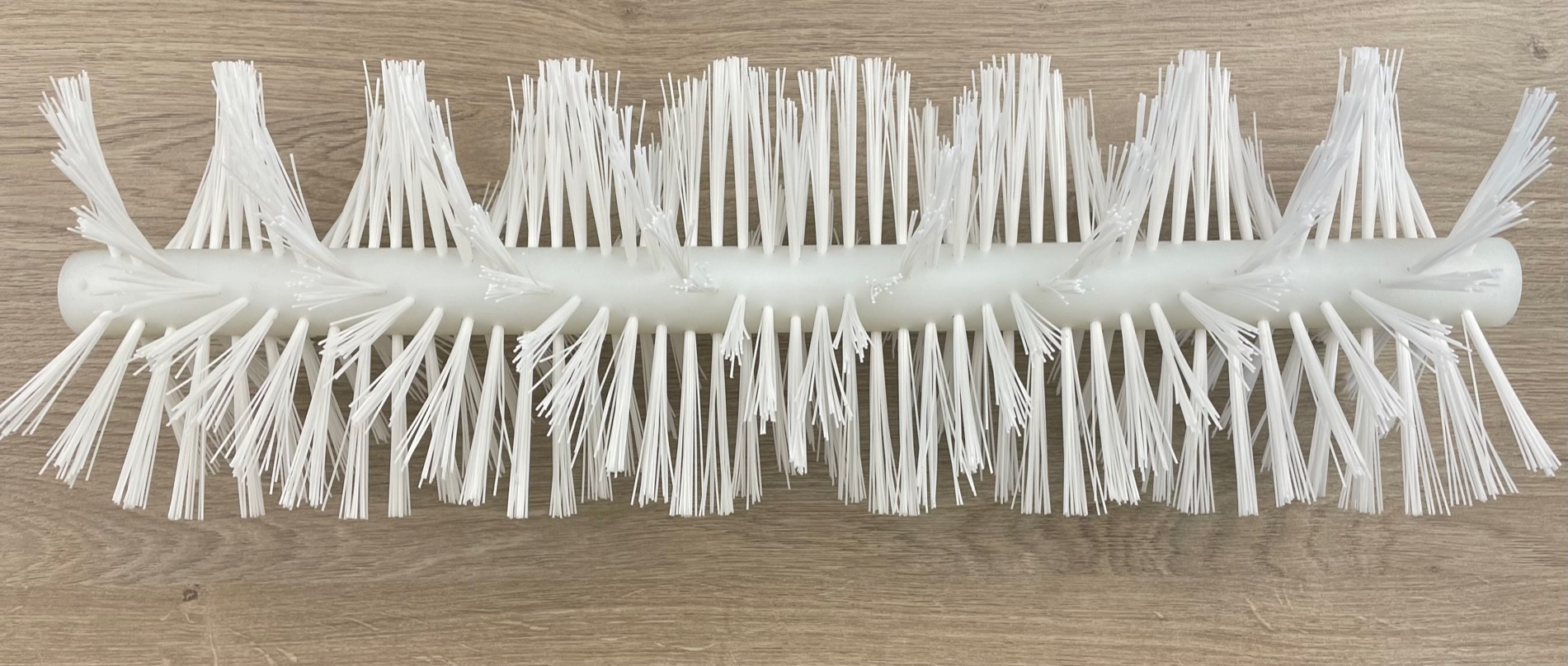

Replacement/exchange brush roller for ANP uncapping machine (item no. 5123000)Total length: 460 mmPlastic shaft diameter: 28 mmMounting hole diameter: 10 mmBristle length: approx. 60 mm

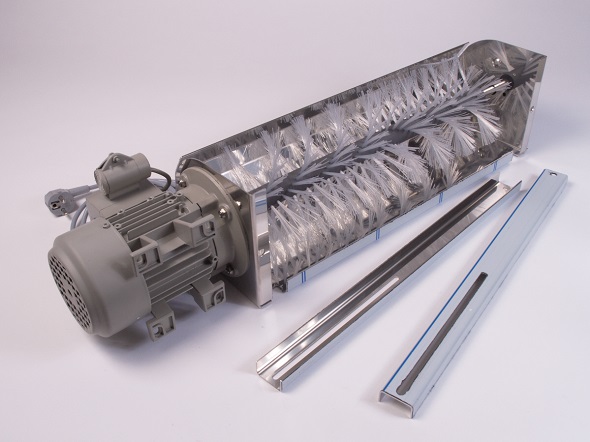

With 2 supporting rails. Frames are simply pulled manually upwards over the fast rotating brushes. The wax covers of the cells are cut off without damaging the cells. Very effort-saving working with the electrical drive with 180 W / 230 V.• Energy-saving uncapping by electric drive 180 W / 230 V• Less time expenses. No damage to the wooden frames• Can be mounted on existing uncapping tables• Delivery WITHOUT plastic containers• Only suitable for newly drawn honeycombs (younger than 3 years)Dimensions: (HxDxB) 22 x 50 x 80 cm

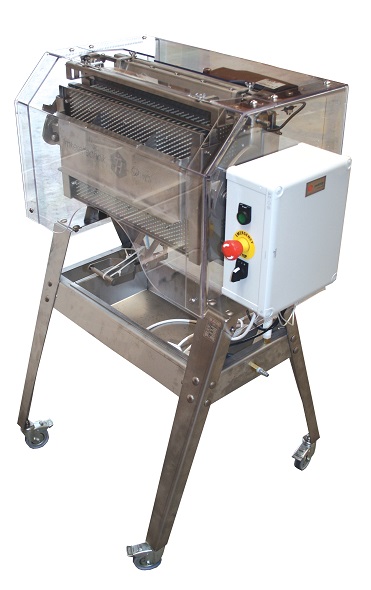

For all frame sizes.This fully automatic heather honey loosening machine is a further development of the honey loosening machine no. 6000122. The honey loosening machine is fully automated with an electronic system and looses heather honeycombs fully automatic.The honey loosener has two nib boards with spring mounted nibs. During the dipping process the nibs enter the honey cells and stirr the honey within the cells so that the honey becomes liquide and can be extracted. When you work with this machine you hang the frames in the losening machine and press the button. The honey loosener automatically presses the nib boards together and moves the frame after every dipping process a bit foward. With this movement you ensure that all cells are dipped.This honey loosening machine can also be used as an uncapping machine for summer honey.The picture shows a honey loosening machine without the security kit but of course will be delivered with one.Weight: 59 kg Chargeable weight: 85 kg

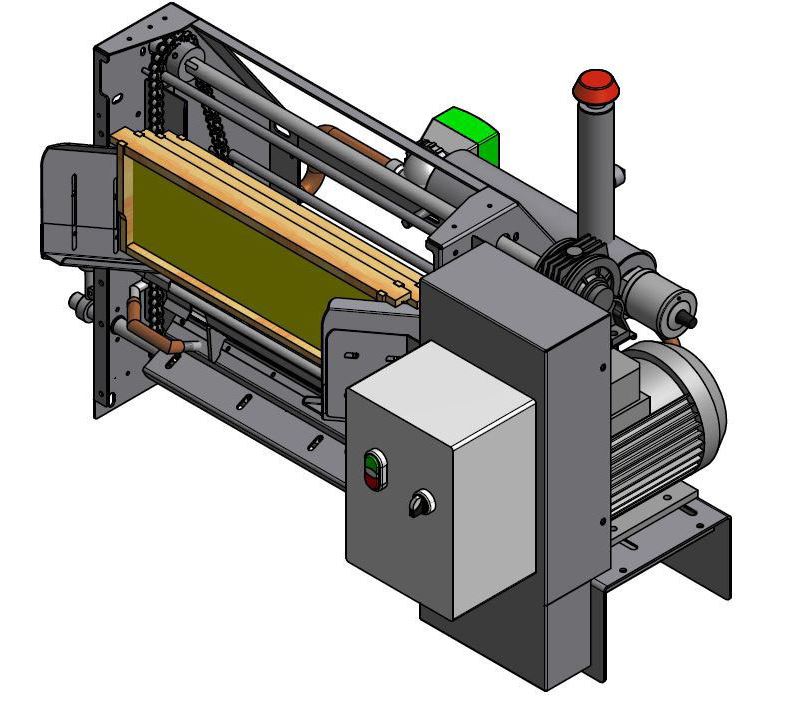

• Fully automatic in stainless steel.• High speed with approx. 8 half frames per min. or approx. 5 full frames per minute.• The knives are made from high-quality stainless steel for a long durability and a permanent nice and even cut. A manual adjustment permits a simple and fast set-up of the uncapping depth +/- 10mm.• The machine will be delivered with draining board and high temperature water system for heating the knives.• At the entrance of the machine is a comb-slide for 5 frames. The comb slide needs to be fed with frames manually.• You can uncap frames with and without Hoffmann.• All metal parts and pieces which come in contact with the product are stainless steel and easy to clean with just hot water.• Motor drive 400V / 16A / 550 W.• Adjustable via thermostat, including reservoir and circulating pump.• Water-heating system 2000 W adjustable via thermostat• Including reservoir and circulating pump.Weight: 80 kg Chargeable weight: 143 kg

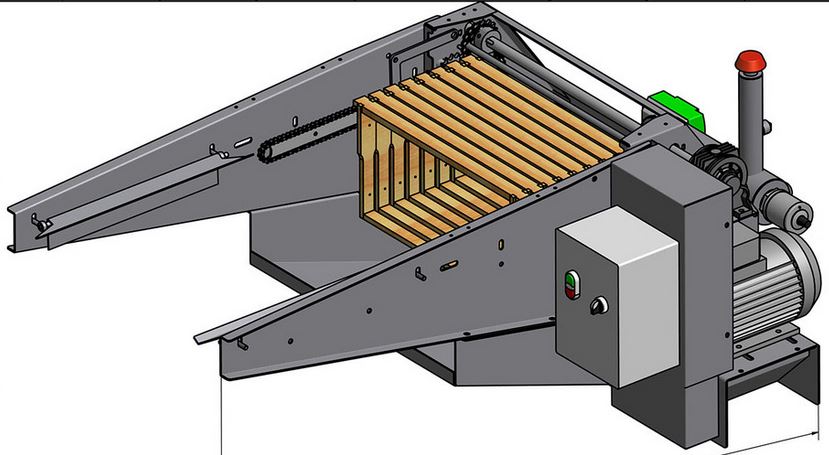

The machine works fully automatically and can be manufactured for Zander, Langstroth and Dadant.In contrast to WT1 this machine has a chain feed for about 12 frames at the front and guide rails for about 13 additional frames.You can uncap frames with and without Hoffmann. For other frame sizes a feasability study has to be done and there will be a surcharge due to the design change. The machine will be adjusted to your frame size by the factory. • All metal parts and pieces which come in contact with the product are stainless steel and easy to clean with just hot water.• High speed with approx. 8 frames per min.• The knives are made from high-quality stainless steel for a long durability and a permanent nice and even cut. A manual adjustment permits a simple and fast set-up of the uncapping depth +/- 10mm• The machine will be delivered a high temperature water system for heating the knives.• The front of the machine is equipped with a chain feed and guide rails for the frames.• Motor drive 400V / 16A / 550 W.• Adjustable via thermostat, including reservoir and circulating pump.• Guide rail, drain board and wax melter in differenz sizes as well as additional accessories are available.IMPORTANT: Please state your frame size with your order!

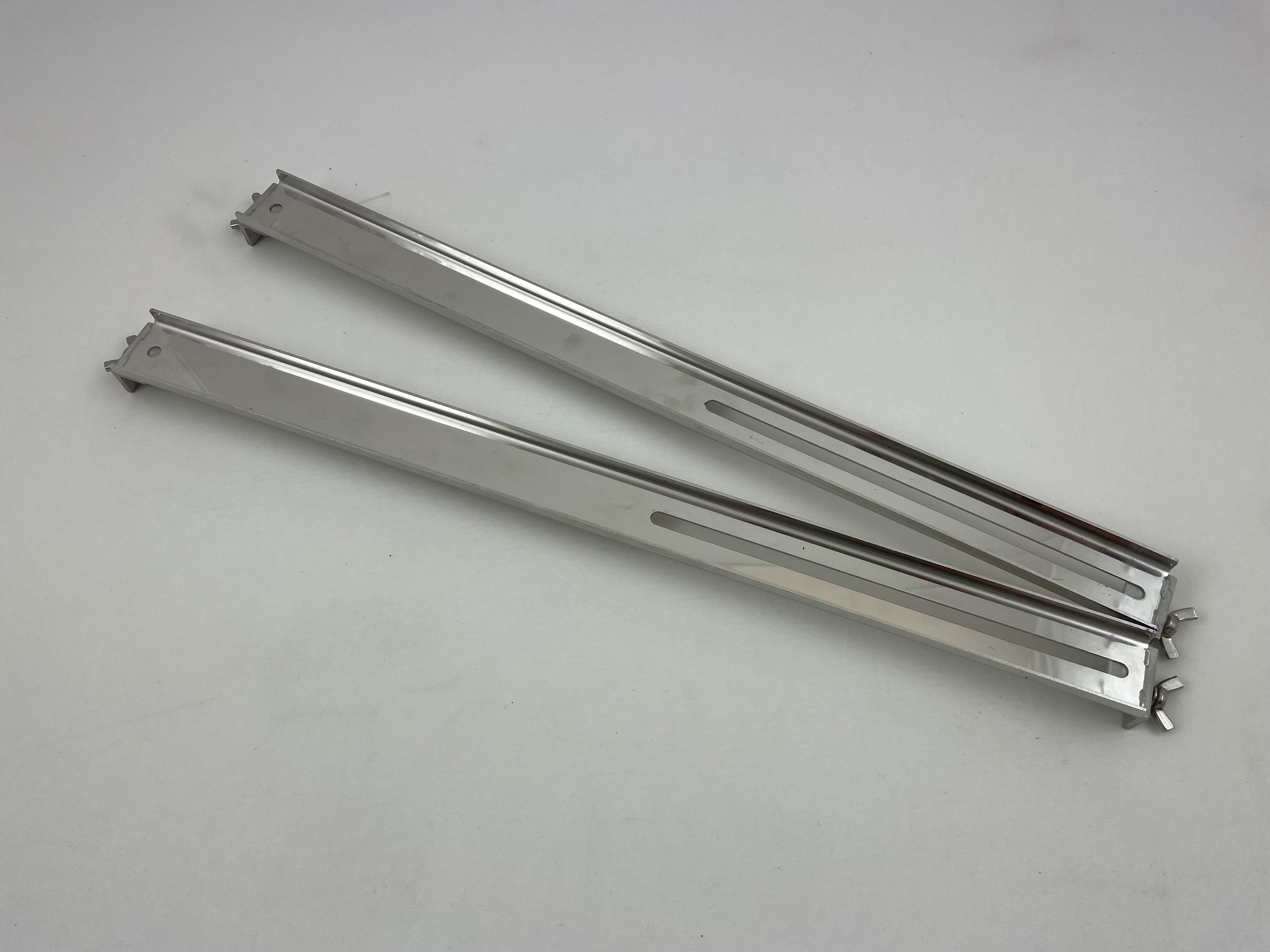

with these rails you can attach our ANP-Uncapping-machine (Nr. 5000123) to the Uncapping table (Nr. 5000133/5000134)
