CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic, with lid opener
€12,684.00
Available in 28 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 16 deep frames (side bar length up to 33 cm) / 32 shallow frames (side bar length up to 16.5 cm)
• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 1500W / 230 V

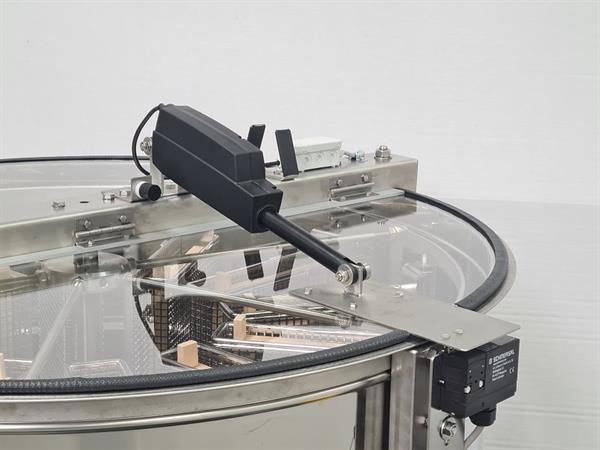

• With electical lid opener
• Push-to-open via special button

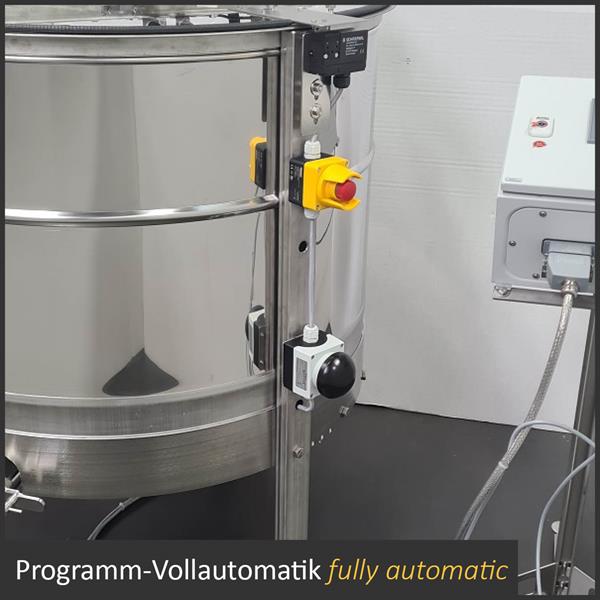

• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 125 cm, welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 34 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 117 cm
• Total height 131 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight: 280 kg, packed on a wooden pallet
Chargeable weight: 300 kg

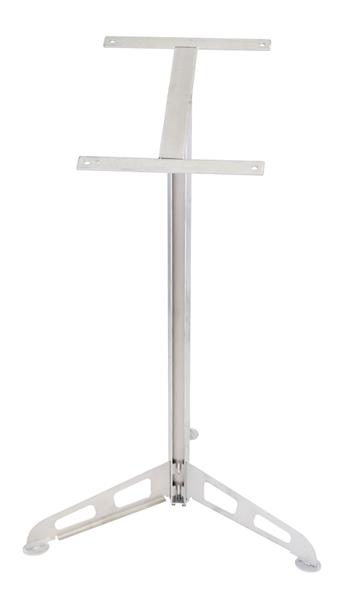

Tripod (5055550) for speed control has to be ordered separatly!
| Capacity of frames: | 16 Ganz-/32 Halbrahmen |
|---|---|
| Diameter: | 125 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Freudenstein 338 x 200 mm, Gerstung 260 x 410 mm, Kuntzsch 330 x 250 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 1,5 kW / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 33/16,5 cm |
