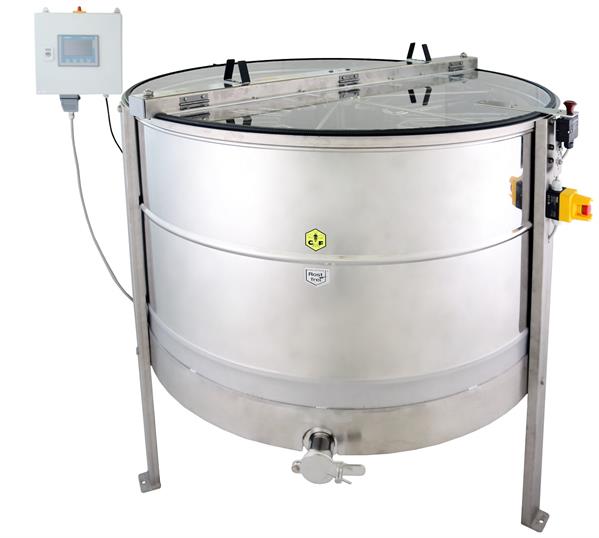

CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic
Effiziente CFM Selbstwendeschleuder mit 16 Waben, Ø125cm und 1500W Unterantrieb. Vollautomatik für Imker. Jetzt bei Carl Fritz entdecken!
Regular price:
€11,513.00
Available in 28 days, Lieferzeit 1 - 3 Arbeitstage
Product number:
5536030
Description
Product information
Suitable for:
• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)
• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 1500W / 230 V
• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 125 cm, welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 30 cm x 45 cm
• Slots for frame lugs
• Material: stainless steel
• Loading height 117 cm
• Total height 131 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight: 230 kg
Chargeable weight: 285 kg
Tripod (5055500) for speed control has to be ordered separatly!
• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)
• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 1500W / 230 V
• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 125 cm, welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 30 cm x 45 cm
• Slots for frame lugs
• Material: stainless steel
• Loading height 117 cm
• Total height 131 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight: 230 kg
Chargeable weight: 285 kg
Tripod (5055500) for speed control has to be ordered separatly!
Properties
| Capacity of frames: | 16 Ganz-/32 Halbrahmen |
|---|---|
| Diameter: | 125 cm |
| Frame size: | Dadant US (Honigraum) 482 x 141 mm, Deutsch Normal 394 x 223 mm, Deutsch Normal halb 394 x 110 mm, Freudenstein 338 x 200 mm, Gerstung 260 x 410 mm, Kuntzsch 330 x 250 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm, Zander shallow 477 x 110 mm |
| Motor power: | 1,5 kW / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 29/14,5 cm |
