CFM-Self-turning extractor, 16 pockets, Ø125cm, motor 1500W underneath, fully automatic, with lid opener
€11,810.00
Available in 28 days, Lieferzeit 1 - 3 Arbeitstage
Product information
• 16 deep frames (side bar length up to 24 cm)
• Frame sizes: Zander, German Standard, Langstroth, Freudenstein
Technical details:

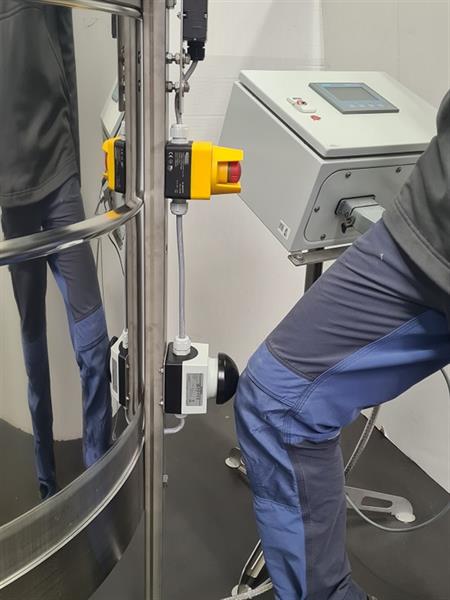

• Emergency stop botton
• Safety device with lid lock
• Bottom drive 1500W / 230 V

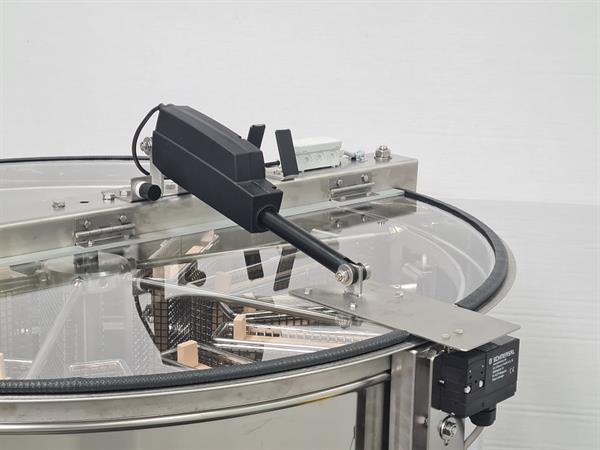

• With electrical lid opener
• Push-to-open via special button

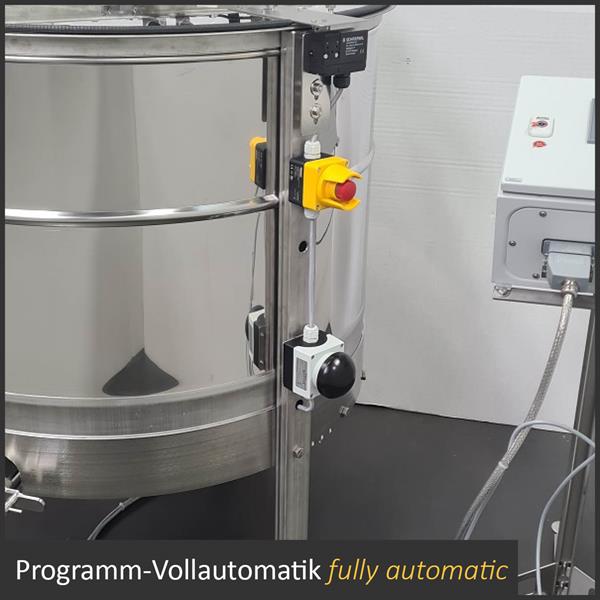

• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 125 cm welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 25 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 117 cm
• Total height 131 cm
• Distance from the floor to the honey tap / Tank bottom 38/33 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight: net 210 kg, packed on a wooden pallet
Chargeable weight: 264 kg
Tripod (5055550) for speed control has to be ordered separatly!
| Capacity of frames: | 16 Ganzrahmen |
|---|---|
| Diameter: | 125 cm |
| Frame size: | Deutsch Normal 394 x 223 mm, Freudenstein 338 x 200 mm, Langstroth 482 x 232 mm, Zander 477 x 220 mm |
| Motor power: | 1,5 kW / 230 V |
| Outlet: | Quetschhahn 2" |
| Side bar length max.: | 24 cm |
Carl Fritz Imkertechnik GmbH & Co. KG
Immenweg 1
97638 Mellrichstadt Tel. +49 9776 8115-0
info@carl-fritz.de
Login
accessories
Consists of: - 2 mm thick seal for the honey tap clear width 55mm (2" - no. 5000086) - self-adhesive- 2 mm thick thrust washer between the lower part and the top partMade of food-grade materialWeight: 0.1kg
Consists of: - 6 mm thick honey tap top part made of stainless steel- 2 mm thick seal for the honey tap - already glued on- Stainless steel disc spring - already mounted- Plastic sliding bearings - already mounted- 2 mm thick thrust washer between the lower part and the top part- Stainless steel screw and nut M8Made of food-grade materialWeight: 0.1kg
