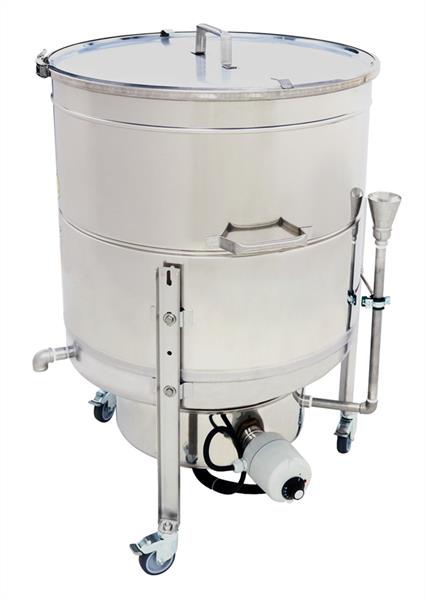

CFM-Steam wax melter "Apitotal" with Heating (3 kW/230 V)

€1,497.00*

Available, Lieferzeit 1 - 3 Arbeitstage

Product number: 5000332

Product information

The steam wax melter is completely made of stainless steel. The steam is not generated in the melting tank but in the water tank beneath. This version uses a submersible tube heater to heat the water tank.

• Operation via thermostatically adjustable submersible tube heater 3 kW / 230 V (30 – 110 °C)
• A melting process takes approx. 40 minutes (depending on the quality of the honeycomb material)
• Water volume in the water tank 19 litres
• Capacity approx. 30 frames DN, Zander or Langstroth, 16 frames Dadant brood, 35 frames Dadant supers
• Inner tank Ø 63 cm, welded bottom without gap
• Rigit handles
• Lid with silicon gasket and locking ring, seals the tank completely tight
• Immersion pipe heating element adjustable via thermostat from 30 - 110°C (3000 W / 230 V)
• NEW on wheels which you can lock

Please note: Wax masher and wax pot not included in the delivery!

Weight without/with wrapping: 30 kg / 46 kg
Packed on a wooden pallet.
Chargeable weight: 46 kg

Accessoires - to be ordered separately:
Item number 5000321 Wax masher
Item number 5000336 Wax pot

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

6000327

Citric acid powder (pack of 1 kg)

To ensure that you enjoy working with your steam wax melter for as long as possible, regular descaling is essential. Use the citric acid powder (food grade) for this purpose. For decalcification, please always refer to the description of the respective device! For decalcifying the steam generators please consider the following mixing ratio: 1:10, that means mix 100 g to 1 litre of water and stirr until all crystals have dissolved.

€6.50*

5000336

CFM-Wax pot

You can use the CFM-Wax pot in many different ways. Especially for the processing of beeswax.Together with the thawing pot (Item No. 6090232) and the cover ring (Item No. 5009232), you can keep the beeswax fluid.For example, for casting candles or foundation sheets.Made of stainless steel.• capacity: max. 12.5 liter• with scale inside• seamless, conical shape with carrying handles• dimensions: inside height 26 cm, top Ø 31 cm, bottom diameter 21 cm, bottom straight

€79.00*

5000321

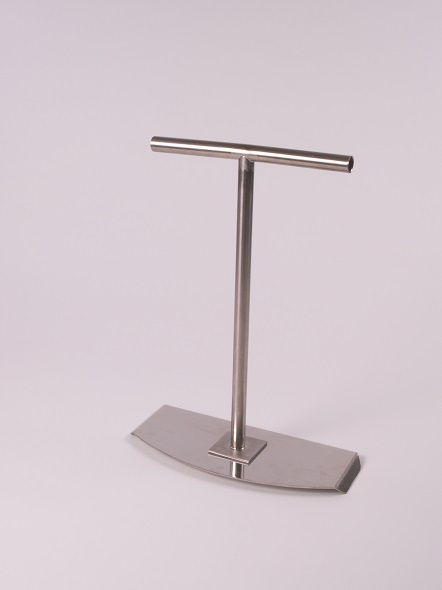

CFM Wax masher, stainless steel, ideal combination to item 5000330-5000334

To compress leftover wax.

€84.70*

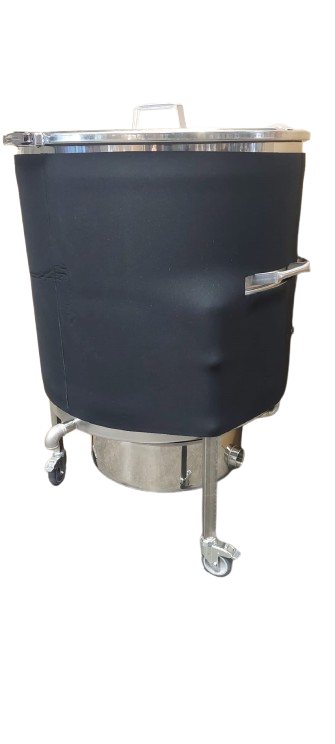

Tank insulation for CFM-Steam wax melter

6093050

Tank insulation for CFM-Steam wax melter

Suitable for CFM-Steam wax melter item no. 50003330/5000332/5000334 • Made of foamed insulation material• With cut-outs for handles • Weight approx. 1,8 kg

€145.00*

similar items

5000330

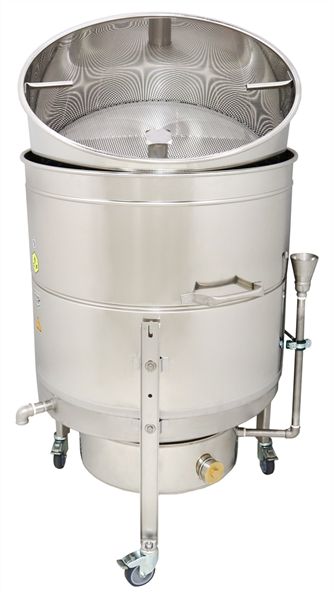

CFM-Steam wax melter "Apitotal"

The CFM steam wax melter “Apitotal” does not produce the steam in the melting tank, but in the water tank beneath it. No electricity is required for this version. A gas burner is sufficient to operate this device. We recommend a gas burner with 14 kW (no. 6090302)• Operation with a gas burner – no electricity is needed• A melting process takes approx. 40 minutes (depending on the quality of the honeycomb material)• Water volume in the tank 19 liter• Capacity for approx. 30 frames (approx. 16 Dadant brood frames)• Inner tank Ø 63 cm, welded bottom without gap• Rigit handles• Lid with silicon gasket and locking ring, seals the tank completely tight • NEW on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with: 30 kg / 40 kgPacked on a wooden pallet.Chargeable weight: 40 kg Accessoires - to be ordered separately:Item number 6090302 gas burner with 14 kWItem number 5000321 Wax masherItem number 5000336 Wax pot

€1,129.00*
