Product number:
5000317
Description
Product information

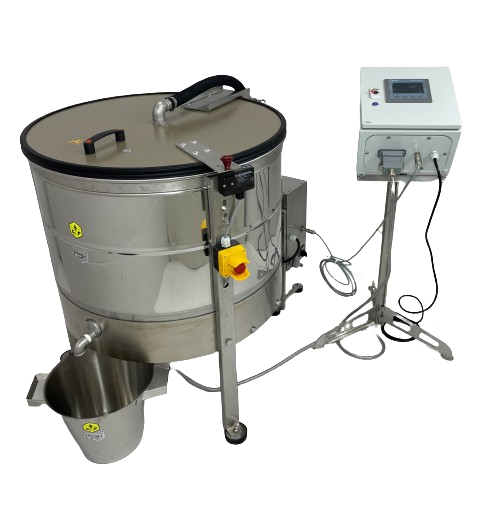

Powerful wax extractor for efficient wax extraction from honeycombs.
Suitable for:
• for up to 18 deep frames or up to 36 shallow frames
• Frame sizes: suitable for all common dimensions, such as Zander, DN, Langstroth, Dadant
Technical details:
• Steam generator 6 kW / 400 V with cable and plug
• Motor drive underneath 370W / 230V with robust gearbox
• Automatic program sequence (pre-evaporation + spinning)
• Inner tank Ø 77 cm, bottom welded without gap
• Tank bottom with slope to the outlet
• Outlet: 3/4" nipple welded to the bottom
• Material: Stainless steel
• Hinged lid made of aluminium composite
• Emergency stop button

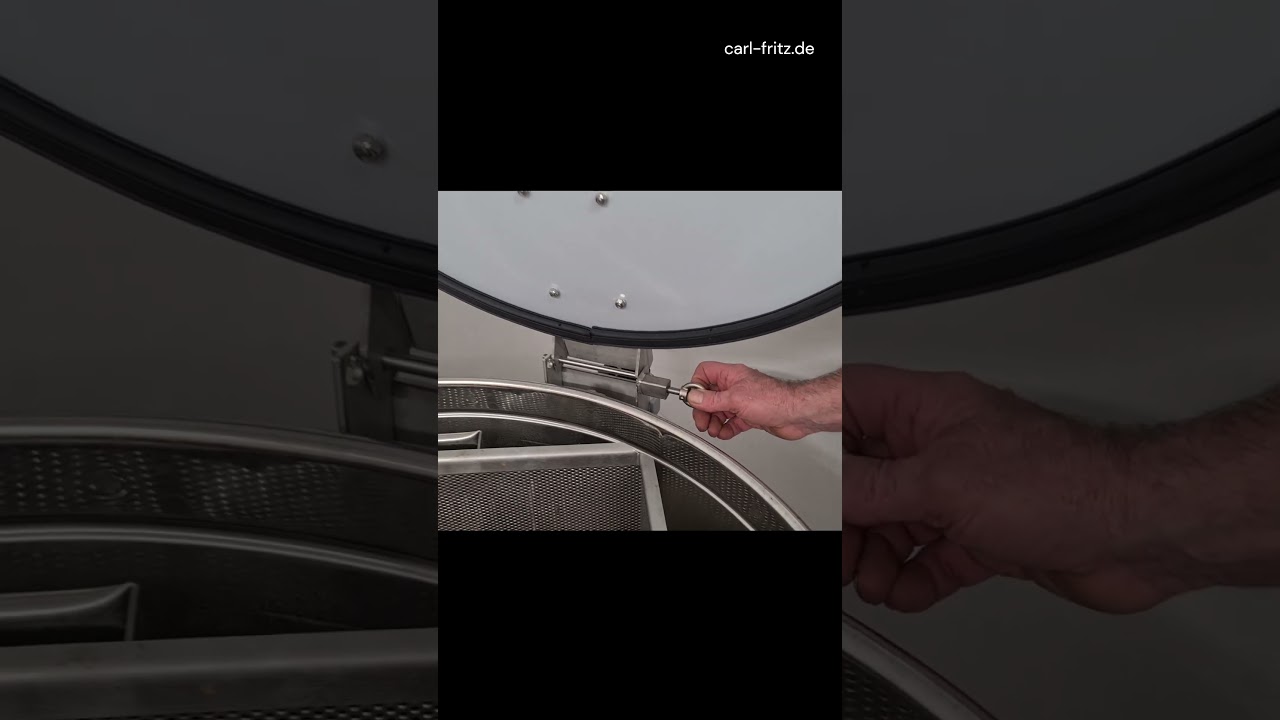

• Safety device with lid locking
• Loading height 95 cm
• Tap distance from the floor 36 cm
• 2 pomace baskets with frame holder
Weight without/with packaging: 120 kg / 150 kg
Packaging: on wooden pallet
Chargeable weight: 150 kg
The tripod for the control (item no. 5055500) is not included in the delivery
Suitable for:
• for up to 18 deep frames or up to 36 shallow frames
• Frame sizes: suitable for all common dimensions, such as Zander, DN, Langstroth, Dadant
Technical details:
• Steam generator 6 kW / 400 V with cable and plug
• Motor drive underneath 370W / 230V with robust gearbox
• Automatic program sequence (pre-evaporation + spinning)
• Inner tank Ø 77 cm, bottom welded without gap
• Tank bottom with slope to the outlet
• Outlet: 3/4" nipple welded to the bottom
• Material: Stainless steel
• Hinged lid made of aluminium composite
• Emergency stop button
• Safety device with lid locking
• Loading height 95 cm
• Tap distance from the floor 36 cm
• 2 pomace baskets with frame holder
Weight without/with packaging: 120 kg / 150 kg
Packaging: on wooden pallet
Chargeable weight: 150 kg
The tripod for the control (item no. 5055500) is not included in the delivery
