CFM-Wax pot

The ideal mini wax extractor for small apiaries.Technical details:• Capacity: approx. 12 frames Zander, DN, Langstroth (approx. 6 Dadant brood frames)• Inner tank Ø 43 cm,welded bottom without gap• Tank bottom with slope to the outlet• Drop handles• Volume: 80 litres, Height 64 cm• Outlet pipe• Insert with perforated plate bottom for the pomace• Lid with hole for the hose from the steam generator• Material: stainless steelSteam generator• Power: 1,850 - 2,200 W / 230 V• Water is sufficient for approx. 1 hourFill with water, connect the hose, plug in plugPlease note: The shipment contains only the tank incl. lidWeight: 13,2 kgChargeable weight: 17,7 kg Accessories - to be ordered separately:Item no. 6000312 steam generatorItem no. 5000314 stand for mini wax extractor(Picture similar)

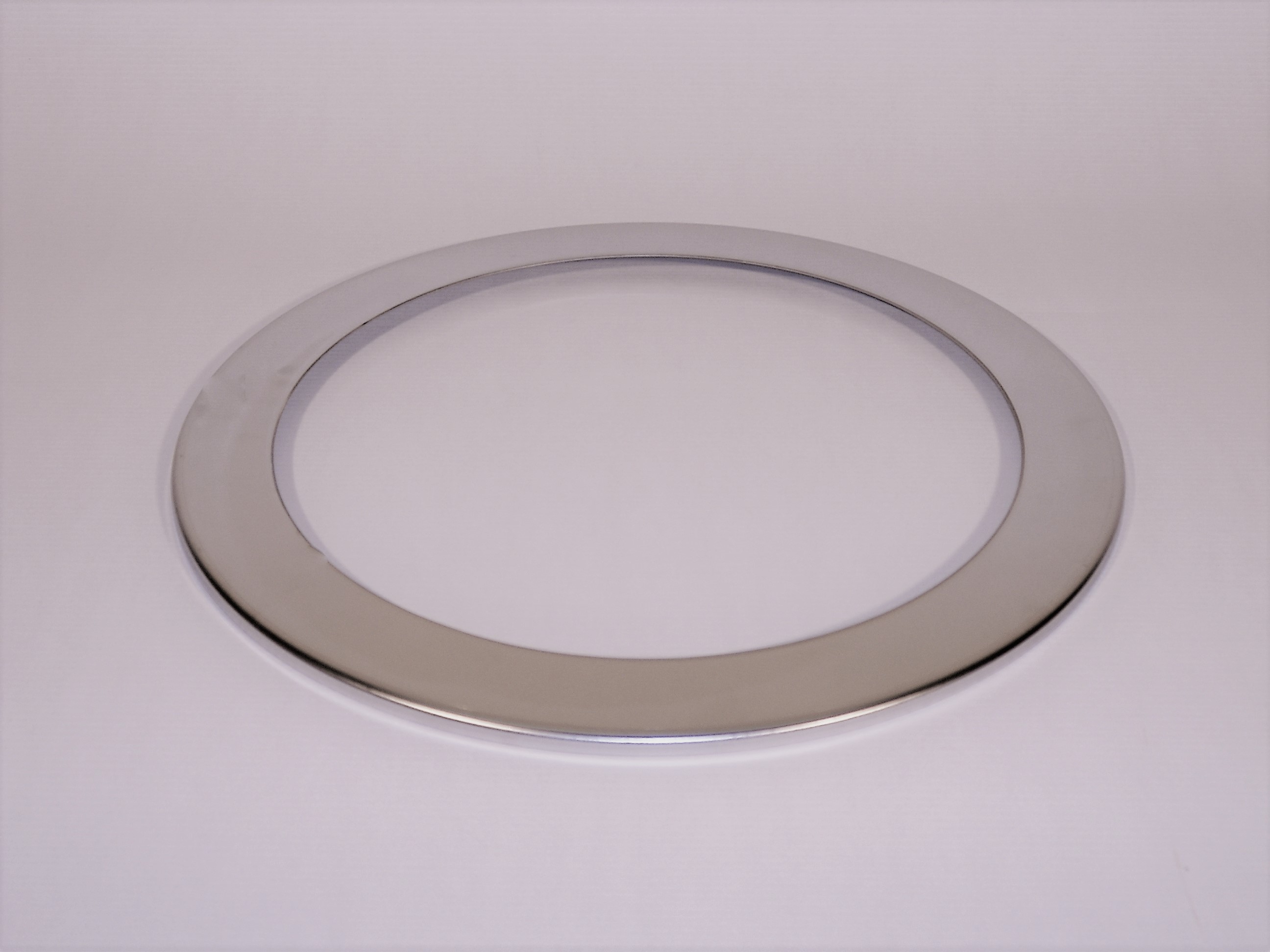

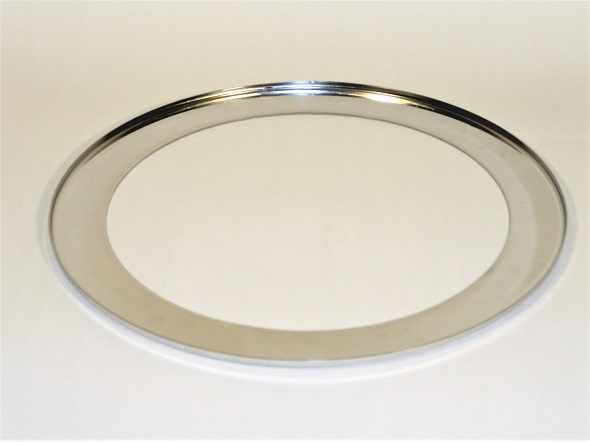

Aus Edelstahl-Rostfrei, kommt zwischen Wachstopf und Auftautopf.Abmessungen:• Innen-Ø (Aussparung) 295 mm• Außen-Ø 380 mm• Außen ca. 8 mm gebördelt

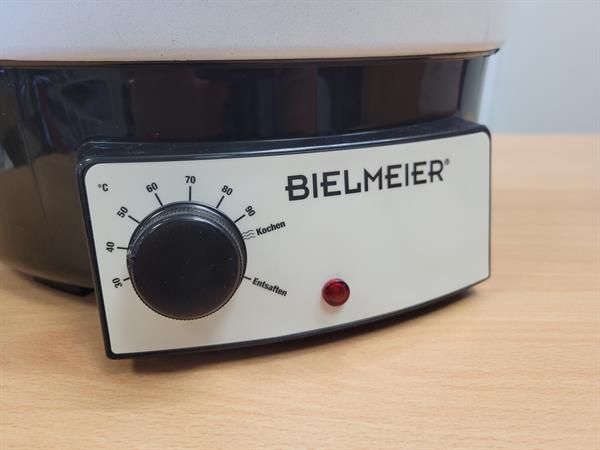

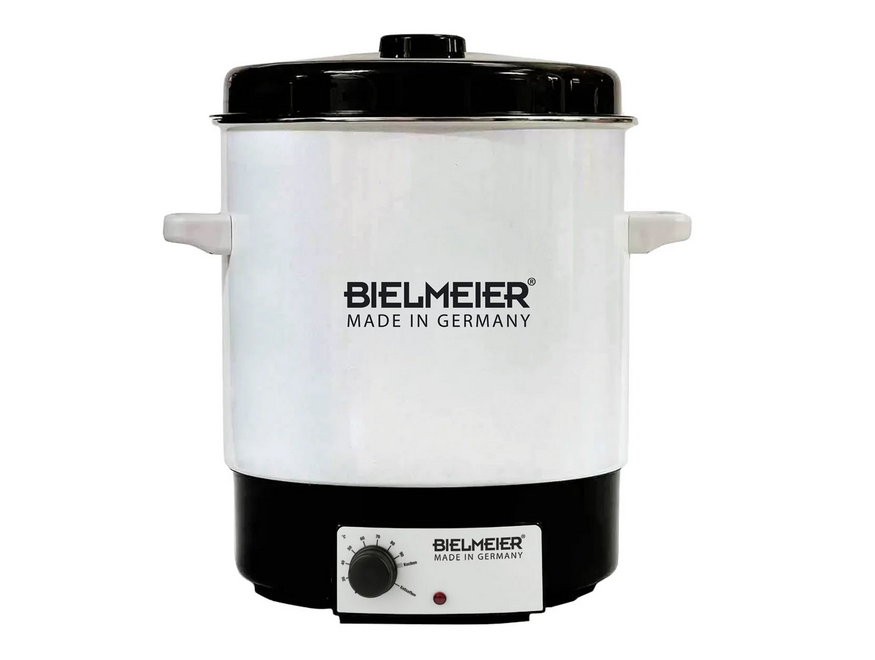

• Adjustable via thermostat from 0 – 100 °C• Enamelled• Capacity 29 litre• 2000W / heating tube 220-240 V ~ 50 Hz • Capillary tube thermostat and temperature control• Suitable for honey buckets 12.5 kg to melt honey or wax pot (item no. 5000336) to melt wax• Cable length: 135 cm • dimentions: (H x W): 36 x 41 cm• color: whitematufacturer/Fotocredits:Bielmeier Consumer Kitchen Products GmbHGnaglbergstraße 694267 Prackenbach

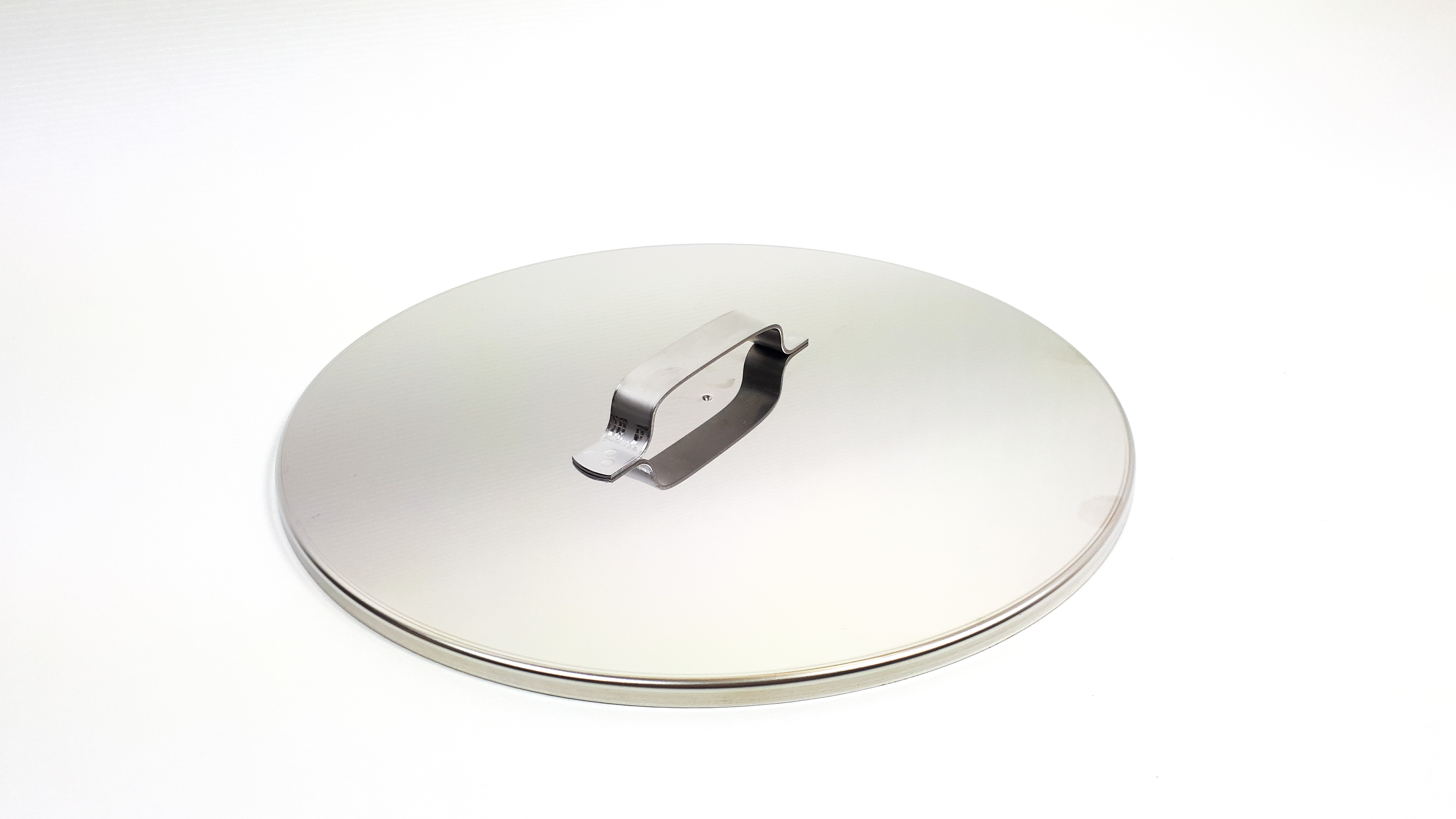

The lid for our CFM waxing pot (item no. 5000336) is simply applied to prevent the wax from cooling too fast on the surface. In addition, the liquid wax is protected against dust and other particles.

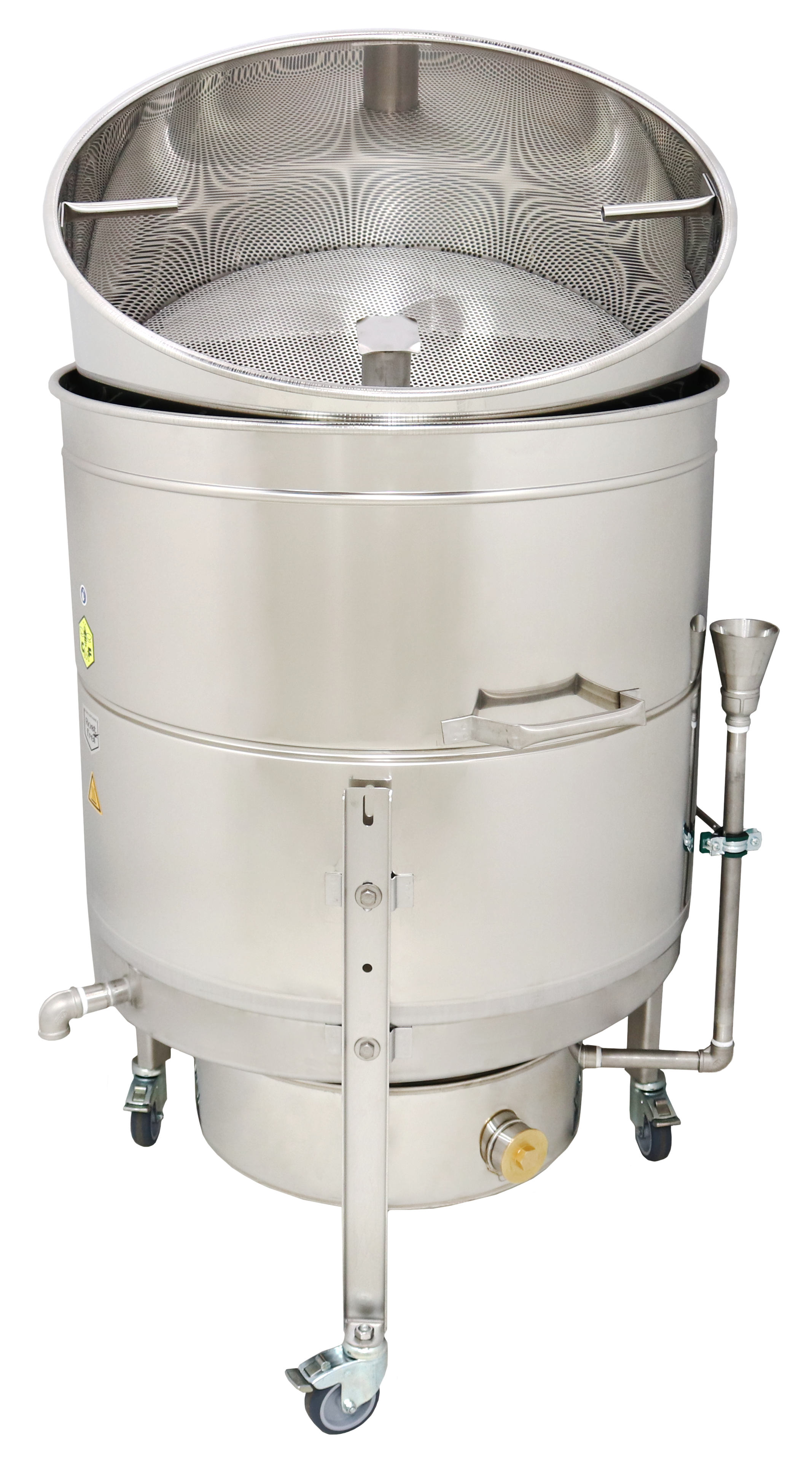

The CFM steam wax melter “Apitotal” does not produce the steam in the melting tank, but in the water tank beneath it. No electricity is required for this version. A gas burner is sufficient to operate this device. We recommend a gas burner with 14 kW (no. 6090302)• Operation with a gas burner – no electricity is needed• A melting process takes approx. 40 minutes (depending on the quality of the honeycomb material)• Water volume in the tank 19 liter• Capacity for approx. 30 frames (approx. 16 Dadant brood frames)• Inner tank Ø 63 cm, welded bottom without gap• Rigit handles• Lid with silicon gasket and locking ring, seals the tank completely tight • NEW on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with: 30 kg / 40 kgPacked on a wooden pallet.Chargeable weight: 40 kg Accessoires - to be ordered separately:Item number 6090302 gas burner with 14 kWItem number 5000321 Wax masherItem number 5000336 Wax pot

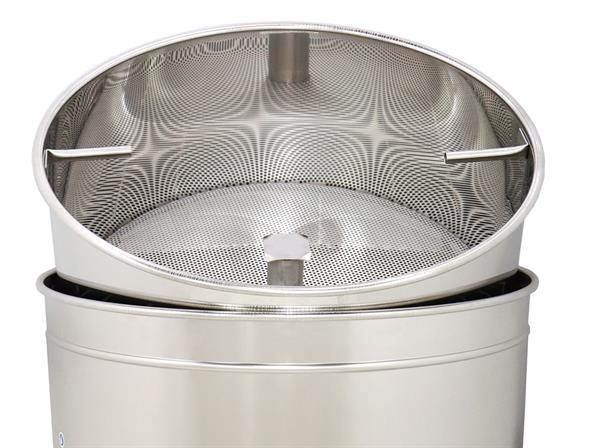

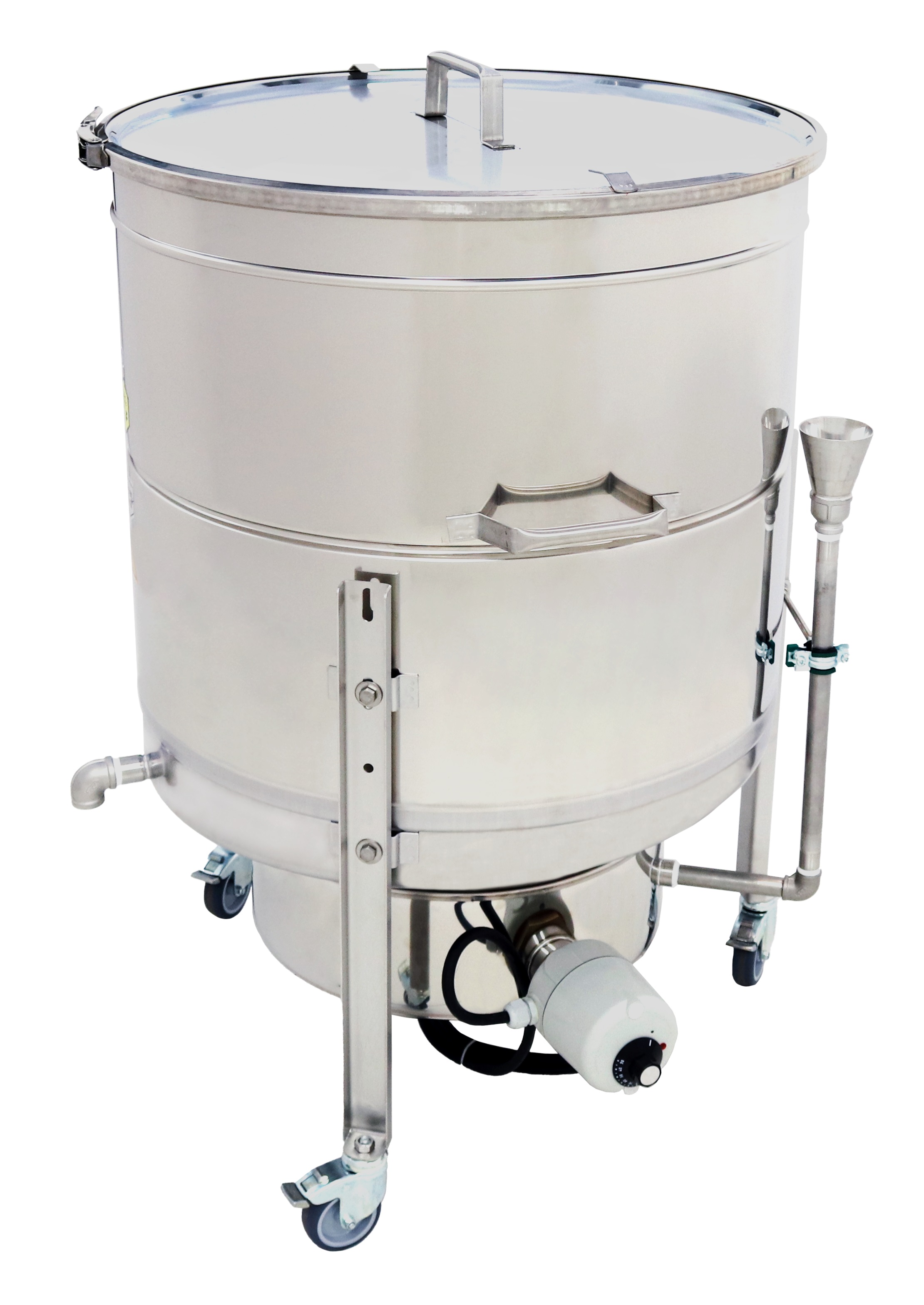

The steam wax melter is completely made of stainless steel. The steam is not generated in the melting tank but in the water tank beneath. This version uses a submersible tube heater to heat the water tank. • Operation via thermostatically adjustable submersible tube heater 3 kW / 230 V (30 – 110 °C)• A melting process takes approx. 40 minutes (depending on the quality of the honeycomb material)• Water volume in the water tank 19 litres • Capacity approx. 30 frames DN, Zander or Langstroth, 16 frames Dadant brood, 35 frames Dadant supers• Inner tank Ø 63 cm, welded bottom without gap• Rigit handles• Lid with silicon gasket and locking ring, seals the tank completely tight • Immersion pipe heating element adjustable via thermostat from 30 - 110°C (3000 W / 230 V)• NEW on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with wrapping: 30 kg / 46 kgPacked on a wooden pallet.Chargeable weight: 46 kg Accessoires - to be ordered separately:Item number 5000321 Wax masherItem number 5000336 Wax pot

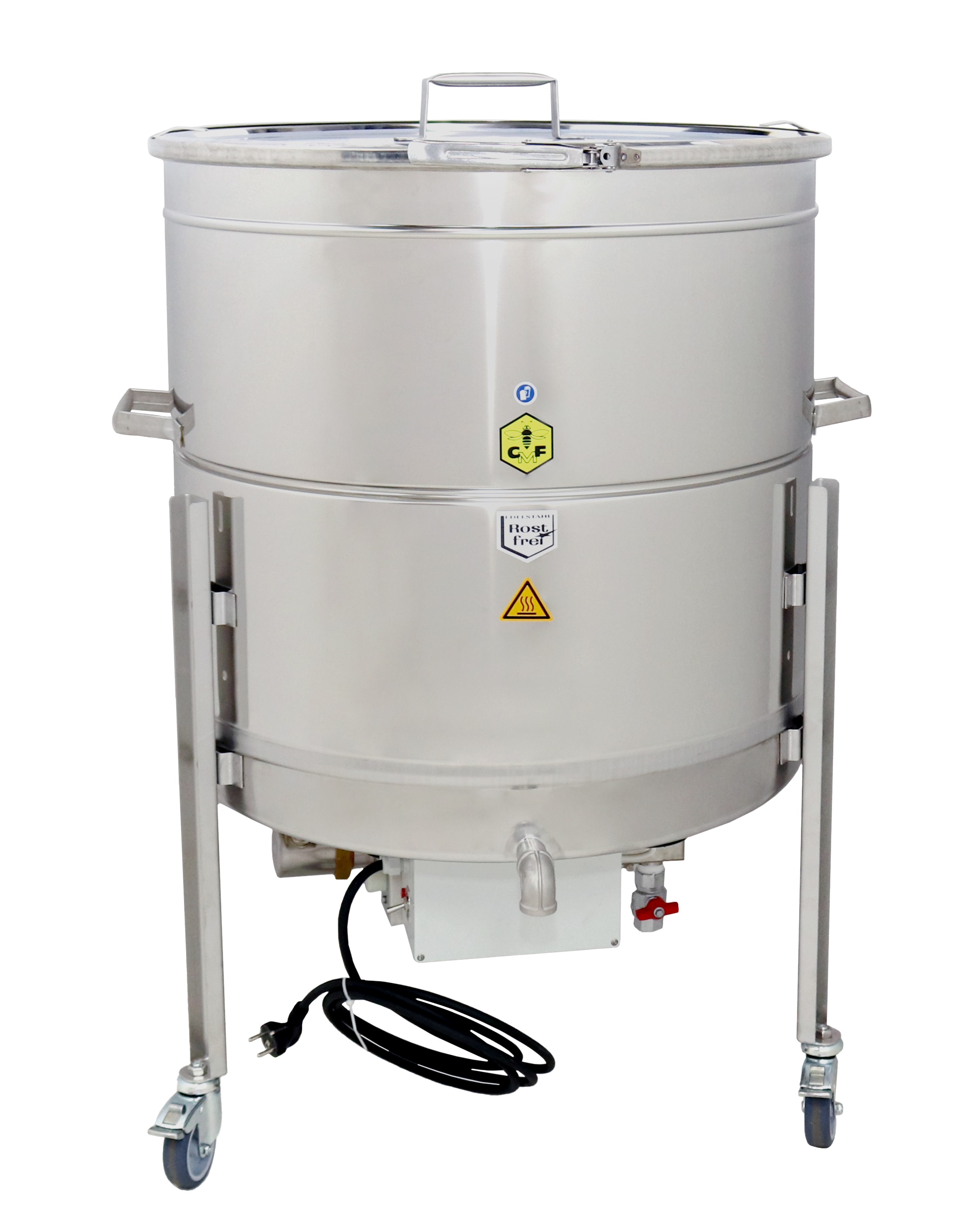

Our proven CFM steam wax melter is equipped with an extremely powerful 3 kW steam generator. This can be connected directly to the water pipe or filled from a water tank (clean rainwater) located 1.5 m higher. The device is ready for use after just three minutes and generates steam. The sophisticated monitoring prevents the heating element from running dry and at the same time ensures a constant level in the steam boiler. This means that only very small amounts of water need to be heated. • Ready to use in three minutes• A melting process takes approx. 20 - 30 minutes (depending on the condition of the honeycomb material)• Capacity for approx. 30 DN frames, 32 Dadant shallow frames, 20 Dadant deep frames• Inner tank Ø 63 cm, welded bottom without gap• Rigid handles• Lid with silicon gasket and locking ring, seals the tank completely tight • Steam generator 3 kW / 230 V with cable and plug• New on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with wrapping: 33 kg / 38 kgWrapping: Cardboard boxChargeable weight: 38 kg Accessories - to be ordered separately:Item number 5000321 Wax masherItem number 5000336 Wax pot

to be placed between the melting pot and the wax pot to prevent steam from escaping
