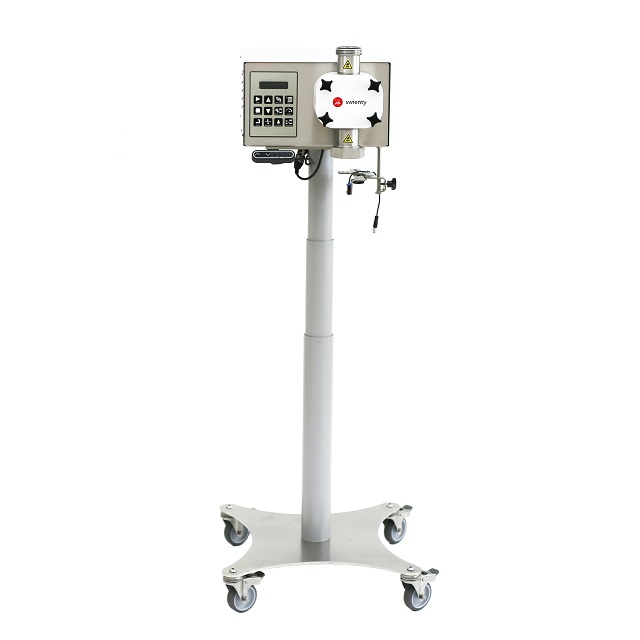

Dana api Matic 2000 filling machine, output approx. 550 jars (500 g) per hour

The DANA api MATIC 2000+ is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a planetary gear. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.

The machine works precisely and is easy to program for different substances. As a pump, the machine works both ways and can be set to different speeds.

All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.

Included fitting:
Foot pedal
Counterflow valve
Dosing syringe 0-60 ml
Nut for BS fitting 1½"
Complete cut-off-cross ø20

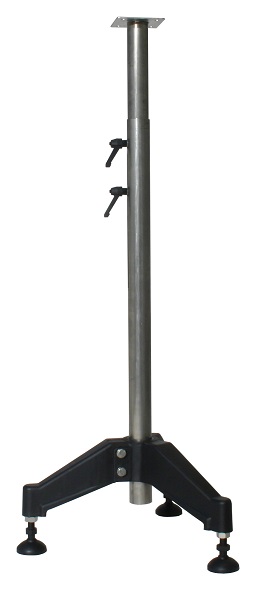

Legs
2" / 50mm hose
1½-2" bent BS fitting
2" Hoseclamp

With the machine you recieve an included spare parts set containing:
2 x Cross-cut Ø20
2 x Black rubber diaphragm
2 x Gasket BS 1½
2 x Handmountable nuts for pumphead
2 x O-ring 37x2 NBR 70
1 x O-ring 96x3 NBR 70

Various nozzles, fittings, 10/20 liter funnel, tablestand and switch can be purchased.
The machine can easily be expanded with e.g. a turntable and / or conveyor belt.

Packaging volume 61x41x36 cm.
Power 575W
Voltage 90-305VAC 50/60Hz
Pumping Amount (kg honey/h) ~ 610 kg/h
Programs 20+
Media Temperature Range
(With HotFill Gears) (°C) max. 95°C
Length 31 cm
Width 18.5 cm
Packaging volume 1 61 x 41 x 36 cm
Units ml / g / oz
Pumping Amount (L/h) 400 L/h
Weight 17.5 kg
Type of Machine Computer controlled gear pump
Fittings 1.5" BS thread and 2" hose connection
Precision +/- 1g
Fillingrange 10g - 999.999g
Sound Level <70 dB(A)
