Direct melter DS 65-d (400V) for uncapping wax, stainless steel

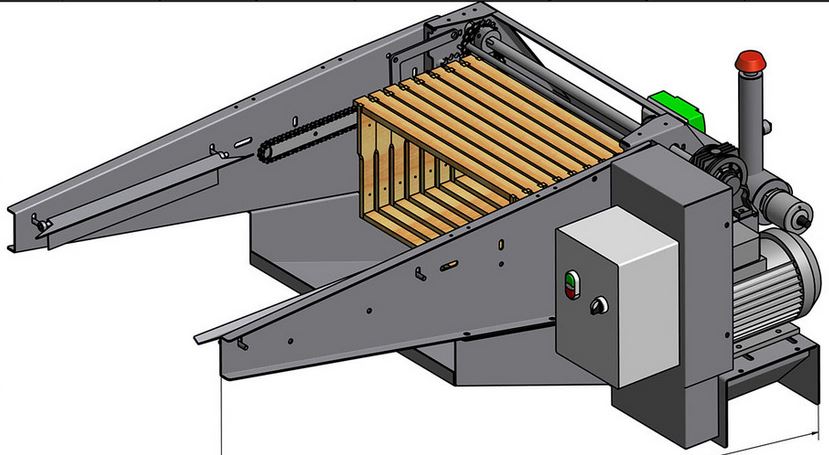

The machine works fully automatically and can be manufactured for Zander, Langstroth and Dadant.In contrast to WT1 this machine has a chain feed for about 12 frames at the front and guide rails for about 13 additional frames.You can uncap frames with and without Hoffmann. For other frame sizes a feasability study has to be done and there will be a surcharge due to the design change. The machine will be adjusted to your frame size by the factory. • All metal parts and pieces which come in contact with the product are stainless steel and easy to clean with just hot water.• High speed with approx. 8 frames per min.• The knives are made from high-quality stainless steel for a long durability and a permanent nice and even cut. A manual adjustment permits a simple and fast set-up of the uncapping depth +/- 10mm• The machine will be delivered a high temperature water system for heating the knives.• The front of the machine is equipped with a chain feed and guide rails for the frames.• Motor drive 400V / 16A / 550 W.• Adjustable via thermostat, including reservoir and circulating pump.• Guide rail, drain board and wax melter in differenz sizes as well as additional accessories are available.IMPORTANT: Please state your frame size with your order!

Note: Please let us know your used frame size when ordering, so that we can pre-set the machine perfectly for you!   Capacity up to approx. 200 honeycombs in one hour. Drive motors 2 x 180 W / 230 V and a geared motor 120 W / 230 V.The machine is used for a quick uncapping of honeycombs on both sides simultaneously. It is to be used for all common frame dimensions.160 knives per side.The depth of discovery is freely adjustable from 22 - 45 mm. The machine is factory set to 24 mm honeycomb thickness.The flying suspended beater knives are designed so that they knock off wax parts, harder materials such as wooden frames and spacers, no matter what kind will not be damaged. An accident risk is thereby completely switched off by the splash cover. All parts of the device are protected against corrosion and made of stainless steel.Dimensions: (HxWxD) about 191 x 73 x 51 cmWeight: approx. 70 kgDo you need spare parts for this machine?Talk to us, we can offer you a variety of spare parts for our CFM devices / machines!

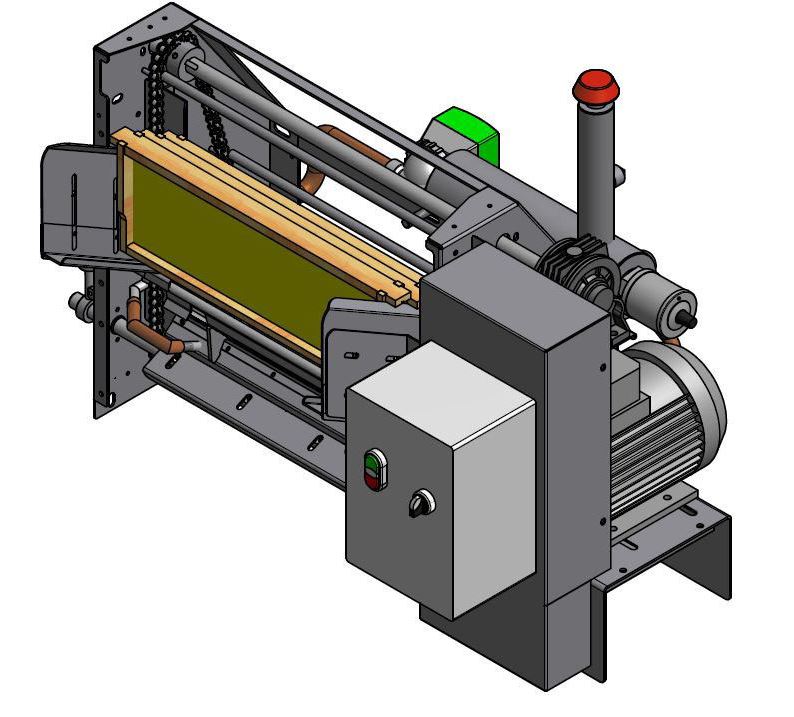

• Fully automatic in stainless steel.• High speed with approx. 8 half frames per min. or approx. 5 full frames per minute.• The knives are made from high-quality stainless steel for a long durability and a permanent nice and even cut. A manual adjustment permits a simple and fast set-up of the uncapping depth +/- 10mm.• The machine will be delivered with draining board and high temperature water system for heating the knives.• At the entrance of the machine is a comb-slide for 5 frames. The comb slide needs to be fed with frames manually.• You can uncap frames with and without Hoffmann.• All metal parts and pieces which come in contact with the product are stainless steel and easy to clean with just hot water.• Motor drive 400V / 16A / 550 W.• Adjustable via thermostat, including reservoir and circulating pump.• Water-heating system 2000 W adjustable via thermostat• Including reservoir and circulating pump.Weight: 80 kg Chargeable weight: 143 kg
