Tangential extractors
How a CFM tangential extractor works
The previously uncapped honeycombs are positioned tangentially to the tank within the honeycomb basket. First, one side of the honeycomb is emptied. Subsequently, the frame can be turned within the basket, so that the secand side is ejected.
Range of applications for a CFM tangential extractor
A tangential honey extractor suits apiaries with a number of 1 - 15 beehives. So in the field of amateur or small beekeeping. Regardless of the honeys. It should be noted with each extracting process necessarily a uniform loading of the honey extractor. The advantage of the tangential honey extractor is that the honeycombs are supported by the grid surface during the rotation of the basket process, so that the honeycombs are less stressed by the centrifugal force.
The process incl. manual turning of the frames takes about 5 - 8 min. (depending on the type of honey)
See more Information in the FAQ section

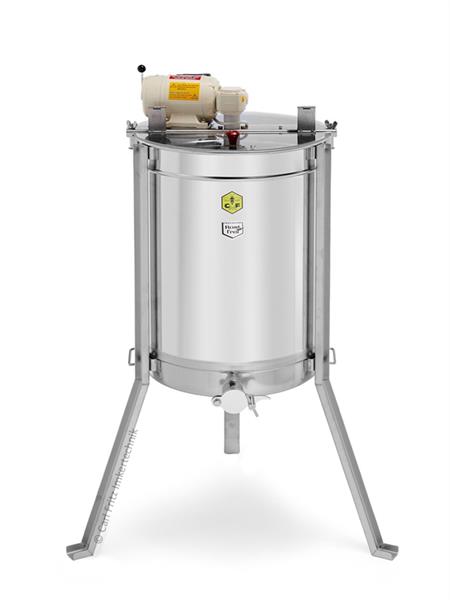

The allrounder of the CFM-Honey extractors with our "Extractor Witch".This tangential extractor with motor is even suitable for large frames like Dadant and German Standard 1 1/2. The cage is without middle axis so the frames can be turned inside the cage.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizesFor cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2 and Swiss framesTechnical details:• Top drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 38 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 34 kg / 40 kgWrapping: cardboard boxChargeable weight: 46 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003840 4 frames tangential cageItem no. 5203818 18 shallow frames radial cageAcrylic glass lid half on request

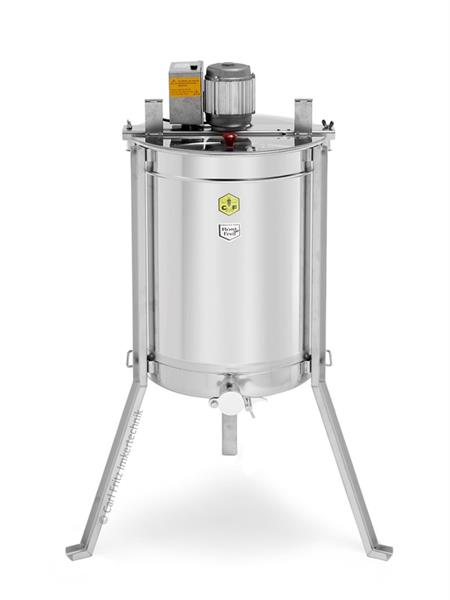

The allrounder of the CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?This tangential extractor with motor is even suitable for large frames like Dadant or German Standard 1 1/2. The cage is without middle axis so you can turn the frames inside the cage. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep deep frames up to 37cm side bar length or 8 shallow frames up to 18 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2, Swiss framesTechnical details:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 38 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 34 kg / 40 kgWrapping: cardboard boxChargeable weight: 46 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003840 4 frames tangential cageItem no. 5203818 18 shallow frames radial cageAcrylic glass lid half on request

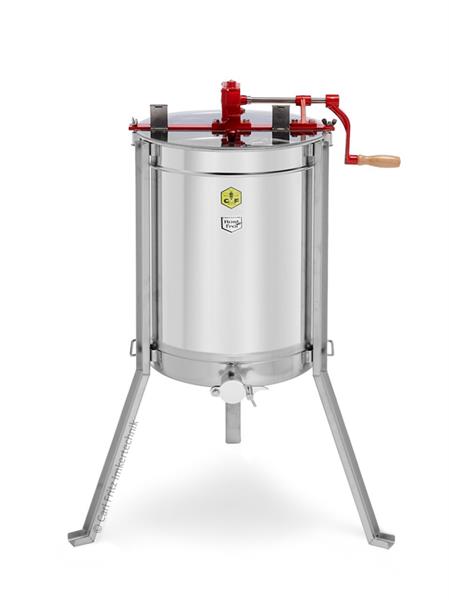

Our basic model of the CFM-Honey extractors with manual driveAdvantages are the compact design, the cage without middle axis and the fact that you can run this honey extractor without electricity.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep frames up to 31 cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, DadantTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 32 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 26 kg / 32 kgWrapping: cardboard boxChargeable weight: 38 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003244 4 frames tangential cageItem no. 5003709 9 shallow frames radial cageAcrylic glass lid half on request
Our basic model of the CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, DadantTechnical details:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 32 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 29 kg / 35 kgWrapping: cardboard boxChargeable weight: 40 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003244 4 frames tangential cageItem no. 5003709 9 shallow frames radial cageAcrylic glass lid half on request
Our basic model of the CFM-Honey extractors with our "Extractor Witch".Advantages are the compact design and the cage without middle axis.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizesFor cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, DadantTechnical details:• Top drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 32 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Stainless steel• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 29 kg / 35 kgWrapping: cardboard boxChargeable weight: 40 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003244 4 frames tangential cageItem no. 5003709 9 shallow frames radial cageAcrylic glass lid half on request
The smallest CFM-Honey extractors with manual driveAdvantages are the very small dimension, the cage without middle axis and the fact that you can run this honey extractor without electricity.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep or shallow frames up to 23.5 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 43 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 24.5 x 46 cm• Without middle axis (combs can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 21 kg / 26 kgWrapping: cardboard boxChargeable weight: 32 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5002443 4 frames tangential cageAcrylic glass lid half on request
The smallest CFM-Honey extractors with our "Extractor Witch".Advantages are the very small dimension and the cage without middle axis.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep or shallow frames up to 23.5 cm sidebar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Direct drive with security switch• Motor power 110 W / 230 V• Hinged acrylic glass lid halves• Inner tank Ø 43 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 24.5 x 46 cm• Without middle axis (combs can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 24 kg / 29 kgWrapping: cardboard boxChargeable weight: 35 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5002443 4 frames tangential cageAcrylic glass lid half on request
The allrounder of the CFM-Honey extractors with manual driveThis tangential extractor is even suitable for the large frame sizes like Dadant and German Standard 1 1/2. The cage is without middle axis so you can turn the frames inside the cage.This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep frames up to 37 cm side bar length or 8 shallow frames up to 18 cm side bar length • Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2 or Swiss framesTechnical details:• Manual drive with hinged lid halfs• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 38 x 46 cm• Without middle axis (frames can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cm• Can be modified to extract radial with a radial cageIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 31 kg / 37 kgWrapping: cardboard boxChargeable weight: 42 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5003840 4 frames tangential cageItem no. 5203815 15 shallow frames radial cageAcrylic glass lid half on request
The smallest CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.Suitable for:• 4 deep or shallow frames up to 23.5 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 43 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Grid area of the cage 24.5 x 46 cm• Without middle axis (combs can be turned inside the cage)• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 24 kg / 29 kgWrapping: cardboard boxChargeable weight: 35 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingItem no. 5002443 4 frames tangential cageAcrylic glass lid half on request
Suitable for:• 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm)• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, KuntzschTechnical details:• Manual drive• Hinged acrylic glass lid halfs• Tank inner-Ø 50 cm• Grid area of the comb cage 29 x 46 cm• Without middle axis (frames can be turned inside the cage)• Food safe acrylic glass / stainless steel• Total height 116 cmWeight: 20 kgChargeable weight: 34 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request
Suitable for:• 4 frames Mini PlusTechnical details:• Manual drive with hinged lid halfs• Tank inner-Ø 30 cm• Grid area of the comb cage 18 x 22 cm• With middle axis• Material: Edelstahl-Rostfrei and foodsafe plexi glass• Distance from bottom rim to top rim: 41 cm• Honey tap: inner diameter 36 mm• Tabel model, ideal for presentationsFor cleaning you can easlily loosen the screws at the side of the cross-beam and take off the complete drive.Weight without/with packaging: 12kg/16 kgPackaging: cardboardChargable weight: 16 kgAvailable spare parts and accessories:Item no. 6000070 ball for bottom bearing, item no. 6000074 Food lubricant grease for bottom bearing, item no. 23045001 Sealant for bottom bearing

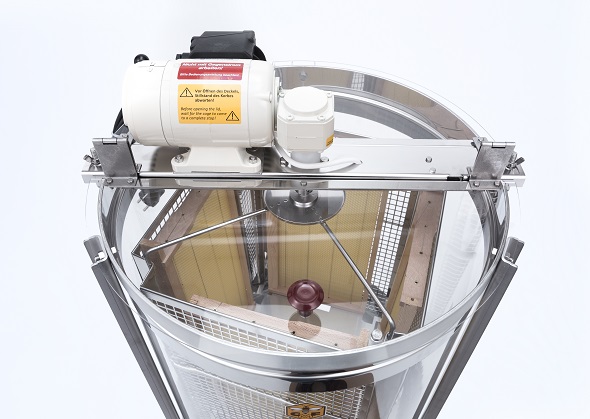

Suitable for:• 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm)• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, KuntzschTechnical details:• top drive with safety device • motor 110 W / 230 V• hinged acrylic glass lid halfs• tank inner-Ø 50 cm• grid area of the comb cage 29 x 46 cm• without middle axis (frames can be turned inside the cage)• stainless steel• total height 116 cmWeight with/without wrapping: 28 kg / 23 kgWrapping: cardboard boxChargeable weight: 38 KGSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6000061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request
* Our innovation for 2020 *This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier? Suitable for:• 4 frames up to 28 cm or 8 shallow frames up to 14 cm sidebar length• Frame sizes: Zander, DN, Langstroth, Freudenstein, Gerstung, Kuntzsch Technical data:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive, even at full speed• Infinitely variable speed control 80 - 350 rpm • Hinged acrylic glass lid halves• Inner tank Ø 50 cm• Grid area of the cage 29 cm x 46 cm• Without middle axis (frames can be turned in the cage)• Material: Stainless steel (cage) / food safe acrylic glass (tank)• Total height 116 cm• Distance from the floor to the bottom edge of the tank 38 cmWeight with/without packaging: 28 kg / 33 kgPackaging: Cardboard on palletChargeable weight: 33 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request
*** Special price, second choice with minor cosmetic flaws – works perfectly ***The smallest of our CFM honey extractors with manual drive.The main advantages of this honey extractor are its compact size, the honeycomb basket without a central axis, and the fact that you can operate this honey extractor completely without electricity. The honey extractor is equipped with a pinch valve, has practical carrying handles on the extraction bowl and a honeycomb basket that is suitable for many common frame sizes. To clean the honey extractor, you can simply loosen the wing screws on the crossbar and remove the entire drive mechanism, including the lid.Suitable for:• 4 whole or half frames up to 23.5 cm side length• Frame sizes: Zander, DN, LangstrothTechnical data:• Freewheel drive with hinged lid half• Inner bowl diameter 43 cm, butt-jointed, gap-free welded bottom• Container bottom sloped towards the pinch cock• Outlet: 1 1/2" pinch cock, welded flush with the bottom• Carrying handle on the lower edge of the boiler• Grid area of the honeycomb basket 24.5 cm x 46 cm• Without continuous center axis (frames can be turned in the basket)• Material: stainless steel• Loading height 100 cm• Distance from floor to pinch cock 38 cmThe scope of delivery also includes:1 packet of hexagonal screws and nuts for the feet, a size 13 socket wrench, and a yellow sealing plug for the bottom bearing.
