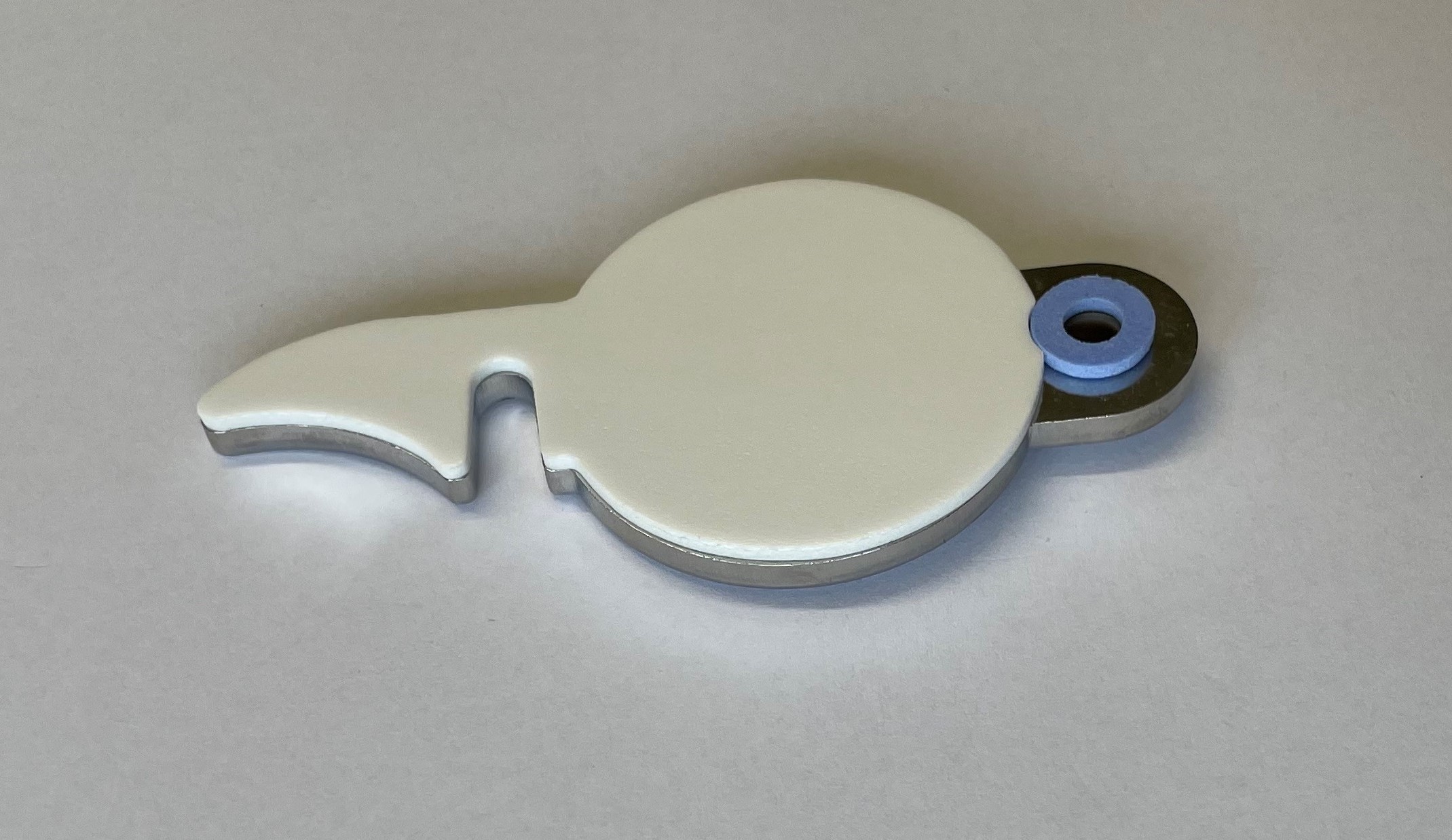

Honey tap top part replacement set for honey tap no. 5000082/83 (clear width Ø 36mm)

Details:• Inner tank Ø 30 cm, welded bottom without gap• Loose lid• Drop handles • Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Overflow: honey tap, clear width 36mm• Material: Stainless steel• Height 36 cm• Weight: 4.9 kgIdeal to combine with conical fine filter sieve item no. 5000163The container, which should be placed under the top tap, may be max. 25.5 cm high!

Suitable for:• 4 frames Mini PlusTechnical details:• Manual drive with hinged lid halfs• Tank inner-Ø 30 cm• Grid area of the comb cage 18 x 22 cm• With middle axis• Material: Edelstahl-Rostfrei and foodsafe plexi glass• Distance from bottom rim to top rim: 41 cm• Honey tap: inner diameter 36 mm• Tabel model, ideal for presentationsFor cleaning you can easlily loosen the screws at the side of the cross-beam and take off the complete drive.Weight without/with packaging: 12kg/16 kgPackaging: cardboardChargable weight: 16 kgAvailable spare parts and accessories:Item no. 6000070 ball for bottom bearing, item no. 6000074 Food lubricant grease for bottom bearing, item no. 23045001 Sealant for bottom bearing

CFM-Plexiglas honey tank made of stainless steel in combination with food-safe Plexiglas, with drop handles and honey tap (36 mm clearance).Tank with loose lid.Dimensions: Ø 30 cm, height 36 cm.Tip: Use such a filling container as a "filling station" for self-filling honey for your customers.

Suitable for:• 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm)• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, KuntzschTechnical details:• Manual drive• Hinged acrylic glass lid halfs• Tank inner-Ø 50 cm• Grid area of the comb cage 29 x 46 cm• Without middle axis (frames can be turned inside the cage)• Food safe acrylic glass / stainless steel• Total height 116 cmWeight: 20 kgChargeable weight: 34 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request

Suitable for:• 9 shallow frames (side bar length up to 16 cm and side bar width 40 mm)• Frame sizes: Dadant shallow, Zander shallow, DN shallow, Langstroth shallowTechnical details:• Manual drive• Hinged acrylic glass lid halves• Inner tank Ø 50 cm• Material: Stainless steel and food grade acrylic glass• Grids available to insert into cage for tangential extracting• Ideal for demonstration of extracting process• Total height 116 cm• Distance from floor to the tap / bottom of tank: 40/38 cm• Honey tap clear span Ø 36 mmWeight without/with wrapping: 20 kg / 25 kgWrapped in a cardboard boxChargeable weight: 34 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5037033 3 grids made of stainless steelAcrylic glass lid half on request

Details:• Inner tank Ø 30 cm, welded bottom without gap• Loose lid• Drop handles • Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Overflow: honey tap, clear width 36mm• Distance from tank top rim to bottom of the overflow tap: approx. 14 cm• Material: Stainless steel• Height 55 cm• Weight: 6.1 kgIdeal to combine with conical fine filter sieve item no. 5000162(Picture similar)

Made of stainless steel with seal.

Details:• Inner tank Ø 30 cm, welded bottom without gap• Tank with 4 locks, lid with food safe silicon gasket• Drop handles • Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Overflow: honey tap, clear width 36mm• Material: Stainless steel• Height 36.5 cm• Weight: 5.2 kgIdeal to combine with conical fine filter sieve item no. 5000163The container, which should be placed under the top tap, may be max. 25.5 cm high!

CFM-Plexiglas honey tank made of stainless steel in combination with food-safe Plexiglas, with drop handles and honey tap (36 mm clearance).Tank with loose lid.Dimensions: Ø 30 cm, height 30 cm.Tip: Use such a filling container as a "filling station" for self-filling honey for your customers.Weight: 3.2 kg

Made of stainless steel with sealValve to solder – due to that without screw threadOutside-Ø 40 mm. inside -Ø 36 mmLength valve (without T-screw): 57 mm Length valve (with T-screw): 82 mm

Details:• Inner tank Ø 30 cm, welded bottom without gap• Tank with 4 locks, lid with food safe silicon gasket• Drop handles • Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Overflow: honey tap, clear width 36mm• Distance from tank top rim to bottom of the overflow tap: approx. 14 cm• Material: Stainless steel• Height 55.5 cm• Weight: 6.4 kgIdeal to combine with conical fine filter sieve item no. 5000162(Picture similar)

Suitable for:• 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm)• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, KuntzschTechnical details:• top drive with safety device • motor 110 W / 230 V• hinged acrylic glass lid halfs• tank inner-Ø 50 cm• grid area of the comb cage 29 x 46 cm• without middle axis (frames can be turned inside the cage)• stainless steel• total height 116 cmWeight with/without wrapping: 28 kg / 23 kgWrapping: cardboard boxChargeable weight: 38 KGSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6000061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request

Made of stainless steel with seal.

Suitable for:• 9 shallow frames (side bar up to 16 cm and side bar width 40 mm)• frame sizes: Dadant, Zander shallow, DN shallow, Langstroth shallowTechnical details:• top drive with safety device• motor 110 W / 230 V• hinged acrylic glass lid halfs• tank inner-Ø 50 cm• grids available to insert into cage• stainless steel and food grade acrylic glass• total height 116 cmWeight: 23 kgChargeable weight: 38 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingAcrylic glass lid half on request

* Our innovation for 2020 *This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier? Suitable for:• 9 shallow frames up to 16 cm sidebar length and 40 mm width• Frame dimensions: Dadant, Zander shallow, DN shallow, Langstroth shallow Technical data:• Direct drive with safety switch• Motor power 40 W / 230 V• Very quiet drive, even at full speed• Infinitely variable speed control 80 - 350 rpm • Hinged acrylic glass lid halves• Inner tank Ø 50 cm• Material: Stainless steel (cage) / food safe acrylic glass (tank)• Total height 116 cm• Distance from the floor to the bottom edge of the tank 38 cmWeight: 23 kg Packaging: Cardboard boxChargeable weight: 38 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5037033 3 grids made of stainless steelAcrylic glass lid half on request

* Our innovation for 2020 *This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier? Suitable for:• 4 frames up to 28 cm or 8 shallow frames up to 14 cm sidebar length• Frame sizes: Zander, DN, Langstroth, Freudenstein, Gerstung, Kuntzsch Technical data:• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive, even at full speed• Infinitely variable speed control 80 - 350 rpm • Hinged acrylic glass lid halves• Inner tank Ø 50 cm• Grid area of the cage 29 cm x 46 cm• Without middle axis (frames can be turned in the cage)• Material: Stainless steel (cage) / food safe acrylic glass (tank)• Total height 116 cm• Distance from the floor to the bottom edge of the tank 38 cmWeight with/without packaging: 28 kg / 33 kgPackaging: Cardboard on palletChargeable weight: 33 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20gItem no. 23045001 Sealant for bottom bearingItem no. 5002943 4-frames tangetial cageAcrylic glass lid half on request

Note: Please let us know your used frame size when ordering, so that we can pre-set the machine perfectly for you!   Capacity up to approx. 200 honeycombs in one hour. Drive motors 2 x 180 W / 230 V and a geared motor 120 W / 230 V.The machine is used for a quick uncapping of honeycombs on both sides simultaneously. It is to be used for all common frame dimensions.160 knives per side.The depth of discovery is freely adjustable from 22 - 45 mm. The machine is factory set to 24 mm honeycomb thickness.The flying suspended beater knives are designed so that they knock off wax parts, harder materials such as wooden frames and spacers, no matter what kind will not be damaged. An accident risk is thereby completely switched off by the splash cover. All parts of the device are protected against corrosion and made of stainless steel.Dimensions: (HxWxD) about 191 x 73 x 51 cmWeight: approx. 70 kgDo you need spare parts for this machine?Talk to us, we can offer you a variety of spare parts for our CFM devices / machines!
