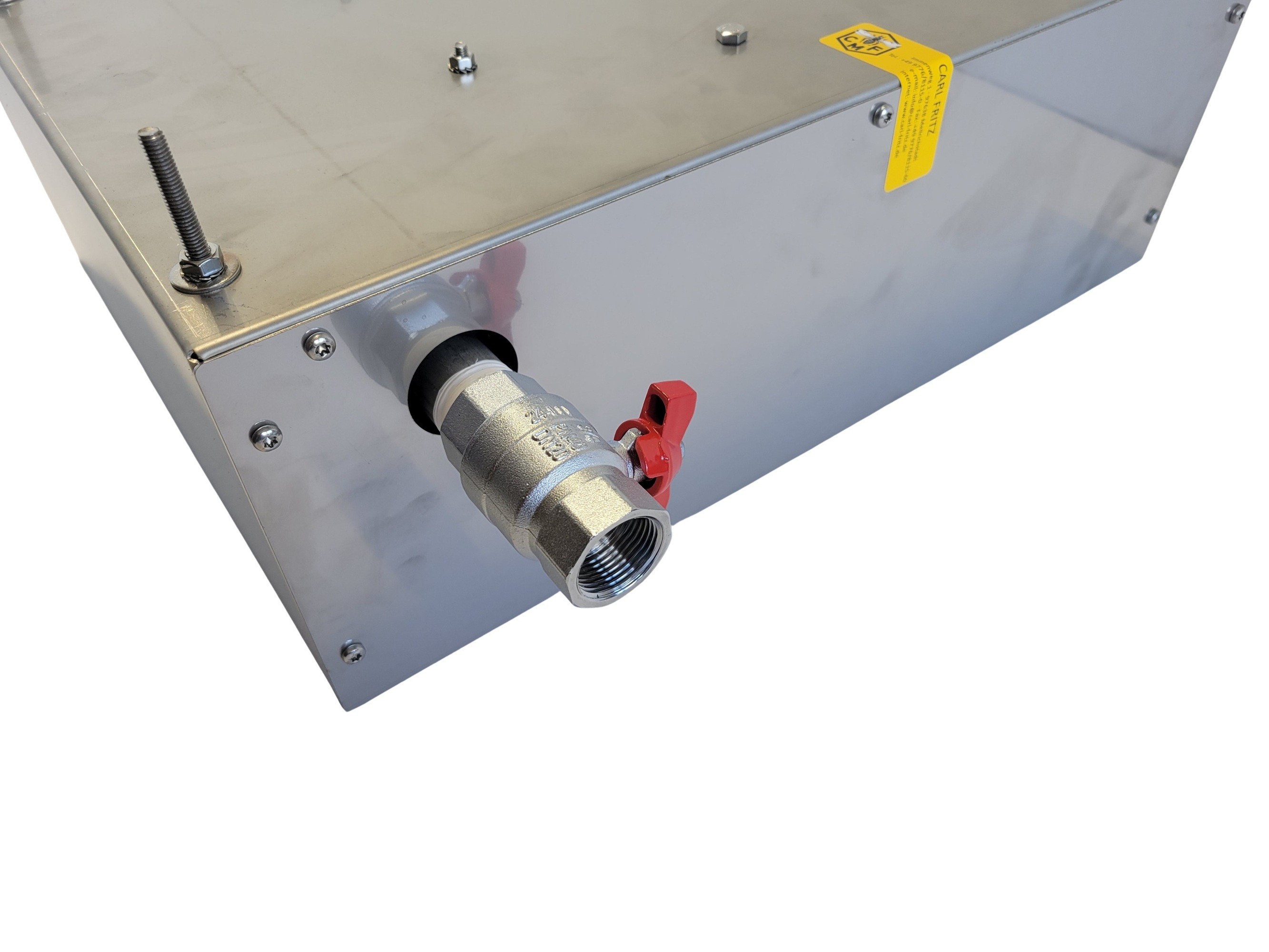

Steam generator 6 kW

Powerful wax extractor for efficient wax extraction from honeycombs.Suitable for:• for up to 18 deep frames or up to 36 shallow frames• Frame sizes: suitable for all common dimensions, such as Zander, DN, Langstroth, DadantTechnical details:• Steam generator 6 kW / 400 V with cable and plug• Motor drive underneath 370W / 230V with robust gearbox• Automatic program sequence (pre-evaporation + spinning)• Inner tank Ø 77 cm, bottom welded without gap• Tank bottom with slope to the outlet• Outlet: 3/4" nipple welded to the bottom• Material: Stainless steel• Hinged lid made of aluminium composite• Emergency stop button• Safety device with lid locking• Loading height 95 cm • Tap distance from the floor 36 cm• 2 pomace baskets with frame holderWeight without/with packaging: 120 kg / 150 kgPackaging: on wooden palletChargeable weight: 150 kg The tripod for the control (item no. 5055500) is not included in the delivery

A very powerful steam wax melter for all sizes of beekeeping companies. NEW: The steam generator has an optimized level monitoring system. It is directly connected to the water supply. This ensures continuous working with the steam wax melter. The powerful generator generates already steam after app. 3 minutes. The machine is completely made out of stainless steel and absolutely corrosion resistant. It is set up for Zander, Langstroth or Dadant. For smaller frames it includes an adjustable frame guiding rail. The lid can be sealed airtight with 4 locks. • Capacity approx. 26 frames with a side bar width of 35 mm• Steam generator 6 kW / 400 V with cable and plug• Dimensions: (WxDxH) approx. 129cm (111cm without steam generator) x 54 x 102cm (inkl. rolls and handels)• Legs with 4 rolls, 2 of them can be locked• Distance from the floor to the outlet 49 cm• Height of tank rim: 96 cm (incl. rolls)Weight: 31 kg Chargeable weight: 62 kg

A very powerful steam wax melter for all sizes of beekeeping companies. NEW: The steam generator has an optimized level monitoring system. It is directly connected to the water supply. This ensures continuous work with the steam wax melter. The powerful generator already generates steam after approx. 3 minutes. The machine is completely made out of stainless steel and absolutely corrosion resistant. It is set up for Zander, Langstroth or Dadant. For smaller frames it includes an adjustable frame guiding rail.• Ready to use in approx. 3 - 4 minutes!• A melting process takes about 35 - 50 minutes (depending on the consistency of the honeycomb material)• Capacity approx. 26 frames with a side bar width of 35 mm• Double walled with 30mm insulation• Lid with gasket• Legs with 4 rolls, 2 of them can be locked• Steam generator 6 kW / 400 V with cable and plug• Dimensions: (WxDxH) approx. 129 (111 wiithout steam generator) x 54 x 108 cm (inkl. Rollen und Griffen)• Distance from the floor to the outlet 49 cm• Height of tank rim: 97 cm (incl. rolls)Weight: 74 kg Chargeable weight: 95 kg(Picture similar)
