Product number:
5900202
Description
Product information
• Stainless steel, height 100 cm
• Suitable for No. 5022100 with filling machine No. 6099202
• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process
• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the bottling machine.
• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.
• Combination for making bottling honey easier.
• Including silicon tube with clamb as a connection between creamer and filling machine (DN40)
Please note: Delivery without creamer and filling machine.
• Suitable for No. 5022100 with filling machine No. 6099202
• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process
• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the bottling machine.
• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.
• Combination for making bottling honey easier.
• Including silicon tube with clamb as a connection between creamer and filling machine (DN40)
Please note: Delivery without creamer and filling machine.
Reviews
0
Login
Skip product gallery
€2,450.00*
€2,170.00*
accessories
6099202

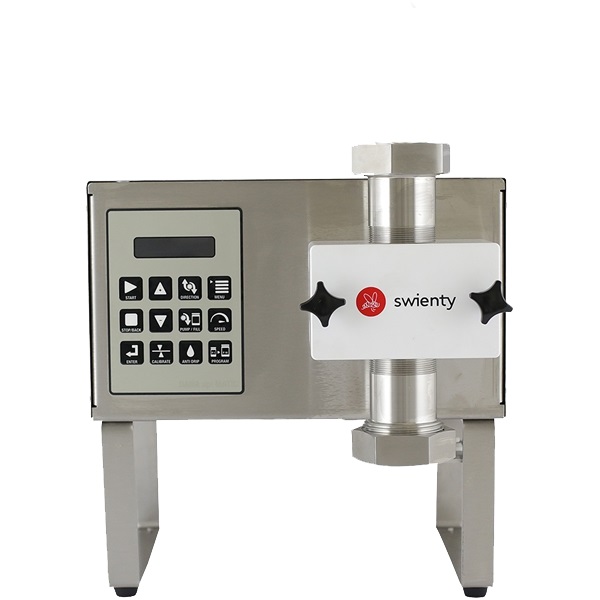

Dana api Matic filling machine
DANA api MATIC 1000 is a modern filling machine.The machine consists of a newly constructed gear pump unit made of food grade plastic material and Swienty dosing electronics to contol the pump. The latest dosing electronics ensure powerful filling and a perfect drip-free function. The filling weight is digitally displayed and can be set for amounts from 10 grams to 10 kilos or 0.1 to 100oz.Up to 20 different standard filling programs can be stored containing the weight, the calibration factor and other filling parameters. The electronics count the number of fillings during the filling cycle and also in total during machine life time.Further the total quantity (kg or oz) can be displayed. In pumping mode the pump quantity will be displayed.The machine operates with great precision (up to +/-1g / 0.1oz) and can easily be calibrated to suit different types of liquids. This precision avoids an overfilling and pays for the machine in a very short time.As a pump, the machine can operate equally well in both directions. The speed can be selected directely from the front panel.The machine is able to fill nearly all kinds of viscous liquids.All parts that come in contact with the liquid to be filled are constructed of either stainless steel or food grade plastic and can easily be taken apart (without tools) and cleaned.Technical data:• Type of machine: Computer controlled gear pump• Filling range: from 20g/oz/ml• Pump capacity: Approx. 300 kg/h (honey warm)• Filling capacity: Approx. 200 kg/h• Precision: +/- 1%• Power: 100-260V/50-60Hz• Powerconsumption: 230V• Weight: Approx. 16,5 kgChargeable weight: 15,2 kg • Dimensions: 22 x 31.5 x 18 cm• Connections: 1 1/2"BS - 1 1/2" hose• Max Temperatur der Flüssigkeit: 60-65 C° Parts included in the delivery:Nozzle 1½" 90° with connecting nut BS, 1.5m tube 1 1½, foot paddle, rubber closer with connecting nut complete, dosing syringeAccessories not included (to be ordered separately): Various nozzles and fittings, various filling nozzles, table or floor stand, various tanks, various creamers in different sizes, conical feed hopper 10 litre
5022100
CFM-Honey creamer 100 kg
In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• Flat gear motor 250 W / 230 V• Approx. 24 rpm• Paddle screw with rake at the bottom• Inner tank Ø 43 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN40 dairy thread at bottom level with screwed on DN 40 disc valve• Material: Stainless steel• Outer tank height: 62 cm• Total height: aprox. 90 cm• Plug in timer switch includedWeight without/with wrapping: 32 kg / 36 kgWrapped in a cardboard box on a palletAccessories - please order separately:Item no. 5009800 bottom heating
