€5,999.00
Available in 91 days, Lieferzeit 1 - 3 Arbeitstage
Description
Product information

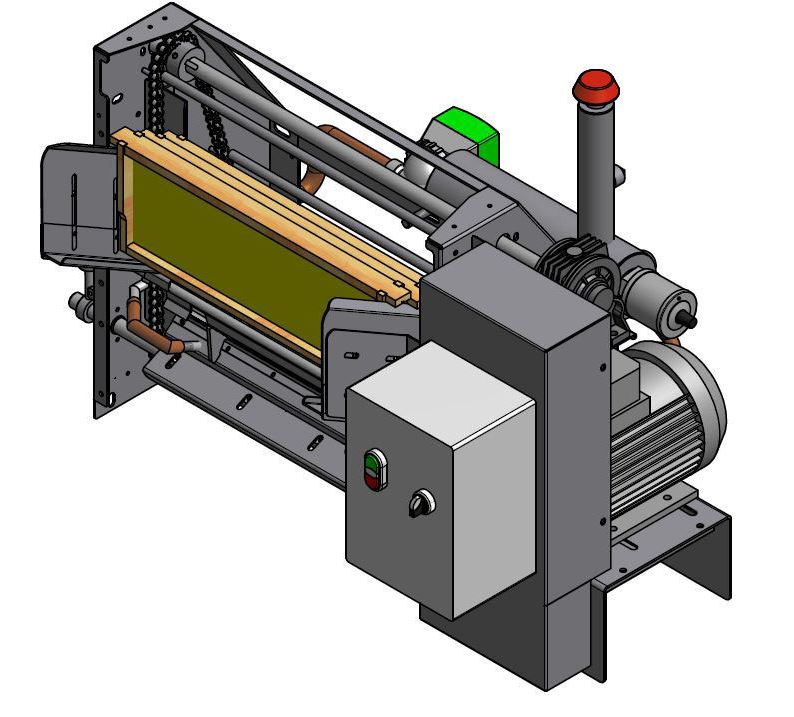

• High speed with approx. 8 half frames per min. or approx. 5 full frames per minute.
• The knives are made from high-quality stainless steel for a long durability and a permanent nice and even cut. A manual adjustment permits a simple and fast set-up of the uncapping depth +/- 10mm.
• The machine will be delivered with draining board and high temperature water system for heating the knives.
• At the entrance of the machine is a comb-slide for 5 frames. The comb slide needs to be fed with frames manually.
• You can uncap frames with and without Hoffmann.
• All metal parts and pieces which come in contact with the product are stainless steel and easy to clean with just hot water.
• Motor drive 400V / 16A / 550 W.
• Adjustable via thermostat, including reservoir and circulating pump.
• Water-heating system 2000 W adjustable via thermostat
• Including reservoir and circulating pump.
Weight: 80 kg
Chargeable weight: 143 kg
Reviews 0
Login
accessories

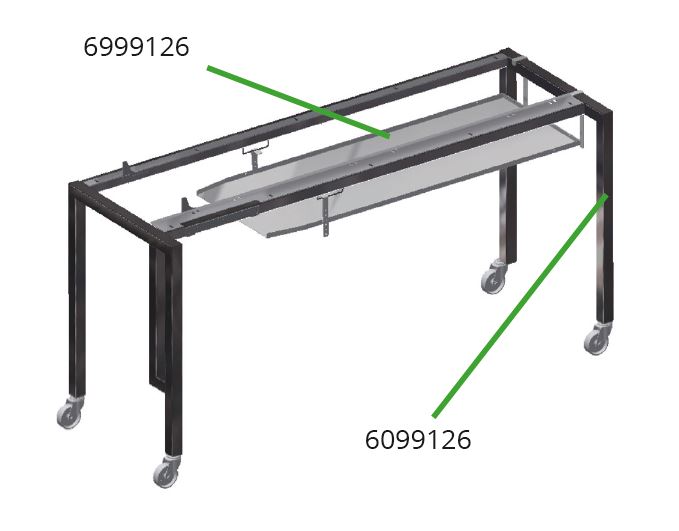

110 cm length, in stainless steel, for uncapping machine no. 6000126/6009125

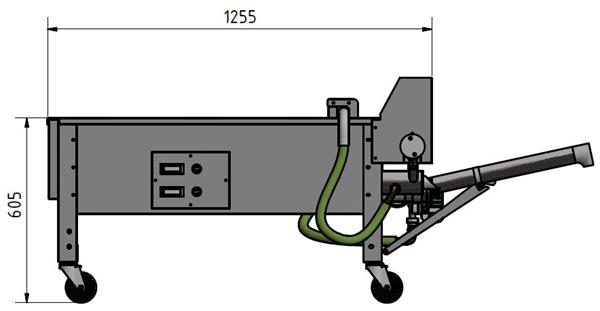

Fits uncapping machine no. 6000126/6009125/6008125 and with adapter also uncapping machine no. 5130000. The wax melter is a clarifying tank with two temperature zones which basically liquefies the floating wax and derives it continuously when a certain amount has been reached.Working principle: Due to its higher density compared to the wax the honey included in the uncapping wax sinks quickly to the bottom and drains through a special pipe at the bottom. Its temperature approximately 35°C.Advantage of the system: The end products are clean uncapping wax in block form and clear honey. Both products are continuously recovered at once with very low energy input and without any loss. The gained honey is physiologically as well as regarding its taste impeccable.Technical Specifications:• Overall dimensions: 1255 x 750 x 760 mm• Inner dimensions of the tub: 1050 x 540 mm• Height of the tub's upper edge: 600 mm• Electrical connection: 400 V / 50 Hz / 7.5 kW, CEE 16 A 3 PH / N / PE• Storage: Frost-free +2°C• Water volume heating grate: approx. 15 liters• Honey capacity: approx. 55 kg• Weight: approx. 125 kg• Shipping weight: 125 kgIncluded in delivery:• 1 stainless steel tub (1100 x 600 x 550 cm), fully insulated and clad with stainless steel sheet• 1 stainless steel tube bundle heat exchanger suspended on stainless steel chains• 2 separate, temperature-controlled heating water circuits with high-quality electric heating elements, 4.5 + 3.0 kW power, 400 V / 16 A, stainless steel, as well as 2 high-quality brass circulation pumps, insulated heating• 4 wheels mounted on stainless steel feet for easy mobility• 1 stainless steel cover over the entire container

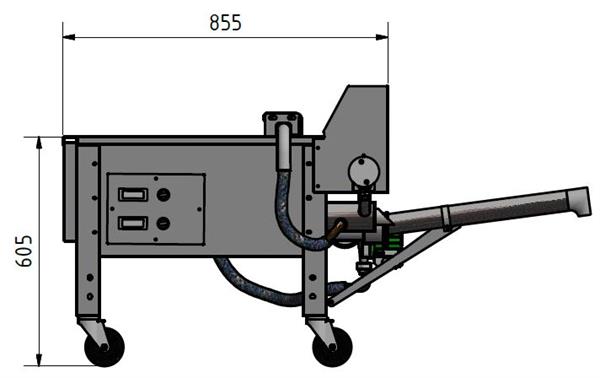

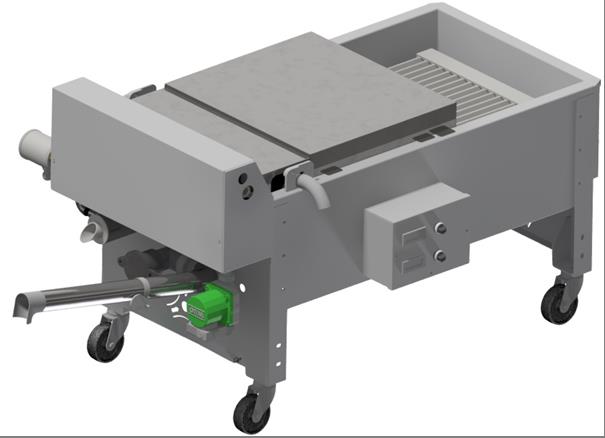

Fits uncapping machine no. 5130000, together with support no. 5130010 and hopper no. 6000129 or with WT1 (no. 6000126). The wax melter is a clarifying tank with two temperature zones which basically liquefies the floating wax and derives it continuously when a certain amount has been reached. Working principle: Due to its higher density compared to the wax the honey included in the uncapping wax sinks quickly to the bottom and drains through a special pipe at the bottom. Its temperature approximately 35°C. Advantage of the system: The end products are clean uncapping wax in block form and clear honey. Both products are continuously recovered at once with very low energy input and without any loss. The gained honey is physiologically as well as regarding its taste impeccable. Weight: 105 kg Chargeable weight: 130 kg

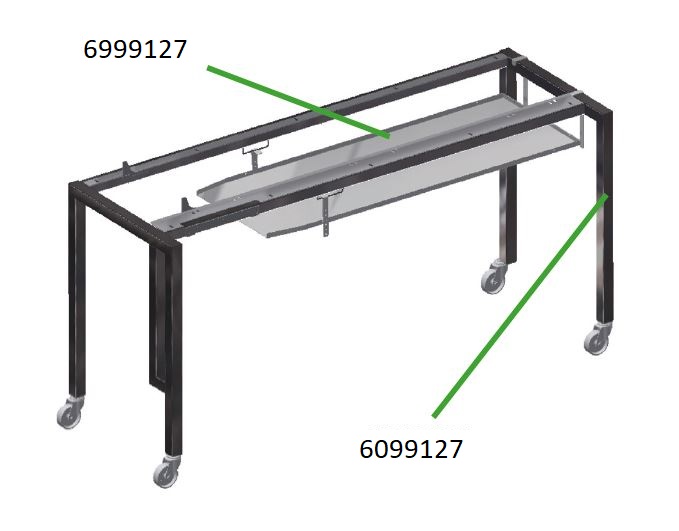

1.5 m length, suitable for uncapping machine no. 6000126
