Single walled creamers

In the tank you can stir up to 50 kg of honey. The paddle screw always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• Flat gear motor 90 W / 230 V• Approx. 23 rpm• Inner tank Ø 30 cm, welded bottom without gap• Tank with for locks• Drop handles• Tank bottom with slope to the outlet• Outlet: Honey tap 1 1/2" welded at bottom level• Material: Stainless steel• Total height: approx. 76 cm• Plug in timer switch includedIncluded in the delivery is a lid with silicon gasketWeight: 17.5 kg Wrapped in a cardboard box on a palletChargeable weight: 32 kgAccessories - please order separately:Item no. 5009500 bottom heatingItem no. 5921050 stand for 50 kg creamer

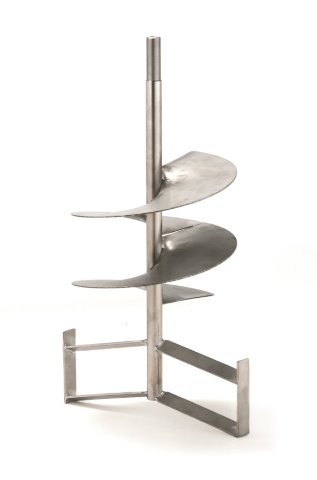

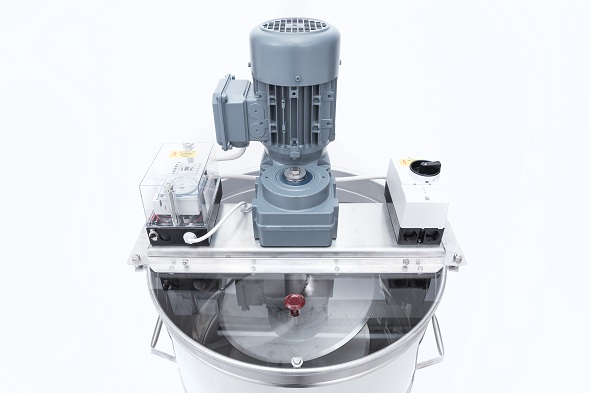

In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• Flat gear motor 250 W / 230 V• Approx. 24 rpm• Paddle screw with rake at the bottom• Inner tank Ø 43 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN40 dairy thread at bottom level with screwed on DN 40 disc valve• Material: Stainless steel• Outer tank height: 62 cm• Total height: aprox. 90 cm• Plug in timer switch includedWeight without/with wrapping: 32 kg / 36 kgWrapped in a cardboard box on a palletAccessories - please order separately:Item no. 5009800 bottom heating

Half hose coupling made of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 40 mm.For connecting hoses to disc valves.

Half hose coupling made of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 40 mm.For connecting hoses to disc valves.

Half hose coupling mad of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 50 mm.For connecting hoses to disc valves.

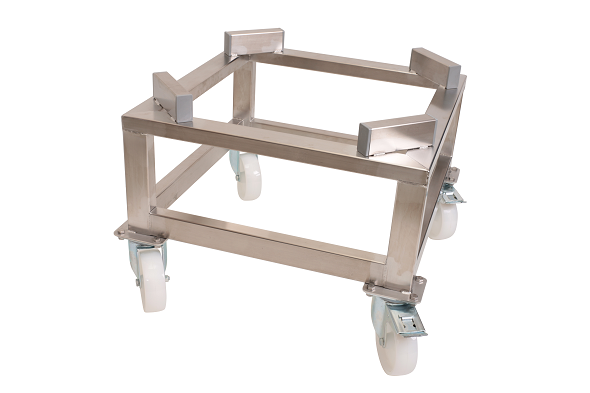

Solid pipe construction made of stainless steel, height 50 cm, with 4 steering rolls, 2 of them are equipped with a locking brake, suitable for No. 5300191 & 5309191 & 5022300.

In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)!Technical details:• Flat gear motor 550 W / 400 V• Approx. 25 rpm• Paddle screw with rake at the bottom• Minimum filling quantity: 100 kg• Inner tank Ø 55 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN50 dairy thread at bottom level with screwed on DN 50 disc valve• Material: Stainless steel• Outer tank height: 104 cm• Total height: aprox. 147 cmWeight without/with wrapping: 66 kg / 82 kgPacked on a palletChargeable weight: 82 kg Accessories - please order separately:Item no. 5091200 bottom heatingItem no. 5092100 timer switchItem no. 5097010 stand for 300 kg creamer

This timer is suitable for all honey stirrers and mixers with 400 V motor.Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)One of our experienced employees does the installation.

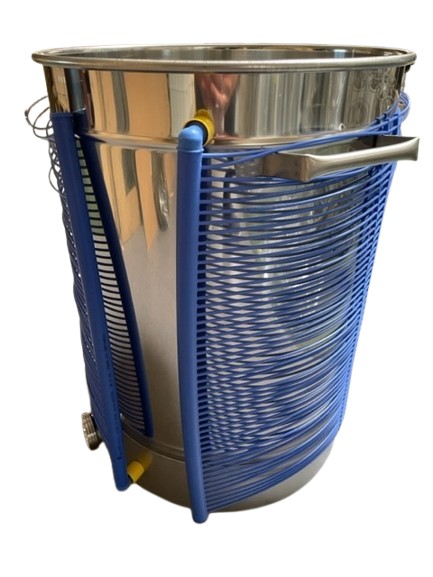

For attachment to a 100 kg tank or creamer.Can be used for cooling or heating.Accessories with Gardena 1/2" clutch plugs, metallic insulation mat and transparent foil.Incl. Accessories for connection to our cooling unit, item no. 6096200 or 6096110 (US).(Picture shows 100 kg tank)

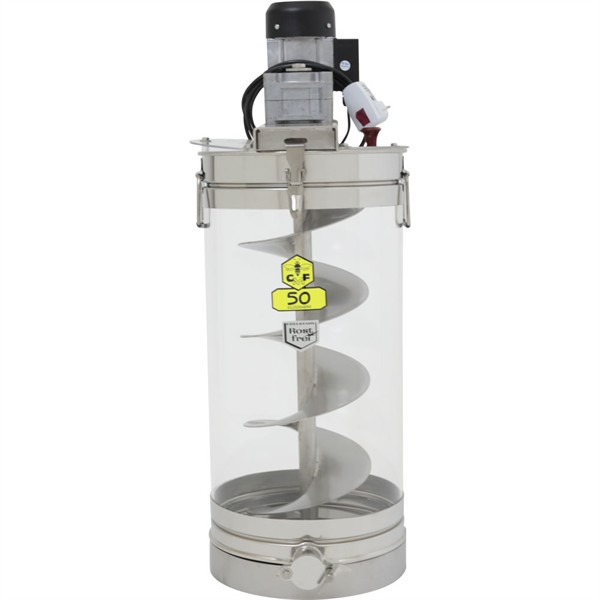

This creamer which is made of foodsafe acrylic glass and stainless steel is great for display.The tank can stir up to 50 kg of honey. Due to the paddle screw, the honey is always conveyed from bottom to top during the stirring process. This has the advantage that the creamer can also be used with lower filling level! The existing timer offers you the possibility to set different intervals per day.• Flat gear motor 90 W / 230 V• Approx. 23 rpm• Tank inner Ø 30 cm• Tank and mixing device made of stainless steel• Total height: 75 cm• Incl. plug-in timer• Outlet: honey valve, clear width 36 mmAdditional equipment - please order separately:Item no. 5009500 bottom heatingItem no. 5921050 stand für 50 kg creamerWeight: 16 kg

For attachment to a 50 kg tank or creamer.Can be used for cooling or heating.Accessories with Gardena 1/2" clutch plugs, metallic insulation mat and transparent foil.Incl. Accessories for connection to our cooling unit, item no. 6096200 or 6096110 (US).(Picture shows 100 kg tank)

• Solid tube construction made of stainless steel• Height 60 cm• With 4 wheels two of them with locking brake• Fits item number 5300186, 5309186 + 5022100More sizes available on request.Attention: Can not be usesd for a double walled tank! Please order item no. 5097055 for that purpose.

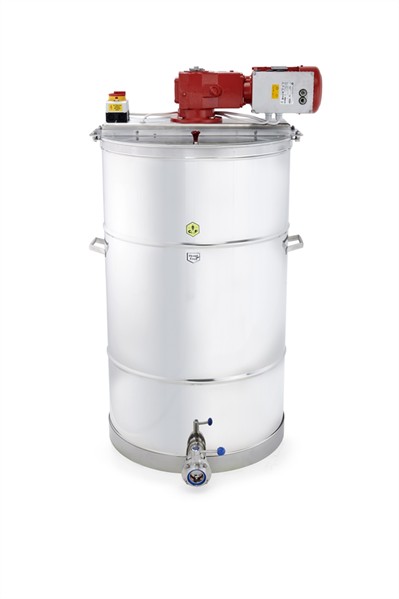

In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)!Technical details:• Flat gear motor 1100 W / 400 V• Approx. 18 rpm• Paddle screw with rake at the bottom• Minimum filling quantity: 230 kg• Inner tank Ø 72 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN50 dairy thread at bottom level with screwed on DN 50 disc valve• Material: Stainless steel• Outer tank height: 125 cm• Total height: aprox. 150 cmWeight without/with wrapping: 118 kg / 142 kgPacked on a palletChargeable weight: 142 kg Accessories - please order separately:Item no. 5091300 bottom heatingItem no. 5092100 timer switchItem no. 5097020 stand for 600 kg creamer

For attachment to a 600 kg tank or creamer.Can be used for cooling or heating.Accessories with Gardena 1/2" clutch plugs, metallic insulation mat and transparent foil.Incl. accessories for connection to our cooling unit, item no. 6096200 or 6096110 (US).(Picture shows 300 kg creamer)

• Stainless steel, height 100 cm• Suitable for No. 5022100 with bottling machine No. 6000201• Due to the stand design the creamer is above the bottling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without bottling machine!Generally without rolls. Rolls can be ordered additionally.

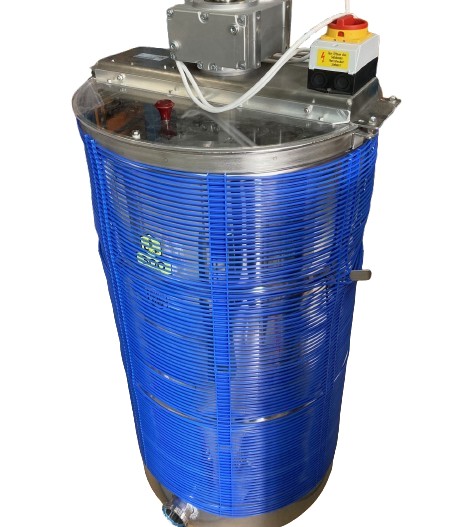

For attachment to a 300 kg tank or creamer.Can be used for cooling or heating.Accessories with Gardena 1/2" clutch plugs, metallic insulation mat and transparent foil.Incl. Accessories for connection to our cooling unit, item no. 6096200 or 6096110 (US).(Picture shows 300 kg creamer)

Technical details:• Flat gear motor 2200 W / 400 V• Approx. 12 rpm• Paddle rake• Inner tank Ø 100 cm welded bottom without gap• Tank bottom with outlet at bottom center• Outlet: DN50 disc valve under the tank, elbow pipe with DN50 dairy thread connection at the level of the tank wall• Incl. stand, solid stainless steel tube construction with 4 wheels, 2 of which are equipped with parking brake• Distance from floor to dairy thread connection 7 cm• Material: Stainless steel• Tank height incl. stand: 140 cm• Total height: 180 cmWeight without/with wrapping: approx. 244 kg / 275 kgPacked on a palletChargeable weight: 275 kg Accessories - please order separately:Item no. 5091300 bottom heatingItem no. 5092100 timer switch

• Stainless steel, height 100 cm• Suitable for No. 5022100 with filling machine No. 6099202• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the bottling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.• Combination for making bottling honey easier.• Including silicon tube with clamb as a connection between creamer and filling machine (DN40)Please note: Delivery without creamer and filling machine.
