Waxmelters

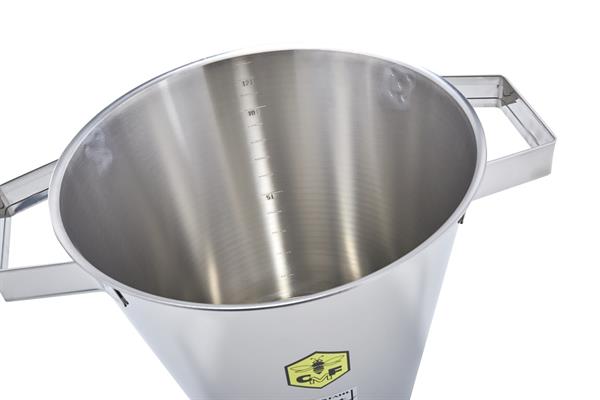

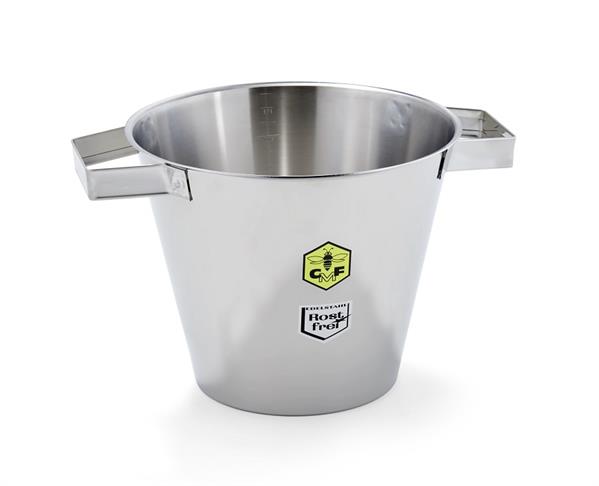

You can use the CFM-Wax pot in many different ways. Especially for the processing of beeswax.Together with the thawing pot (Item No. 6090232) and the cover ring (Item No. 5009232), you can keep the beeswax fluid.For example, for casting candles or foundation sheets.Made of stainless steel.• capacity: max. 12.5 liter• with scale inside• seamless, conical shape with carrying handles• dimensions: inside height 26 cm, top Ø 31 cm, bottom diameter 21 cm, bottom straight

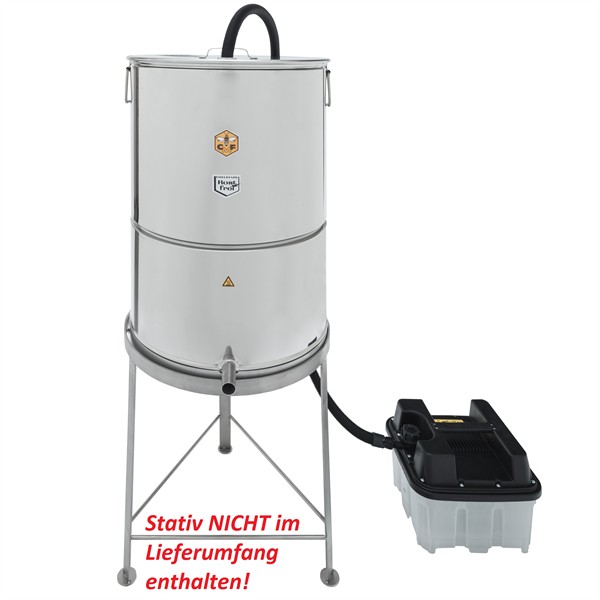

The ideal mini wax extractor for small apiaries.Technical details:• Capacity: approx. 12 frames Zander, DN, Langstroth (approx. 6 Dadant brood frames)• Inner tank Ø 43 cm,welded bottom without gap• Tank bottom with slope to the outlet• Drop handles• Volume: 80 litres, Height 64 cm• Outlet pipe• Insert with perforated plate bottom for the pomace• Lid with hole for the hose from the steam generator• Material: stainless steelSteam generator• Power: 1,850 - 2,200 W / 230 V• Water is sufficient for approx. 1 hourFill with water, connect the hose, plug in plugPlease note: The shipment contains only the tank incl. lidWeight: 13,2 kgChargeable weight: 17,7 kg Accessories - to be ordered separately:Item no. 6000312 steam generatorItem no. 5000314 stand for mini wax extractor(Picture similar)

To ensure that you enjoy working with your steam wax melter for as long as possible, regular descaling is essential. Use the citric acid powder (food grade) for this purpose. For decalcification, please always refer to the description of the respective device! For decalcifying the steam generators please consider the following mixing ratio: 1:10, that means mix 100 g to 1 litre of water and stirr until all crystals have dissolved.

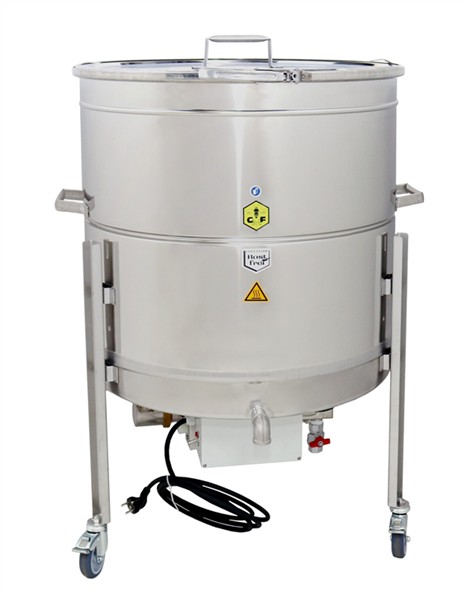

Our proven CFM steam wax melter is equipped with an extremely powerful 3 kW steam generator. This can be connected directly to the water pipe or filled from a water tank (clean rainwater) located 1.5 m higher. The device is ready for use after just three minutes and generates steam. The sophisticated monitoring prevents the heating element from running dry and at the same time ensures a constant level in the steam boiler. This means that only very small amounts of water need to be heated. • Ready to use in three minutes• A melting process takes approx. 20 - 30 minutes (depending on the condition of the honeycomb material)• Capacity for approx. 30 DN frames, 32 Dadant shallow frames, 20 Dadant deep frames• Inner tank Ø 63 cm, welded bottom without gap• Rigid handles• Lid with silicon gasket and locking ring, seals the tank completely tight • Steam generator 3 kW / 230 V with cable and plug• New on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with wrapping: 33 kg / 38 kgWrapping: Cardboard boxChargeable weight: 38 kg Accessories - to be ordered separately:Item number 5000321 Wax masherItem number 5000336 Wax pot

The lid for our CFM waxing pot (item no. 5000336) is simply applied to prevent the wax from cooling too fast on the surface. In addition, the liquid wax is protected against dust and other particles.

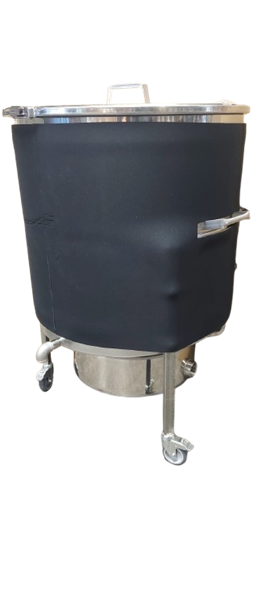

Suitable for CFM-Steam wax melter item no. 50003330/5000332/5000334 • Made of foamed insulation material• With cut-outs for handles • Weight approx. 1,8 kg

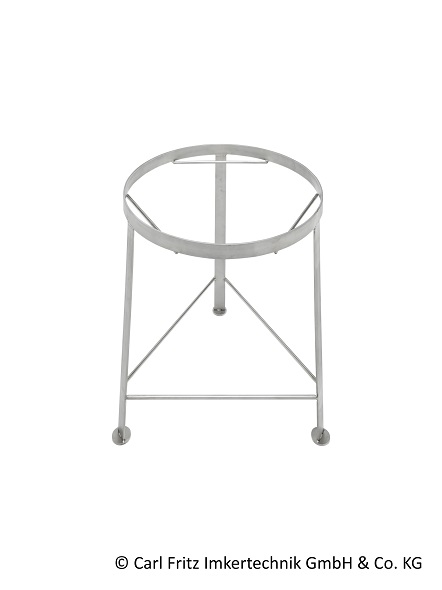

For bins with Ø 43 cm.Perfect amendment for CFM-Wax extractor (no. 5000311 and 5000313).

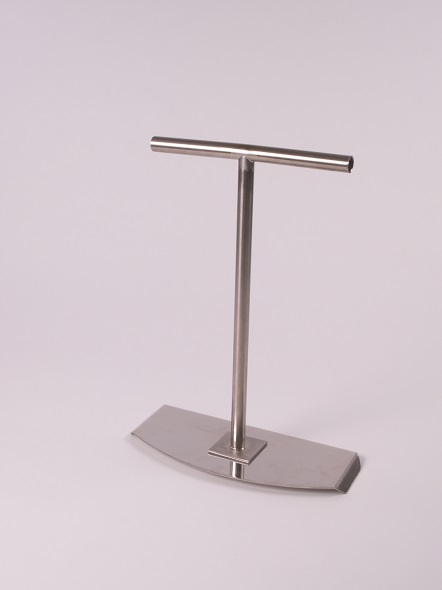

To compress leftover wax.

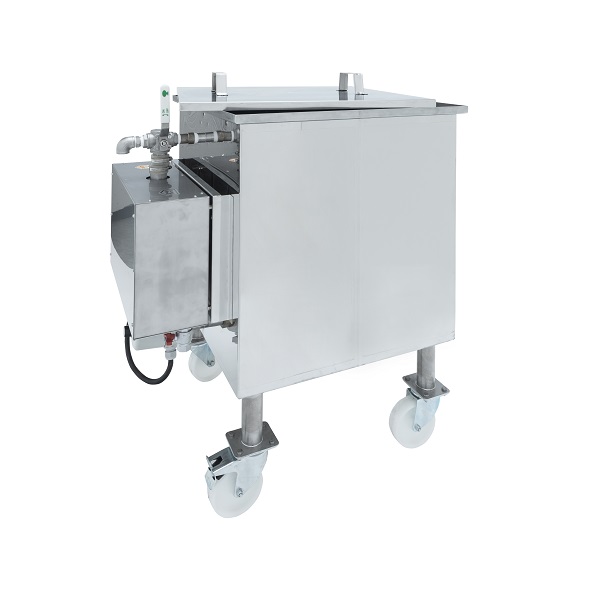

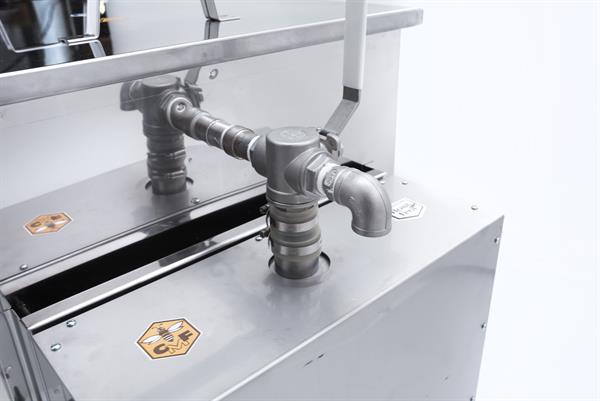

Combination to melt the wax out of frames and for the disinfection of frames or hive parts in 3% sodium hydroxide solution• Material: stainless steel• Inner dimensions: 59 x 59 x 59 cm• Legs with 4 rolls, 2 of them can be locked• Powerfull steam generator 6 kW / 400 V• Tray made of perforated sheet metal for residue• Immersion pipe heating element adjustable via thermostat from 30 to 100°C to heat up the desinfection solution• 2 grids to hold the frames and hive parts when running the desinfection• With ¾” ball valveWeight: 43,5 kg Chargeable weight: 76 kg

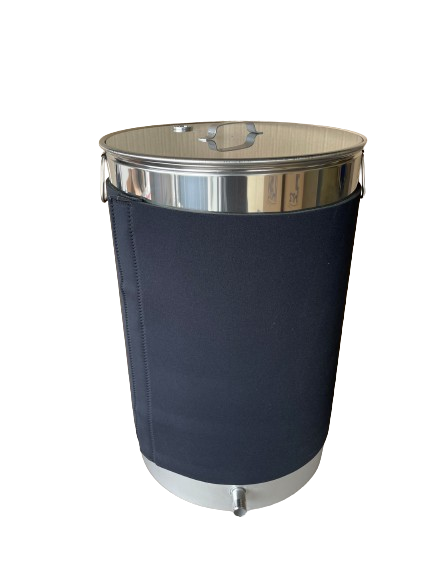

• Suitable for CFM Mini wax extractor• Made of foamed insulation material• Weight approx. 1.5 kg

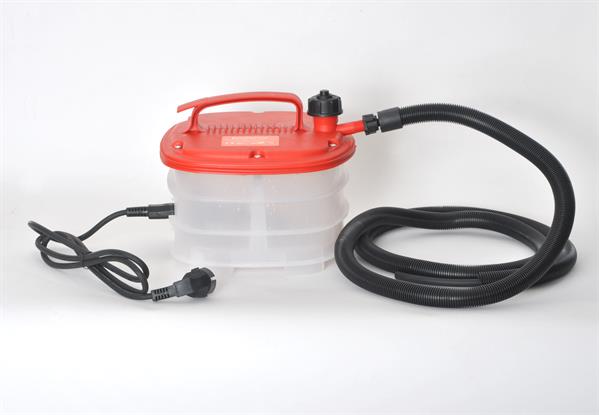

Power: 1,850 - 2,200 W / 230VThe ideal combination with our CFM-wax melter no. 5000311 or 5000315. Easy to use - just fill with water (preferably hot), connect hose to wax extractor and plug it in. Water volume sufficient for approx. 1 hour of uninterrupted use.Weight: 2,3 kg Chargeable weight: 3,7 kg

The ideal mini wax extractor for small apiaries.Technical details:• Capacity: approx. 12 frames Zander, DN, Langstroth (approx. 6 Dadant brood frames)• Inner tank Ø 43 cm,welded bottom without gap• Tank bottom with slope to the outlet• Drop handles• Volume: 80 litres, Height 64 cm• Outlet pipe• Insert with perforated plate bottom for the pomace• Lid with hole for the hose from the steam generator• Material: stainless steelPlease note: The shipment contains only the tank incl. lidWeight: 11,3 kgAccessories - to be ordered separately:Item no. 6000312 steam generatorItem no. 5000314 stand for mini wax extractor(Picture similar)

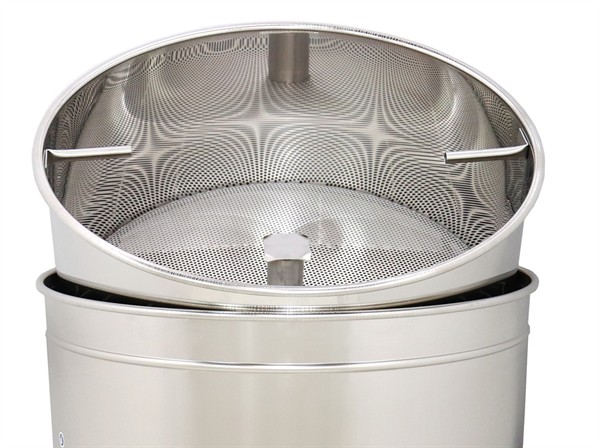

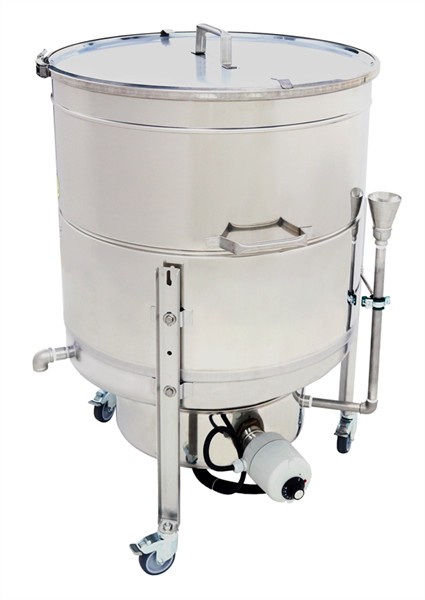

The steam wax melter is completely made of stainless steel. The steam is not generated in the melting tank but in the water tank beneath. This version uses a submersible tube heater to heat the water tank. • Operation via thermostatically adjustable submersible tube heater 3 kW / 230 V (30 – 110 °C)• A melting process takes approx. 40 minutes (depending on the quality of the honeycomb material)• Water volume in the water tank 19 litres • Capacity approx. 30 frames DN, Zander or Langstroth, 16 frames Dadant brood, 35 frames Dadant supers• Inner tank Ø 63 cm, welded bottom without gap• Rigit handles• Lid with silicon gasket and locking ring, seals the tank completely tight • Immersion pipe heating element adjustable via thermostat from 30 - 110°C (3000 W / 230 V)• NEW on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with wrapping: 30 kg / 46 kgPacked on a wooden pallet.Chargeable weight: 46 kg Accessoires - to be ordered separately:Item number 5000321 Wax masherItem number 5000336 Wax pot

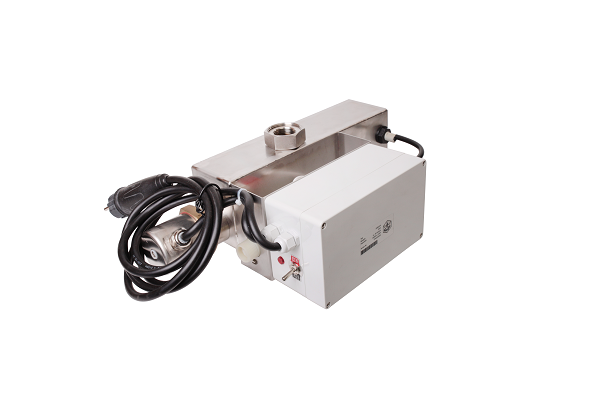

Power: 3kW / 230V. The new, powerful steam generator of the CFM Steam Wax Melter Art.-No. 5000324/5000334 as a complete unit for retrofitting to CFM-Apitotal Steam Wax Melter Art.-No. 5000320/5000330 or 5000322/5000332.Connections of the steam generator:• for connection to the tank 1" female thread• for connection to water 3/4" male thread(For technical details see article no. 5000334)

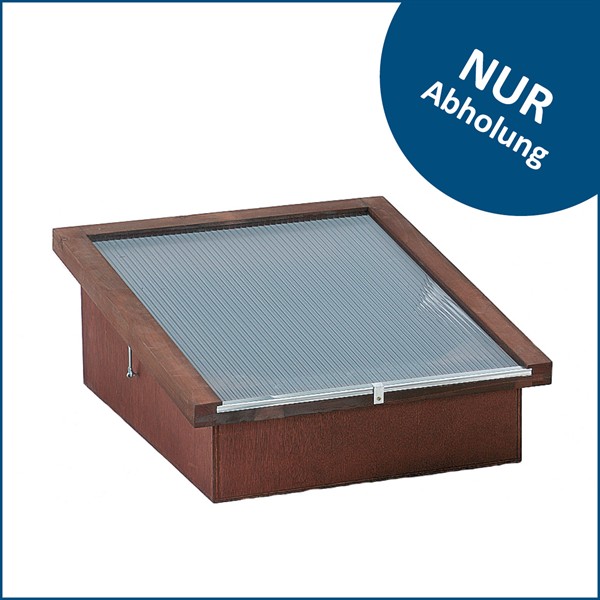

For 2 frames, with a solid wood frame, double glazed lid, wax tray and double sided enamelled steel panel for best heat emission.

• Adjustable via thermostat from 0 – 100°C• Enamelled• Capacity 27 litre• 1800W / 230V heating tube• Capillary tube thermostat and temperature control• Suitable for honey buckets 12.5 kg to melt honey or wax pot (item no. 5000336) to melt wax

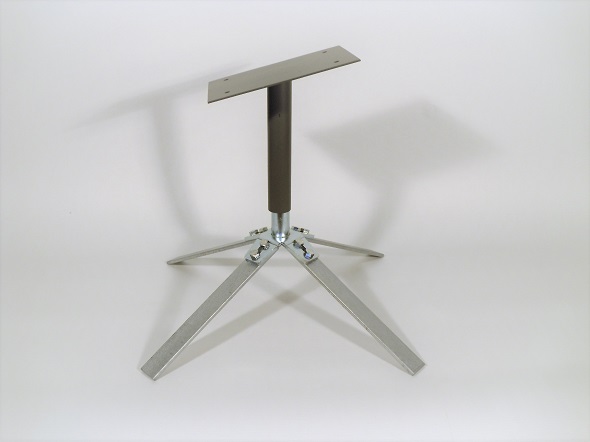

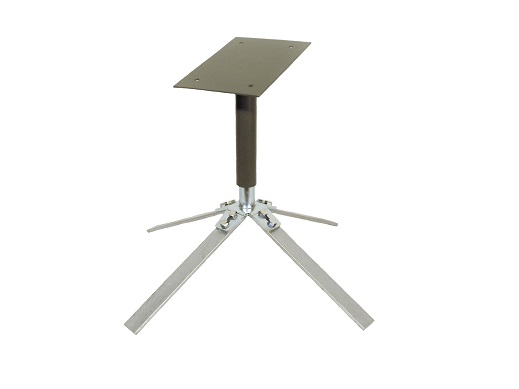

for turnable setup, extra strong construction. This rotating stand allows an optimal utilisation of the solar radiation and best performance of our solar wax extractor.

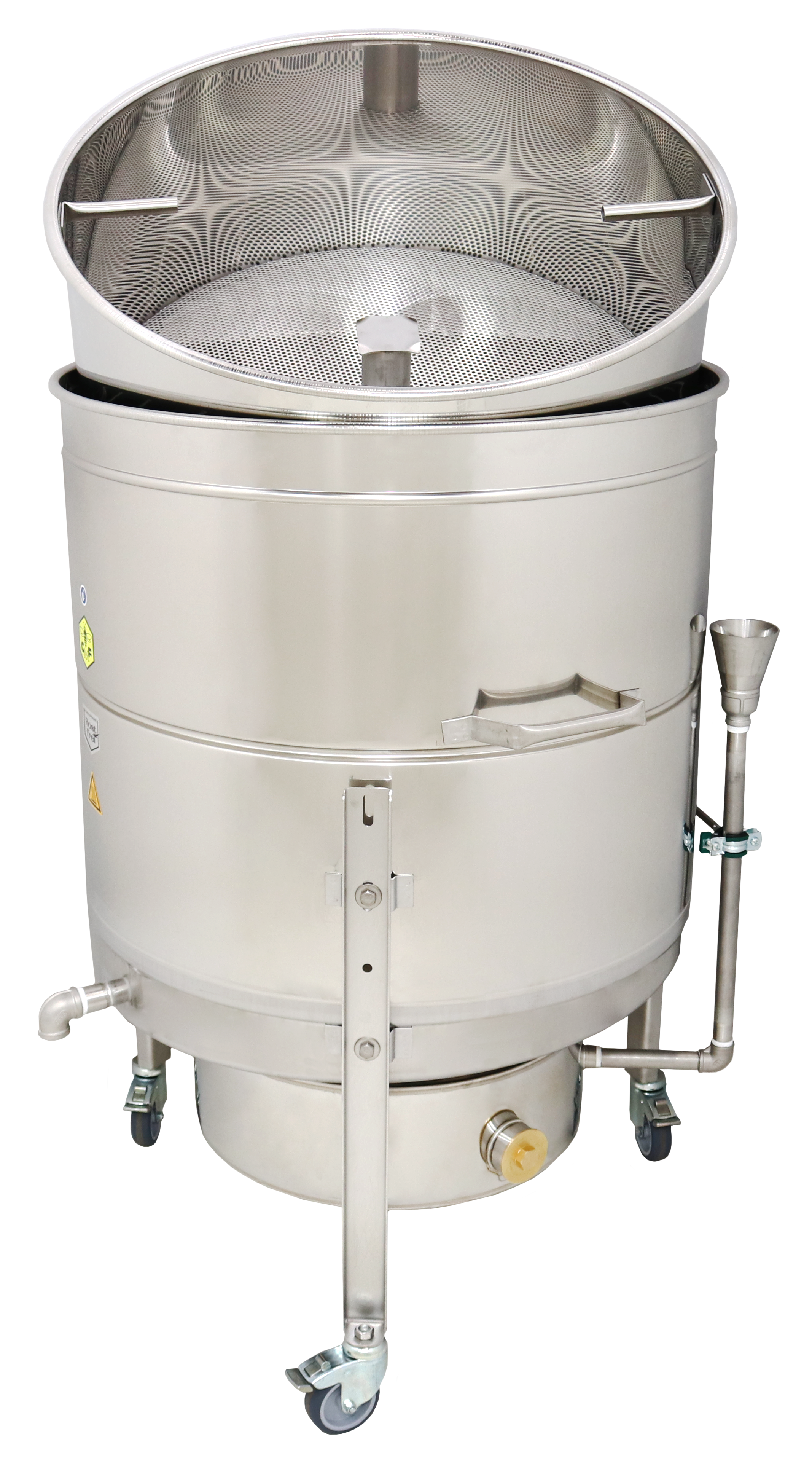

The CFM steam wax melter “Apitotal” does not produce the steam in the melting tank, but in the water tank beneath it. No electricity is required for this version. A gas burner is sufficient to operate this device. We recommend a gas burner with 14 kW (no. 6090302)• Operation with a gas burner – no electricity is needed• A melting process takes approx. 40 minutes (depending on the quality of the honeycomb material)• Water volume in the tank 19 liter• Capacity for approx. 30 frames (approx. 16 Dadant brood frames)• Inner tank Ø 63 cm, welded bottom without gap• Rigit handles• Lid with silicon gasket and locking ring, seals the tank completely tight • NEW on wheels which you can lockPlease note: Wax masher and wax pot not included in the delivery!Weight without/with: 30 kg / 40 kgPacked on a wooden pallet.Chargeable weight: 40 kg Accessoires - to be ordered separately:Item number 6090302 gas burner with 14 kWItem number 5000321 Wax masherItem number 5000336 Wax pot

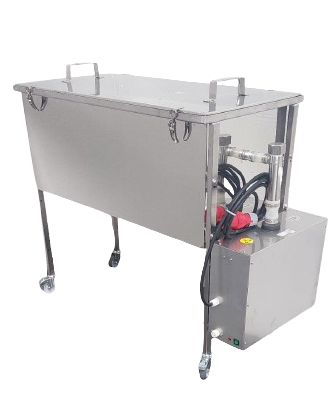

A very powerful steam wax melter for all sizes of beekeeping companies. NEW: The steam generator has an optimized level monitoring system. It is directly connected to the water supply. This ensures continuous working with the steam wax melter. The powerful generator generates already steam after app. 3 minutes. The machine is completely made out of stainless steel and absolutely corrosion resistant. It is set up for Zander, Langstroth or Dadant. For smaller frames it includes an adjustable frame guiding rail. The lid can be sealed airtight with 4 locks. • Capacity approx. 26 frames with a side bar width of 35 mm• Steam generator 6 kW / 400 V with cable and plug• Dimensions: (WxDxH) approx. 129cm (111cm without steam generator) x 54 x 102cm (inkl. rolls and handels)• Legs with 4 rolls, 2 of them can be locked• Distance from the floor to the outlet 49 cm• Height of tank rim: 96 cm (incl. rolls)Weight: 31 kg Chargeable weight: 62 kg

*** Sonderpreis II. Wahl mit kleinen Schönheitsfehlern - funktioniert einwandfrei ***Unser bewährter CFM-Dampfwachsschmelzer ist mit einem äußerst leistungsfähigem 3 kW Dampferzeuger ausgestattet. Dieser kann direkt an die Wasserleitung angeschlossen werden oder von einem 1,5 m höher liegenden Wasserbehälter (sauberes Regenwasser) befüllt werden. Das Gerät ist schon nach drei Minuten einsatzbereit und erzeugt Dampf. Die ausgereifte Überwachung verhindert einen Trockenlauf des Heizelementes und sorgt gleichzeitig für ein gleichbleibendes Niveau im Dampfkessel. Somit ist lediglich das Erhitzen von sehr kleinen Wassermengen erforderlich. • Einsatzbereit in drei Minuten• Ein Schmelzvorgang dauert ca. 20 - 30 Minuten (je nach Beschaffenheit des Wabenmaterials) • Kapazität für ca. 30 Rähmchen (ca. 16 Dadant Brutraum Waben)• Behälterinnen-Ø 63 cm, stumpf gestoßen, spaltfrei verschweißter Boden• Starre Tragegriffe• Deckel mit lebensmittelechter Silikondichtung und Spannring• Dampfgenerator 3 kW / 230 V mit Kabel und Stecker• NEU auf Rollen zum FeststellenBitte beachten Sie: Die Lieferung erfolgt ohne Handstampfer und ohne Wachstopf!Gewicht ohne/mit Verpackung: 33 kg / 38 kgVerpackung: KartonFrachtpflichtiges Gewicht: 38 kgOptionales Zubehör - bitte separat bestellen:Art.-Nr. 5000321 HandstampferArt.-Nr. 5000336 Wachstopf

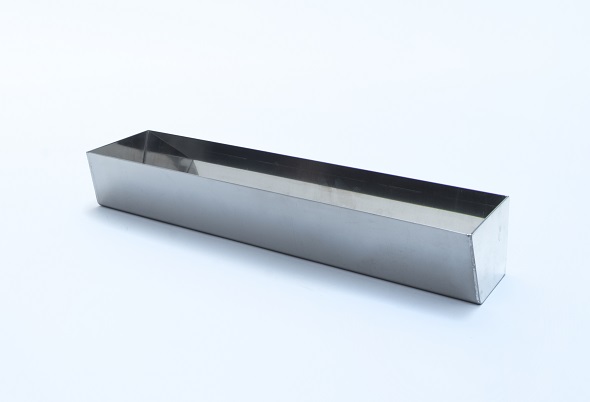

Replacement basin for solar wax extractor (no. 6000340).Ca. size: 38 x 10 x 6 cm

Power: 14kWWith security shutoff valve and Piezo ignitionWith pressure reducer and hoseIdeal combination with steam wax melter item no. 5000320!

A very powerful steam wax melter for all sizes of beekeeping companies. NEW: The steam generator has an optimized level monitoring system. It is directly connected to the water supply. This ensures continuous work with the steam wax melter. The powerful generator already generates steam after approx. 3 minutes. The machine is completely made out of stainless steel and absolutely corrosion resistant. It is set up for Zander, Langstroth or Dadant. For smaller frames it includes an adjustable frame guiding rail.• Ready to use in approx. 3 - 4 minutes!• A melting process takes about 35 - 50 minutes (depending on the consistency of the honeycomb material)• Capacity approx. 26 frames with a side bar width of 35 mm• Double walled with 30mm insulation• Lid with gasket• Legs with 4 rolls, 2 of them can be locked• Steam generator 6 kW / 400 V with cable and plug• Dimensions: (WxDxH) approx. 129 (111 wiithout steam generator) x 54 x 108 cm (inkl. Rollen und Griffen)• Distance from the floor to the outlet 49 cm• Height of tank rim: 97 cm (incl. rolls)Weight: 74 kg Chargeable weight: 95 kg(Picture similar)

Combination to melt the wax out of frames and for the disinfection of frames or hive parts in 3% sodium hydroxide solution• Material: stainless steel• Incl. 20mm insulation of the outside wall • Inner dimensions : 59 x 59 x 60 cm• dimensions : 66 x 66 x 106 cm• Legs with 4 rolls, 2 of them can be locked• Powerfull steam generator 6 kW / 400 V• Tray made of perforated sheet metal for residue• Immersion pipe heating element adjustable via thermostat from 30 to 100°C to heat up the desinfection solution• 2 grids to hold the frames and hive parts when running the desinfection• With ¾” ball valve

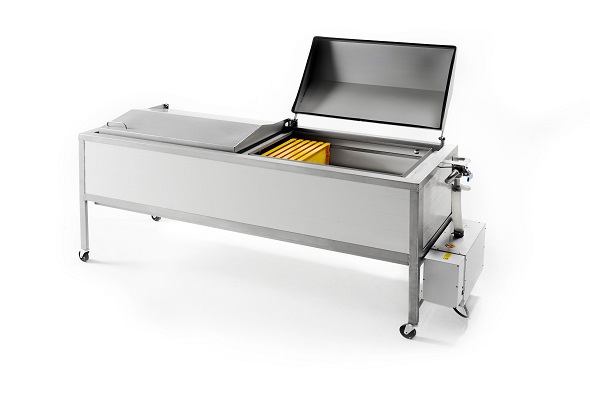

A new efficient steam wax melter with the same optimized steam generator like item no. 5000326. This steam wax melter is for big beekeeping companies. The wax melter is set up for Zander, Langstroth or Dadant. For smaller frames it includes an adjustable frame guiding rail. It has two chambers which are alternately filled. While one chamber is steaming you can already load or unload the other chamber. • capacity: approx. 2 x 20 frames• completely insulated with PUR-rigid foam• heating element 6 kW / 400 V• dimensions (LxWxH) 220 x 81 x 94 cm (incl. wheels)Weight: approx. 85 kgChargeable weight: 125 kg

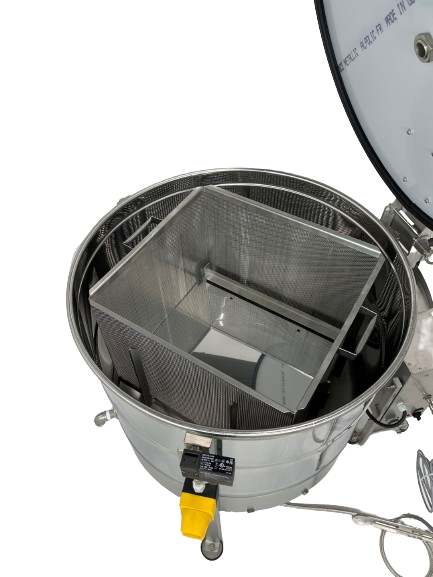

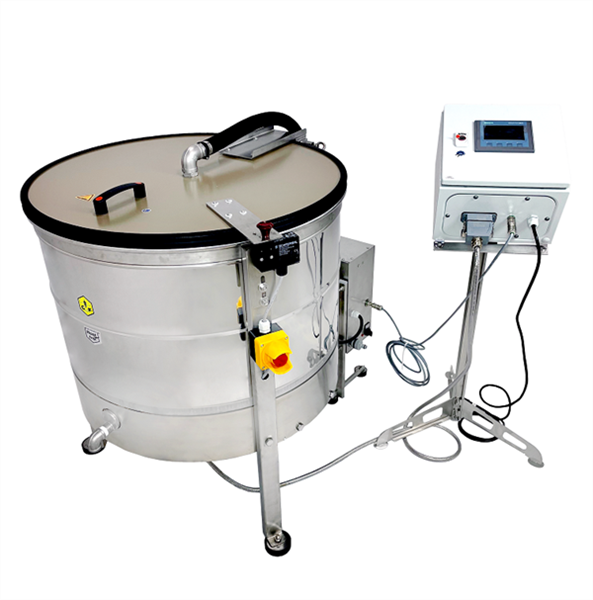

Powerful wax extractor for efficient wax extraction from honeycombs.Suitable for:• for up to 18 deep frames or up to 36 shallow frames• Frame sizes: suitable for all common dimensions, such as Zander, DN, Langstroth, DadantTechnical details:• Steam generator 6 kW / 400 V with cable and plug• Motor drive underneath 370W / 230V with robust gearbox• Automatic program sequence (pre-evaporation + spinning)• Inner tank Ø 77 cm, bottom welded without gap• Tank bottom with slope to the outlet• Outlet: 3/4" nipple welded to the bottom• Material: Stainless steel• Hinged lid made of aluminium composite• Emergency stop button• Safety device with lid locking• Loading height 95 cm • Tap distance from the floor 36 cm• 2 pomace baskets with frame holderWeight without/with packaging: 120 kg / 150 kgPackaging: on wooden palletChargeable weight: 150 kg The tripod for the control (item no. 5055500) is not included in the delivery

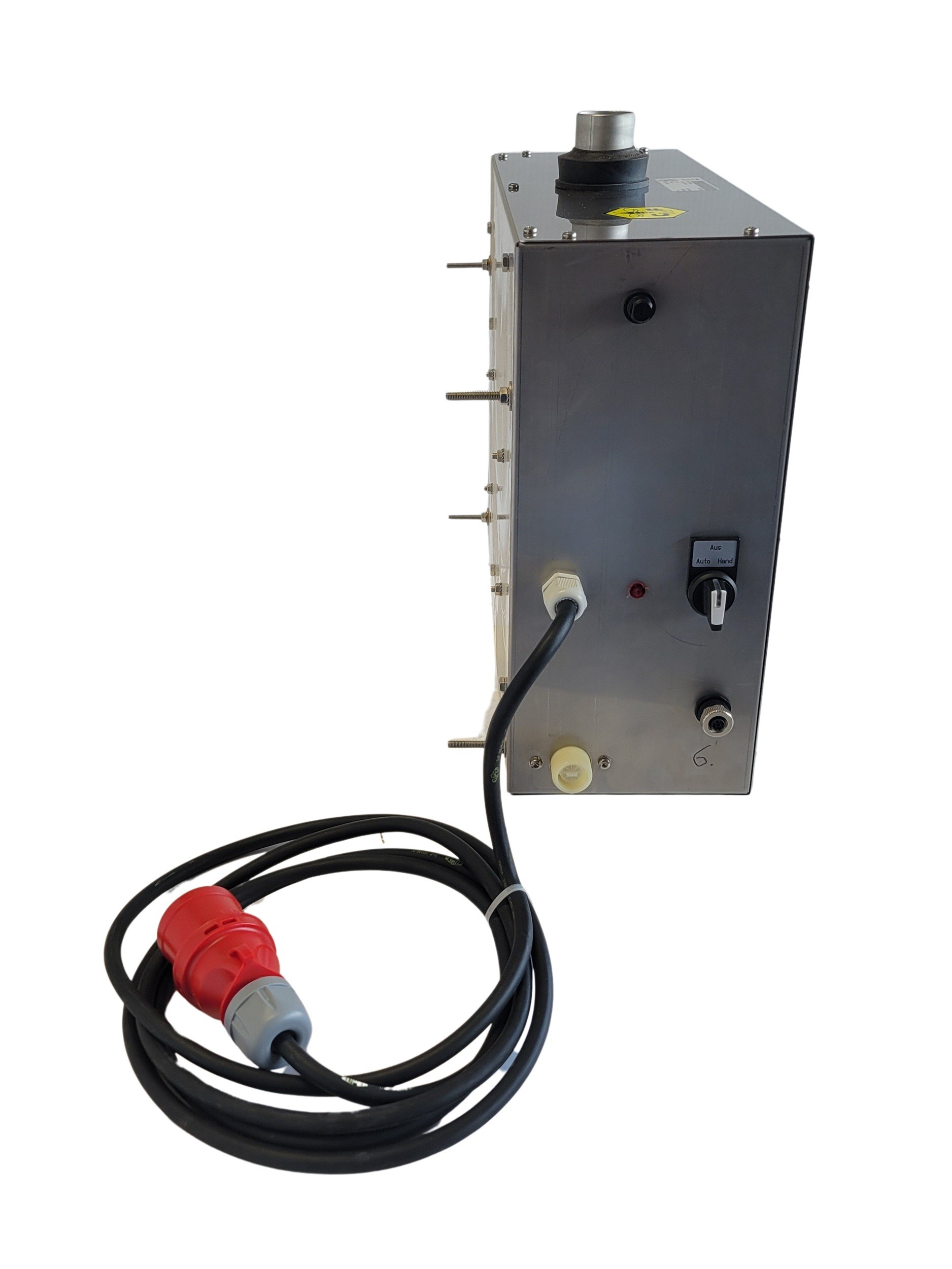

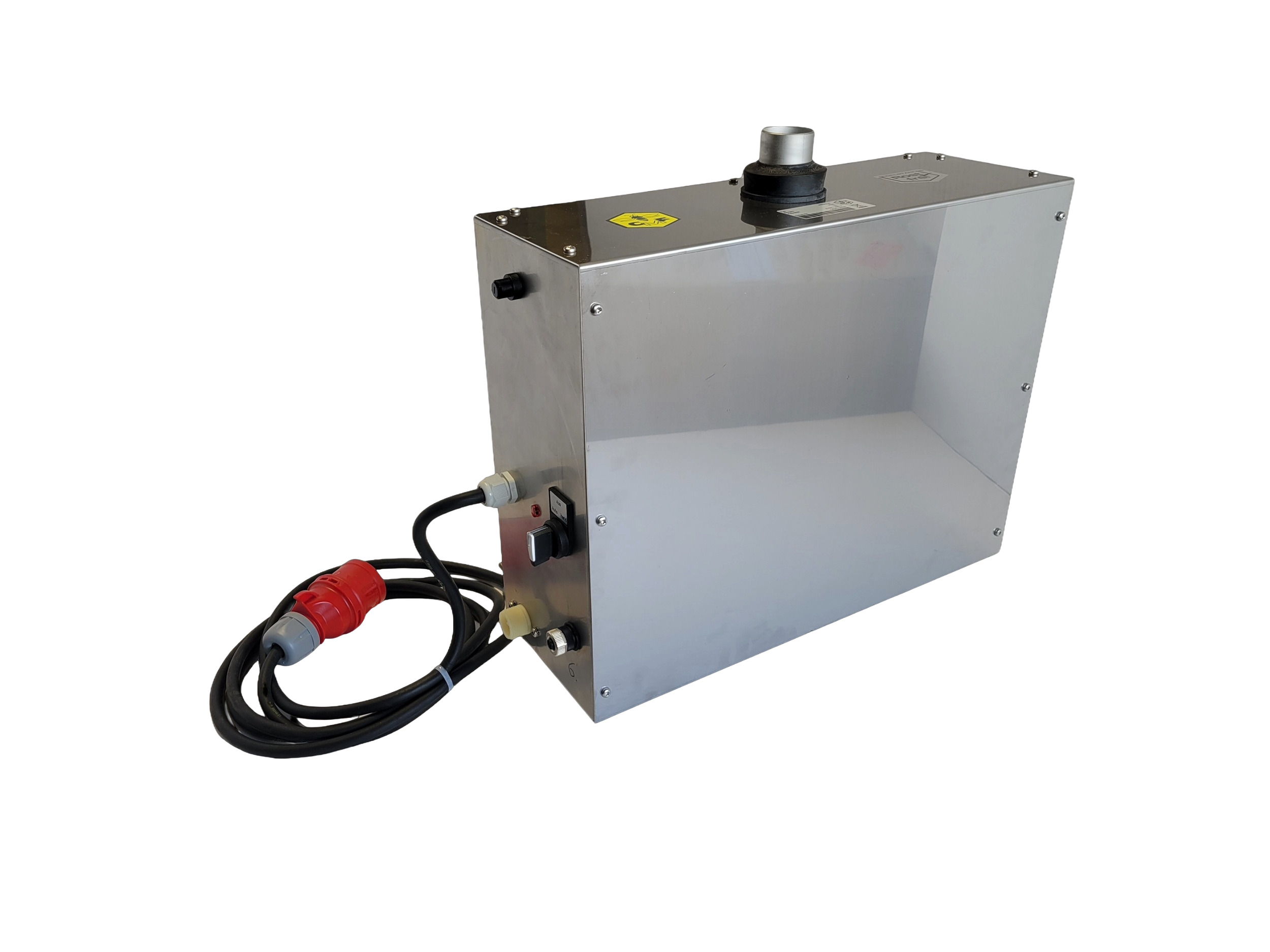

Steam generator for Steam-O-Fix, item no. 5000326• Water connection: 3/4" male• Power: 6 kW• Voltage: 400 V• Frequency: 50 Hz
