A honey extractor with Bottom drive means that the Motor is mounted underneath the tank of the honey extractor. This provides a free loading and unloading of the machine.
5410042-PTO

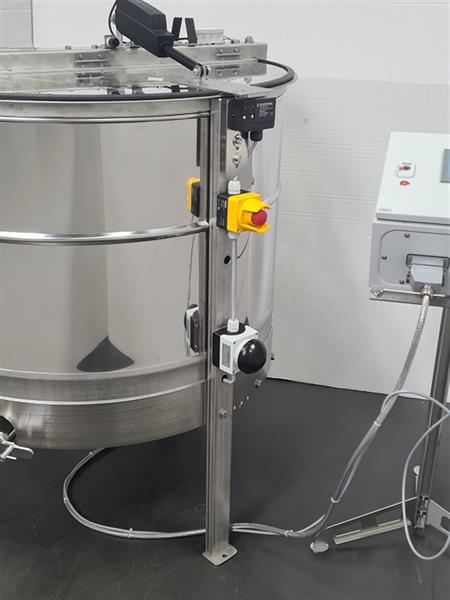

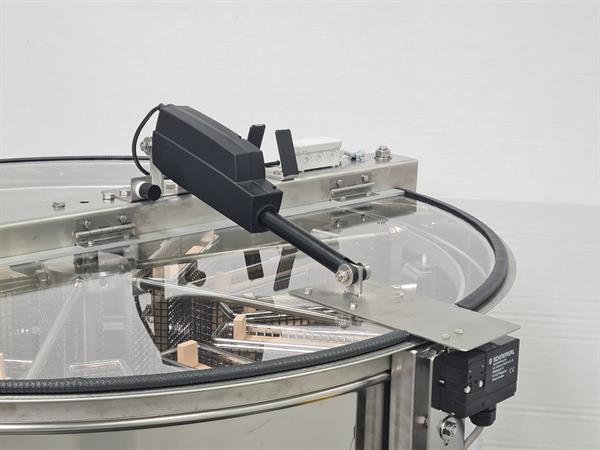

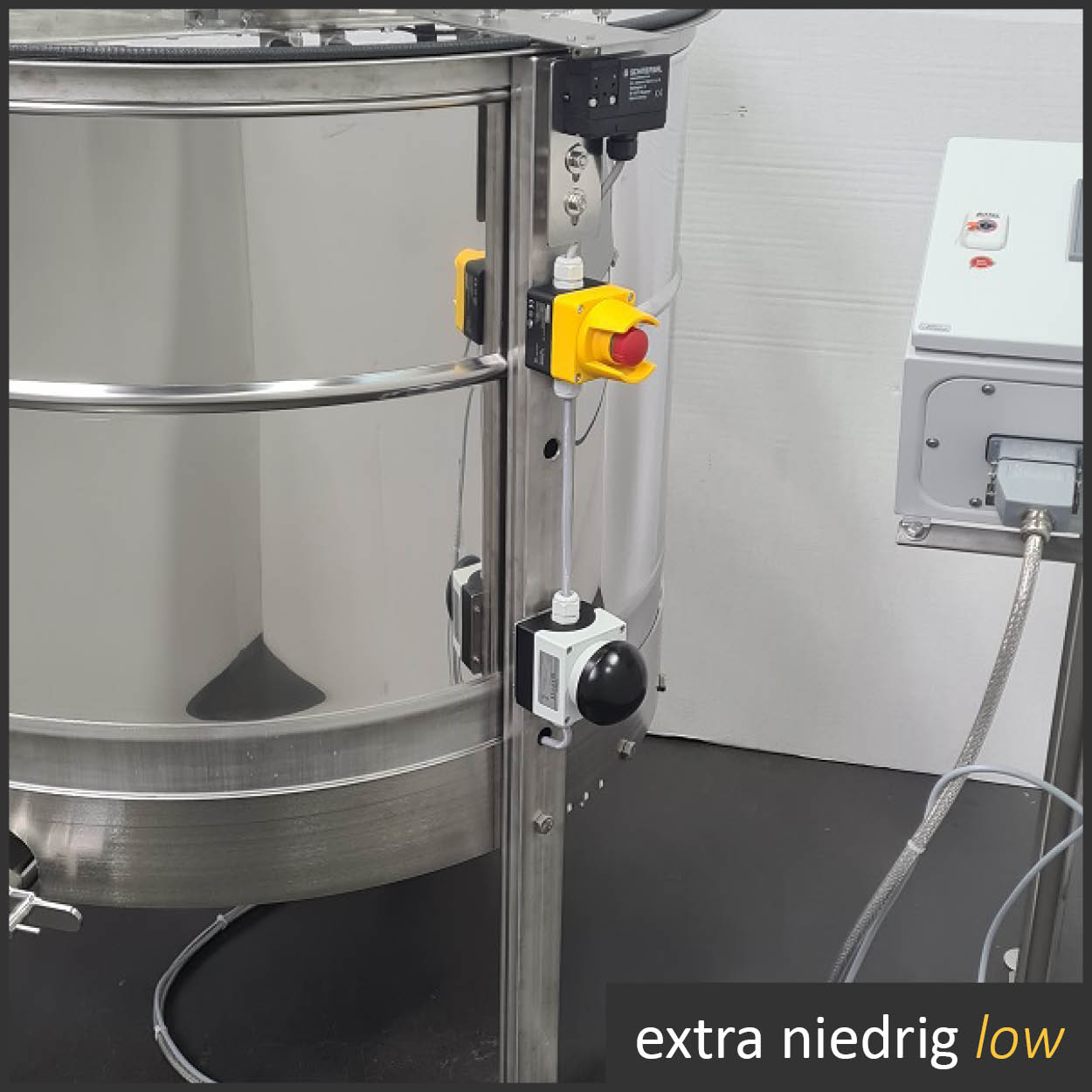

CFM-Radial extractor 42 deep frames, Ø 100 cm, motordrive underneath, radial fully automatic, low tank, with lid opener
Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 104 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 140 kg / 170 kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!
5410042
CFM-Radial extractor 42 deep frames, Ø 100 cm, motordrive underneath, radial fully automatic, low tank
Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 104 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 140 kg / 170 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5512560-PTO
CFM-Radial extractor 60 deep frames, Ø125 cm, motordrive underneath, fully automatic, with lid opener
Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 1500W / 230V• With electrical lid opener• Push-to-open via special button• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!
5412560
CFM-Radial extractor 60 deep frames, Ø 125 cm, motordrive underneath, radial fully automatic, low tank
Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 105 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight approx. 175 kg / with wrapping approx. 220 kgPacked on a wooden palletChargeable weight: 220 kgTripod (5055500) for speed control has to be ordered separatly!
5012560-PTO
CFM-Radial extractor 60 deep frames, Ø100cm, motordrive underneath, radial fully automatic, with lid opener
Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!
5485036
CFM-Radial extractor 20 d./36 sh. frames, Ø 85cm, motordrive underneath, radial fully automatic, low tank
Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 102 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 95 kg / 120 kgPacked on a wooden palletChargeable weight: 120 kg Tripod (5055000) for speed control has to be ordered separatly!
5077020
CFM-Radial extractor 20 deep frames, Ø85cm, motordrive underneath, radial fully automatic
Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Outer tank height: XX cm• Loading height: 110 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom level• Cage can be exchanged with a 4 or 6 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5585036

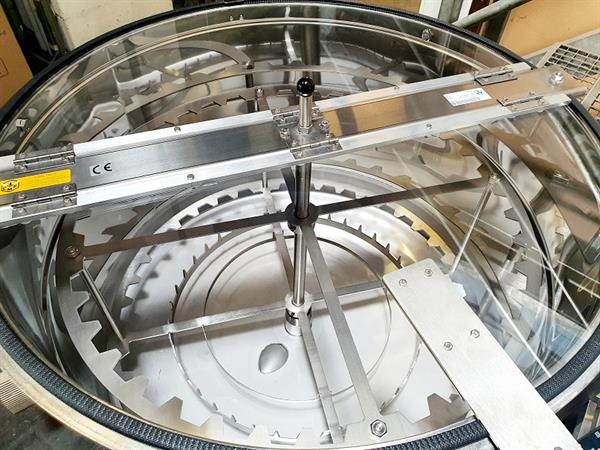

CFM-Radial extractor 20 d./36 sh. frames, Ø85cm, motordrive underneath, fully automatic
Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 110 cm• Total height: 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 6 or 8 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5512560
CFM-Radial extractor 60 deep frames, Ø125 cm, motordrive underneath, fully automatic
Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 1500W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!
5510042
CFM-Radial extractor 42 deep frames, Ø100 cm, motordrive underneath, fully automatic with lid opener
Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 750W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Outer tank height: XX cm• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!
5010042-PTO
CFM-Radial extractor 42 deep frames, Ø100cm, motordrive underneath, radial fully automatic, with lid opener
Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!
5477020
CFM-Radial extractor 20 deep frames, Ø77cm, motordrive underneath, radial fully automatic, low tank
Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 100 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: XX kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5577020
CFM-Radial extractor 20 deep frames, Ø77cm, motordrive underneath, fully automatic
Suitable for:• 20 deep frames up to size 48 x 24 cm and side bar width 40mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Outer tank height: XX cm• Loading height: 110 cm• Total height: 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom level• Cage can be exchanged with a 4 or 6 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5010042
CFM-Radial extractor 42 deep frames, Ø100cm, motordrive underneath, radial fully automatic
Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 750W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!
5412560-PTO
CFM-Radial extractor 60 deep frames, Ø 125 cm, motordrive underneath, radial fully automatic, low tank, with lid opener
Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• With electrical lid opener• Push-to-open via special button• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Radial cage cannot be exchanged with a self-turning cage• Low tank for easy loading and unloading, tank height approx. 105 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight approx. 175 kg / with wrapping approx. 220 kgPacked on a wooden palletChargeable weight: 220 kgTripod (5055550) for speed control has to be ordered separatly!
5012560
CFM-Radial extractor, Ø125 cm, motordrive 1500W underneath, 60 deep frames, radial fully automatic
Suitable for:• 60 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with 1500W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Loading height: 117 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 12 or 16 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055500) for speed control has to be ordered separatly!
5510042-PTO
CFM-Radial extractor, Ø100 cm, motordrive 750W underneath, 42 deep frames, fully automatic with lid opener
Suitable for:• 42 deep frames up to size 48 x 26 cm and side bar width 40 mm• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• With electrical lid opener• Push-to-open via special button• Bottom drive 750W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Outer tank height: XX cm• Loading height: 116 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 8 or 12 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055550) for speed control has to be ordered separatly!
5085036
CFM-Radial extractor 20 d./36 sh. frames, Ø85cm, motordrive underneath, radial fully automatic
Suitable for:• 20 deep frames up to size 48 x 25 cm and side bar width 35mm or 36 shallow frames• Frame sizes: Zander, German Standard, Langstroth, Dadant shallowTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Radial fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm, welded bottom without gap• Tank bottom with slope to the outlet• Material: stainless steel• Outer tank height: XX cm• Loading height: 115 cm• Distance from the floor to the honey tap: 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap• Cage can be exchanged with a 6 or 8 pockets self-turning cageWeight: XX kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
