Honey bottling machines

Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 40 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C

Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 38 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C

Food-safe PVC suction and pressure hose with hard PVC spiral.Dimensions: inner Ø 50 mmColour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine.Operating temperature: – 5 °C to + 60 °C

Half hose coupling mad of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 38 mm.For connecting hoses to disc valves.

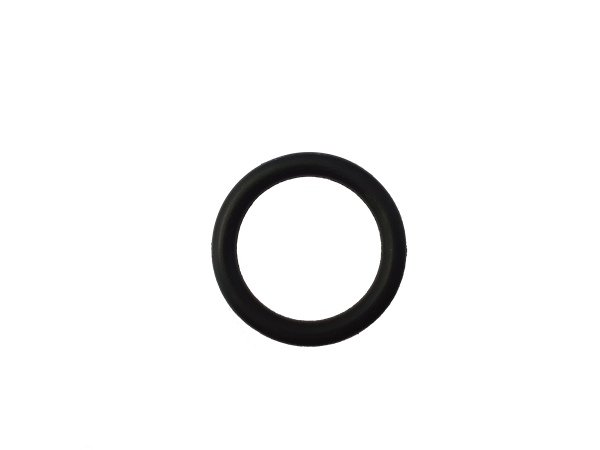

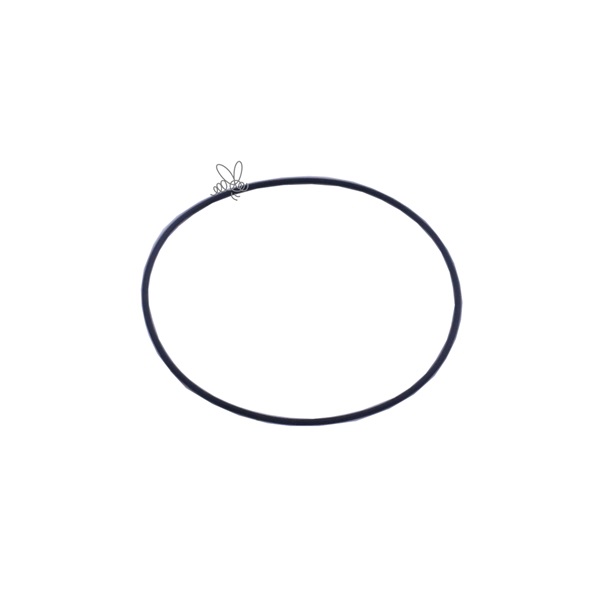

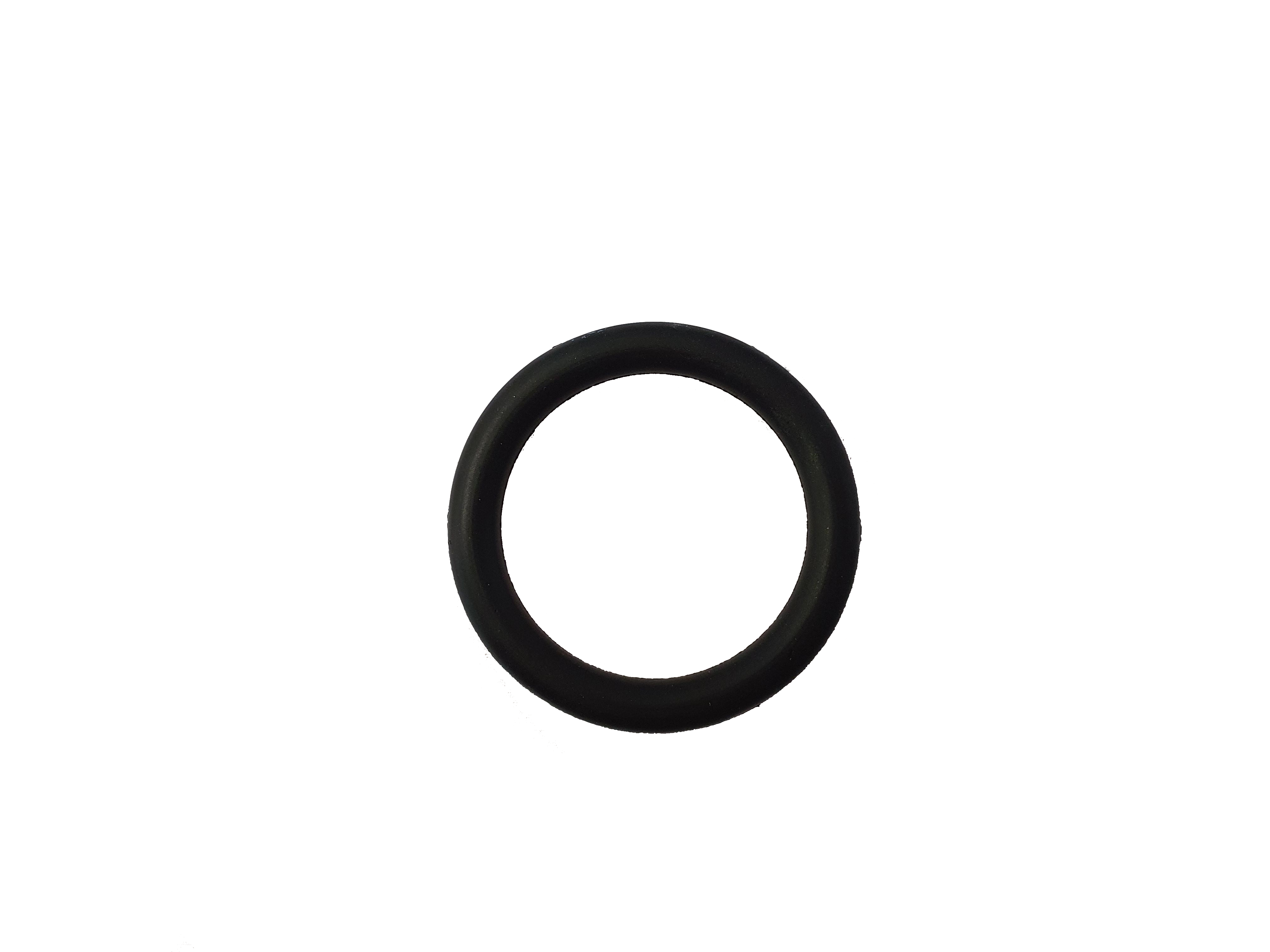

Spare part O-ring for pump house.Details: Ø 82x2 NBR 70Matched with:- filling mashine Dana api Matic 1000 (order number 6099202) - rack-weel honey pump mini (order number 6001980)

This bottling set is semiautomatic. The device is mounted to our CFM-honeytank 50kg with 4 locks and drives the valve via servo motor. Filling starts automatically as soon as an empty glass is detected. The capacity is regulated via integrated or external scales and electronically regulated. An internal counter keeps track of filled glases. Capacity can be individually set between 30g and 2000g. The device is operated via 2.8“ colordisplay and has an extensive setup-menu. Filling with this setup is hygenic and relaxed without having to constantly monitor the valve. This frees you to cap and label glasses simultaneously.* individual tare of every single glass* capacity regulated automatically* supports five types of glasses which can be individually defined.* starts automatically as soon as an empty glass is detected* quick change of glasses to be filled* if desired a goodwill overfill can be adjusted* acoustic feedback* counter for total quantity and daily quantity * calibration with adjustable weight * sturdy and easy to detach mechanics Weight: 9,7 KiloChargeable weight: 15,2 KiloSet consists of:Filler mounted to our CFM-honeytank 50kg with 4 locks as well as a filling servant (made of wood)

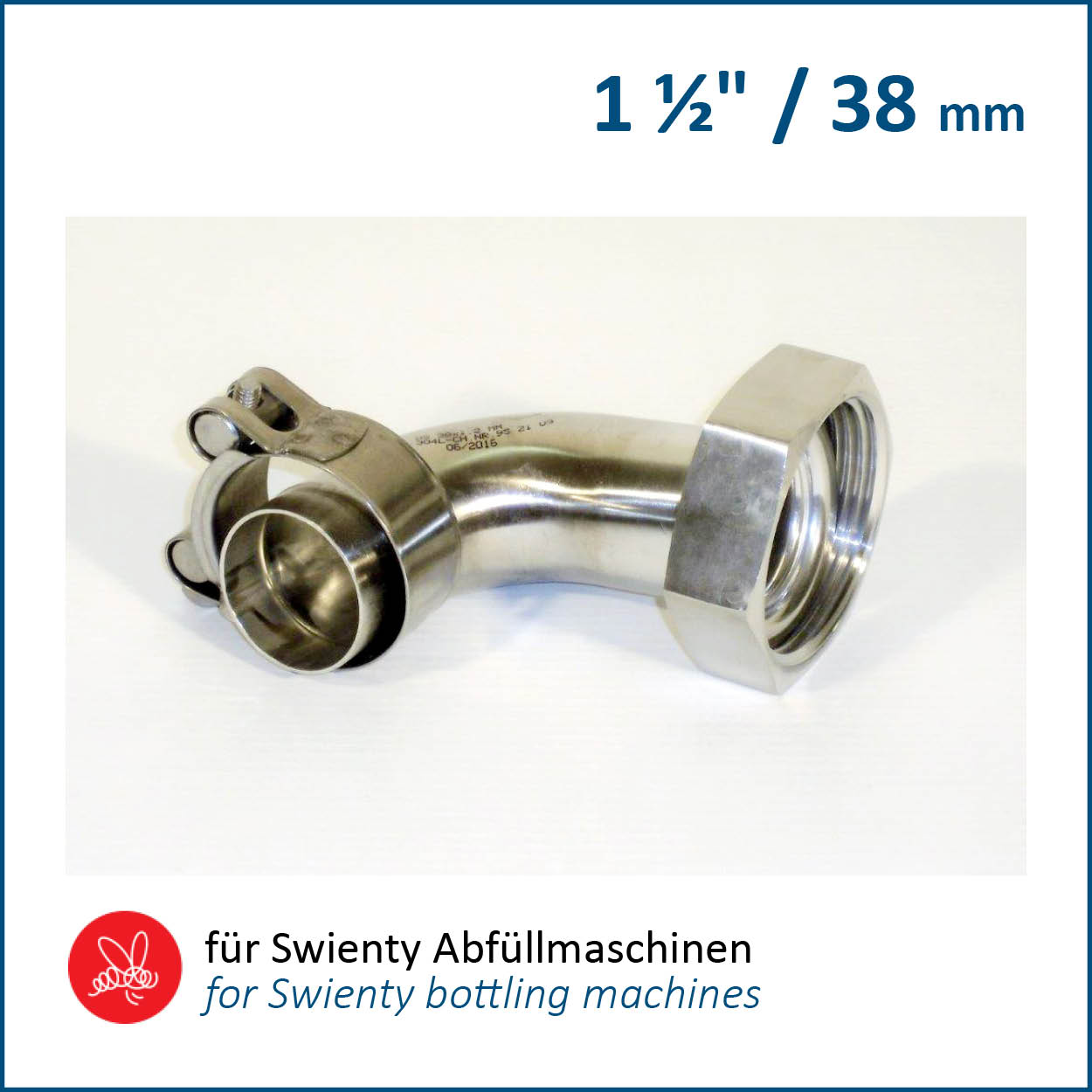

Original BS sleeve by Swienty for Dana api Matic 1000 bottling machines.1 1/2” curved with overhead nut and articulated bolt clamp.Material: Stainless steel

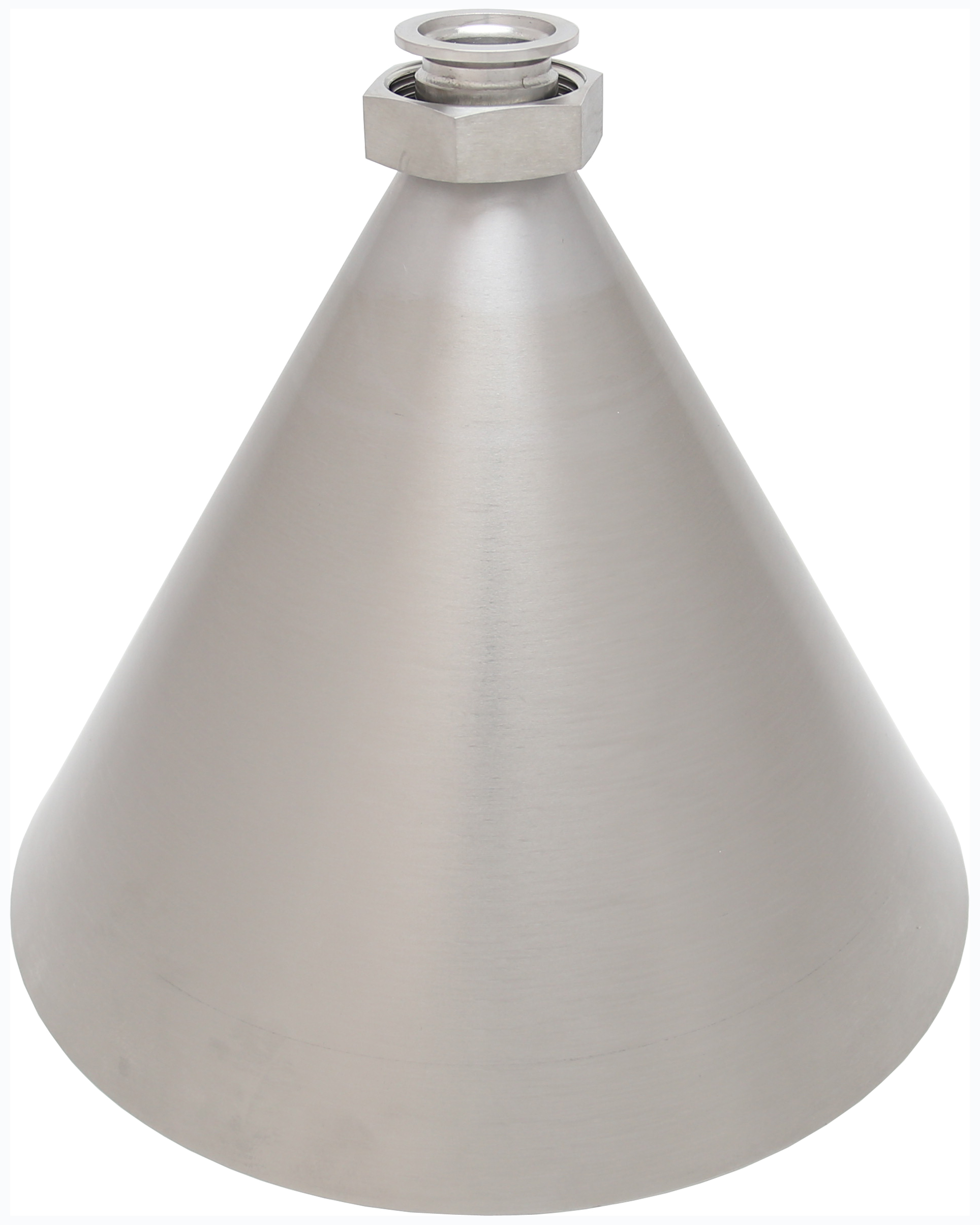

This funnel is suitable for the filling machine DANA api MATIC 2000+ (No. 6000202). It is especially suitable if you do not want to connect the machine to a tank or the like via hoses. You can easily tilt the honey into the funnel and operate the filling machine. Capacity max. 20 Ltr. Incl. screw connection for connection to the filling machine.

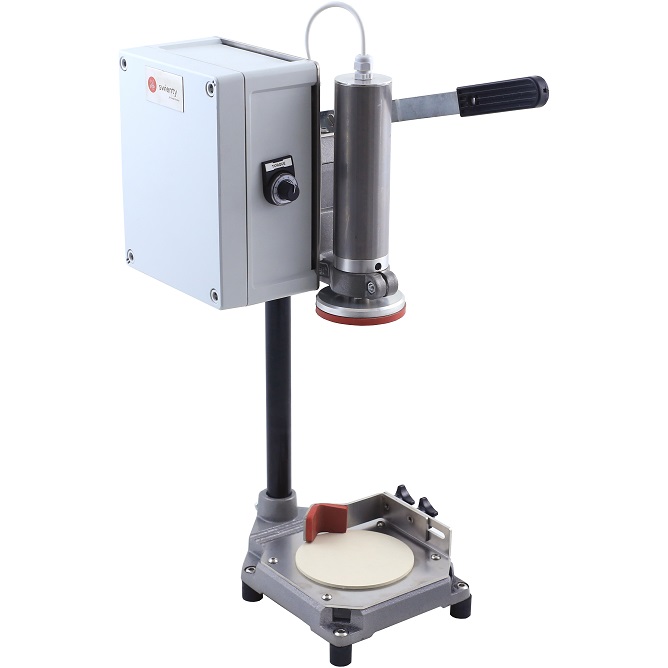

Easy lid fitter for lids that need several rotations to be closed.How it works:Take a full jar, place the lid on it and place the jar in the lid fitter. Then press the lever down. The fitter rotates and the lid will be screwed onto the jar. The rotation force can be adjusted from 0 - 10 nm.This lid fitter received the silver medal at the Apimondia 2003 for its technical innovation.Technical details:Measurements: 19 x 24 x 50 cmJar height: min. 2 cm, max. 30 cmLid: max Ø 8 cmPower supply: 230 V / 50 HzElectric power consumption: 200 W

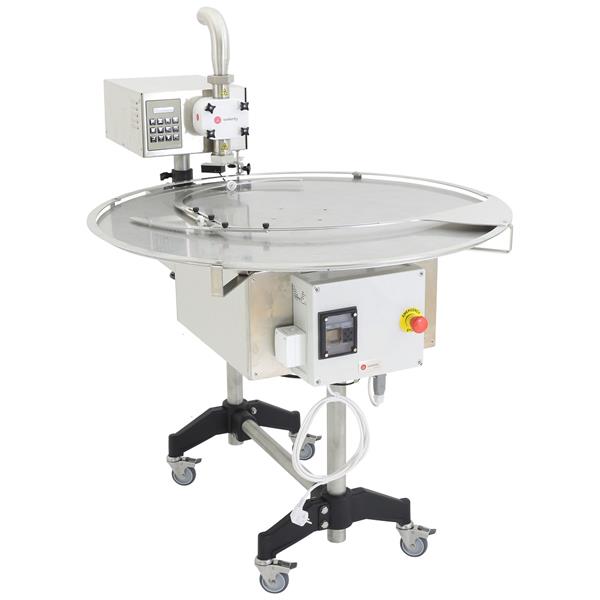

Consists of filling machine Dana api Matic 2000 and turn table Ø 100 cm on a mobile rack

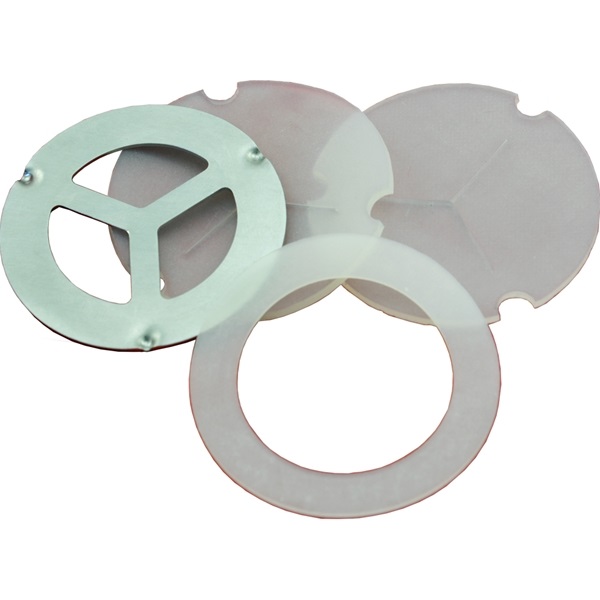

Rückschlagventil für Dana api Matic inklusive Silikonschließer.Das Rückschlagventil verhindert das Eindringen von Luft beim Rücklauf.

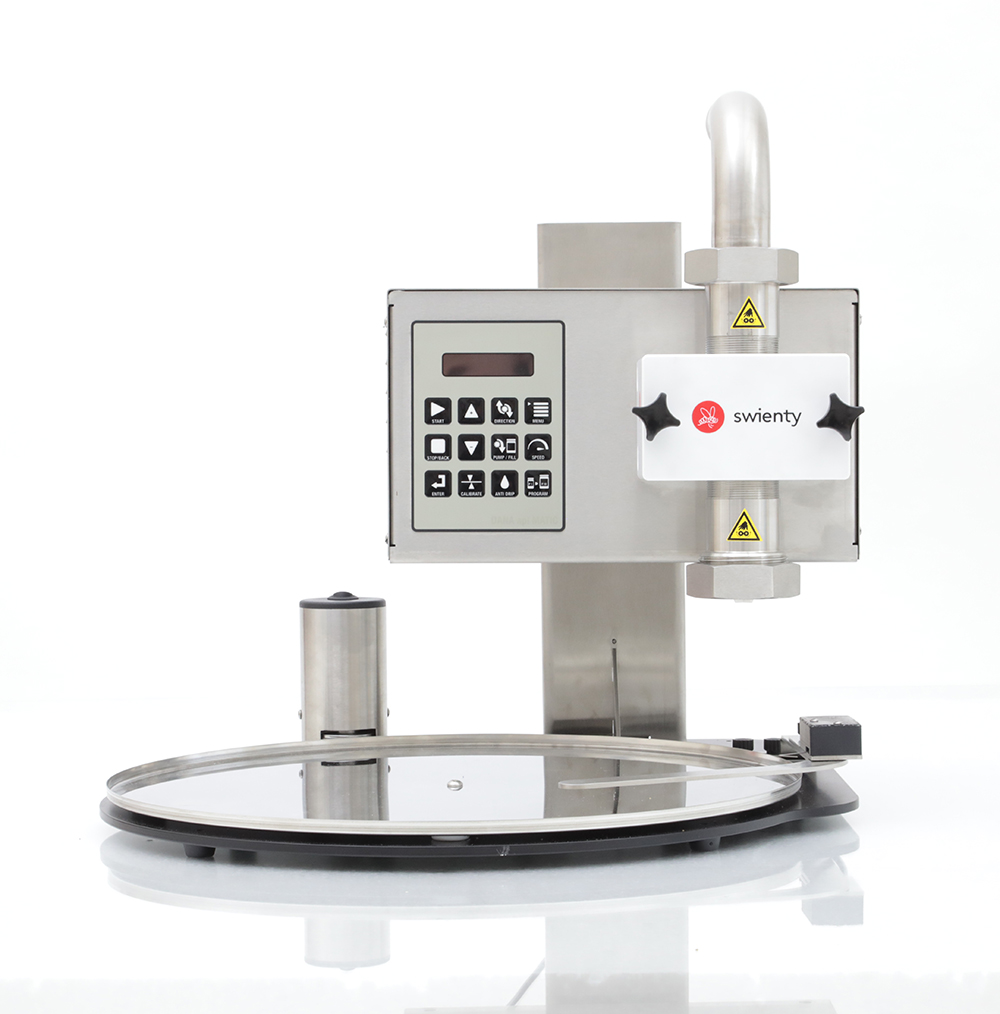

Fillingstation ø45 - Table modelOur smallest fillingstation where DANA api MATIC 1000 is combined with a Ø45 turntable.The DANA api MATIC 1000 is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a helical gear box. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters. The machine works precisely and is easy to program for different substances. As a pump, the machine works both ways and can be set to different speeds. All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.Technical data:Type of machine: Computer controlled gear pumpFilling capacity: 10 g - infinity g (honey)Weight unit: ml / g / ozPrecision: +/- 2gPump capacity: approx. 270 kg/hPrograms: 20+ options to programPower supply: 90-264VAC 50/60HzPowerconsumption: 230WSound level: The sound pressure level of the pump is less than 70 dB(A) Weight: approx. 10,5 kgDimensions: 33 x 31 x 18,5 cmConnections: 1½" BS hose connection on both sides of the pump

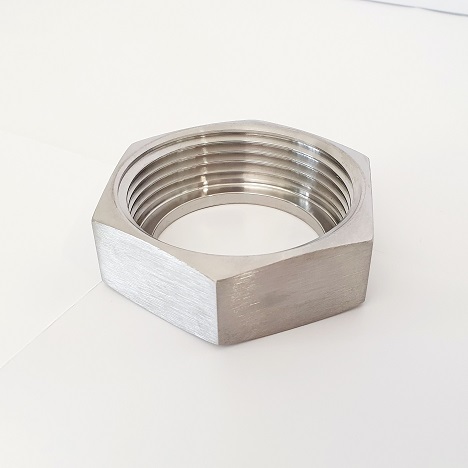

Union nut hexagon 1 1/2", fits for example Swienty filling machineWeight: 0,2kgChargeable weight: 0,2kg

This bottling set is semiautomatic. The device is mounted to our CFM-honeytank 50kg with loose lid and drives the valve via servo motor. Filling starts automatically as soon as an empty glass is detected. The capacity is regulated via integrated or external scales and electronically regulated. An internal counter keeps track of filled glases. Capacity can be individually set between 30g and 2000g. The device is operated via 2.8“ colordisplay and has an extensive setup-menu. Filling with this setup is hygenic and relaxed without having to constantly monitor the valve. This frees you to cap and label glasses simultaneously.* individual tare of every single glass* capacity regulated automatically* supports five types of glasses which can be individually defined.* starts automatically as soon as an empty glass is detected* quick change of glasses to be filled* if desired a goodwill overfill can be adjusted* acoustic feedback* counter for total quantity and daily quantity * calibration with adjustable weight * sturdy and easy to detach mechanics Weight: 9,5 KiloChargeable weight: 15,0 KiloSet consists of:Filler mounted to our CFM-honeytank 50kg with loose lid as well as a filling servant (made of wood)

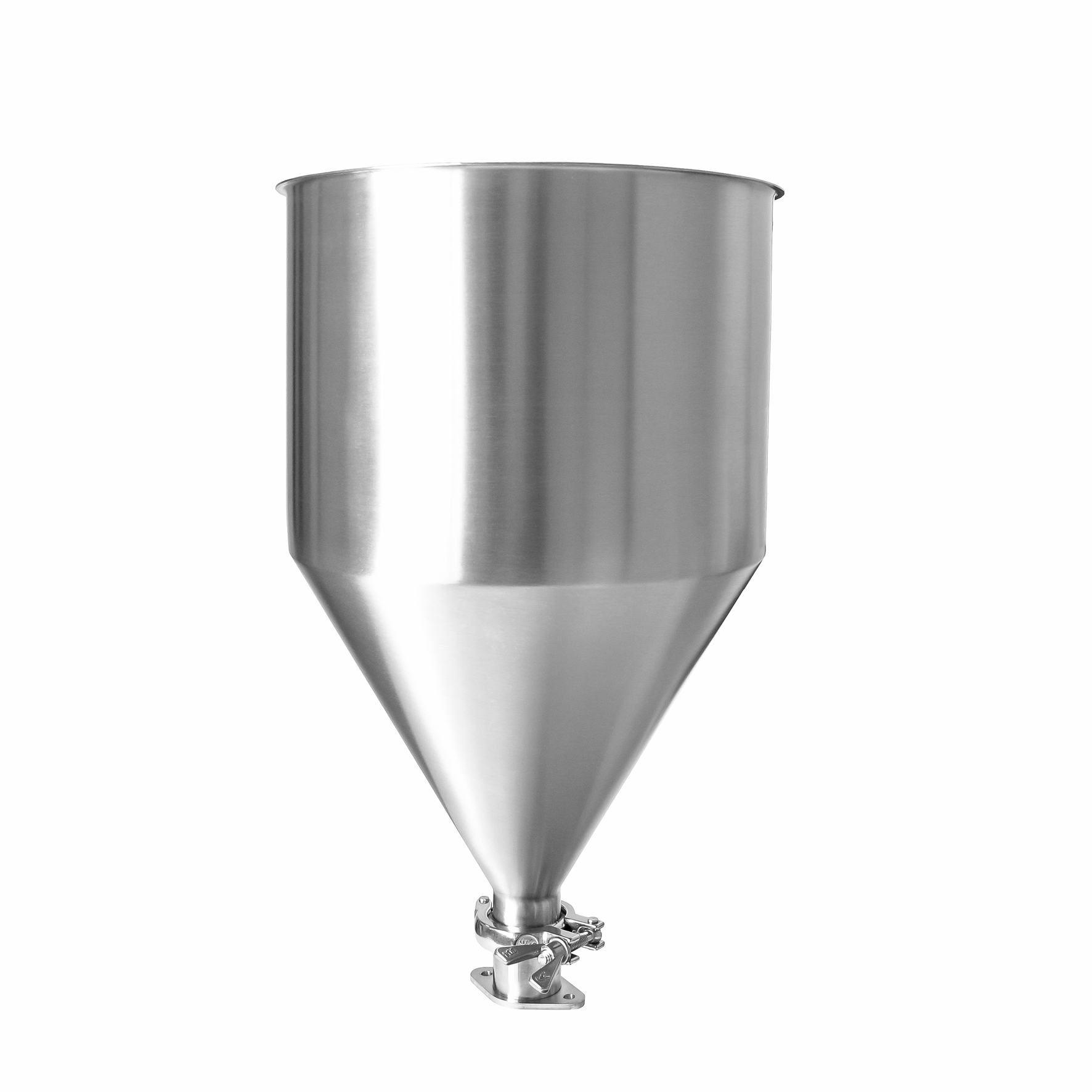

Funnel 14 l, with tri-clamp connector DIN 40 (ferrule Ø 50.5 mm) andadaptor with flange connection. Material: AISI 316, EPDM.

• Stainless steel, height 100 cm• Suitable for No. 5822100 with filling machine No. 6099202• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without filling machine!

• Stainless steel, height 100 cm• Suitable for No. 5822100 with bottling machine No. 6000201• Due to the stand design the creamer is above the bottling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without bottling machine!

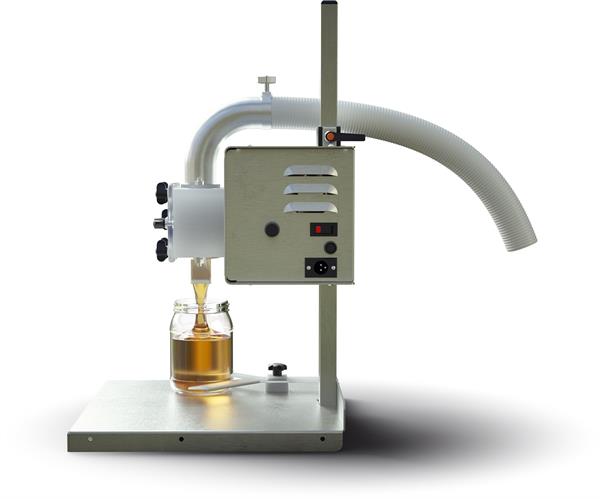

Especially for filling from tanks standing on the floor, the filling machine is directly connected to the tank with a hose connection. The machine pumps the honey through a stainless steel tube to the filling nozzle. The control box is mounted directly behind the nozzle for easier adjustment.

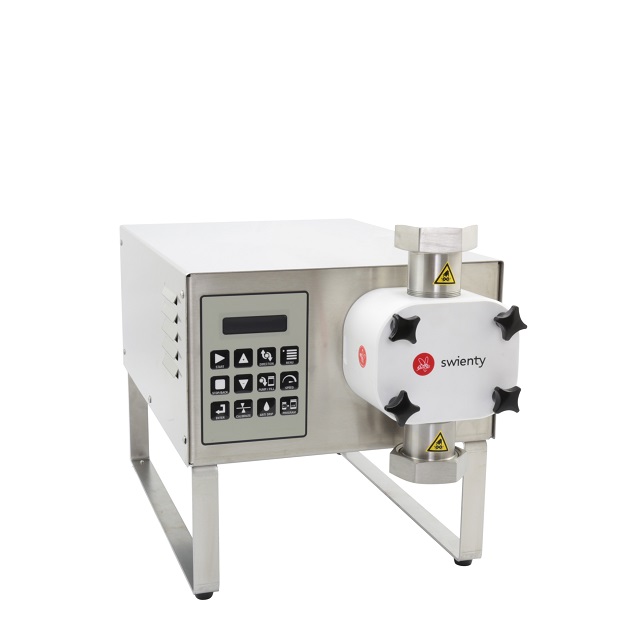

The DANA api MATIC 2000+ is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a planetary gear. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.The machine works precisely and is easy to program for different substances. As a pump, the machine works both ways and can be set to different speeds.All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.Included fitting:Foot pedalCounterflow valveDosing syringe 0-60 mlNut for BS fitting 1½"Complete cut-off-cross ø20Legs2" / 50mm hose1½-2" bent BS fitting2" HoseclampWith the machine you recieve an included spare parts set containing:2 x Cross-cut Ø202 x Black rubber diaphragm2 x Gasket BS 1½2 x Handmountable nuts for pumphead2 x O-ring 37x2 NBR 701 x O-ring 96x3 NBR 70Various nozzles, fittings, 10/20 liter funnel, tablestand and switch can be purchased.The machine can easily be expanded with e.g. a turntable and / or conveyor belt.Packaging volume 61x41x36 cm.Power 575WVoltage 90-305VAC 50/60HzPumping Amount (kg honey/h) ~ 610 kg/hPrograms 20+Media Temperature Range (With HotFill Gears) (°C) max. 95°CLength 31 cmWidth 18.5 cmPackaging volume 1 61 x 41 x 36 cmUnits ml / g / ozPumping Amount (L/h) 400 L/hWeight 17.5 kgType of Machine Computer controlled gear pumpFittings 1.5" BS thread and 2" hose connectionPrecision +/- 1gFillingrange 10g - 999.999gSound Level <70 dB(A)

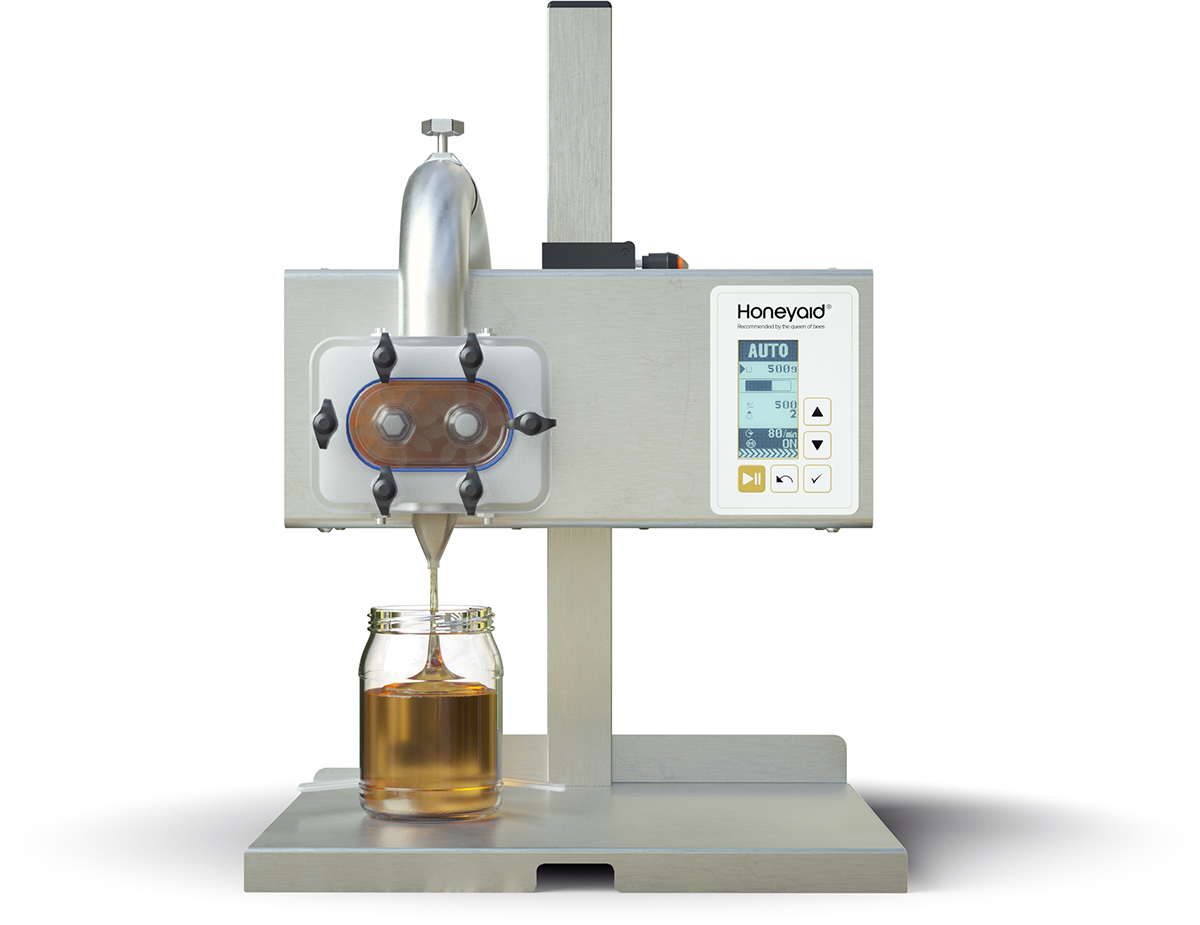

Moduls: - Honeyaid® Botteling machine- Gear pump head "L" for the Fill Up Visco, Connection and Fastening: - Standard stand, 500 mm - Pipe bend 90°, with flange and bending backwards, Ø 40 mm - Hose, Ø 40 mm / 1 1/2", PVC - Check valve, Ø 40 mm hose diameter - Hose clamp stainless steel with handhold, size 48 - USB cable - Power cord EU - Power adaptor 230 V - Combination wrench - Micro fuse 8 A Operation: - Microswitch with 5-pin-plug Bottling: - Cover for conical nozzle - Filling nozzle, conical - Wedge nozzle outer Ø 26 mm, hard quality - Clamping flange for filling nozzles

• Stainless steel, height 100 cm• Suitable for No. 5022100 with bottling machine No. 6000201• Due to the stand design the creamer is above the bottling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without bottling machine!Generally without rolls. Rolls can be ordered additionally.

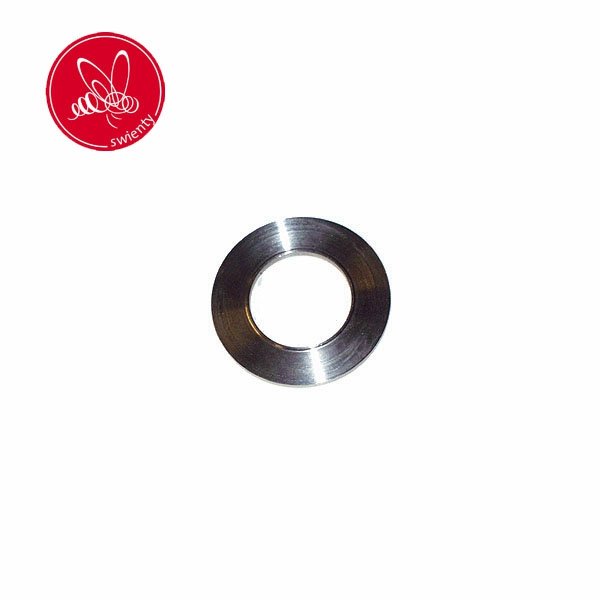

For Dana api Matic 2000.Can only be used with the silicone closer.Material: High-grade steel-rustproofDetails: inside Ø 30 mm, outside Ø 54 mmWeight: 0,65kgChargeable weight: 0,65kg

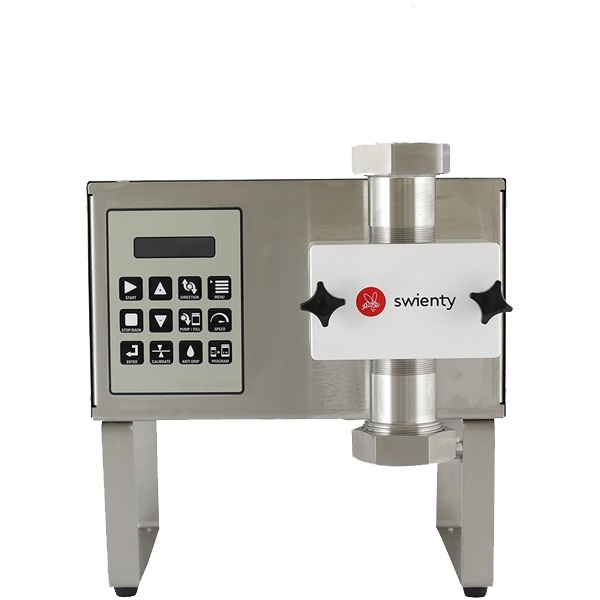

DANA api MATIC 1000 is a modern filling machine.The machine consists of a newly constructed gear pump unit made of food grade plastic material and Swienty dosing electronics to contol the pump. The latest dosing electronics ensure powerful filling and a perfect drip-free function. The filling weight is digitally displayed and can be set for amounts from 10 grams to 10 kilos or 0.1 to 100oz.Up to 20 different standard filling programs can be stored containing the weight, the calibration factor and other filling parameters. The electronics count the number of fillings during the filling cycle and also in total during machine life time.Further the total quantity (kg or oz) can be displayed. In pumping mode the pump quantity will be displayed.The machine operates with great precision (up to +/-1g / 0.1oz) and can easily be calibrated to suit different types of liquids. This precision avoids an overfilling and pays for the machine in a very short time.As a pump, the machine can operate equally well in both directions. The speed can be selected directely from the front panel.The machine is able to fill nearly all kinds of viscous liquids.All parts that come in contact with the liquid to be filled are constructed of either stainless steel or food grade plastic and can easily be taken apart (without tools) and cleaned.Technical data:• Type of machine: Computer controlled gear pump• Filling range: from 20g/oz/ml• Pump capacity: Approx. 300 kg/h (honey warm)• Filling capacity: Approx. 200 kg/h• Precision: +/- 1%• Power: 100-260V/50-60Hz• Powerconsumption: 230V• Weight: Approx. 16,5 kgChargeable weight: 15,2 kg • Dimensions: 22 x 31.5 x 18 cm• Connections: 1 1/2"BS - 1 1/2" hose• Max Temperatur der Flüssigkeit: 60-65 C° Parts included in the delivery:Nozzle 1½" 90° with connecting nut BS, 1.5m tube 1 1½, foot paddle, rubber closer with connecting nut complete, dosing syringeAccessories not included (to be ordered separately): Various nozzles and fittings, various filling nozzles, table or floor stand, various tanks, various creamers in different sizes, conical feed hopper 10 litre

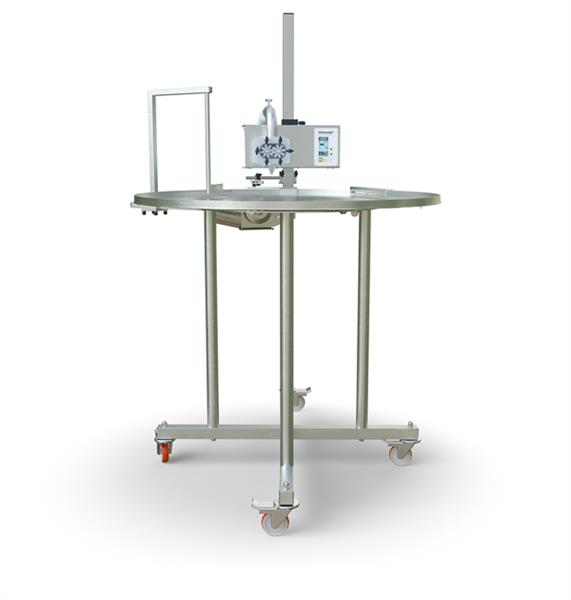

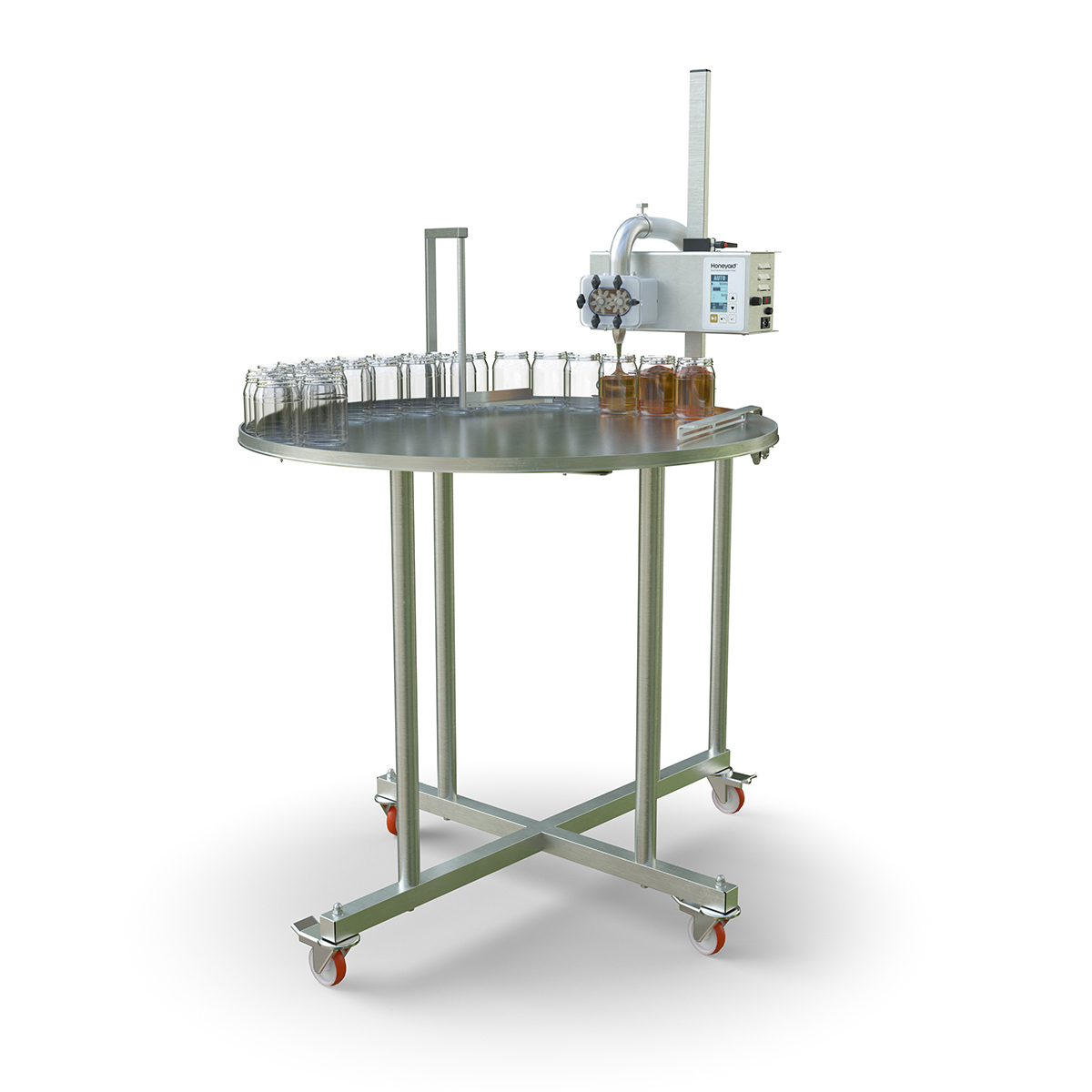

Honeyaid® basic filling station with turntable Ø 100 cmIncluding:Filling station Fill up 2 / 100Turntable Ø 100 cmCapacitive sensorAccessorieswithout jars

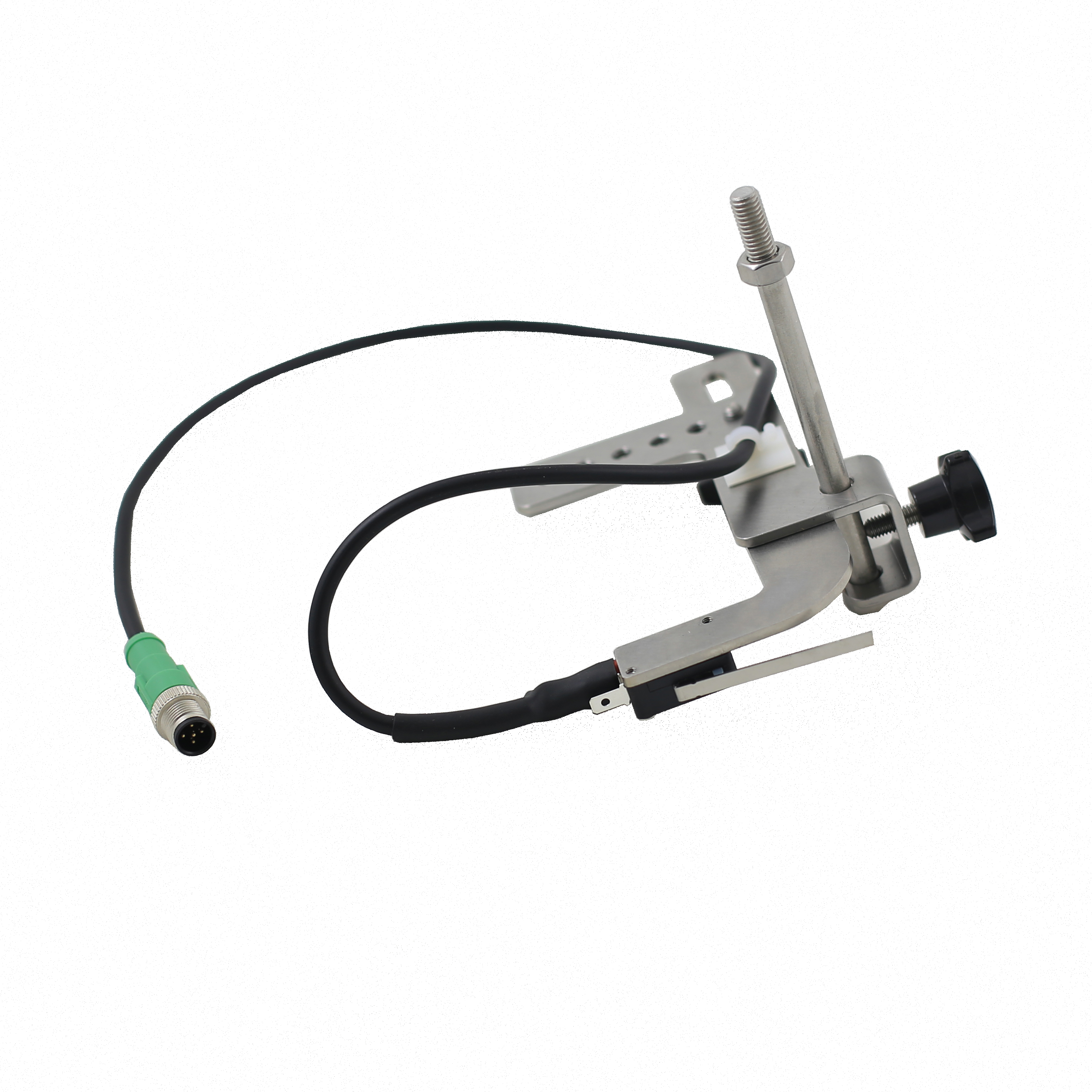

A great help, when you fill honey in jars.As soon as you hold the jar against the switch, the bottling machine starts the filling.This way you can start the bottling machine without activating "start" on the display or using the foot pedal.

• Stainless steel, height 100 cm• Suitable for No. 5022100 with filling machine No. 6099202• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the bottling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.• Combination for making bottling honey easier.• Including silicon tube with clamb as a connection between creamer and filling machine (DN40)Please note: Delivery without creamer and filling machine.

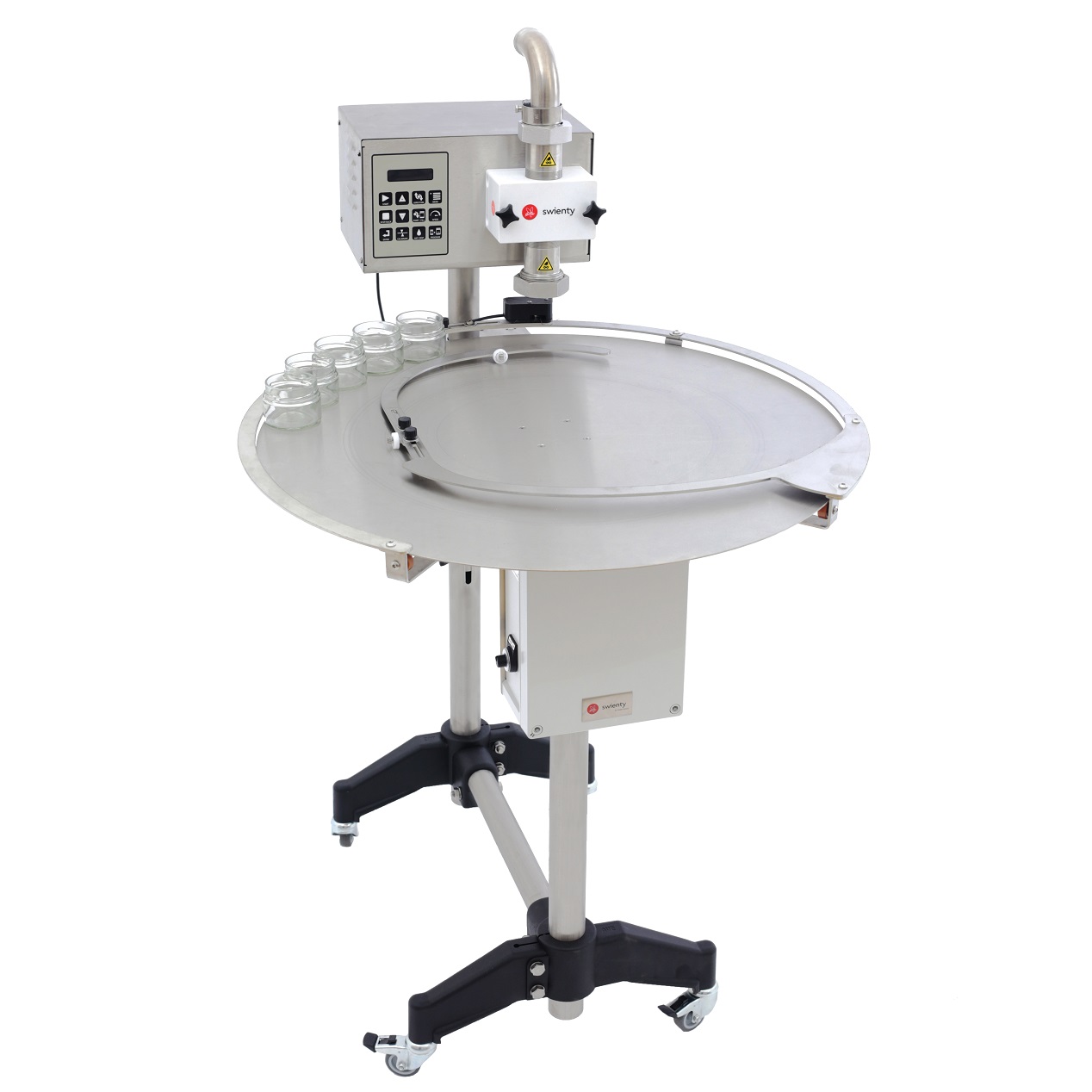

Consists of filling machine Dana api Matic 1000 and turn table Ø 70 cm on a mobile rackComplete filling stations, where one DANA apiMATIC 1000 and an automatic filling table are combinedinto one unit.Our smallest filling station with a Dana api Matic 1000 and an automatic Ø70cm turntable.Empty jars are placed on the table top and then transported automaticallly to a photocell. Once the photocell detects the jar the table stops and the filling machine starts filling the jar. Once the jar is filled the table starts turing again until the next jar arrives in front of the photocell.In this unit, the filling machine can be adjustedboth horizontally and vertically to accommodatevarious jar sizes.Filling machine: Computer controlled gear pumpFilling range: 10ml - 10.000mlPump capacity: Approx. 280 l /hFilling capacity: 550 fillings /h at 370ml, up to 2000 fillings/h at 30 ml.Precision: <1%, max. +/- 3g at 750 mlPower: 230V, 150 WConnections: 1 1/2" BS 2" eller 1 1/2"Accessories included: Footpedal, hose, fitting, nozzle, dosing syringAccessories seperate: Various fittings, stand, nozzle for low viscous liquidsPlease contact us for more information.Larger filling stations on request.
