Double walled creamers

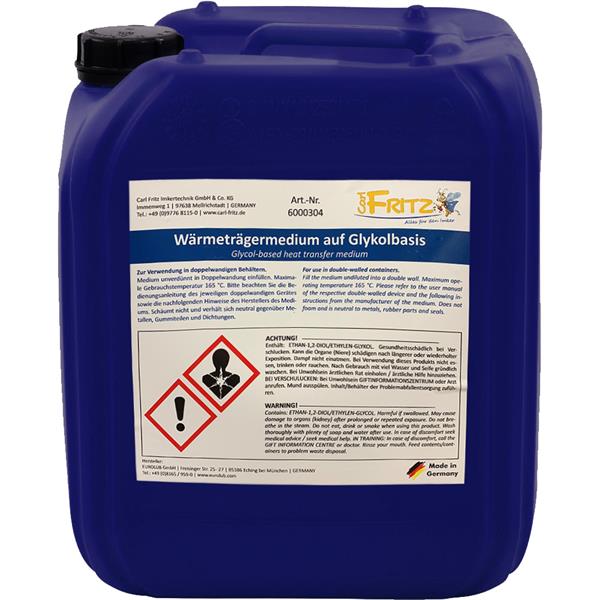

Suitable for double-walled wax clarifying tanks (5000300/5000301) or double-walled honey creamers and tanks.Please note: the individually needed quantity is noted with every tank/honeycreamer on the details-page.

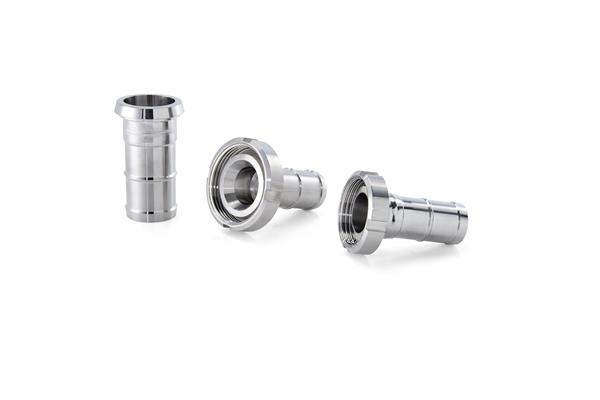

Half hose coupling made of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 40 mm.For connecting hoses to disc valves.

Half hose coupling made of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 40 mm.For connecting hoses to disc valves.

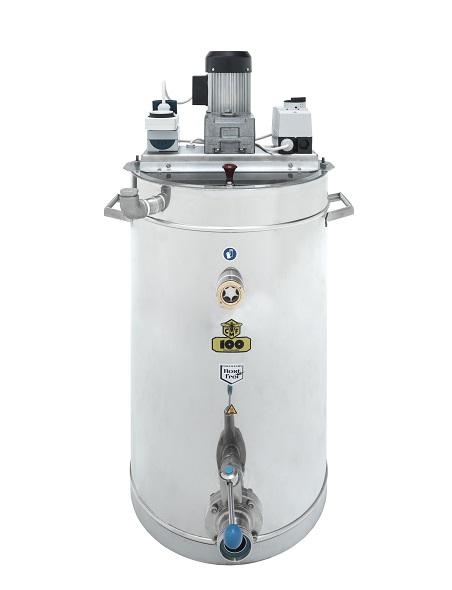

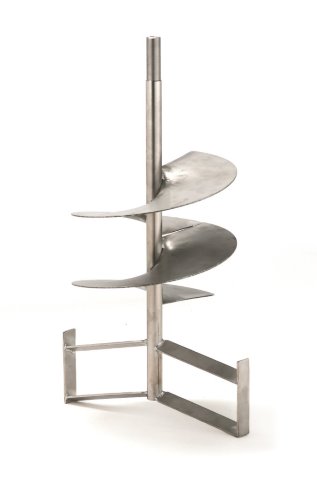

This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 - 30 °C.In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• Flat gear motor 250 W / 230 V• Approx. 24 rpm• Paddle screw with rake at the bottom• Inner tank Ø 43, welded bottom without gap• Outer tank Ø 48 cm• Rigid handles• Tank bottom with slope to the outlet• Outlet: DN40 dairy thread welded at bottom level with screwed on DN40 disc valve• Material: stainless steel• Heater 3000 W / 230 V• Capacity for double wall: approx. 38 liter• Outer tank height: 72 cm• Total height: 100 cm• Incl. plug-in timerPlease note: We recommend filling the double wall with water (filtered rain water).Weight without wrapping: 60 kgIncl. wrapping: 65 kg

Half hose coupling mad of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 50 mm.For connecting hoses to disc valves.

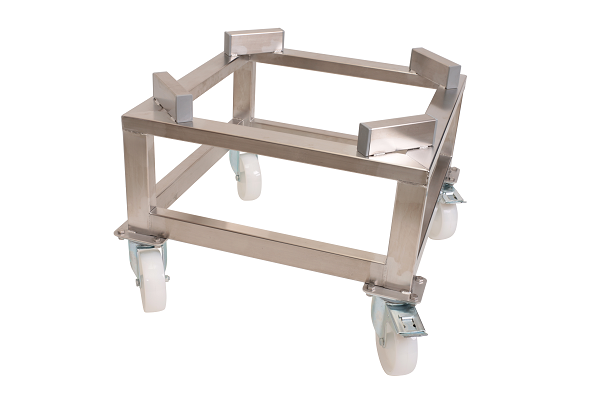

CFM-Stand for 100 kg tanks (double walled)• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels two of them with locking brake• Fits tank no. 5800186 and 5822100

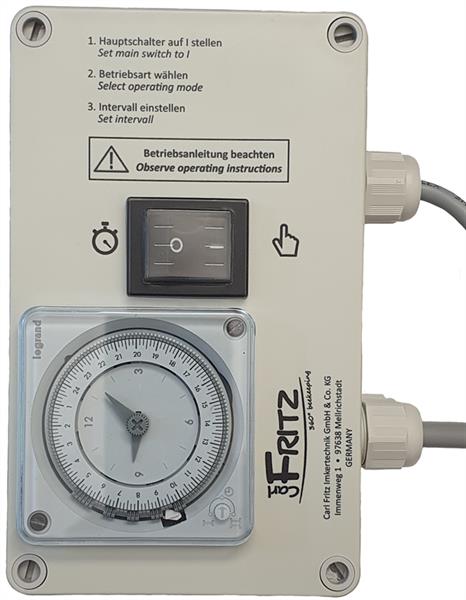

This timer is suitable for all honey stirrers and mixers with 400 V motor.Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)One of our experienced employees does the installation.

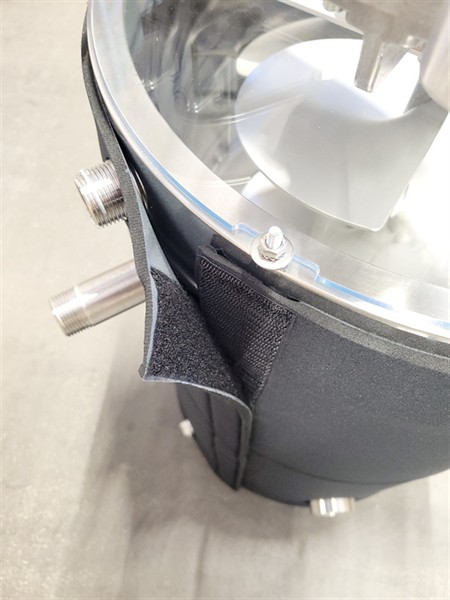

• Suitable for CFM 100 kg double-walled filling container, item 5800186, or 100 kg double-walled creamer and homogenizer, item 5822100• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be removed or put back in / pressed in again if required• Weight approx. 1,5 kg

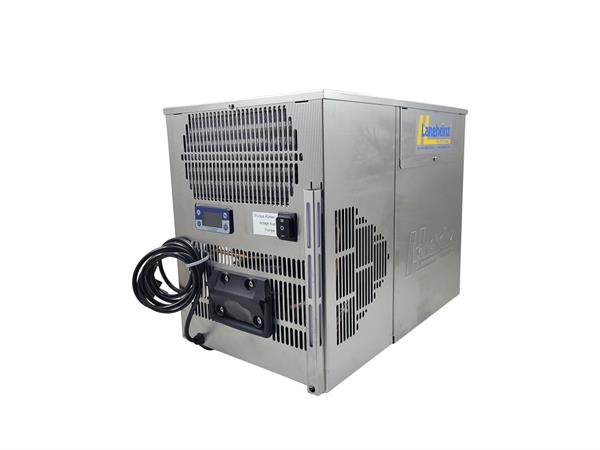

For tempering the honey during the creaming process – this produces the finest cream honey!Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat. The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.The device can only be used for cooling.Technical Data:Water connection: 3/4"Cooling power: 457 W at0 °C, 527 W at +5 °CElectrical power: 230 V, 50 Hz, 2,1 A / 350 WCooling machine: DLE4CNCooling refrigerant: R290Filling quantity: 60 gTank content: 12,5 litreMeasurements (L/D/H): 480 x 300 x 400 mmCasing: stainless steelAgitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0,6 A, 64 WWeight: 25 kgShipping weight: 37 kg Optional Accessories - Please order separately:Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamerItem no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamerItem no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer

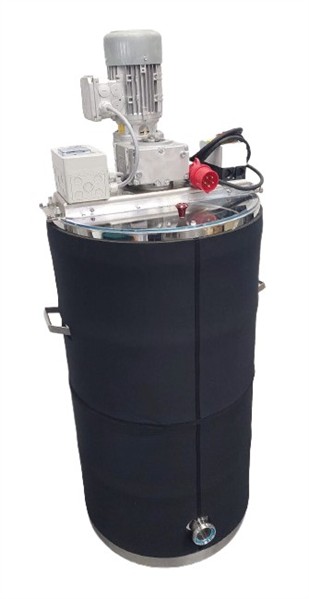

Suitable for 300 kg double walled tank item no. 5800191 and 300 kg double walled creamer and homogenizer item no. 5822300• Made of foamed insulation material• With cut-outs for handles and/or draining taps / valves• Cut-outs for oil-level glass or filling nozzle are perforated and can easily be taken out or put back in / pressed in again if required• Weight approx. 1.8 kg

• Stainless steel, height 100 cm• Suitable for No. 5822100 with filling machine No. 6099202• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without filling machine!

• Stainless steel, height 100 cm• Suitable for No. 5822100 with bottling machine No. 6000201• Due to the stand design the creamer is above the bottling machine which is ideal for the filling process• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore. • With connection piece DN40Delivery without bottling machine!

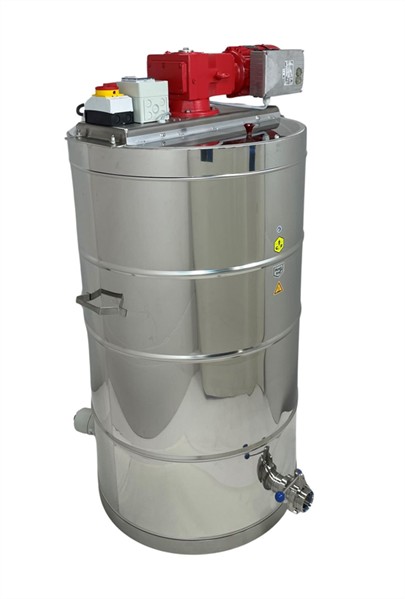

This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25-30°C.In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (Rake has to be covered with honey)!Technical details:• flat gear motor 1100 W / 400 V• approx. 18 rpm• paddle screw with rake at the bottom• minimum filling quantity: 130 kg• inner tank Ø 72 cm, welded bottom without gap• outer tank Ø 77 cm• rigid handles• tank bottom with slope to the outlet• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve• material: stainless steel• heater 6kW / 400 V• capacity for double wall: approx. 120 liter• outer tank height: 137 cm• total height: 162 cmPlease note:We recommend filling the double wall with water (eg filtered rainwater).Weight: without wrapping: approx. 175 kg / with wrapping 185 kgPacked on a palletChargeable weight: 185 kg Optional accessories - please order separately:Item no. 5092100 timerItem no. 5097031 stand

• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels, two of them with locking brake• Fits item number 5800191 + 5822300More sizes available on request.

• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels two of them with locking brake• Fits item number 5800194 + 5821600More sizes available on request.

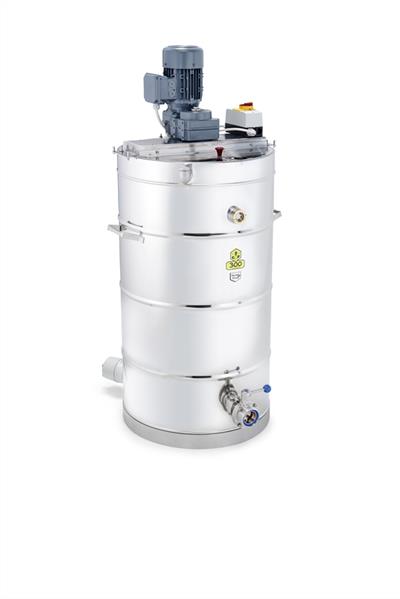

This double-walled honey creamer is especially suitable for mixing different blossom honey varieties. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 °C - 30 °C. In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• flat gear motor 550 W / 400 V• approx. 24 rpm• paddle screw with rake at the bottom• minimum filling quantity: 100 kg• inner tank Ø 55 cm, welded bottom without gap• outer tank Ø 60 cm• rigid handles• tank bottom with slope to the outlet• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve• material: stainless steel• heater 6 kW / 400 V• capacity for double wall: approx. 72 liter• outer tank height: 114 cm• total height: 157 cmPlease note:We recommend filling the double wall with water (eg filtered rainwater).Weight: without/with wrapping: 88 kg / 110 kgPacked on a wooden palletChargeable weight: 110 kg Accessories to be ordered separately:Item no. 5092100 Timer switchItem no. 5097050 Stand
