Bottom drive

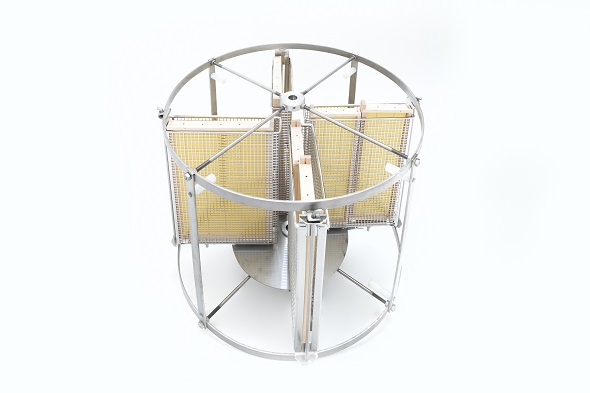

Suitable for:• 4 deep frames side bar length up to 29 cm / 8 shallow frames side bar length up to 14.5• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: net 97 kg, packed on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

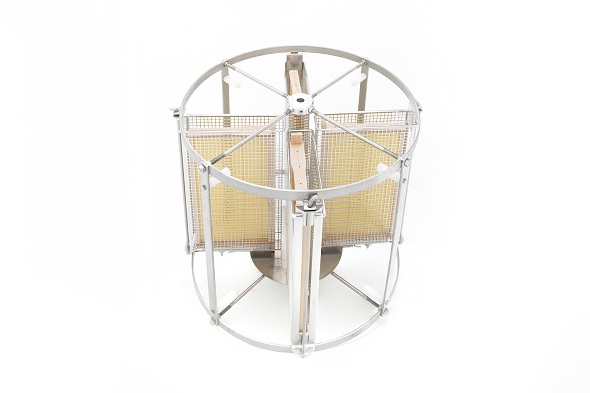

Suitable for:• 4 frames up to side bar length 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material: stainless steel• Loading height: 110 cm• Total height 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 93 kg / 120 kgPacked on a wooden palletChargeable weight: 120 kg Tripod (5055000) for speed control has to be ordered separatly!

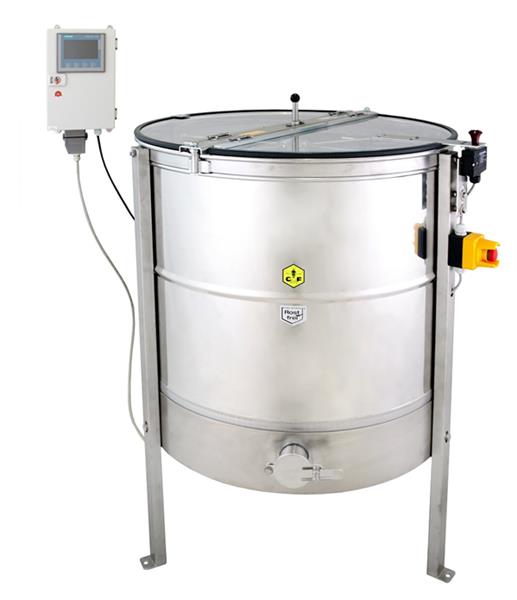

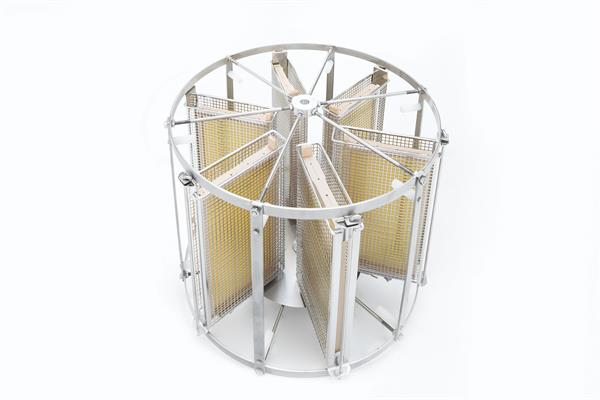

Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 102 kg / 125 kgPacked on a wooden palletChargeable weight: 125 kg Tripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 6 deep frames side bar length up to 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 28 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: net 105 kg, packed on a wooden palletChargeable weight: 140 kg Tripod (5055000) for speed control has to be ordered separatly!

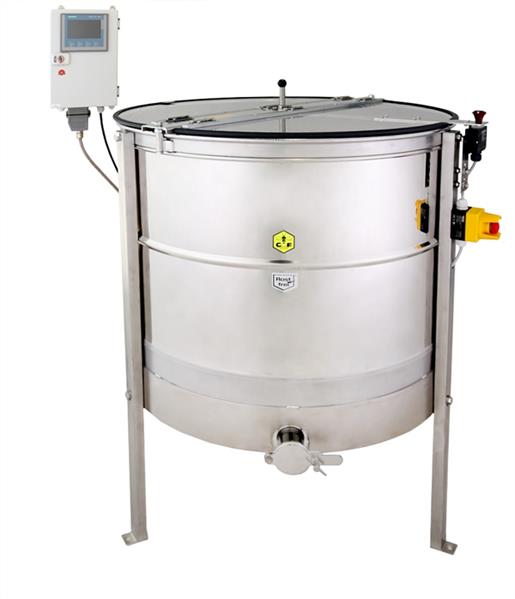

Suitable for:• 6 deep frames side bar length up to 29 cm / 12 shallow frames side bar length up to 14.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant super, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 121 kg / 150 kgPacked on a wooden palletChargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 4 frames up to side bar length 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Austrian Wide FrameTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Pocket size 28 cm x 45 cm• Slots for frame lugs• Material: stainless steel• Loading height: 110 cm• Total height 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 93 kg / 120 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!

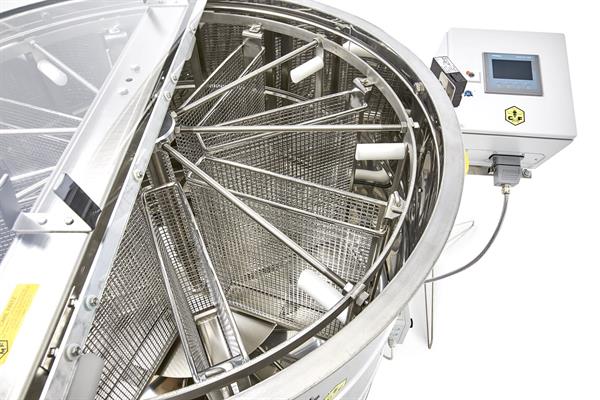

Suitable for:• 8 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 180 kg / 215 kgPacked on a wooden palletChargeable weight: 215 kg Tripod (5055500) for speed control has to be ordered separatly!

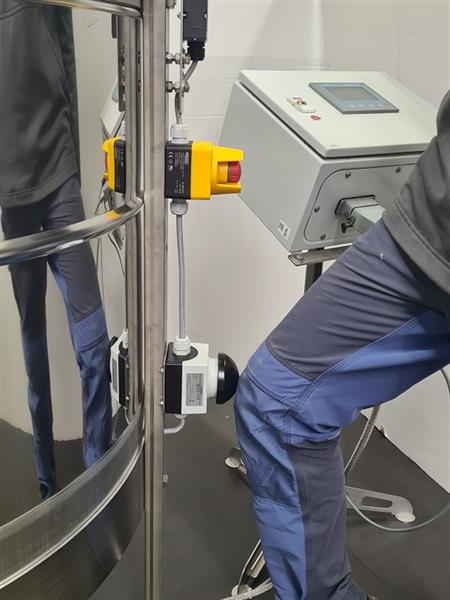

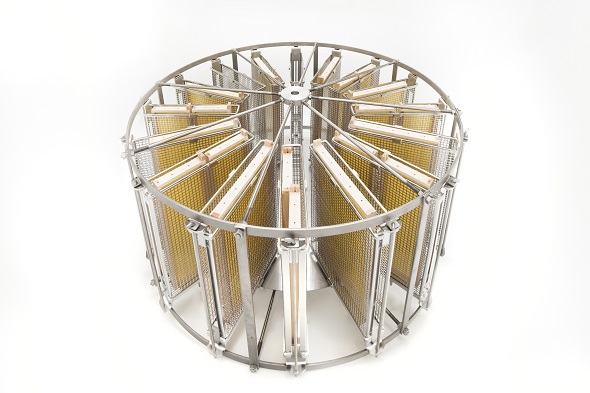

Suitable for:• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: XX kg, packed on a wooden palletTripod (5055550) for speed control has to be ordered separatly!

Suitable for:• 16 deep frames (side bar length up to 33 cm) / 32 shallow frames (side bar length up to 16.5 cm)• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: 280 kg, packed on a wooden palletChargeable weight: 300 kg Tripod (5055550) for speed control has to be ordered separatly!

Suitable for:• 12 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 195 kg, packed on a wooden pallet 230 kgChargeable weight: 230 kg Tripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 8 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 126 kg / 156 kgPacked on a wooden pallet.Chargeable weight: 156 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 12 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 195 kg, packed on a wooden pallet 230 kgChargeable weight: 230 kg Tripod (5055550) for speed control has to be ordered separatly!

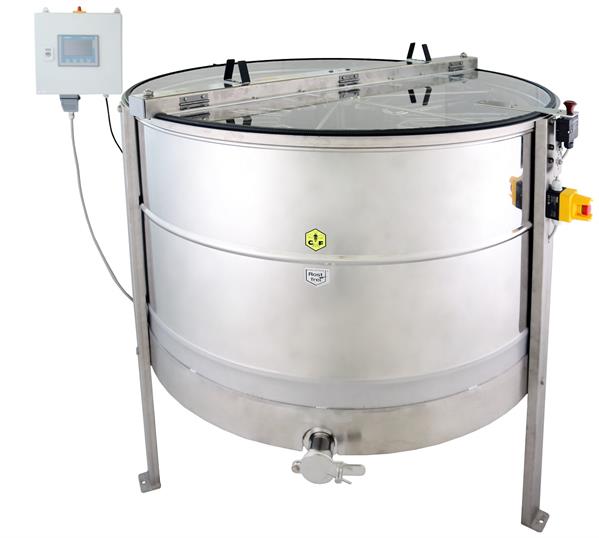

Suitable for:• 16 deep frames (side bar length up to 33 cm) / 32 shallow frames (side bar length up to 16.5 cm)• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: 280 kg, packed on a wooden palletChargeable weight: 300 kg Tripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 12 deep frames (side bar length up to 33 cm) / 24 shallow frames (side bar length up to 16.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 230 kg / 275 kgPacked on a wooden palletChargeable weight: 275 kg Tripod (5055550) for speed control has to be ordered separatly!

Suitable for:• 16 deep frames (side bar length up to 24 cm)• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap / Tank bottom 38/33 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 210 kg, packed on a wooden palletChargeable weight: 264 kg Tripod (5055550) for speed control has to be ordered separatly!

Suitable for:• 4 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 115 cm• Total height 120 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 111 kg / 150 kgPacked on a wooden palletChargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!

Suitable for:• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: XX kg, packed on a wooden palletTripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 12 deep frames (side bar length up to 33 cm) / 24 shallow frames (side bar length up to 16.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 230 kg / 275 kgPacked on a wooden palletChargeable weight: 275 kg Tripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 16 deep frames (side bar length up to 24 cm)• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap / Tank bottom 38/33 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 210 kg, packed on a wooden palletChargeable weight: 264 kg Tripod (5055500) for speed control has to be ordered separatly!

Suitable for:• 8 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 180 kg / 215 kgPacked on a wooden palletChargeable weight: 215 kg Tripod (5055550) for speed control has to be ordered separatly!
