How a CFM self-turning honey extractor works
The previously uncapped honeycombs are placed in the designated honeycomb pockets. At rest, the frames, similar to a radial honey extractor, are star-shaped in the tank. As soon as the spinning process is started, the movable honeycomb pockets are tangential to the tank wall according to the centrifugal force (left or right rotation), meaning that they turn tangentially during the spinning process. Depending on the equipment of the CFM-self tuning extractor the direction is changed by hand or electronic control. Both honeycomb sides are ejected automatically and efficiently.
Range of applications for a CFM self-turn honey extractor
A self-turning honey extractor is suitable for 15 or more bee colonies. It can be distinguished again after top- or bottomdrive motor. Particularly suitable for harvesting viscous honeys. With this kind of extractor, there is rarely a honeycomb break due to the good support of the honeycomb, even at high speeds. Again, a uniform loading of the honey extractor should be considered.
See more information in the FAQ section
5214024

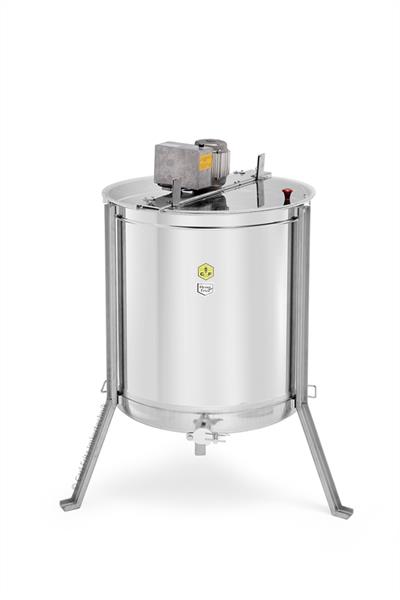

CFM-Euro-Self-turning extractor 4 frames, Ø63cm with "Whispering Witch"
The beginner model of our CFM-Euro-Self-turning extractors with "Whispering Witch". With this honey extractor the annoying manual turning of the frames is omitted. The frame basket is made of wire mesh bars and a turning device. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models.Why "Whispering Witch"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?Of course this extractor is also equipped with a security device.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, Langstroth• Direct drive with security switch• Motor power 40 W / 230 V• Very quiet drive even at full speed• Speed control 80 - 350 rpm• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 24 cm x 41 cm• Material: Edelstahl-Rostfrei• Loading height: 100 cm• Total height: 130 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 66 kg / 43 kgWrapping: cardboard boxChargeable weight: 66 kgSpare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request
5520030
CFM-Self-turning extractor 4 pockets, 370W motor drive underneath, fully automatic
Suitable for:• 4 deep frames side bar length up to 29 cm / 8 shallow frames side bar length up to 14.5• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: net 97 kg, packed on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5114024

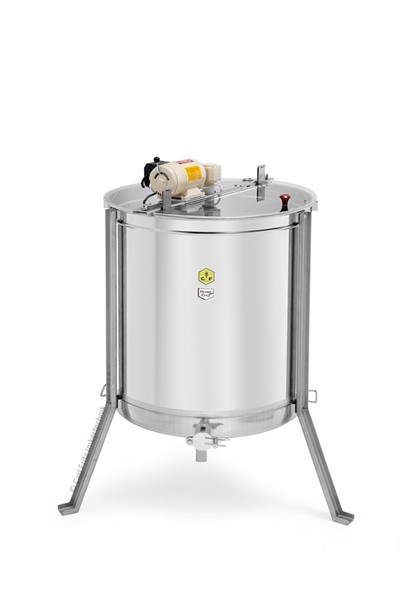

CFM-Euro-Self-turning extractor 4 frames, Ø63cm with "Extractor Witch"
The beginner model of our CFM-Euro-Self-turning extractors. With this honey extractor the annoying manual turning of the frames is omitted. The frame basket is made of wire mesh bars and a turning device. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models. The left and right turn can easily be adjusted with a lever. Of course this extractor is also equipped with a security device.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Top drive with security switch• Motor power 110 W / 230 V• Left and right turn• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 24 cm x 41 cm• Material: Edelstahl-Rostfrei• Total height: 124 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 44 kg / 66 kgWrapping: cardboard boxChargeable weight: 66 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request
5518025
CFM-Self-Turning extractor 4 frames, Ø 72 cm, 370W motordrive underneath, fully automatic
Suitable for:• 4 frames up to side bar length 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material: stainless steel• Loading height: 110 cm• Total height 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 93 kg / 120 kgPacked on a wooden palletChargeable weight: 120 kg Tripod (5055000) for speed control has to be ordered separatly!
5522025

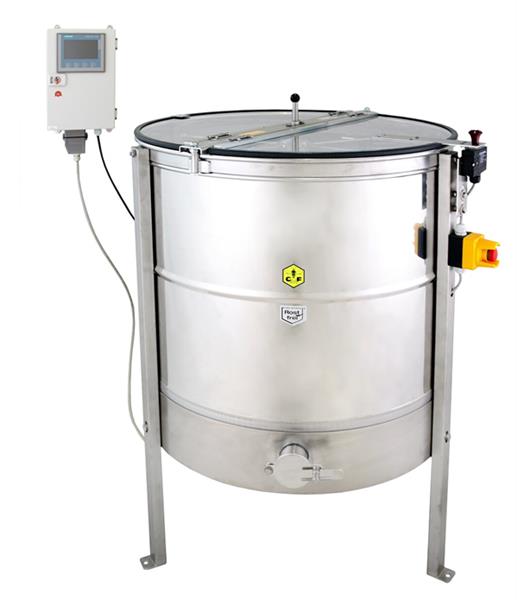

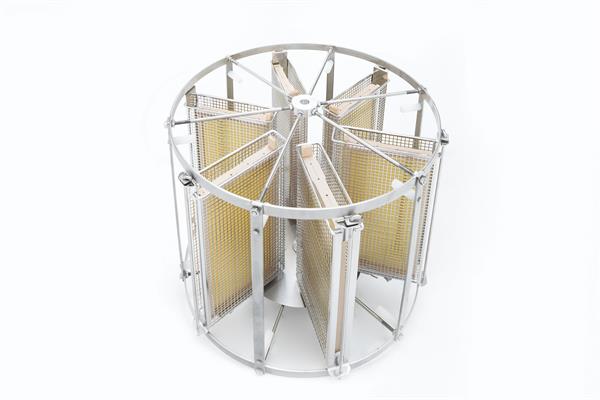

CFM-Self-turning extractor 6 pockets, 370W motor drive underneath, fully automatic
Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 102 kg / 125 kgPacked on a wooden palletChargeable weight: 125 kg Tripod (5055500) for speed control has to be ordered separatly!
5522028
CFM-Self-turning extractor 6 pockets, Ø 77 cm, 370W motor drive underneath, fully automatic
Suitable for:• 6 deep frames side bar length up to 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 28 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: net 105 kg, packed on a wooden palletChargeable weight: 140 kg Tripod (5055000) for speed control has to be ordered separatly!
6.86
%
Z5822025
II. Choice CFM-Self-turning extractor 6 frames, Ø 77 cm, 180W top drive, fully automatic
*** Special price II. choice with small flaws - works perfectly ***Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 25 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 111 cm• Total height: 126 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 89 kg / 110 kgPacked on a wooden palletChargeable weight: 110 kg Tripod (5055000) for speed control has to be ordered separatly!
5524030
CFM-Self-turning extractor 6 pockets, Ø 85cm, 370W motor drive underneath, fully automatic
Suitable for:• 6 deep frames side bar length up to 29 cm / 12 shallow frames side bar length up to 14.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant super, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 121 kg / 150 kgPacked on a wooden palletChargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!
5518028

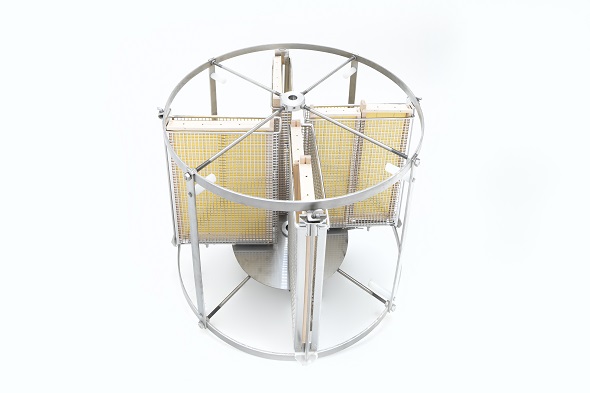

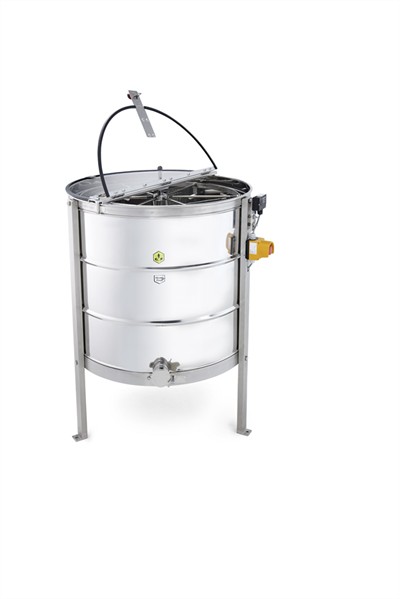

CFM-Self-Turning extractor 4 frames, Ø 72 cm, 370W motordrive underneath, fully automatic
Suitable for:• 4 frames up to side bar length 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Austrian Wide FrameTechnical details:• Emergency stop button• Safety device with lid lock• Bottom drive 370W / 230V• Fully automatic with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Pocket size 28 cm x 45 cm• Slots for frame lugs• Material: stainless steel• Loading height: 110 cm• Total height 119 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 93 kg / 120 kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5818025

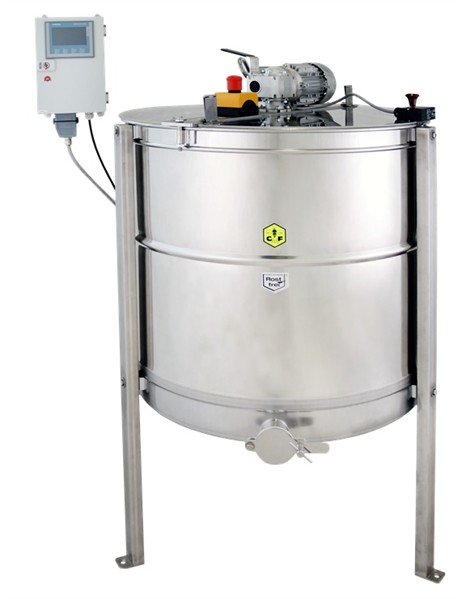

CFM-Self-turning extractor 4 frames, Ø 72cm, 180W, fully automatic
Suitable for:• 4 deep frames side bar length up to 24 cm• frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 25 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 72 kg / 95 kgPacked on a wooden palletChargeable weight: 95 kg Tripod (5055000) for speed control has to be ordered separatly!
5530034
CFM-Self-turning extractor 8 pockets, Ø 100cm, 750W motor drive underneath, fully automatic
Suitable for:• 8 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 180 kg / 215 kgPacked on a wooden palletChargeable weight: 215 kg Tripod (5055500) for speed control has to be ordered separatly!
5536030-PTO
CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic, with lid opener
Suitable for:• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: XX kg, packed on a wooden palletTripod (5055550) for speed control has to be ordered separatly!
5536034-PTO
CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic, with lid opener
Suitable for:• 16 deep frames (side bar length up to 33 cm) / 32 shallow frames (side bar length up to 16.5 cm)• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: 280 kg, packed on a wooden palletChargeable weight: 300 kg Tripod (5055550) for speed control has to be ordered separatly!
5532025

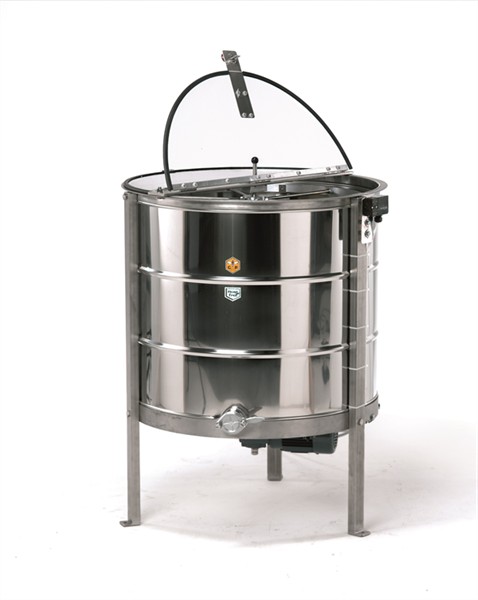

CFM-Self-turning extractor 12 pockets, Ø 100cm, 750W motor drive underneath, fully automatic
Suitable for:• 12 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 195 kg, packed on a wooden pallet 230 kgChargeable weight: 230 kg Tripod (5055500) for speed control has to be ordered separatly!
5718028
CFM-Self-turning extractor 4 frames, Ø 72cm, 270W motor drive
The low-noise top drive gear motor offers you the option of switching from clockwise to anticlockwise rotation (or vice versa) by means of a toggle switch. As soon as you change the running direction by means of a switch, the drive brakes automatically and then starts up again in the other direction. The speed can be infinitely adjusted by means of a rotary knob. The honey extractor is also equipped with a safety device so that the lid cannot be opened during the extracting process. This mechanism is only released when the cage has come to a complete standstill.Suitable for:• 4 deep frames side bar length up to 27 cm• Frame sizes: Zander, German Standard, Langstroth, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Safety device with lid lock• Top drive gear motor 270 W / 230 V• Left / right turn• Speed infinitely adjusted• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 2" honey tap, welded at bottom level• Frame pocket size 28 cm x 45 cm• Material:stainless steel• Loading height: 112 cm• Total height: 128 cm• Distance from the floor to the honey tap: 38 cmWeight: without/with wrapping: XX kg / XX kgPacked on a wooden pallet
5528025

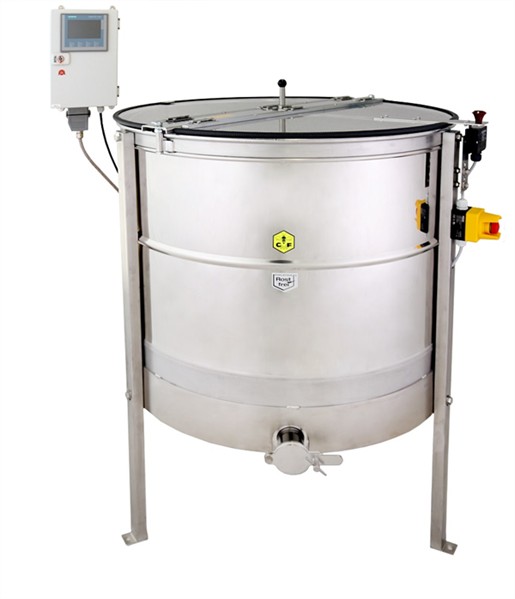

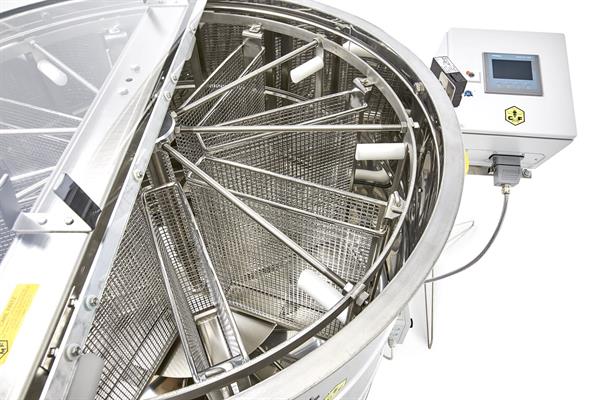

CFM-Self-turning extractor 8 pockets, Ø 85cm, 370W motor drive underneath, fully automatic
Suitable for:• 8 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Total height 119 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 126 kg / 156 kgPacked on a wooden pallet.Chargeable weight: 156 kg Tripod (5055000) for speed control has to be ordered separatly!
5532025-PTO
CFM-Self-turning extractor 12 pockets, Ø 100cm, 750W motor drive underneath, fully automatic, with lid opener
Suitable for:• 12 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 195 kg, packed on a wooden pallet 230 kgChargeable weight: 230 kg Tripod (5055550) for speed control has to be ordered separatly!
5822025
CFM-Self-turning extractor 6 frames, Ø 77 cm, 180W top drive, fully automatic
Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 25 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 88kg / 110 kgPacked on a wooden palletChargeable weight: 110 kg Tripod (5055000) for speed control has to be ordered separatly!
5718025

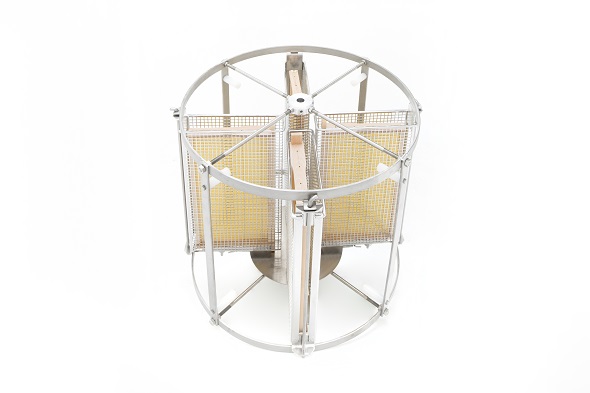

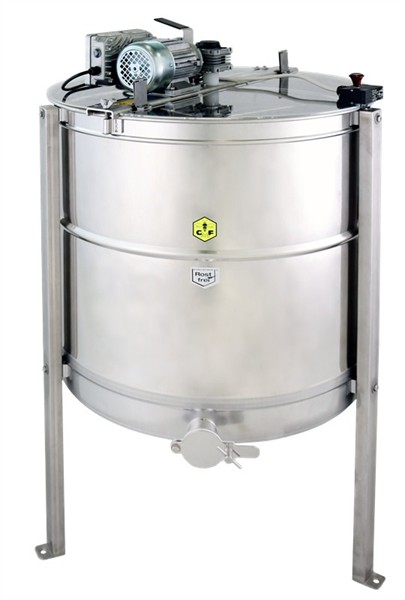

CFM-Euro-Self-turning extractor 4 frames, Ø 72 cm, 270W motor
This CFM-Euro-Self-turning extractor is suitable for 4 frames Zander, German Standard, Langstroth and Freudenstein.The low-noise top drive gear motor offers you the possibility to switch from right to left (or vice versa) via a tilt switch. As soon as you change the direction with the switch, the drive automatically stops and then starts again in the other direction. The rotary knob can be steplessly adjusted. The honey extractor is also equipped with a safety device so that the lid cannot be opened during the extraction process. This mechanism is only released when the basket comes to a complete stop.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Security device with lid lock• Flat gear motor 270 W / 230 V• Left / right turn• Speed continously adjustable• Hinged acrylic glass lid halves• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 25 cm x 45 cm• Material: Edelstahl-Rostfrei• Loading height: 112 cm• Total height: 128 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 66 kg / 90 kgWrapping: cardboard boxChargeable weight: 90 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300059 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request
5818028
CFM-Self-turning extractor 4 frames, Ø 72cm, 180W, fully automatic
Suitable for:• 4 deep frames side bar length up to 27 cm• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 72 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 28 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: 74kgPacked on a wooden palletTripod (5055000) for speed control has to be ordered separatly!
5536034

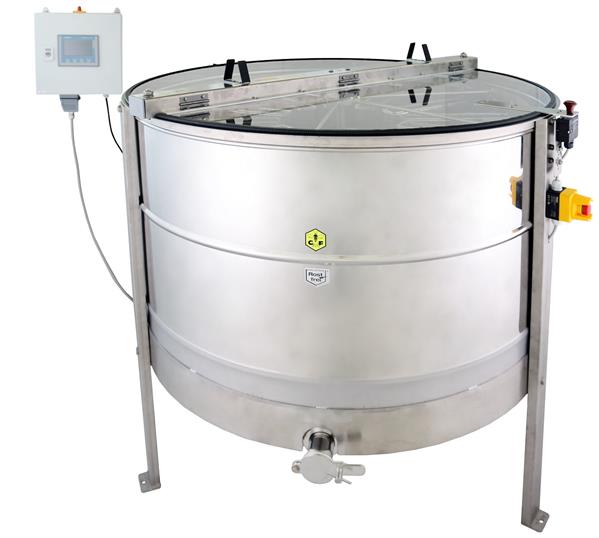

CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic
Suitable for:• 16 deep frames (side bar length up to 33 cm) / 32 shallow frames (side bar length up to 16.5 cm)• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: 280 kg, packed on a wooden palletChargeable weight: 300 kg Tripod (5055500) for speed control has to be ordered separatly!
5822028
CFM-Self-turning extractor 6 frames, Ø 77 cm, 180W top drive, fully automatic
Suitable for:• 6 deep frames side bar length up to 27 cm• Frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 28 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: 91 kgPacked on a wooden palletChargeable weight: 130 kg Tripod (5055000) for speed control has to be ordered separatly!
5534034-PTO

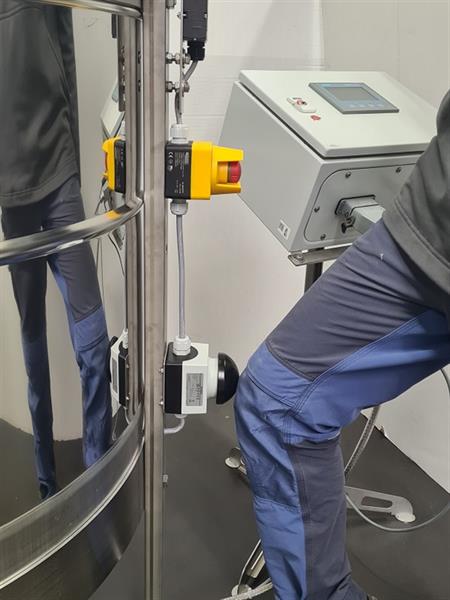

CFM-Self-turning extractor, 12 pockets, Ø125cm, motor 1500W underneath, fully automatic, with lid opener
Suitable for:• 12 deep frames (side bar length up to 33 cm) / 24 shallow frames (side bar length up to 16.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 230 kg / 275 kgPacked on a wooden palletChargeable weight: 275 kg Tripod (5055550) for speed control has to be ordered separatly!
5536025-PTO
CFM-Self-turning extractor, 16 pockets, Ø125cm, motor 1500W underneath, fully automatic, with lid opener
Suitable for:• 16 deep frames (side bar length up to 24 cm)• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap / Tank bottom 38/33 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 210 kg, packed on a wooden palletChargeable weight: 264 kg Tripod (5055550) for speed control has to be ordered separatly!
5535025
CFM-Double pocket honey extractor 24 shallow frames, motor drive 1500 W underneath, fully automatic
Suitable for:• 24 shallow frames sidebar length up to 25 cmTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• 6 double pockets size 27 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: XX kg, packed on a wooden palletTripod (5055500) for speed control has to be ordered separatly!(Picture similar)
5528034

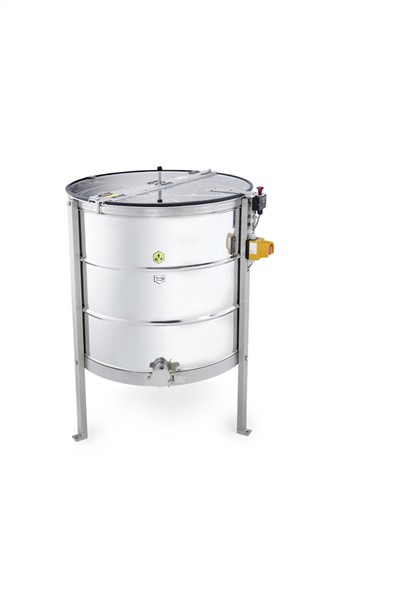

CFM-Self-turning extractor 4 pockets, Ø 85cm, 370W motor drive underneath, fully automatic
Suitable for:• 4 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 85 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 115 cm• Total height 120 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 111 kg / 150 kgPacked on a wooden palletChargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!
5536030

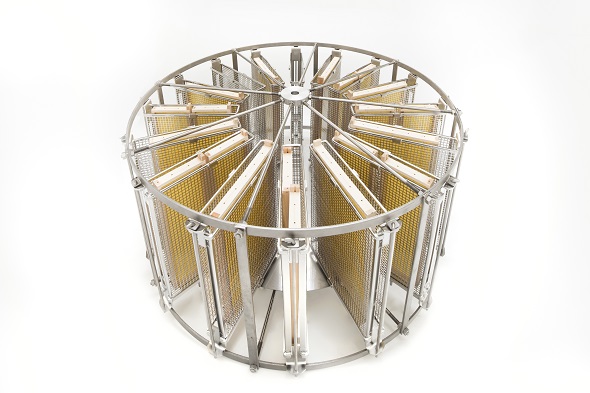

CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic
Suitable for:• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 30 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: XX kg, packed on a wooden palletTripod (5055500) for speed control has to be ordered separatly!
5714024

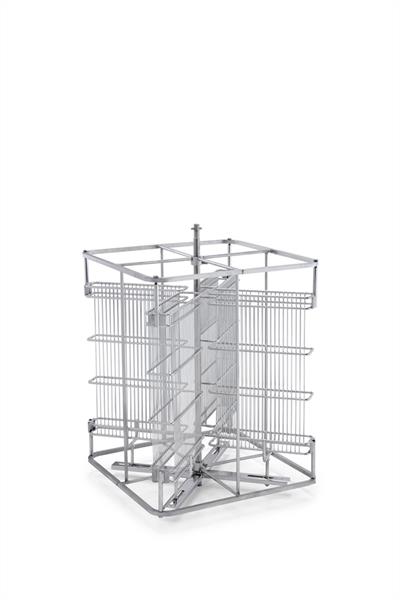

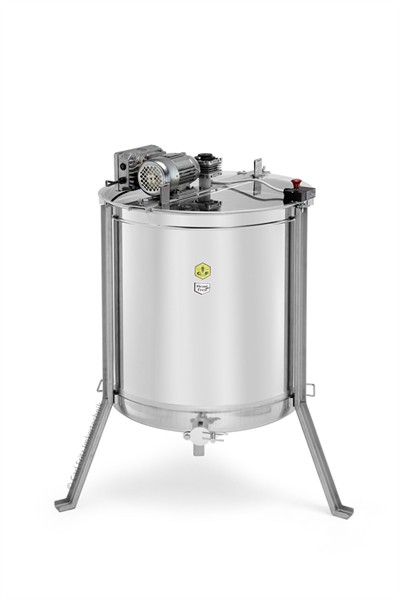

CFM-Euro-Self-turning extractor 4 frames, Ø 63 cm, 270W motor
This CFM-Euro-Self-turning extractor is suitable for 4 frames Zander, German Standard or Langstroth. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models.The low-noise top drive gear motor offers you the possibility to switch from right to left (or vice versa) via a tilt switch. As soon as you change the direction with the switch, the drive automatically stops and then starts again in the other direction. The rotary knob can be steplessly adjusted. The honey extractor is also equipped with a safety device so that the lid cannot be opened during the extraction process. This mechanism is only released when the basket comes to a complete stop.Suitable for:• 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, LangstrothTechnical details:• Security device with lid lock• Flat gear motor 270 W / 230 V• Left / right turn• Speed continously adjustable• Hinged acrylic glass lid halves• Inner tank Ø 63 cm, welded bottom without gap• Tank bottom with slope to the outlet• Outlet: 1 1/2" honey tap, welded at bottom level• Handles at the lower end of the tank• Frame pockets made of wire mesh bars 24 cm x 41 cm• Material: Edelstahl-Rostfrei• Total height: 126 cm• Distance from floor to the tap 38 cmIncluded in the delivery:1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.Weight with/without wrapping: 45 kg / 65 kgWrapping: cardboard boxChargeable weight: 65 kg Spare parts and accessories:Item no. 6000070 Ball for bearingItem no. 6300061 Rubber feetItem no. 6000074 Food lubricant grease for bottom bearing 20 gItem no. 23045007 Sealant for bottom bearingAcrylic glass lid half on request
6.9
%
Z5522025
II. Choice CFM-Self-turning extractor 6 pockets, 370W motor drive underneath, fully automatic
*** Special price II. choice with small flaws - works perfectly ***Suitable for:• 6 deep frames side bar length up to 24 cm• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 111 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 98 kg / 125 kgPacked on a wooden palletChargeable weight: 125 kg Tripod (5055500) for speed control has to be ordered separatly!
5534034
CFM-Self-turning extractor, 12 pockets, Ø125cm, motor 1500W underneath, fully automatic
Suitable for:• 12 deep frames (side bar length up to 33 cm) / 24 shallow frames (side bar length up to 16.5 cm)• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 230 kg / 275 kgPacked on a wooden palletChargeable weight: 275 kg Tripod (5055500) for speed control has to be ordered separatly!
5536025
CFM-Self-turning extractor, 16 pockets, Ø125cm, motor 1500W underneath, fully automatic
Suitable for:• 16 deep frames (side bar length up to 24 cm)• Frame sizes: Zander, German Standard, Langstroth, FreudensteinTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 1500W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 125 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 25 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 117 cm• Total height 131 cm• Distance from the floor to the honey tap / Tank bottom 38/33 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight: net 210 kg, packed on a wooden palletChargeable weight: 264 kg Tripod (5055500) for speed control has to be ordered separatly!
5530034-PTO

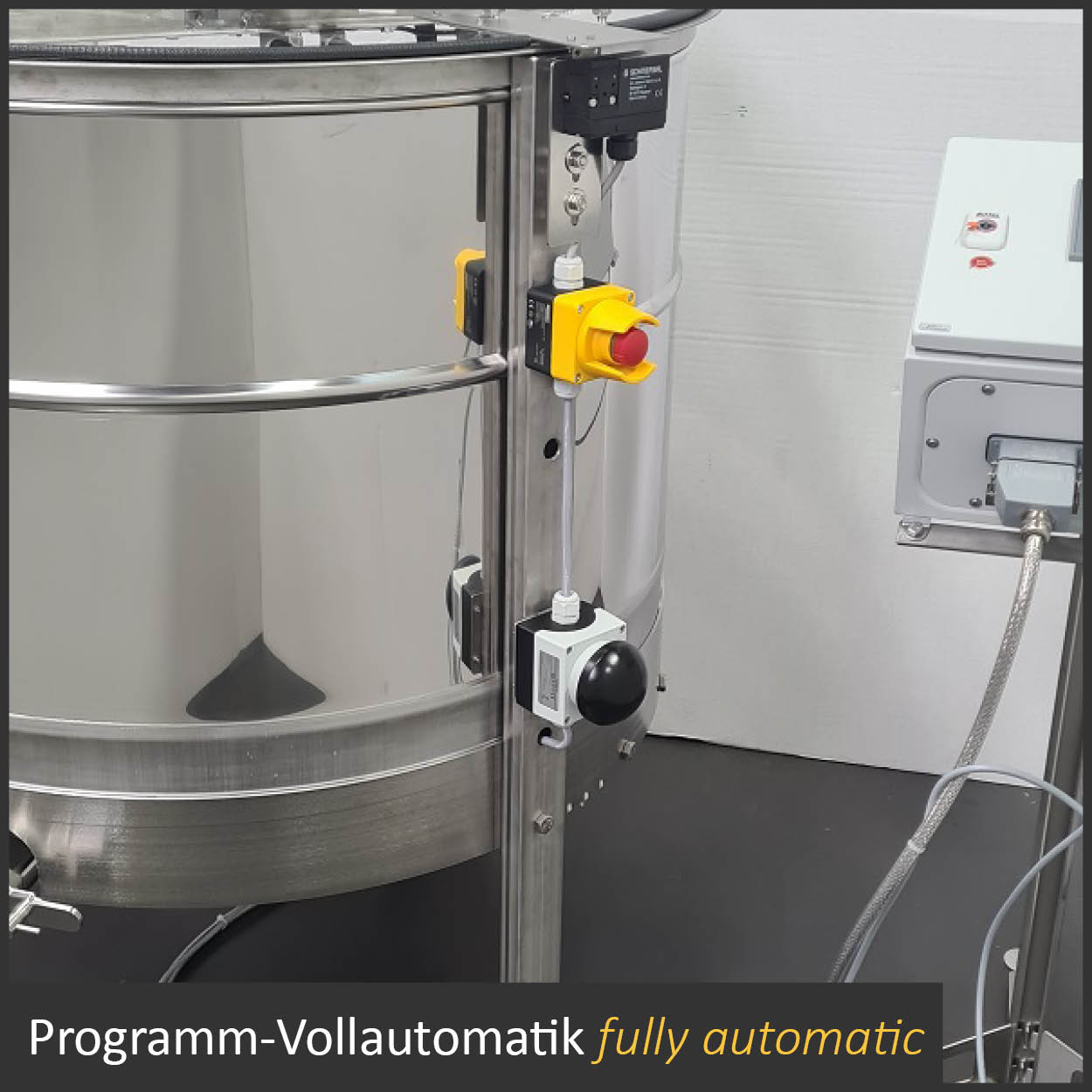

CFM-Self-turning extractor 8 pockets, Ø 100cm, 750W motor drive underneath, fully automatic, with lid opener
Suitable for:• 8 deep frames side bar length up to 33 cm / 16 shallow frames side bar length up to 16.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 750W / 230 V• With electrical lid opener• Push-to-open via special button• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 100 cm welded bottom withouth gap• Tank bottom with slope to the outlet• Pocket size 34 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 116 cm• Total height 130 cm• Distance from the floor to the honey tap 38 cm• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tapWeight without/with wrapping: 180 kg / 215 kgPacked on a wooden palletChargeable weight: 215 kg Tripod (5055550) for speed control has to be ordered separatly!
5820030

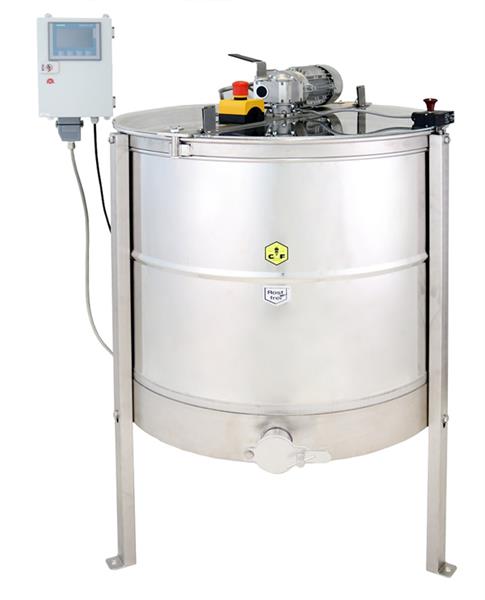

CFM-Self-turning extractor 4 frames, Ø 77 cm, 180W top drive, fully automatic
Suitable for:• 4 deep frames side bar length up to 29 cm / 8 shallow frames side bar length up to 14.5 cm• Frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian BreitwabeTechnical details:• Emergency stop botton• Safety device with lid lock• Top drive motor 180 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom without gap• Tank bottom with slope to the outlet• Frame pocket size 30 cm x 45 cm• Slots for frame lugs• Material: Stainless steel• Loading height: 110 cm• Total height: 127 cm• Distance from the floor to the honey tap: 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight without/with wrapping: 83 / 108 kgPacked on a wooden palletChargeable weight: 108 kg Tripod (5055000) for speed control has to be ordered separatly!
5522017
CFM-Double pocket honey extractor 12 shallow frames, motor drive 370 W underneath, fully automatic
Suitable for:• 12 shallow frames sidebar length up to 17 cmTechnical details:• Emergency stop botton• Safety device with lid lock• Bottom drive 370 W / 230 V• Fully automatic speed control with wall holder• Hinged acrylic glass lid halfs• Inner tank Ø 77 cm, welded bottom withouth gap• Tank bottom with slope to the outlet• 6 double pockets size 19 cm x 45 cm• Slots for frame lugs• Material:stainless steel• Loading height 110 cm• Distance from the floor to the honey tap 38 cm• Outlet: 2" honey tap, welded at bottom levelWeight: XX kg, packed on a wooden palletTripod (5055000) for speed control has to be ordered separatly!(Picture similar)
